24′ Vee Nose Disaster Response Trailer (O1249)

General

24′ (Plus Vee-Nose) all-aluminum frame, I-beam main frame perimeter welded with 3/16 bottom skirt. Structural extruded roof rails, I-beam rear header, tall height for drive-in side by side mini ambulance.
12,000lb equalized Timbren torsion suspension, tandem 6k axle ez lube bearings, auto-adjust electric brakes, breakaway system, aluminum wheels with 235/80 r16 lre 10 ply tires
Adjustable height hitch and 7000lb drop leg tongue jack, g70 safety chains, and 2 5/16″ ball coupler
seamless insulated FRP walls r-7 with smooth gel coat finish on the exterior and interior
seamless insulated FRP ceiling insulated r15 smooth gel coat finish.
seamless 060 aluminum roof sheet walk-on ladder access.
interior partition with door between office area in the front and rear work garage area, office side is FRP sheeted, garage side has strut channel frame for attachments for hooks cargo etc.
36×80 side entry door, has window and screen door. Fold-out steps -aluminum treads adjustable legs, folds up interior stored, fold out grab rail
rear insulated swing doors with aluminum pull out ramp stored in frame. Aluminum greaseable heavy duty hinges, sealok double gasket and aluminum anti rack camlocks
slider window in front office street side

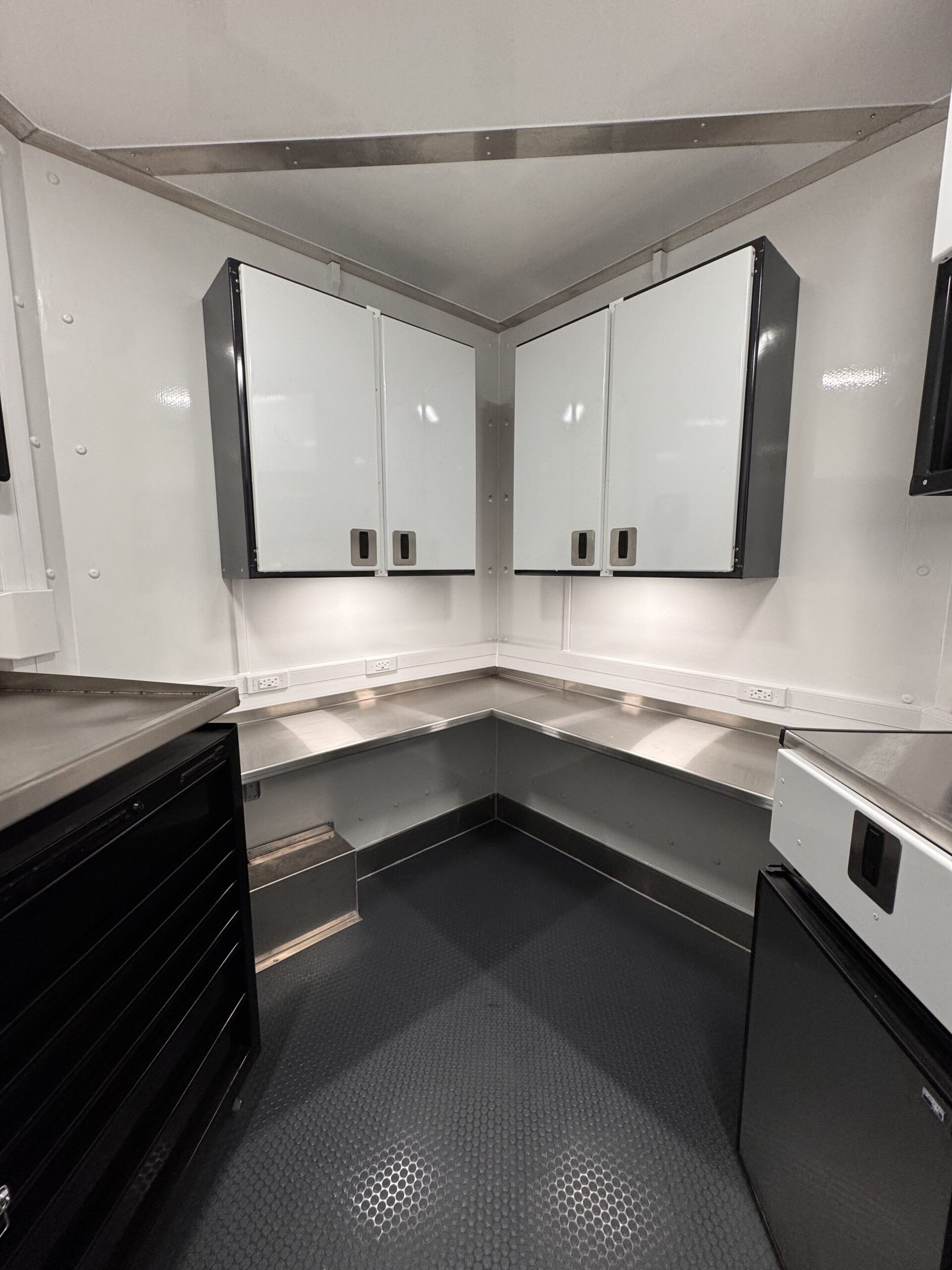

office space (2) 36x36x12 wall cabinets, (2) doors, (3) shelves, (1) 2-door wall cabinet with micro wave and upper door with led under cabinet lights on all cabinets (1) 7-drawer rolling tool cabinet

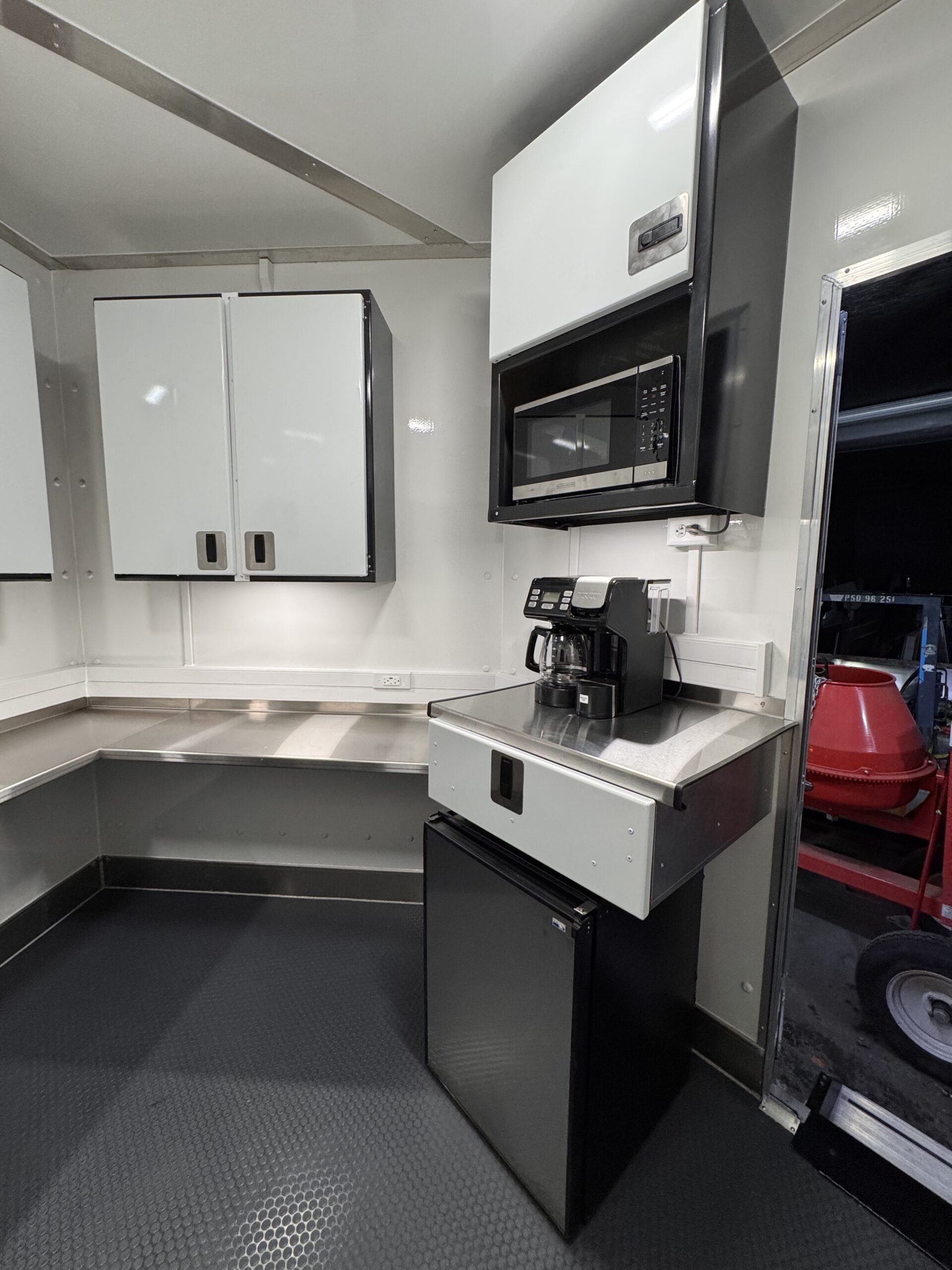

front office space has stainless steel vee nose counter top, stainless steel counter under side window, and stainless steel counter over refrigerator with 24″ under counter drawer

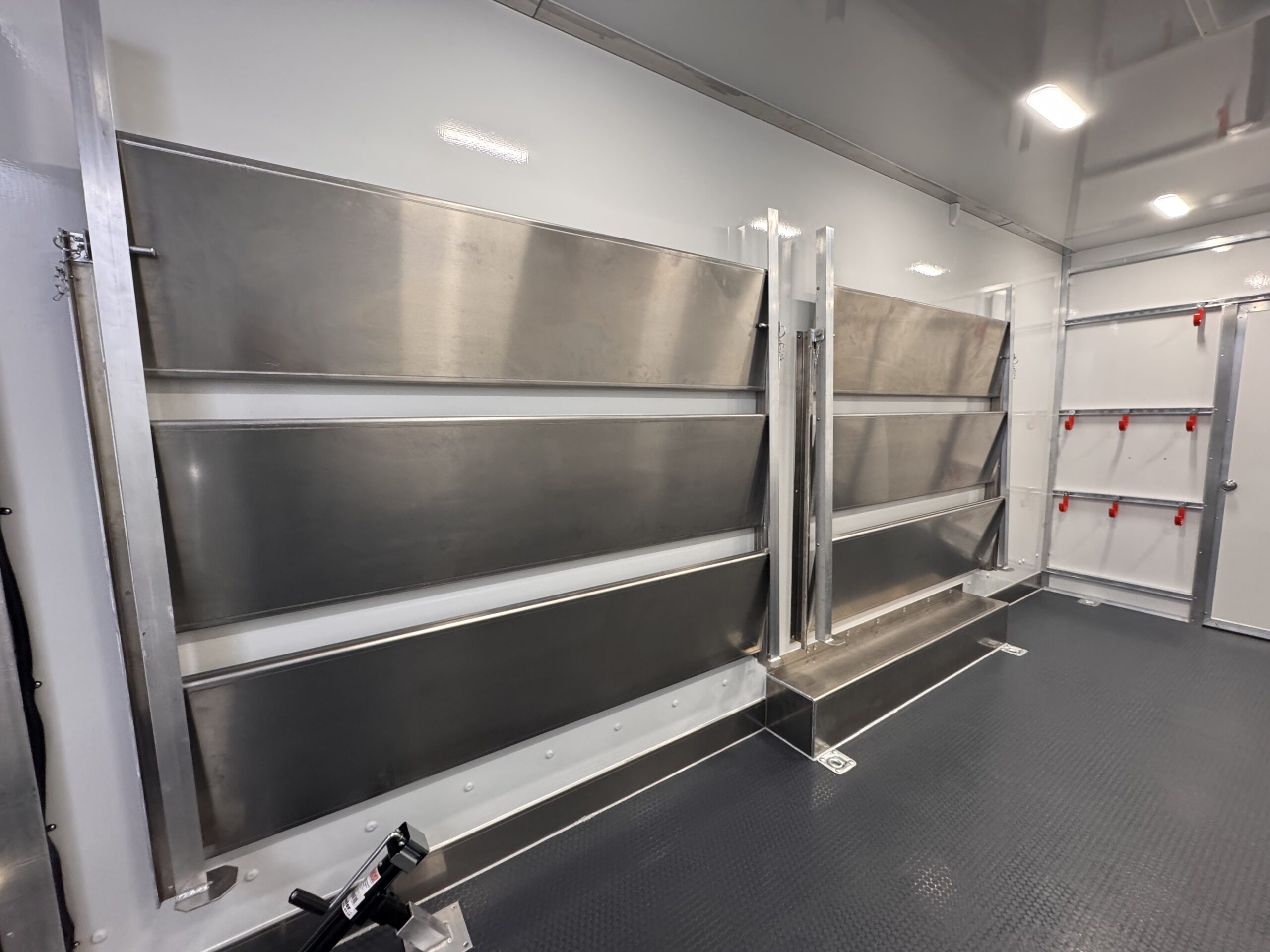

rear work area has (2) aluminum 6′ 3 shelf fold up shelving units.
(3) fold stainless desk/work tops. (8) flush floor drings for securing mini ambulance or cargo

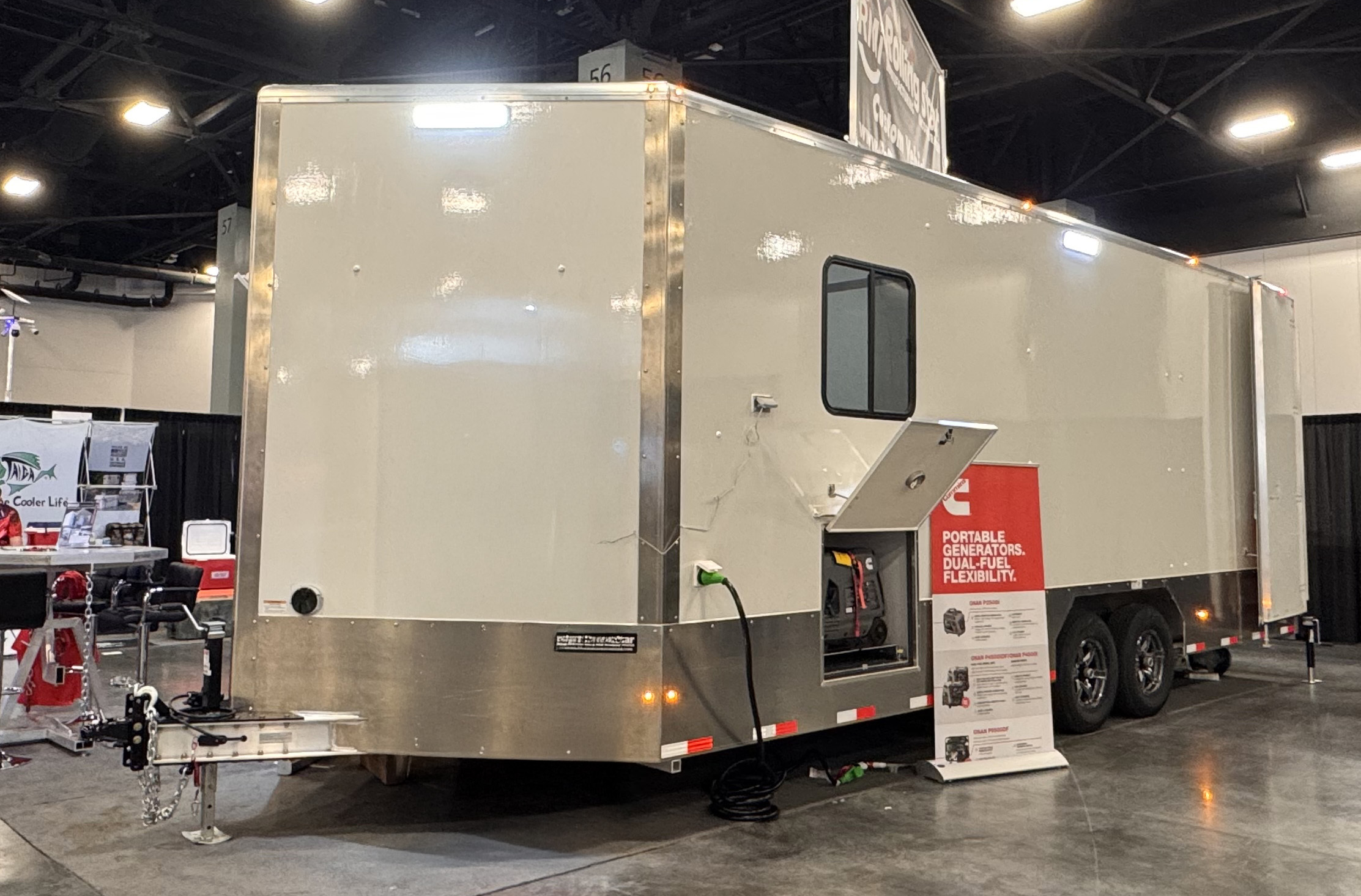

generator 4500i Cummins Onan portable in side compartment with exterior door, generator mounted on slide out shelf for operation
110v office space
50 amp service with 25′ shore cord 50 map twist lock shore power inlet with adapters to 15 amp and 30 amp generator outlet
double channel cable channel with removable covers over countertops and refrigerator top (7) 110v outlets with USB charging ports (1) 20 duplex out let over refrigerator top
micro wave .9 cu ft in cabinet over 3.3 cu ft 12v refrigerator with freezer compartment
13500 btu air conditioner with wall control thermostat
(2) wall forced air heater

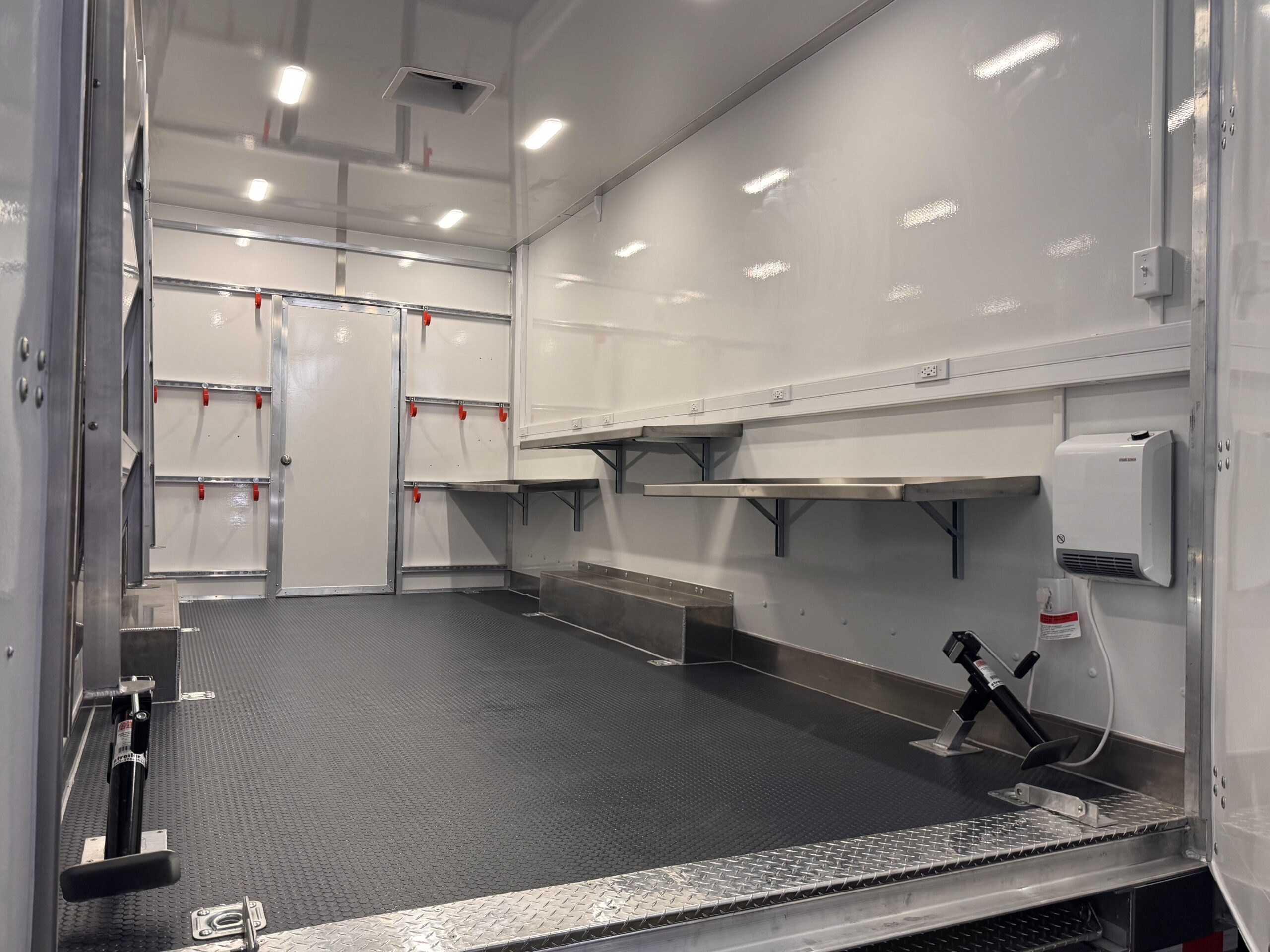

rear area has double track with (6) 110v outlets over folding desks/work tops
(4) exterior outlets GFI protected
12v
(2) AGM sealed batteries with 60 amp converter charger, 20 amp roof mount solar panel with controller showing battery voltage
(8) interior led high output ceiling lights switch at entry door (2 )front room (6) rear area
6 led scene lights with switching at entry door
rear LED light bar over rear doors switched at rear door
LED door area light by side door
LED marker clearance lights led stop turn tail light with reverse lights
12v remote controlled roof vent in rear work area with multi speed reversable fan. Louvered cover for run in the rain
safety items conspicuity dot reflective strips
co2 combo smoke detector and fire extinguisher
lavatory with RV style toilet, electric on-demand water heater city water fill hook up,. base cabinet with ss top and counter mount bowl. The cabinet to house plumbing items pump, heater , fresh tank etc. 25-30 gal fresh water holding tank, 34 gal waste tank with monitor panel. wall mirror, paper towel holder, toilet paper holder. GFI outlet, ceiling fan and light.
5 year warranty
