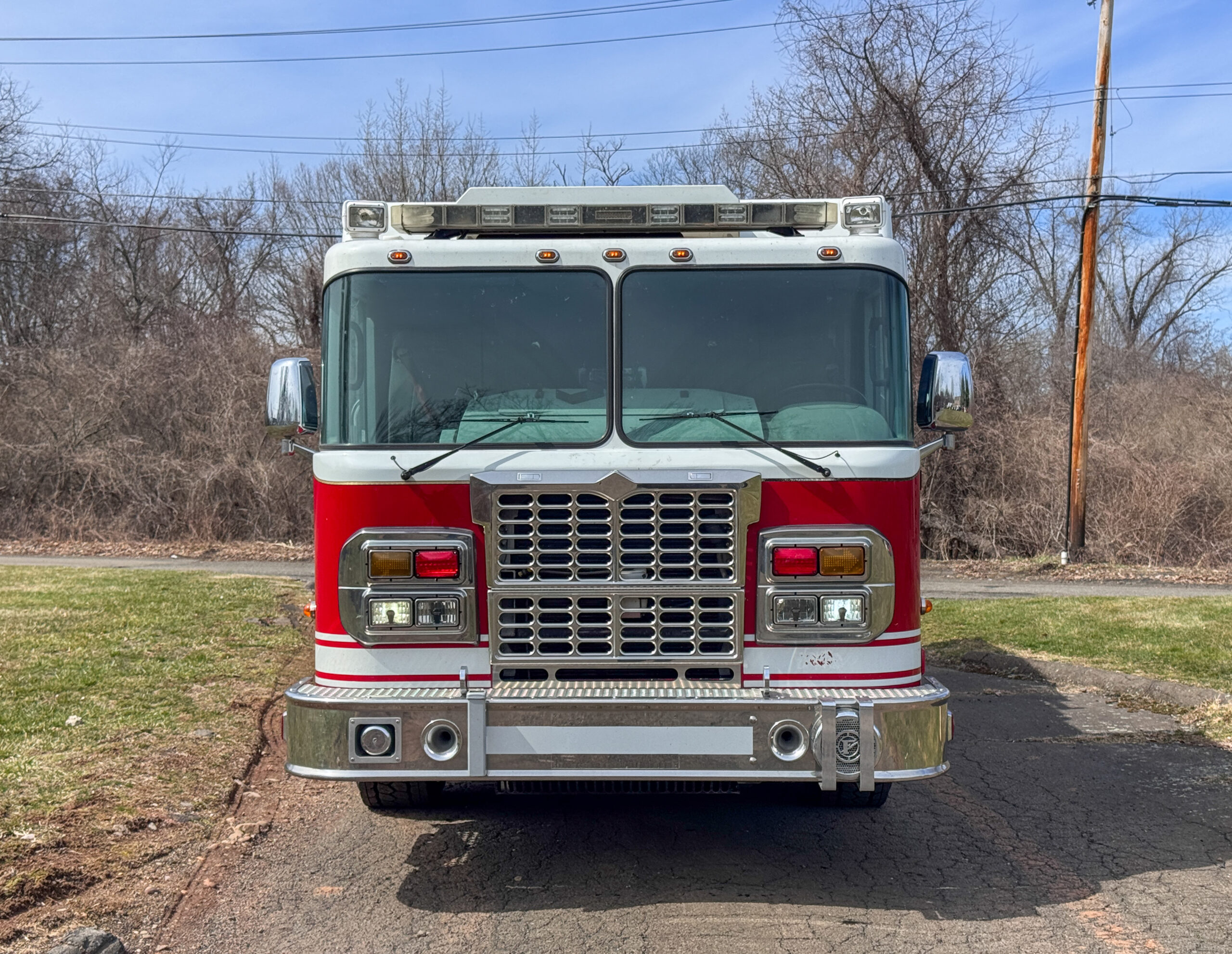

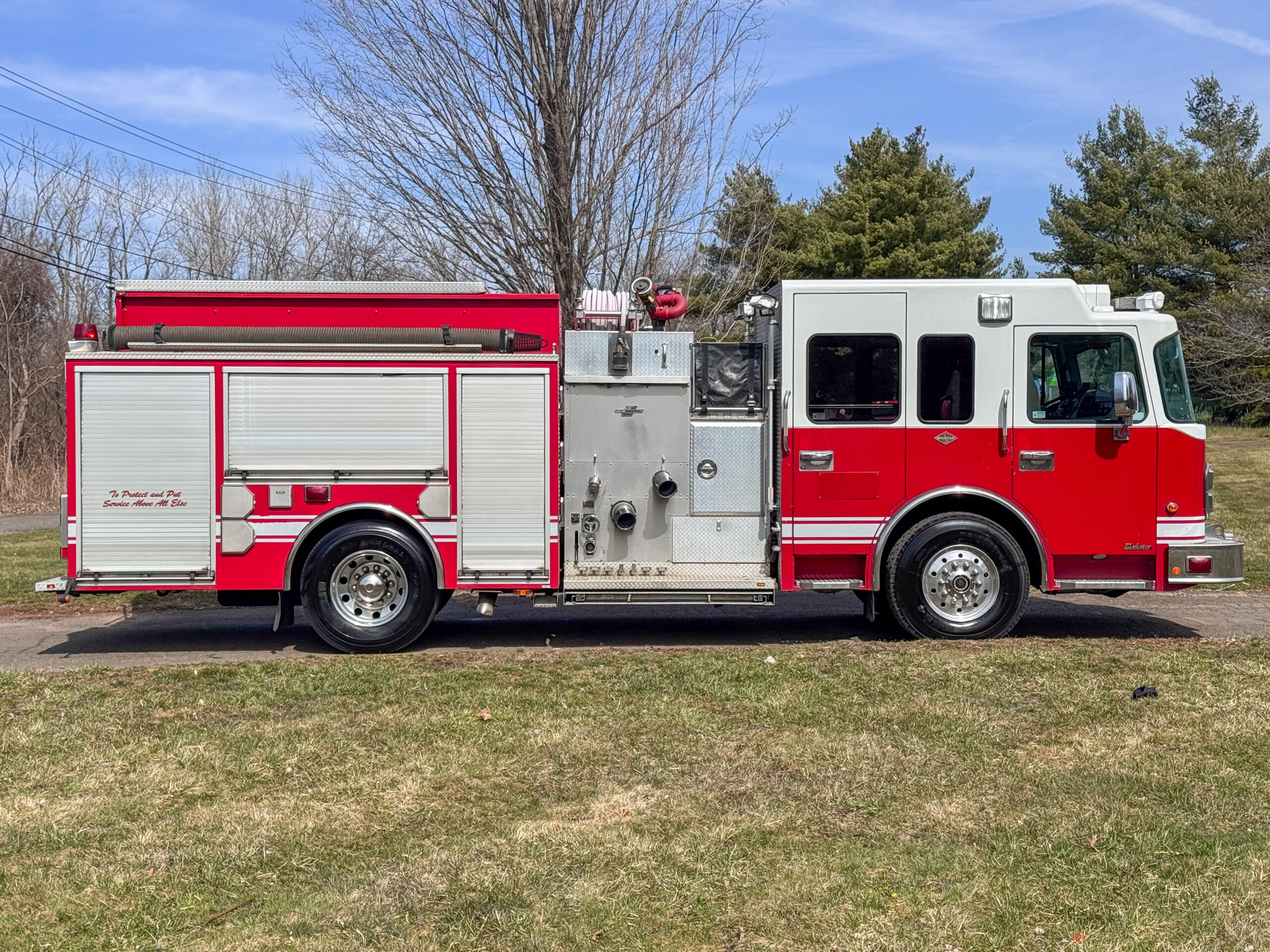

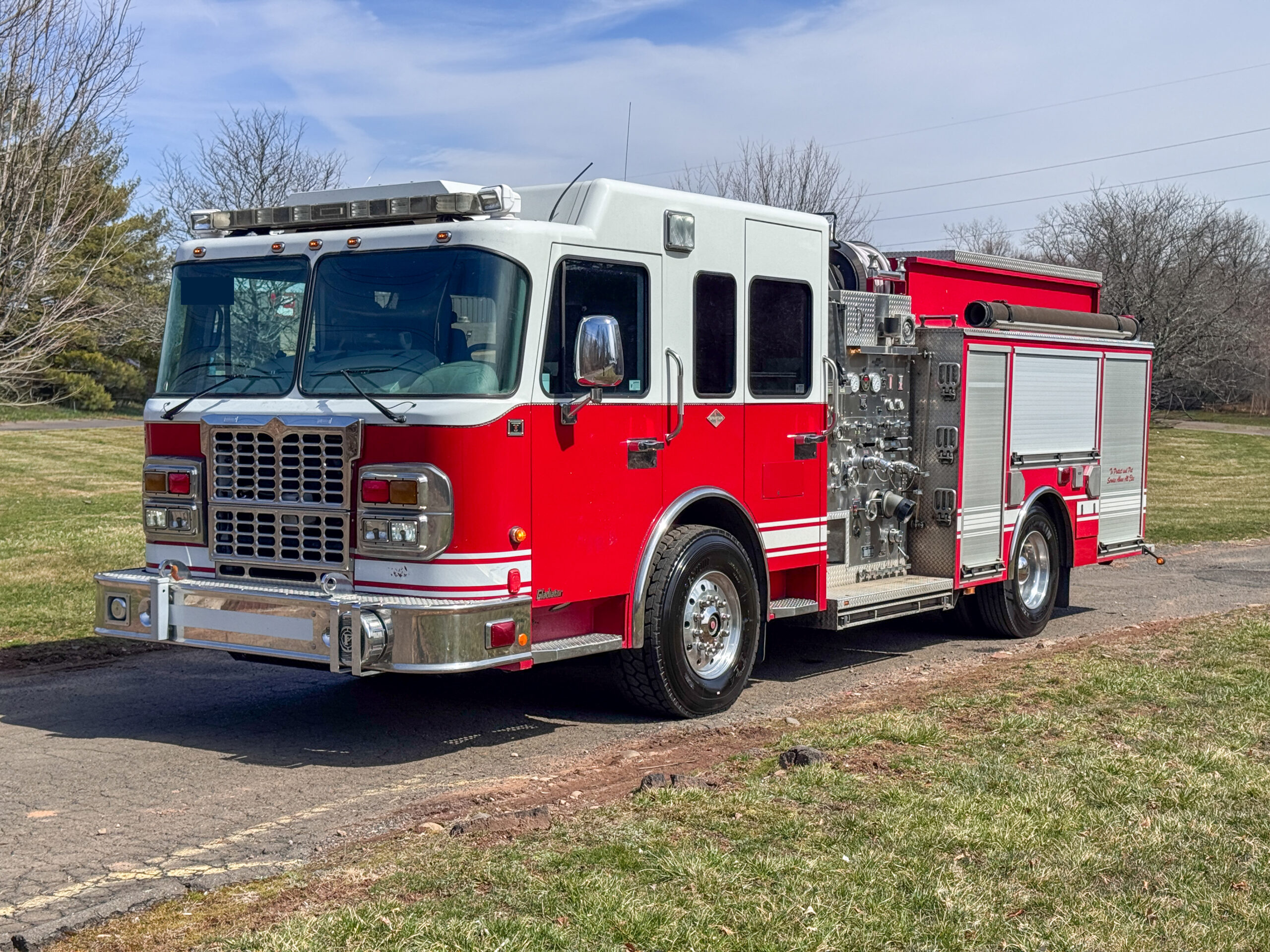

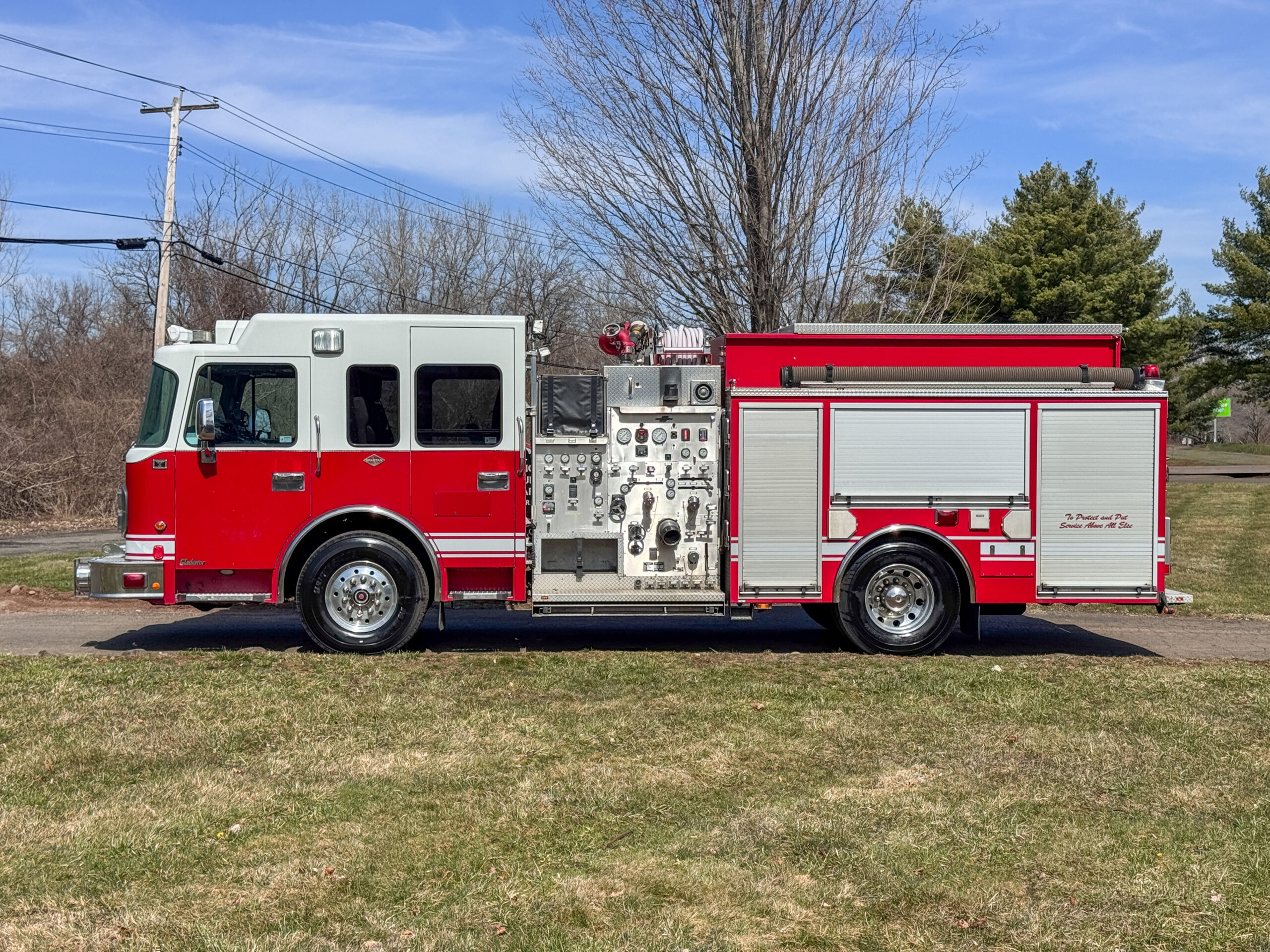

2010 Spartan Pumper 1500/750 (E5840)

General

2010 Spartan – Hi Tech
Aluminum Cab & Body
Spartan Gladiator Cab With 10” Raised Roof
Color Red

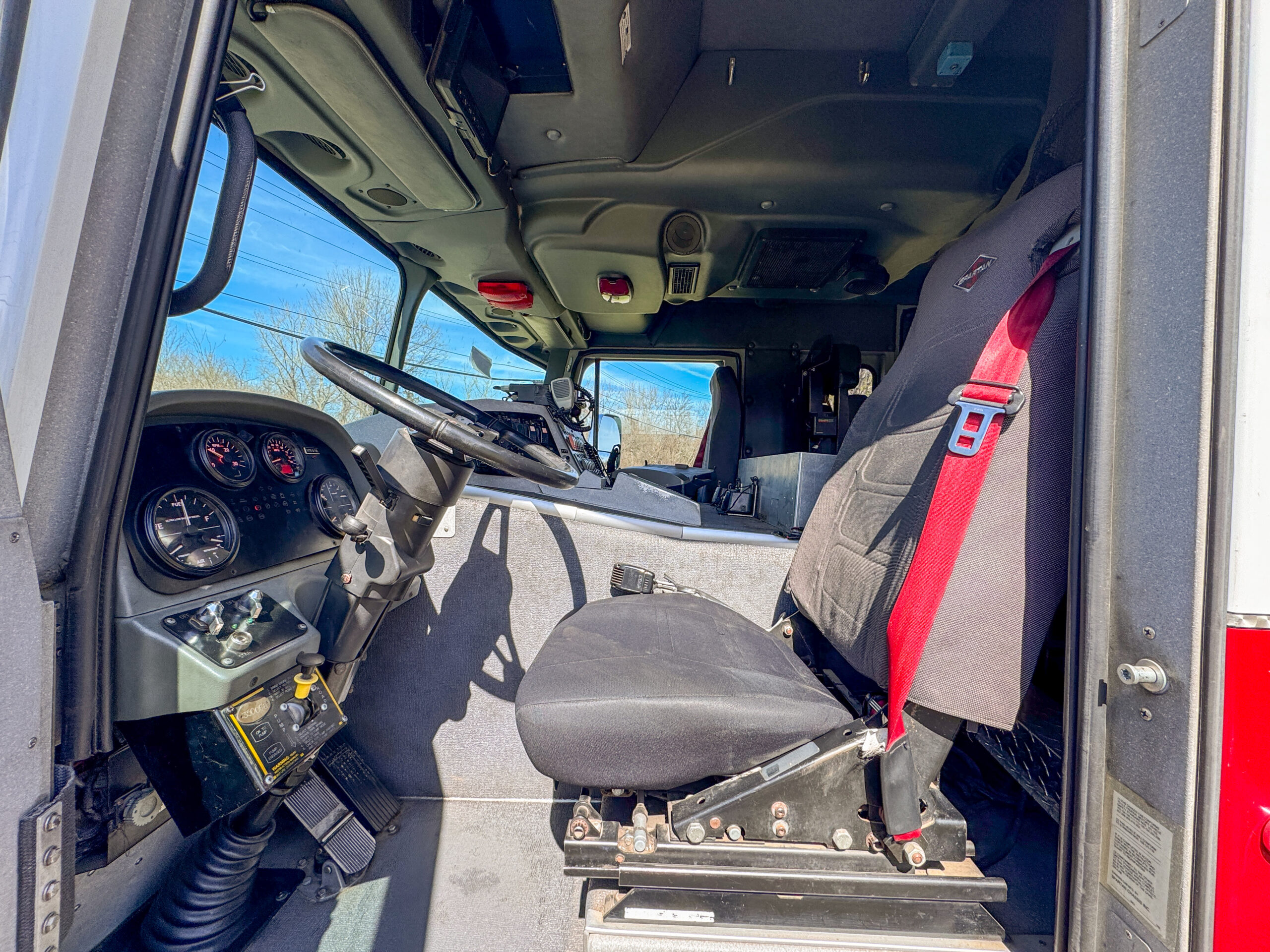

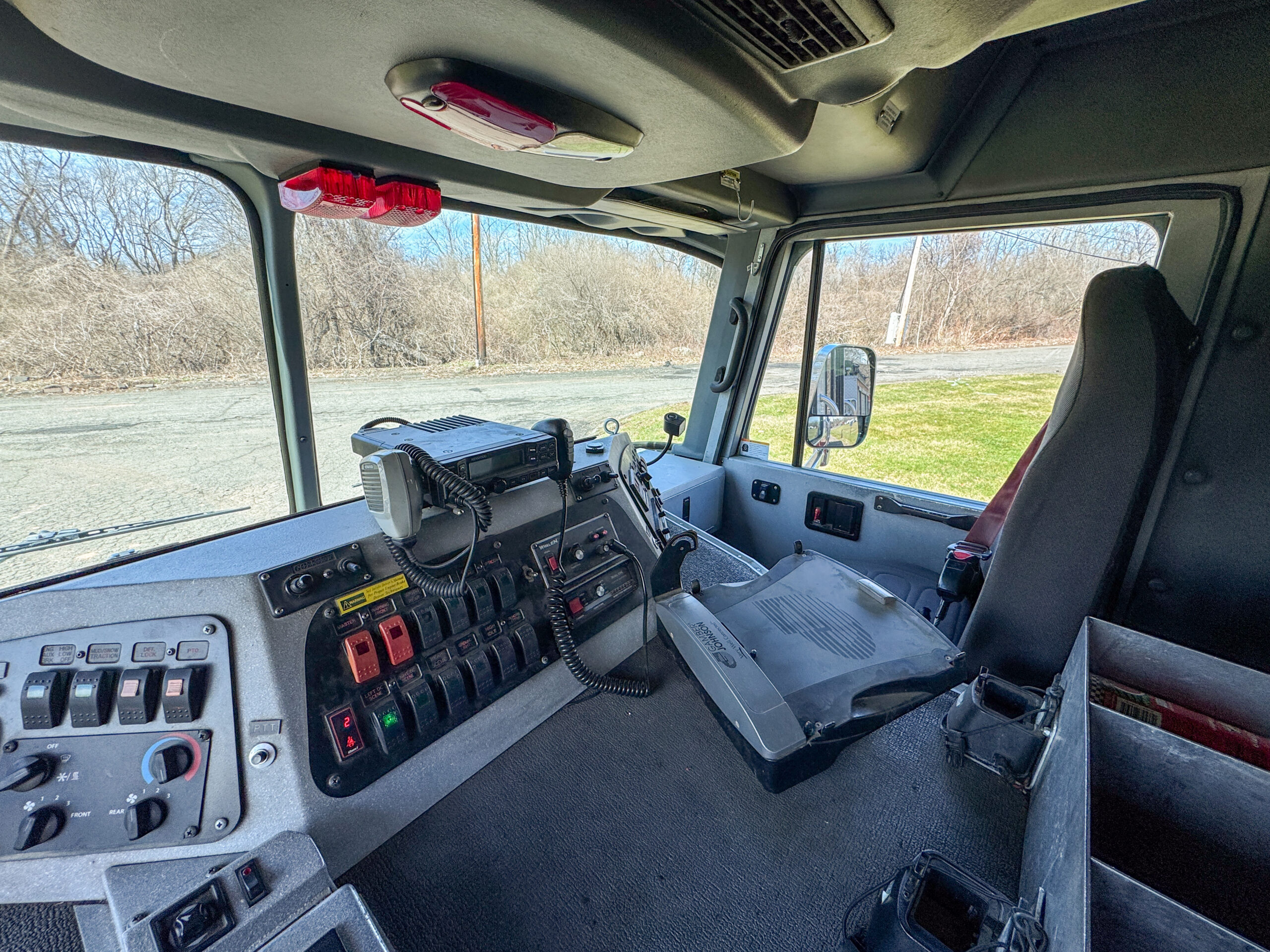

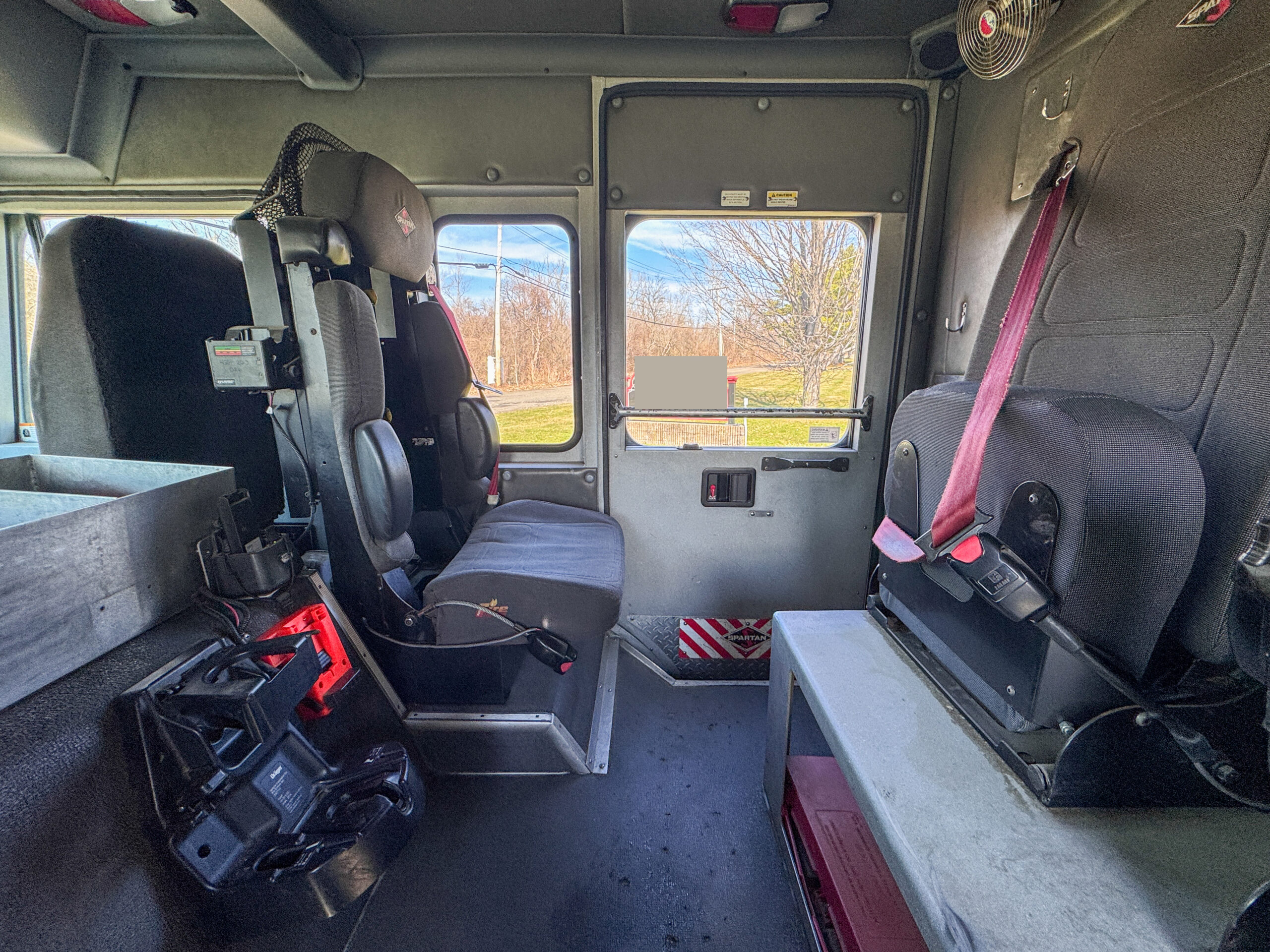

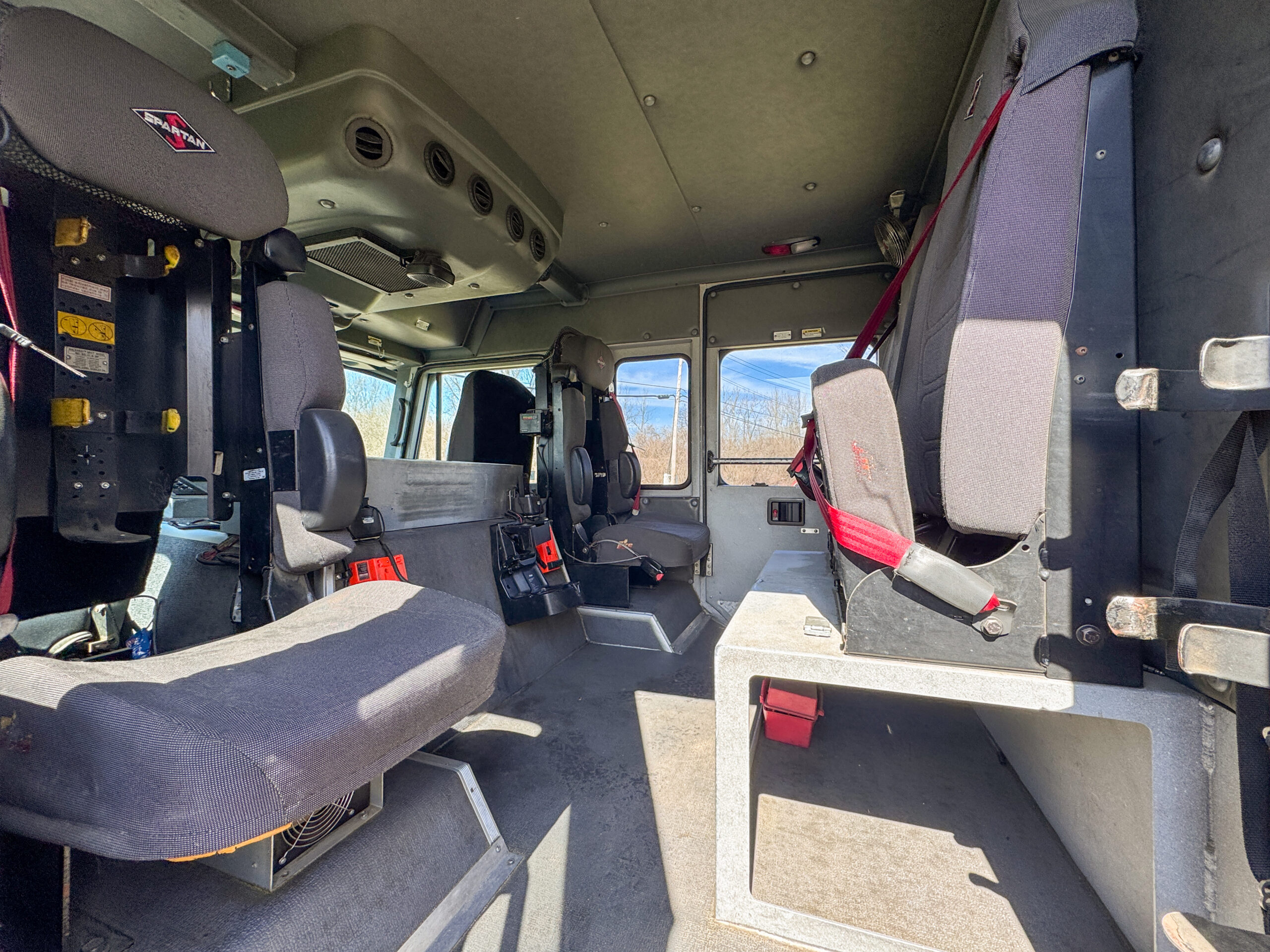

6 Seats
Two (2) – Scba Seats
Air Brakes
Air Conditioner
Good Tire Condition (2023)
Front Tire Size: 385/65R22.5
Rear Tire Size: 12R22.5
Cummins Ism
Diesel 500 Hp
6 Cylinders
Eng Hrs: 4515
Aux Brake
Allison 4000 Evp
Automatic Transmission
5 Speeds

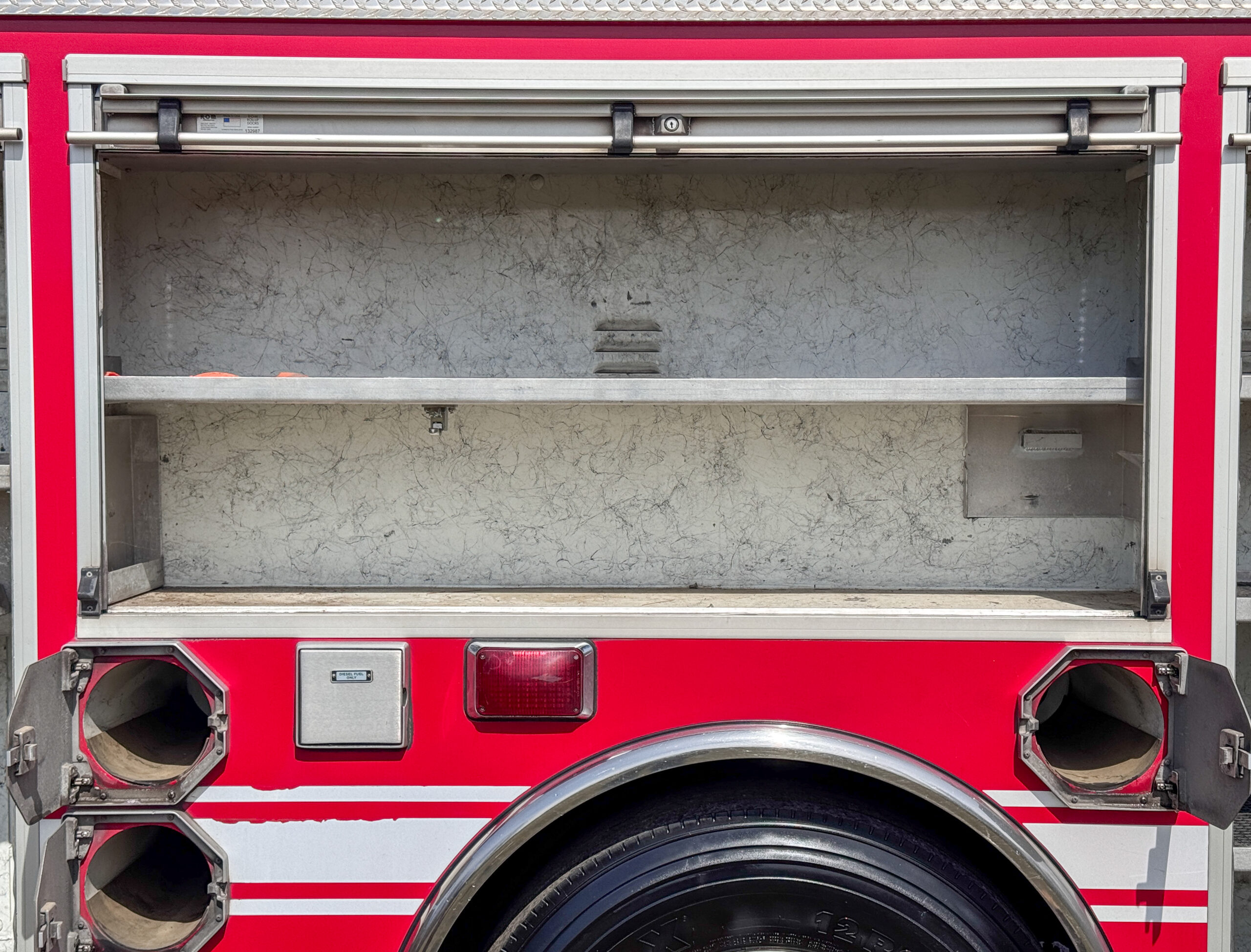

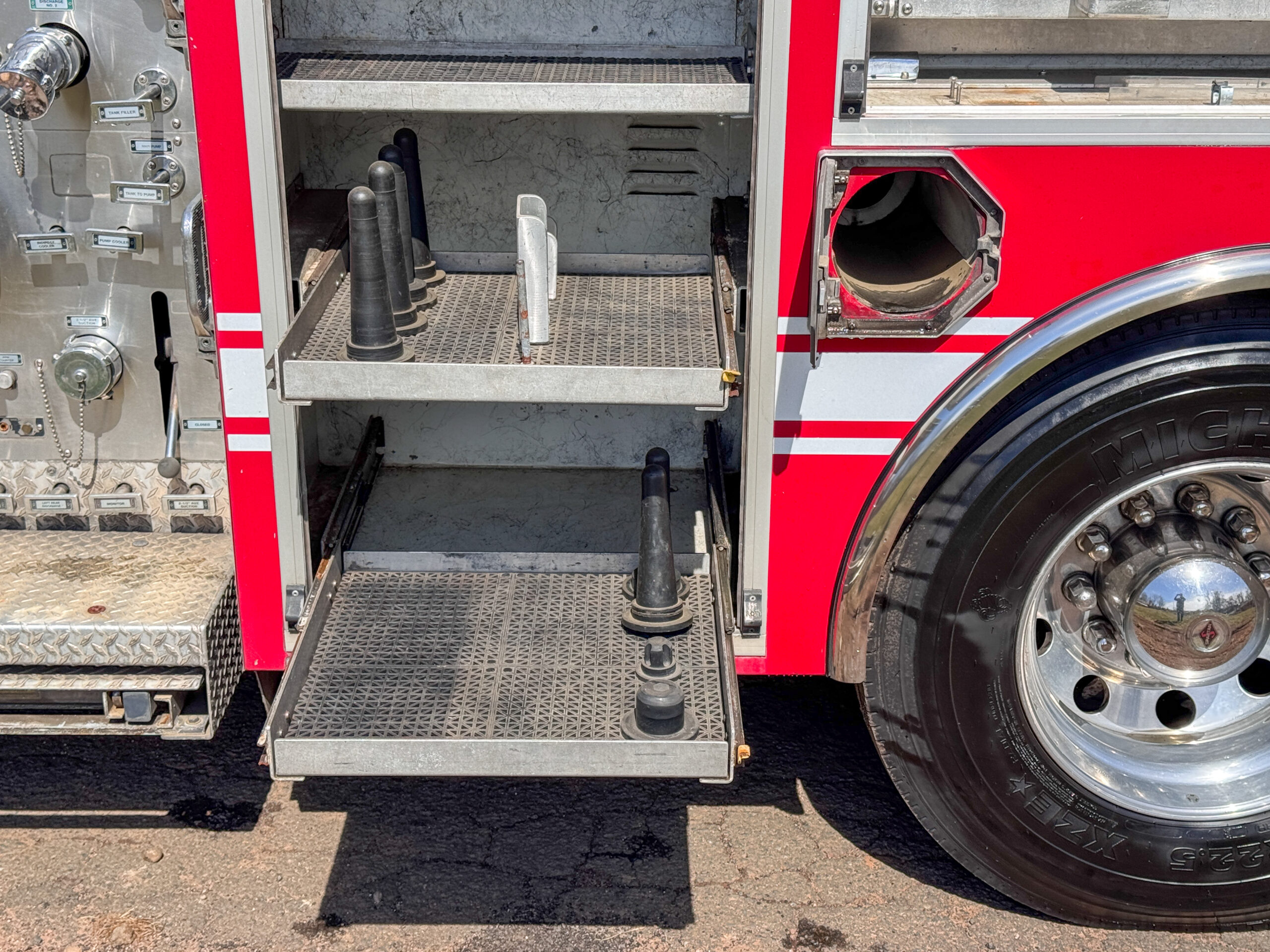

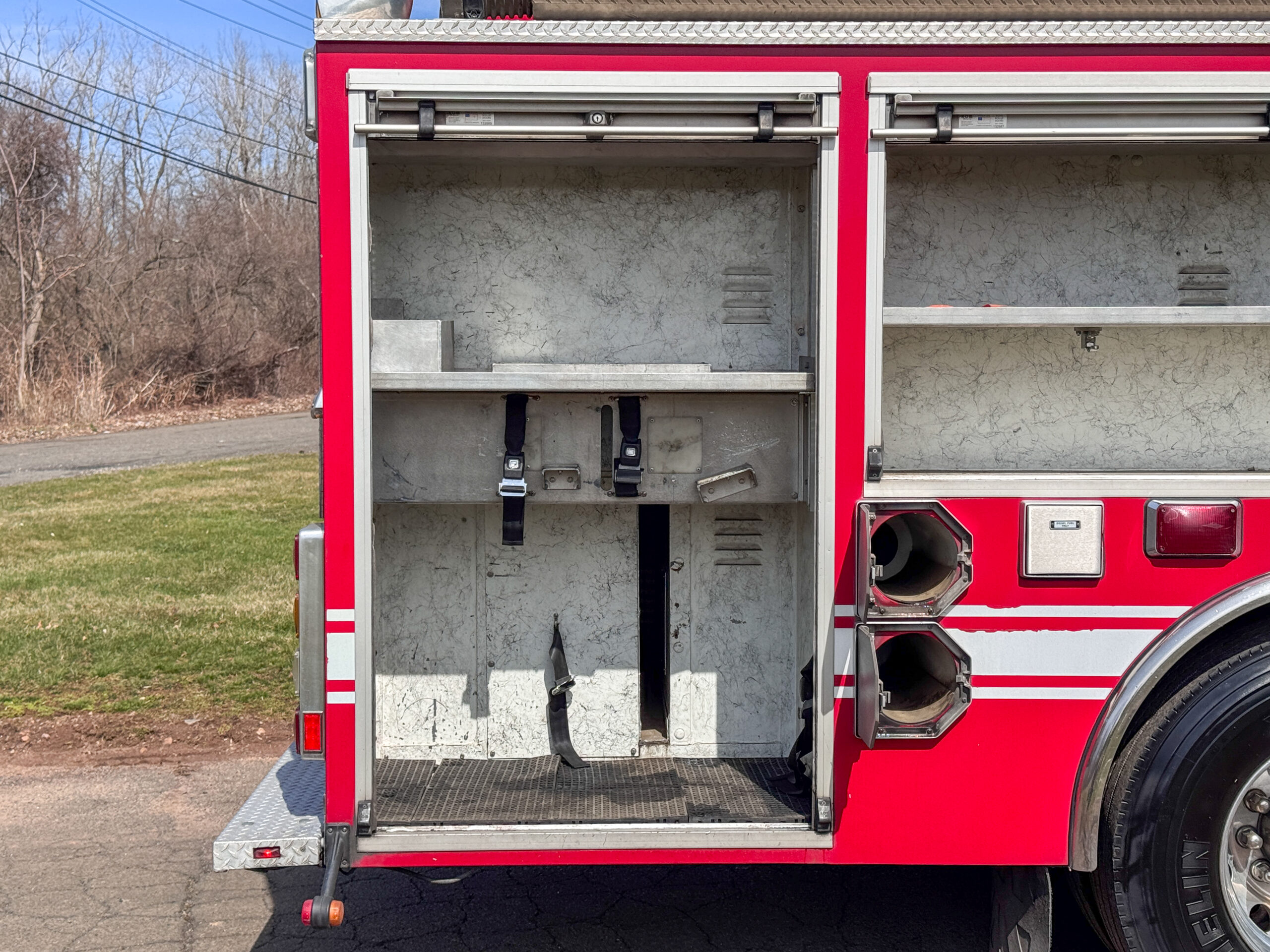

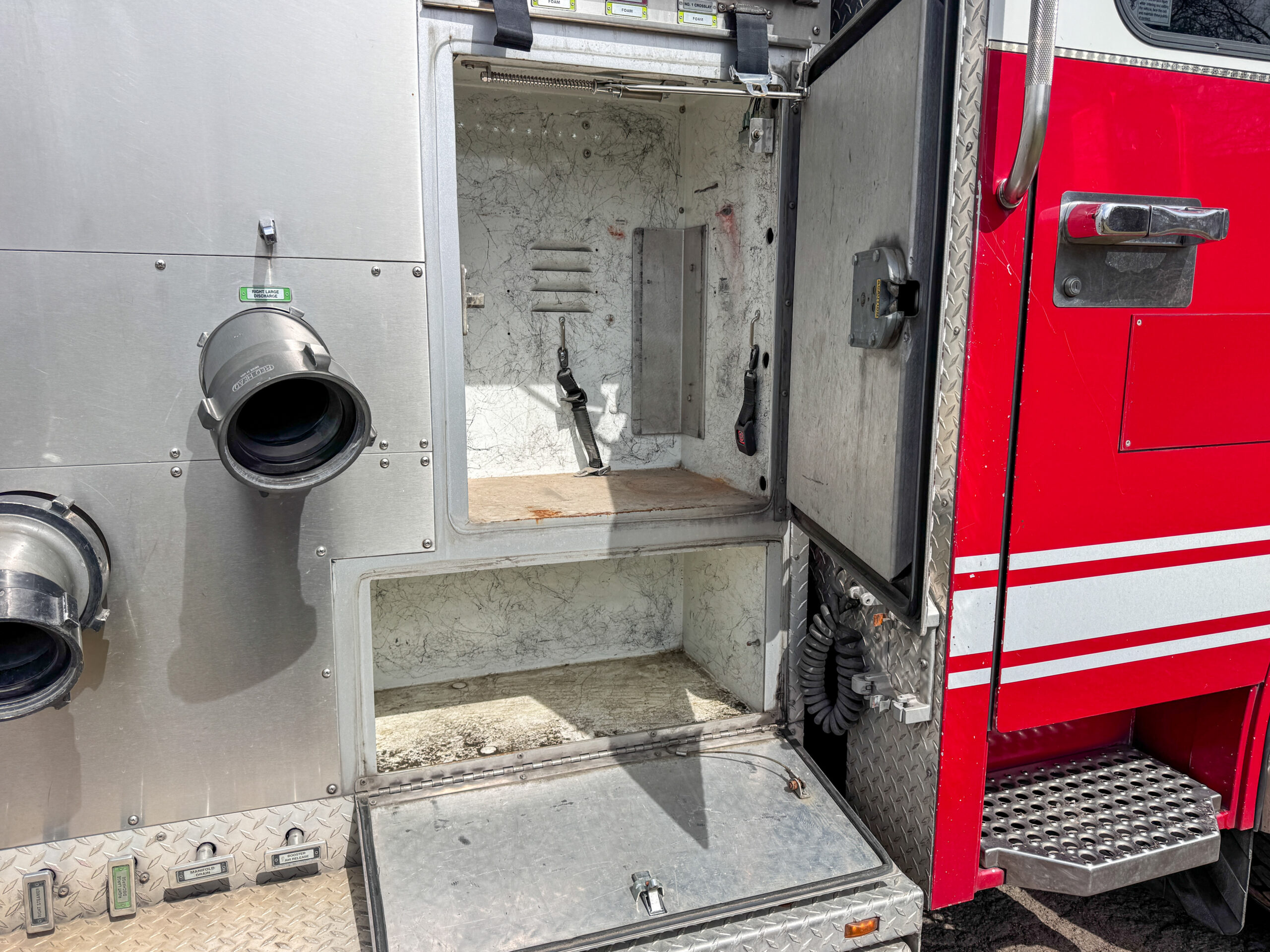

Body Wheel Well Scba Holders: 3 Rs, 2 Ls
Lightbar: Whelen 72 Vled
Warning Lights: 4 Emergency Whele 600, 2 Whelen Rotators
Siren: Whelen Electric Siren
Federal Q Siren
Mobile Radio: Kenwood
Scene Lights: 2 Joystick Go Lights, 4 Whelen 800, 2 Pioneer Light Poles
Whelen Traffic Advisor
Rear Back Up Camera
Opticom
Ladders: 14’, Attic Ladder, & 24’ Extention

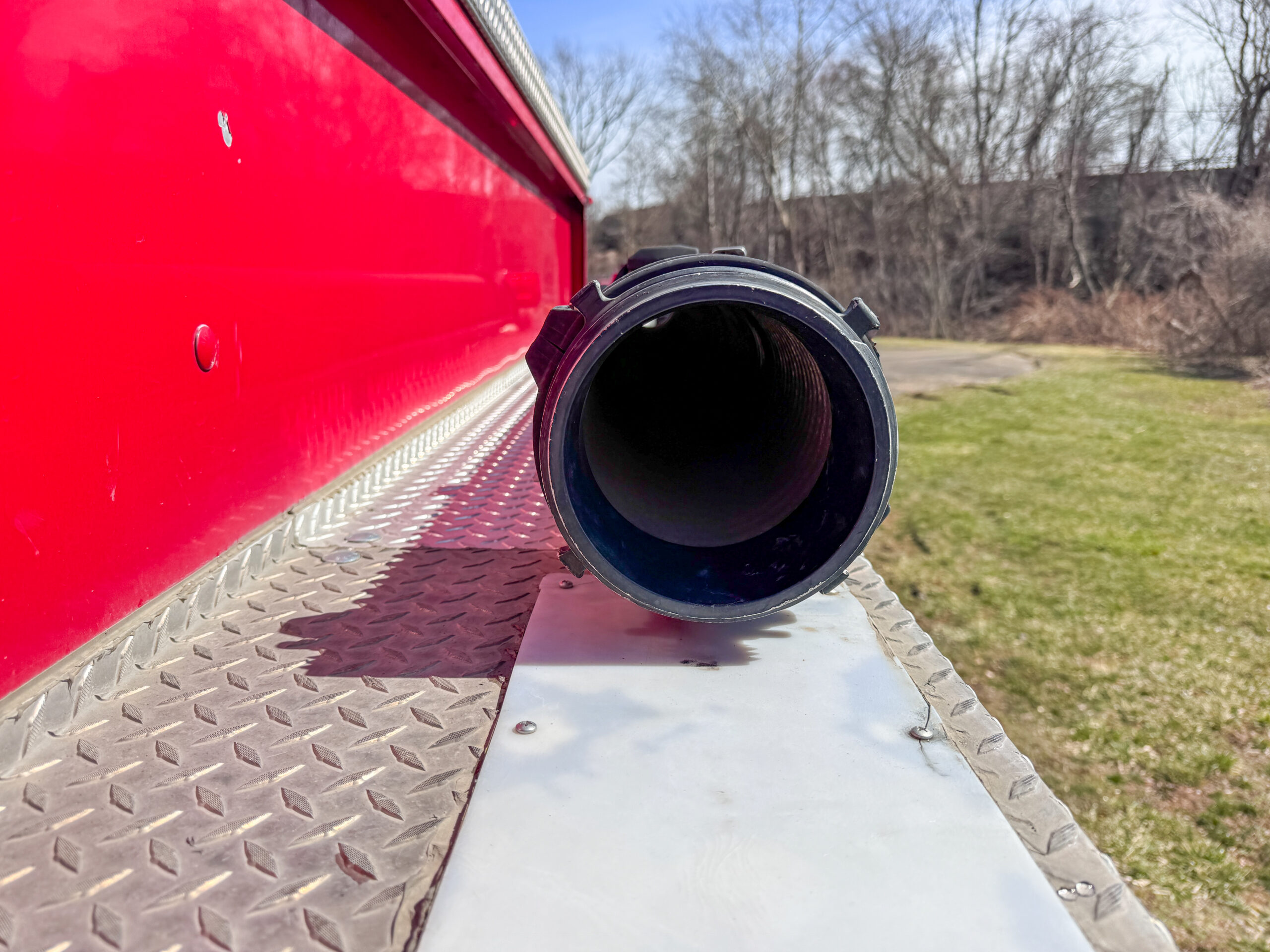

Suction Hose: (X2) 10’ 6” Hard Suction (X1 With Fitter)
American Ambulance Stretcher Board
Car Jack
Xstream Deck Gun Nozzles
Elkhart Foam Inductor
Hose Roller
3 Life Vests
3 Helmets

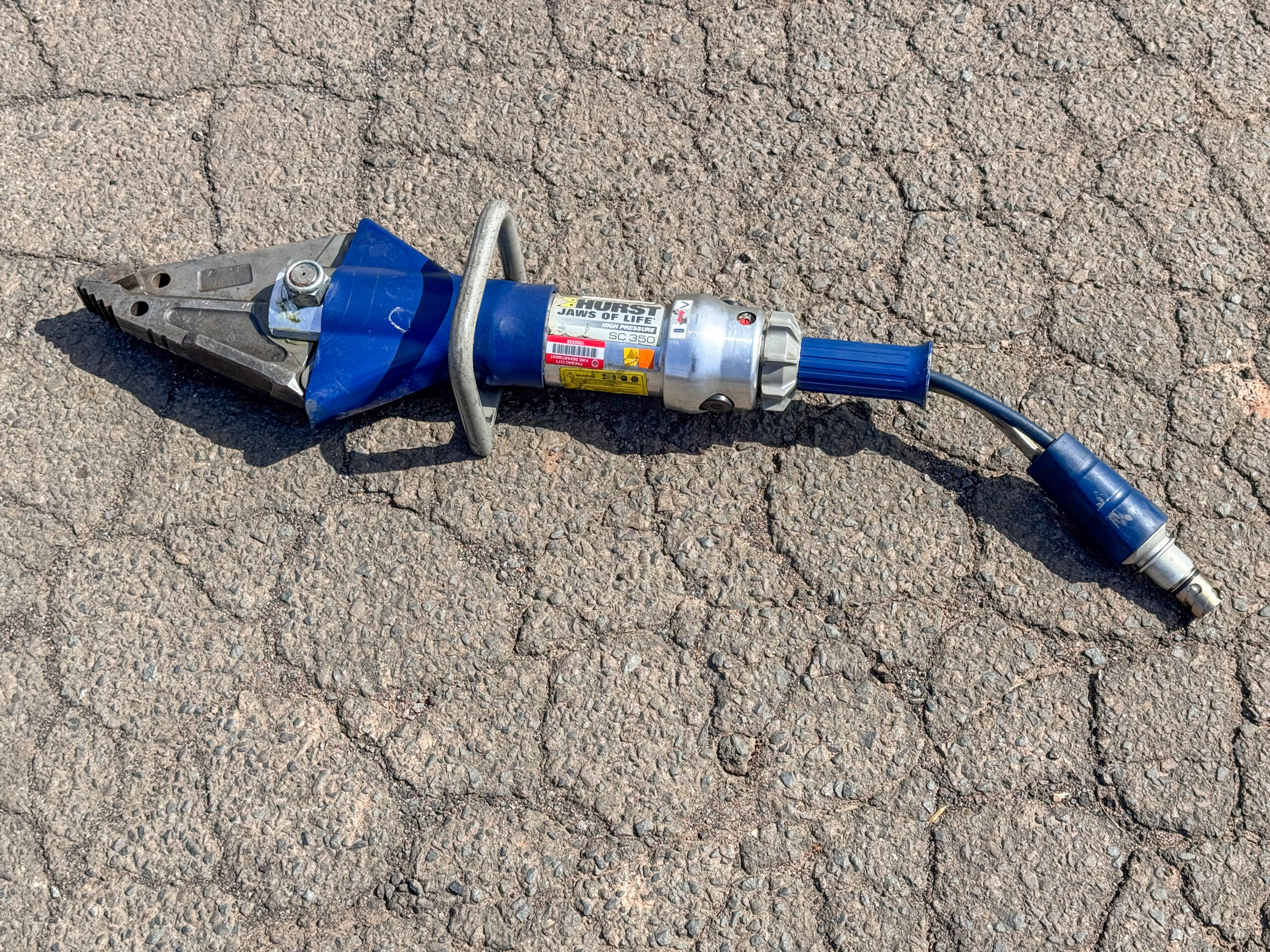

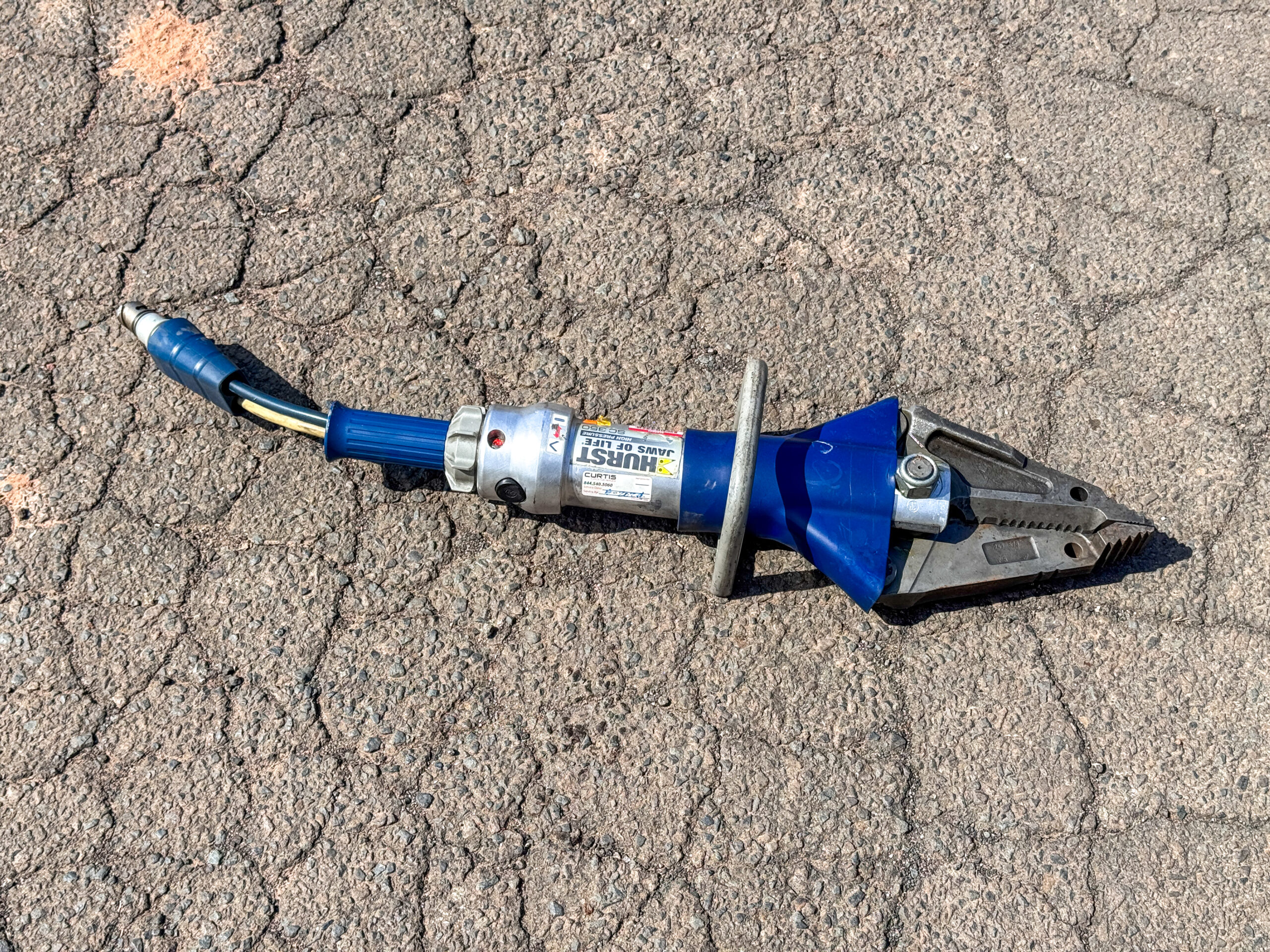

Curtis Jaws Of Life

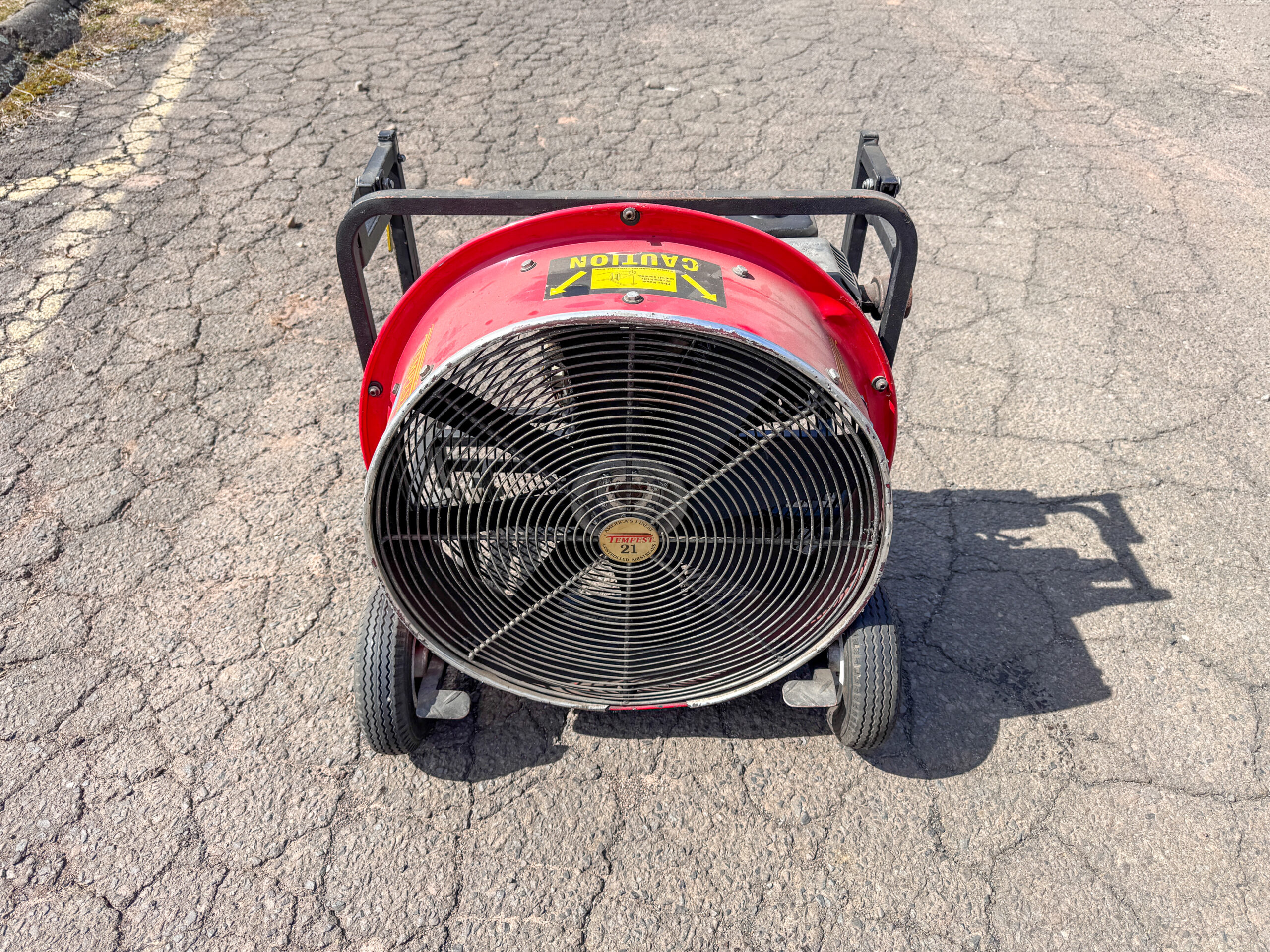

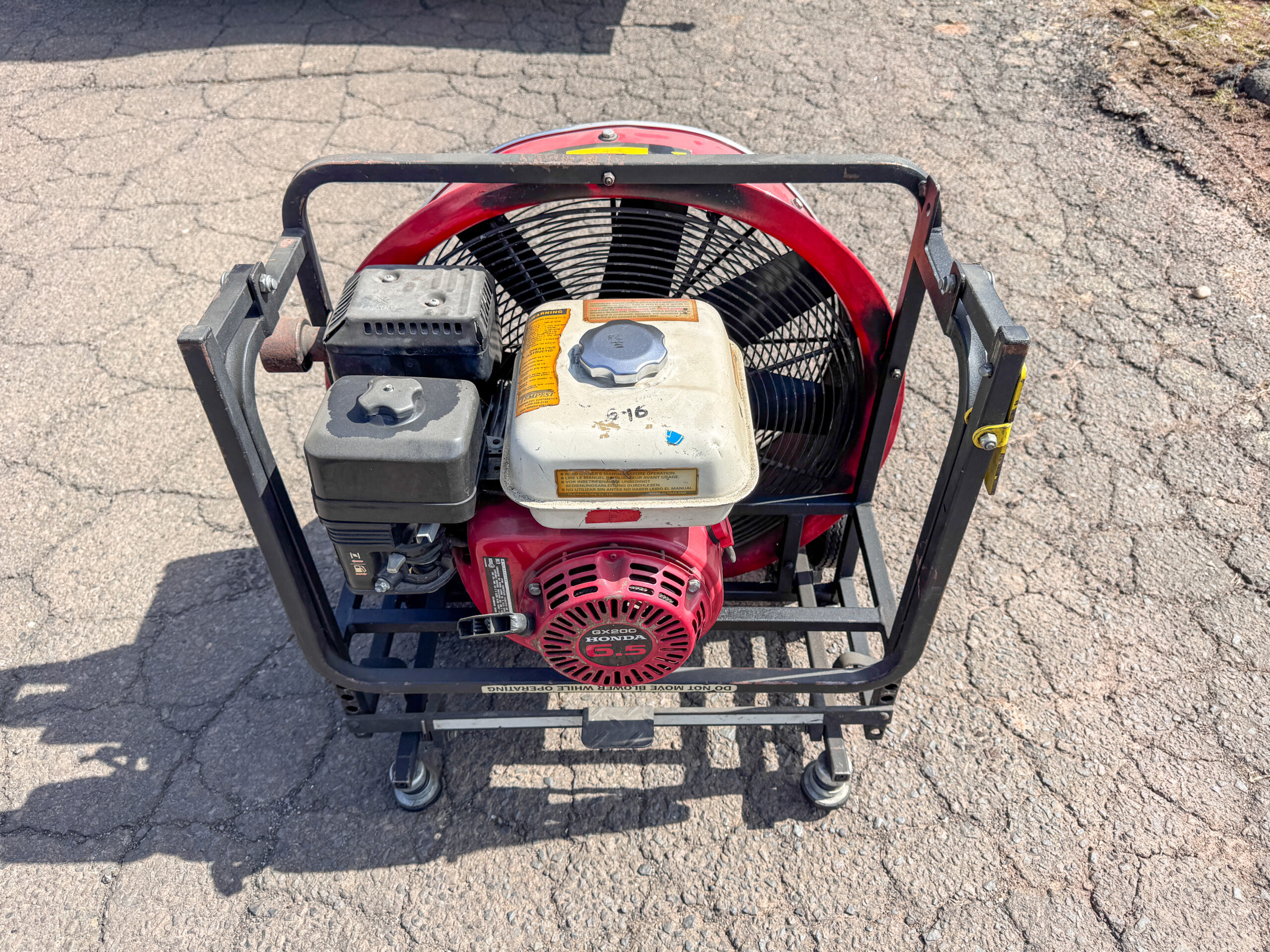

Tempest Power Blower

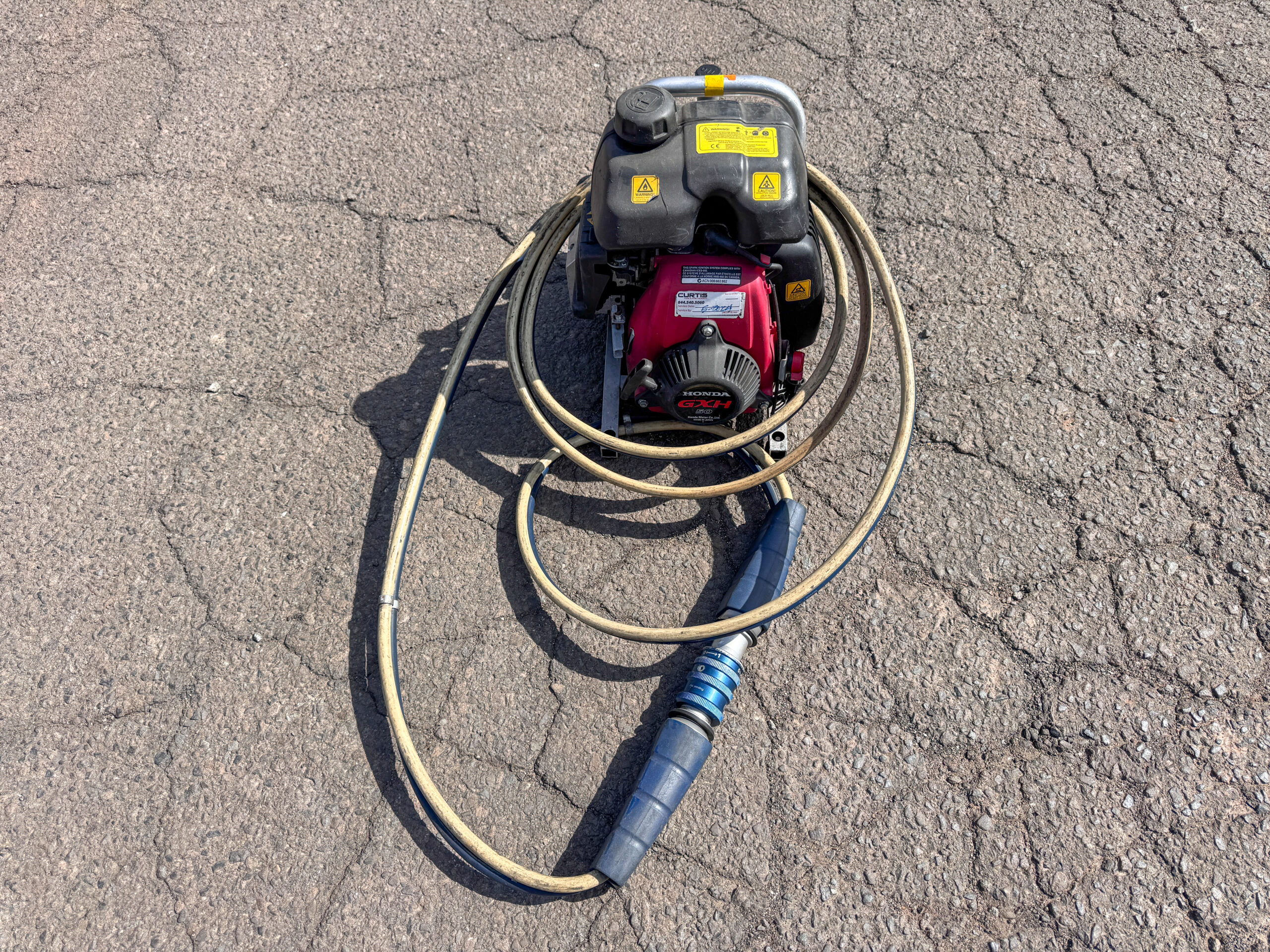

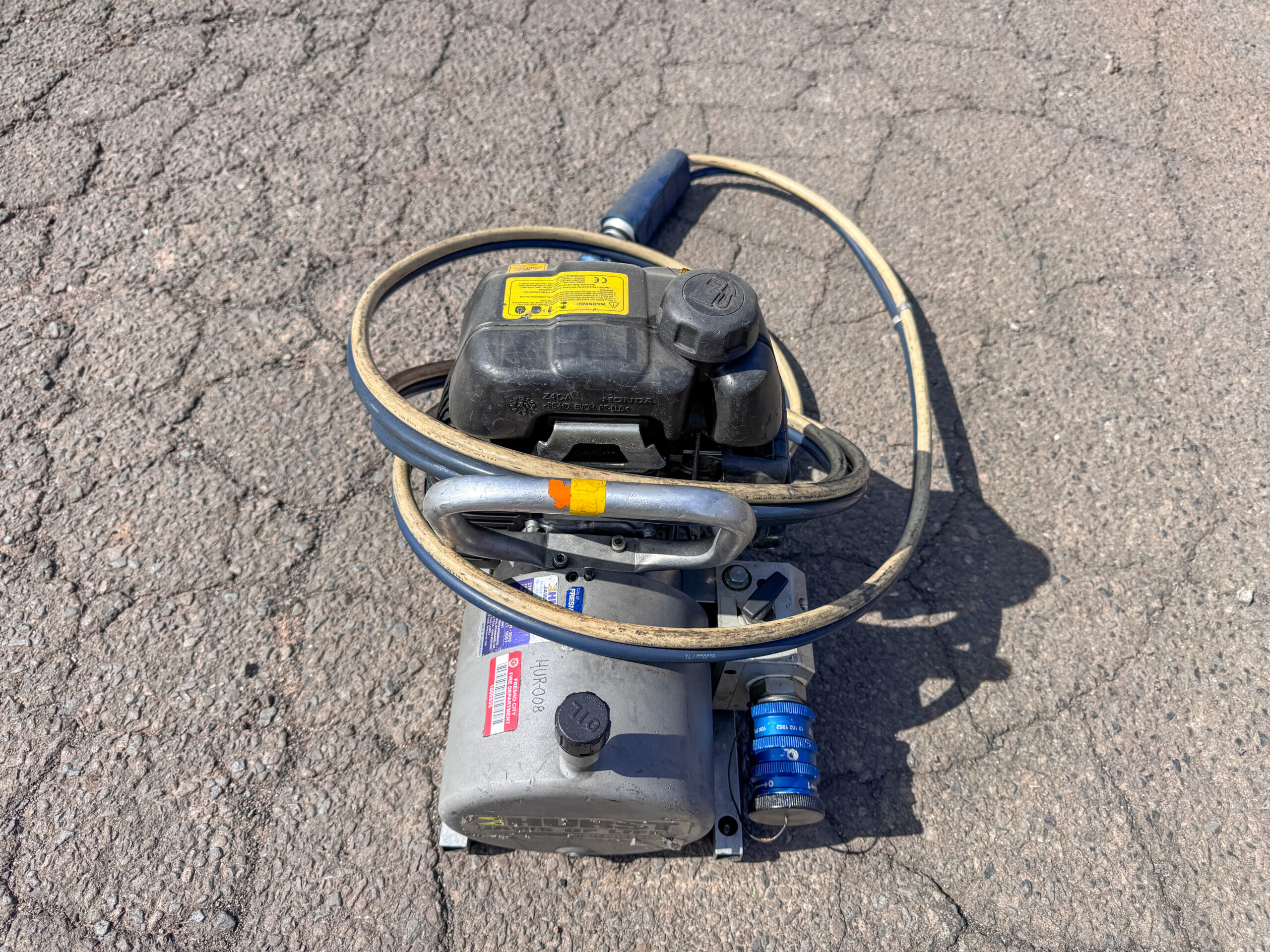

Motor For Jaws Of Life (Honda Gxh 50)
(X1) 4” Cap
4 Battery Holders (Cab)
Drager Charger (Cab)

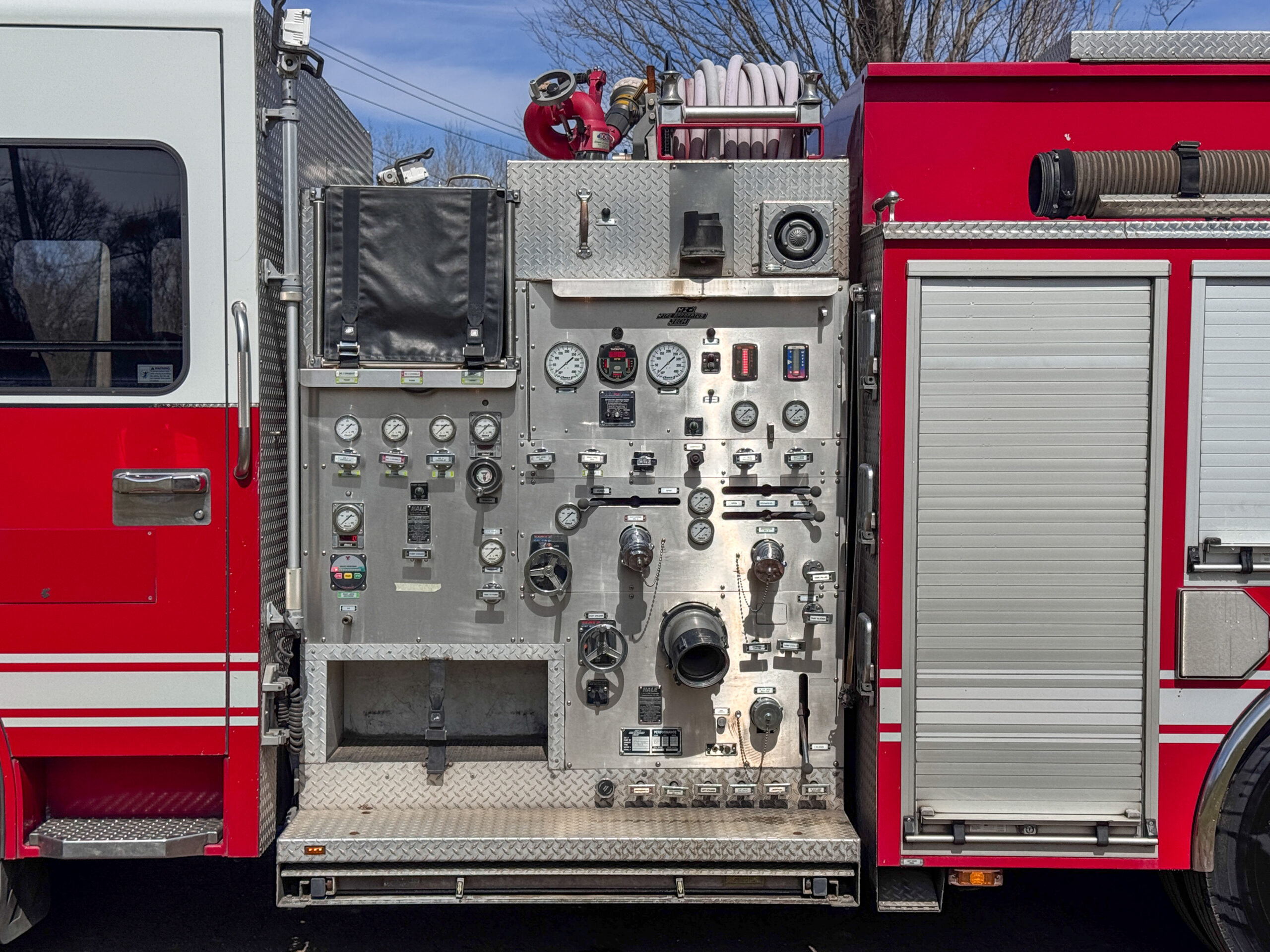

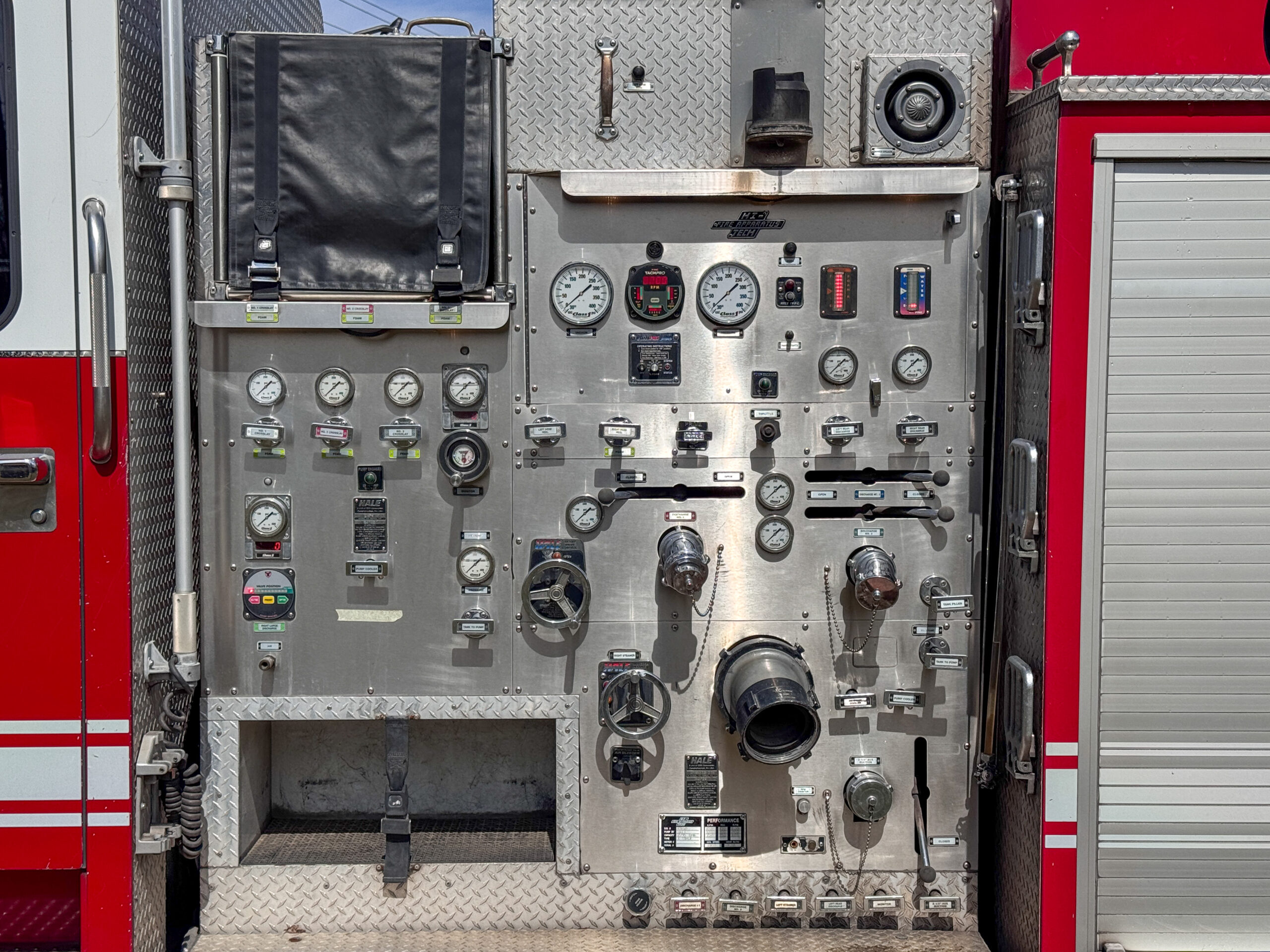

Pump & Tank

Hale Qmax 150-23X 1500GPM
750 Gallon Poly Tank
Pto Pump – Pump & Roll
Hale Cbp4 Foam System
20 Gallon Foam Tank

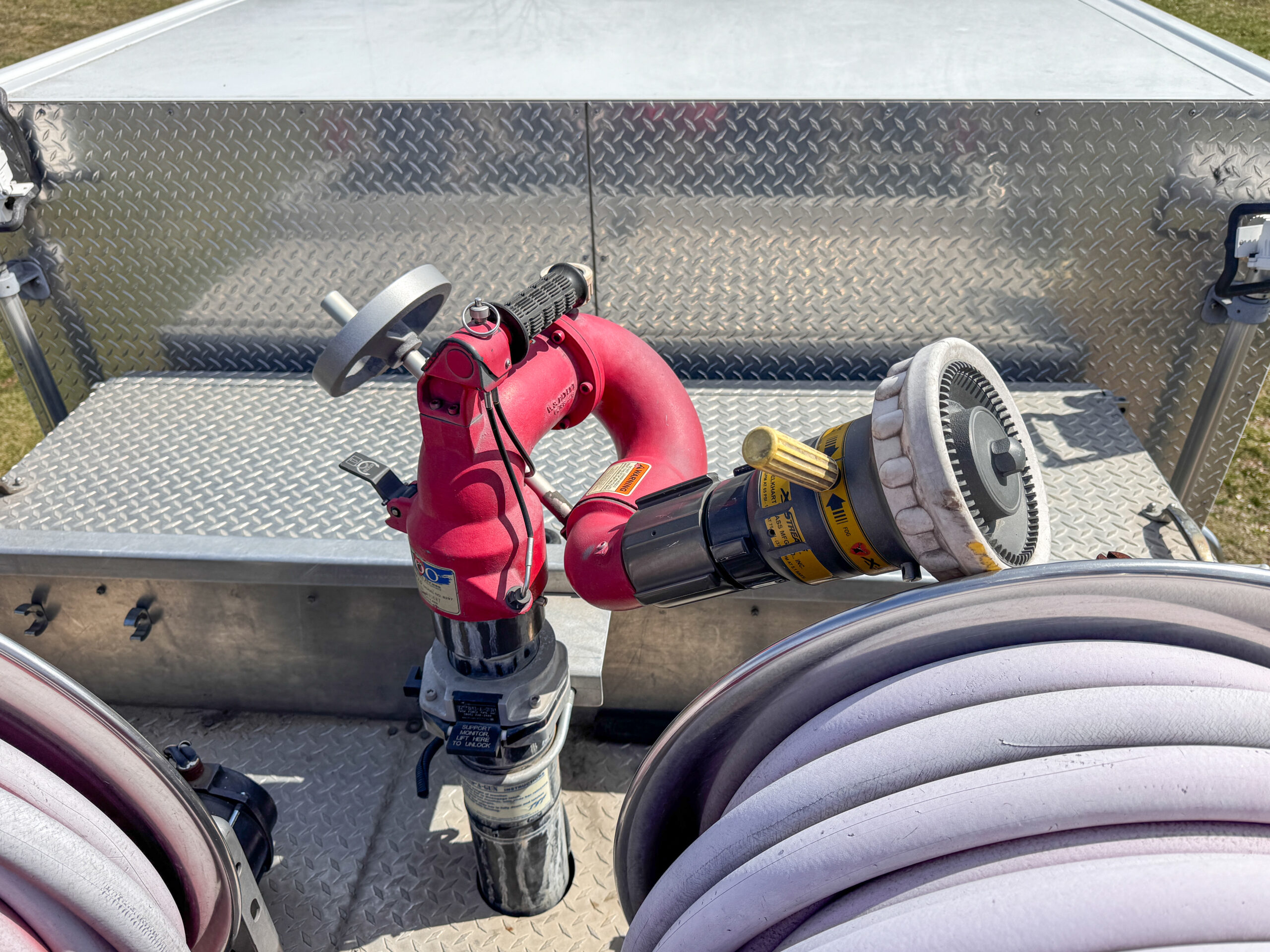

Deck Gun: Midship Top Of Pp

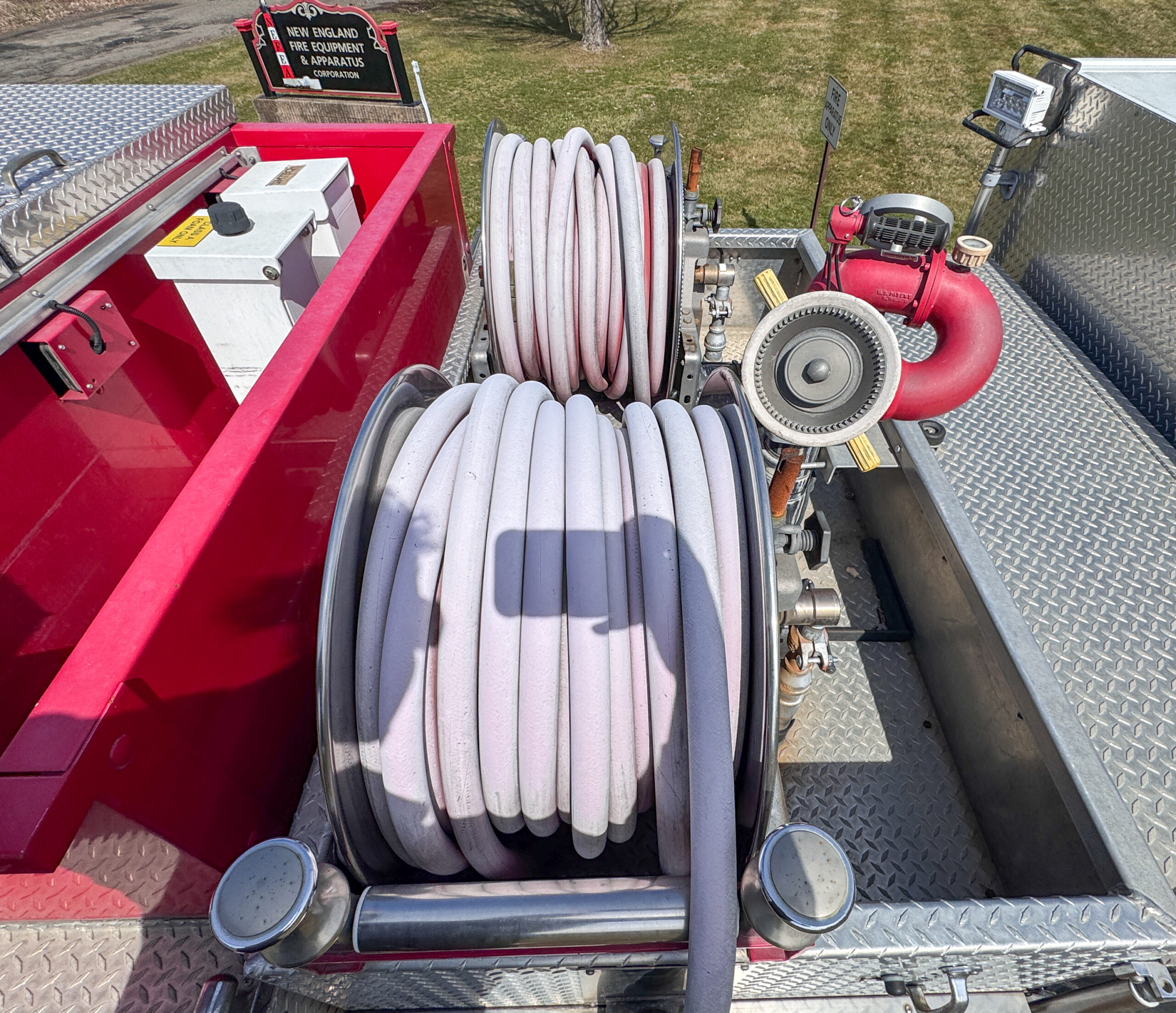

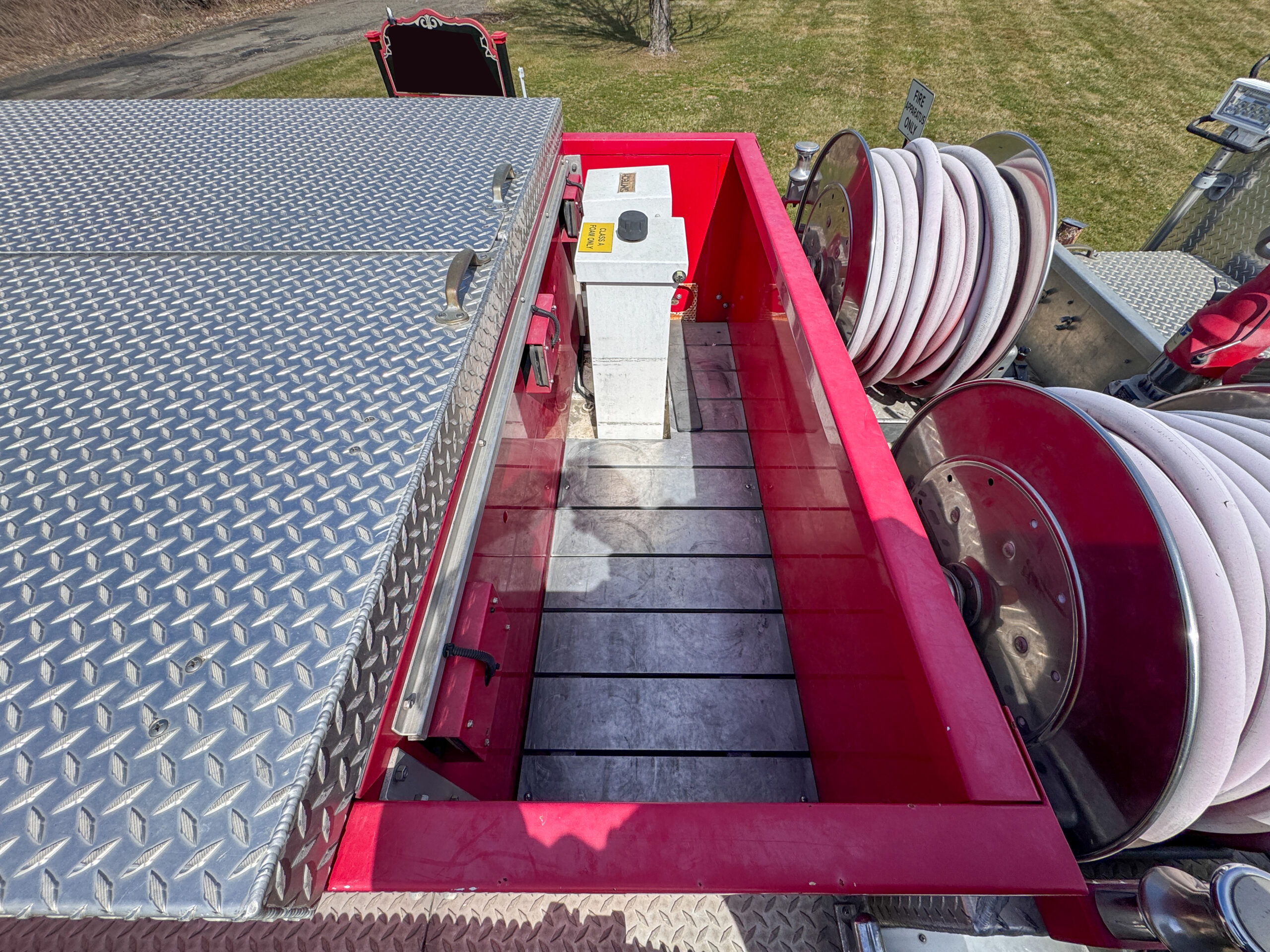

Booster Reels: (X2) Midship Top Of Pp

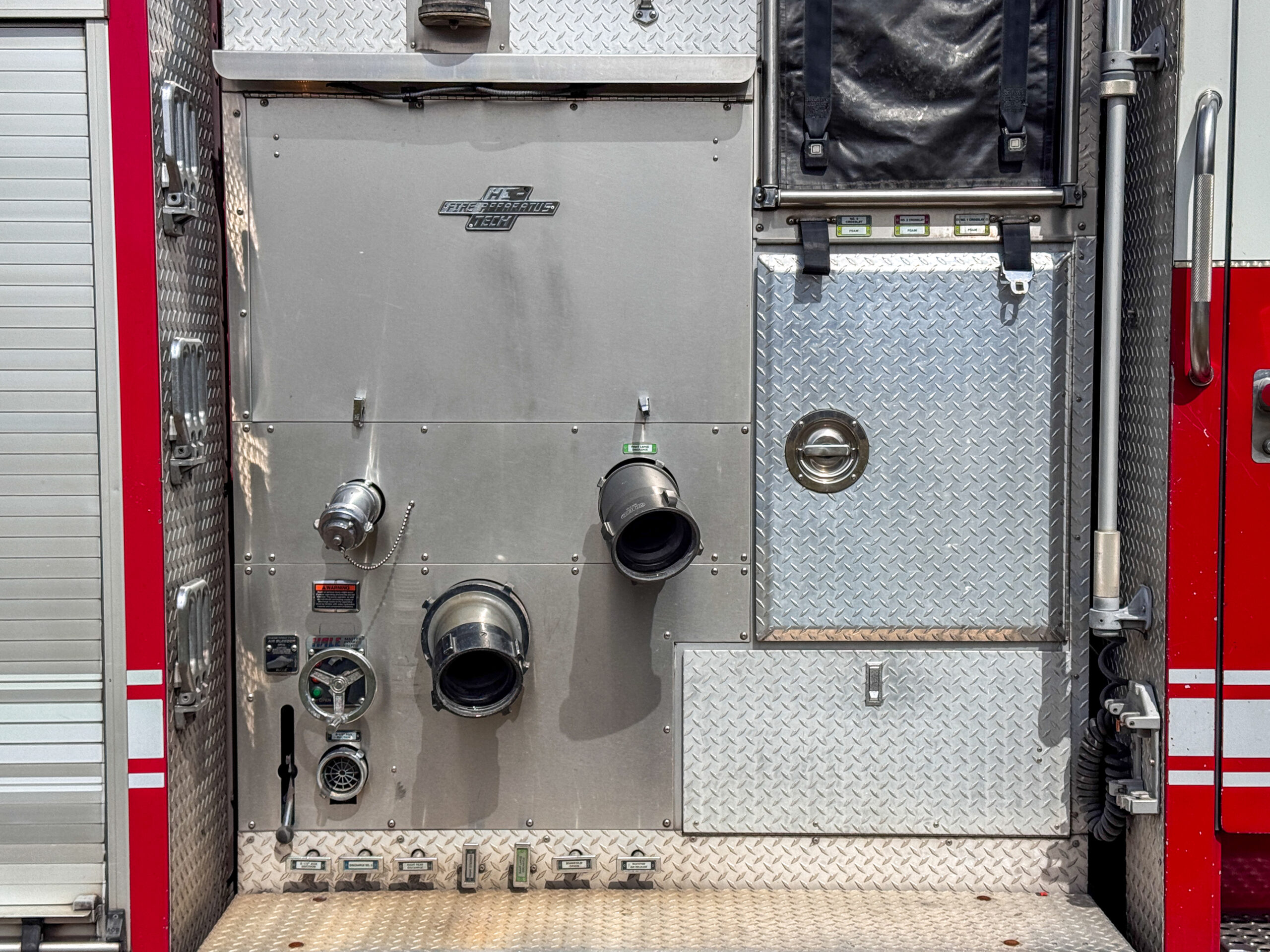

Discharges: (X2) 2 ½”Lspp, (X2) 2 ½”Rear, 4” Large Discharge Rspp, 2 ½” Rs Pp

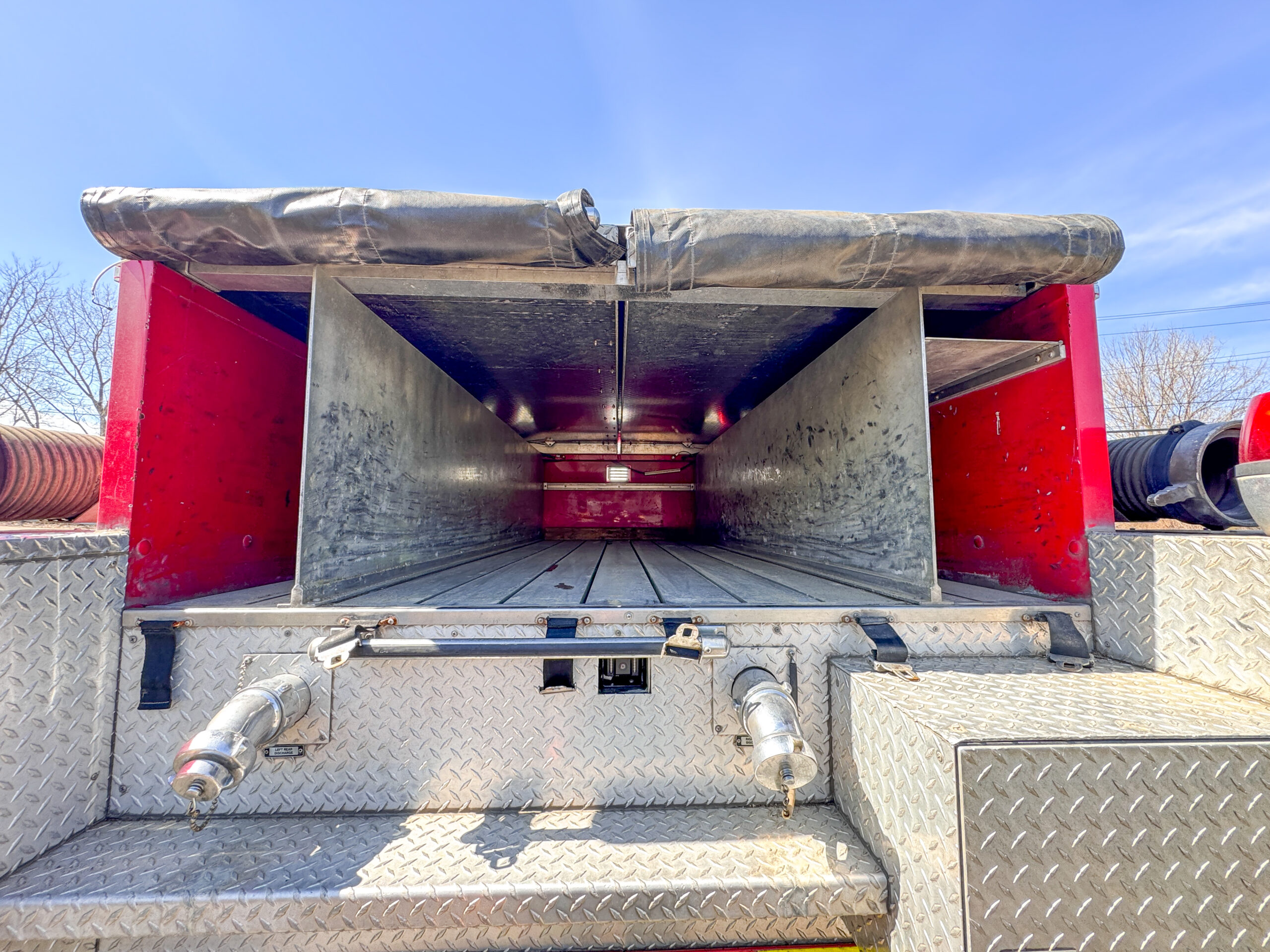

Pre-Connects: 1 In Each Of The Crosslays

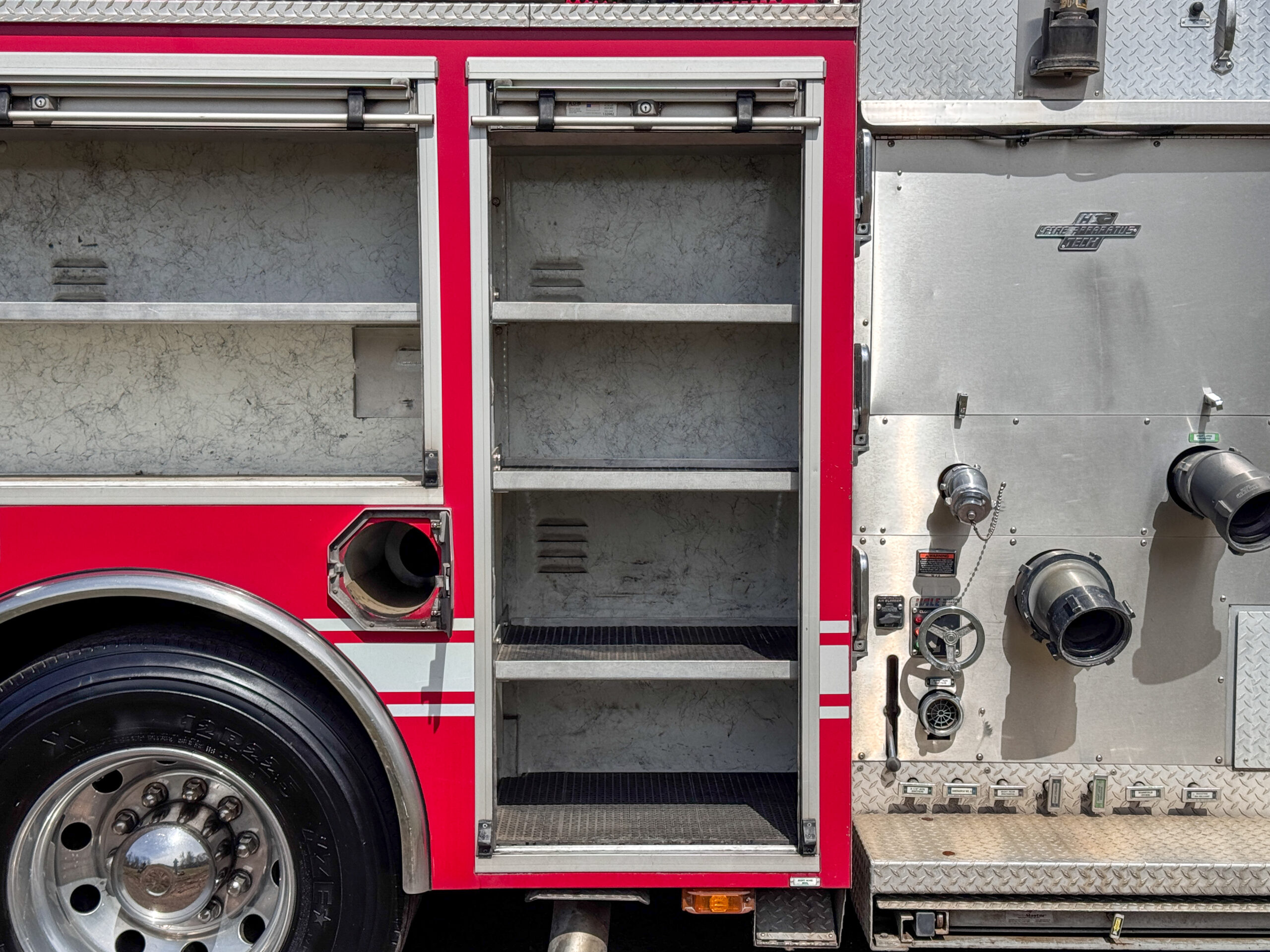

Intake Suctions: 2 ½” Aux Suction Lspp, 6” Rspp, 2 ½” Aux Suction Rspp, 6” Lspp

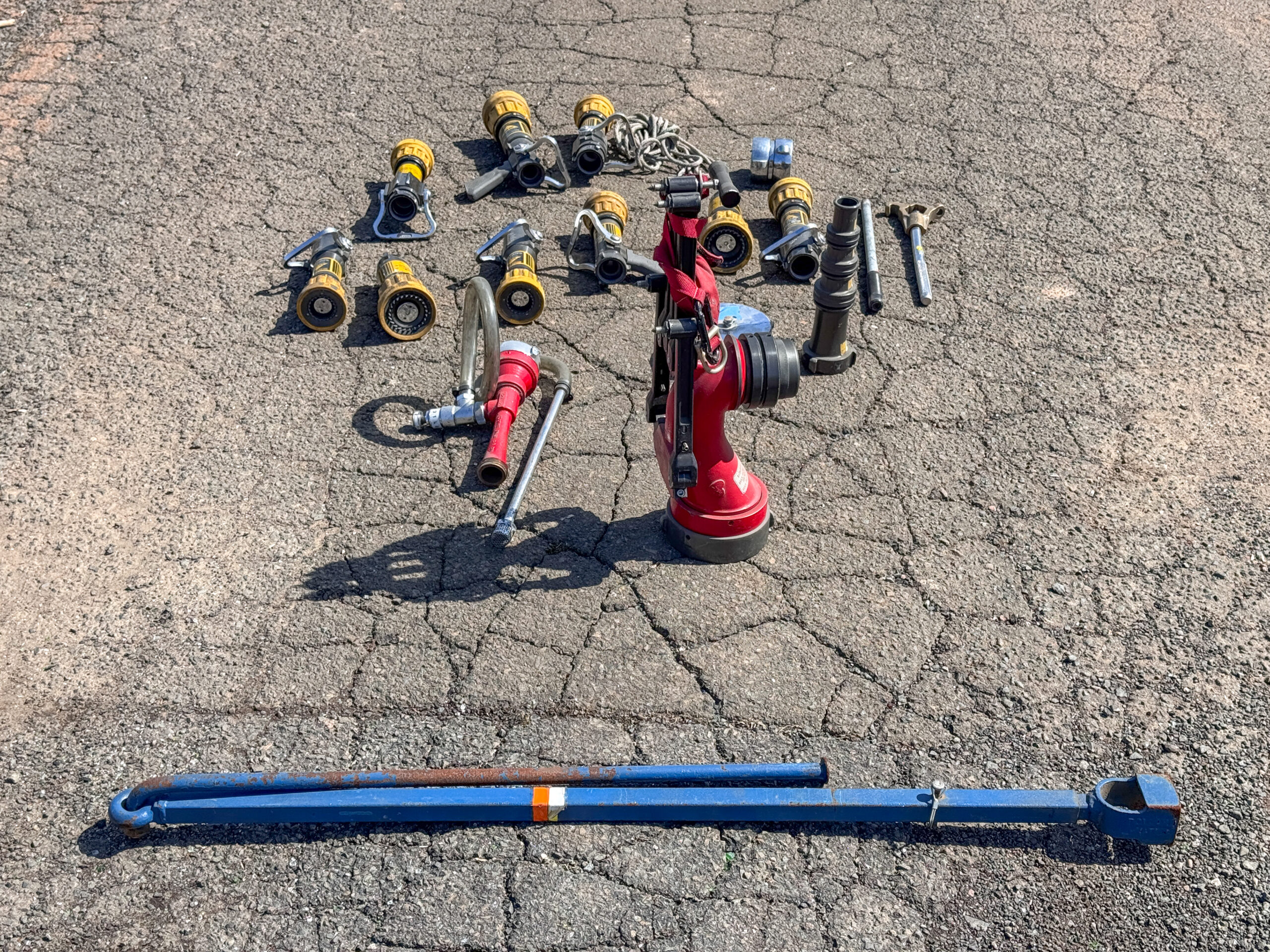

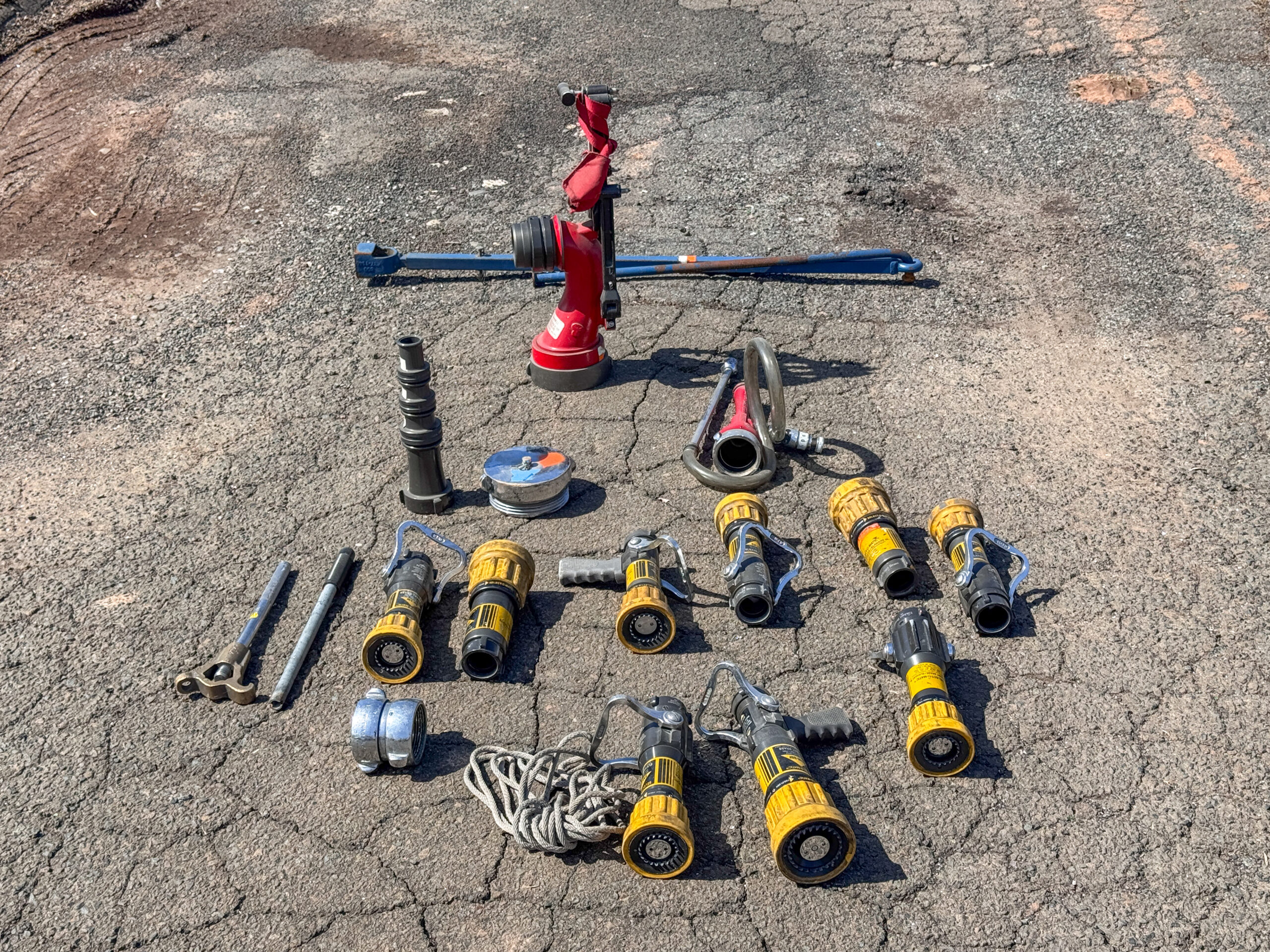

Loose Equipment:

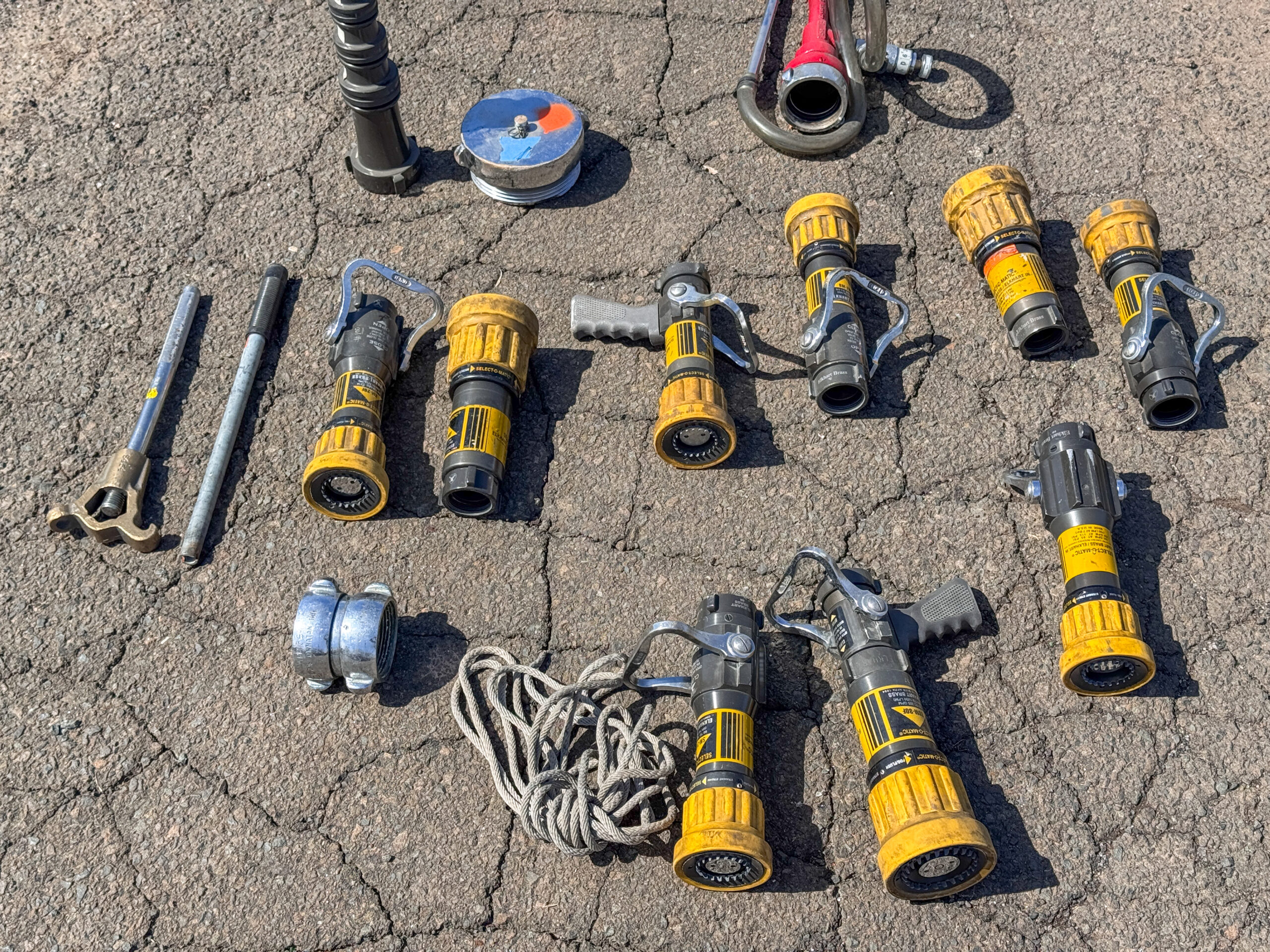

Adapters: (X2) 45° 6” To 4.5”, (X5) 45° 2 ½” To 1 ½”, 30° 4” To 4 ½”, (X1) 2” Tp 2” Elkhart Deck Gun Jj
Elkhart Nozzle Stinger 2.0 1250 Flow
3 Selectomatic Sm-20F Nozzles
3 Tsm-30F
2 Sm-20Fg
1 Sm-10Fg
1 Elkhart Jj Nozzle
1 Sm-3F

Dimensions

Mileage: 118,128
Height: 9’ 2”
Width: 10’ 4”
Length: 31’ 1”
Gvw: 44000 Lbs
Wheelbase: 179”
