2010 Pierce Arrow Xt Pumper 1250/750 (E4998)

General

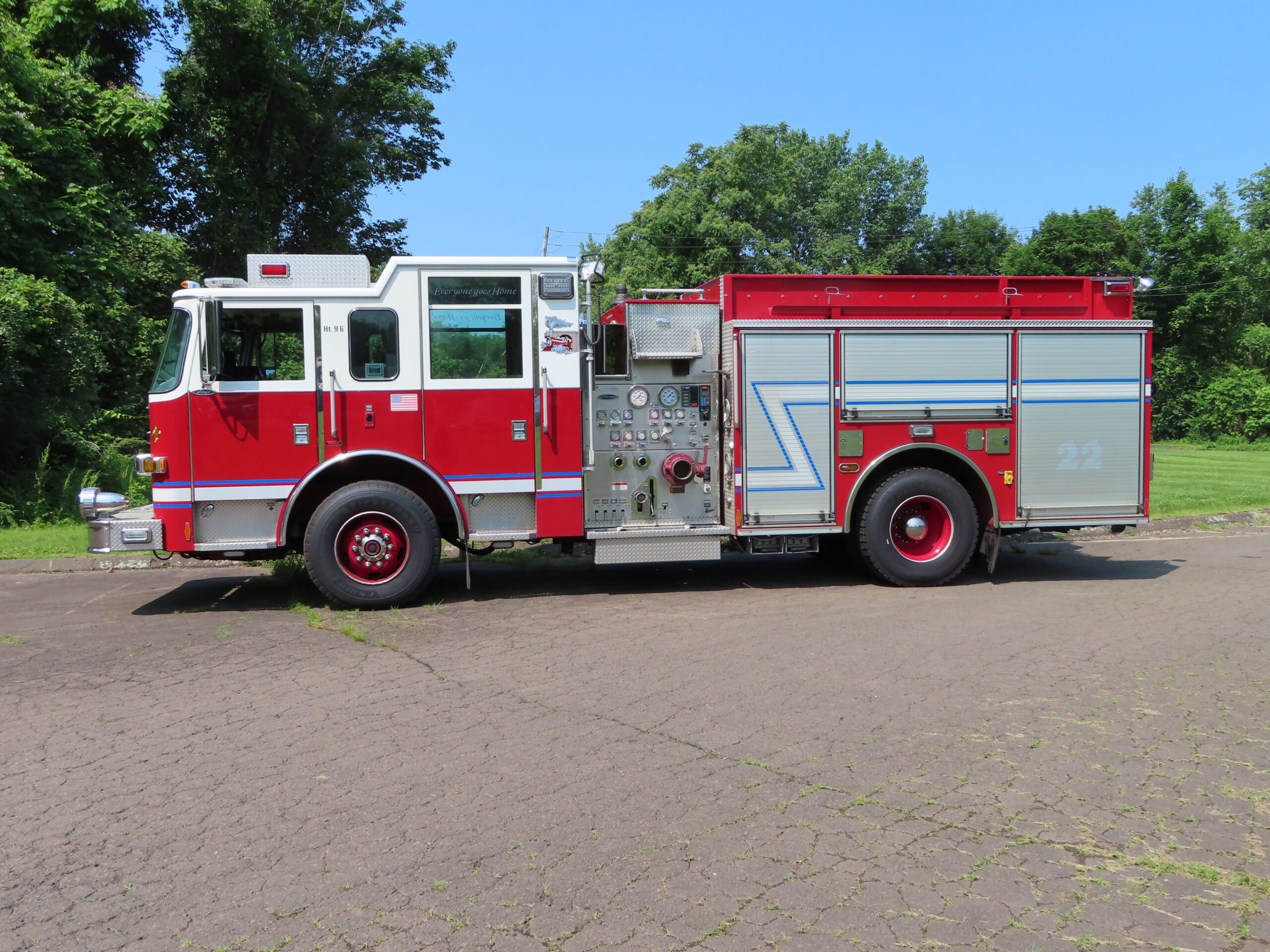

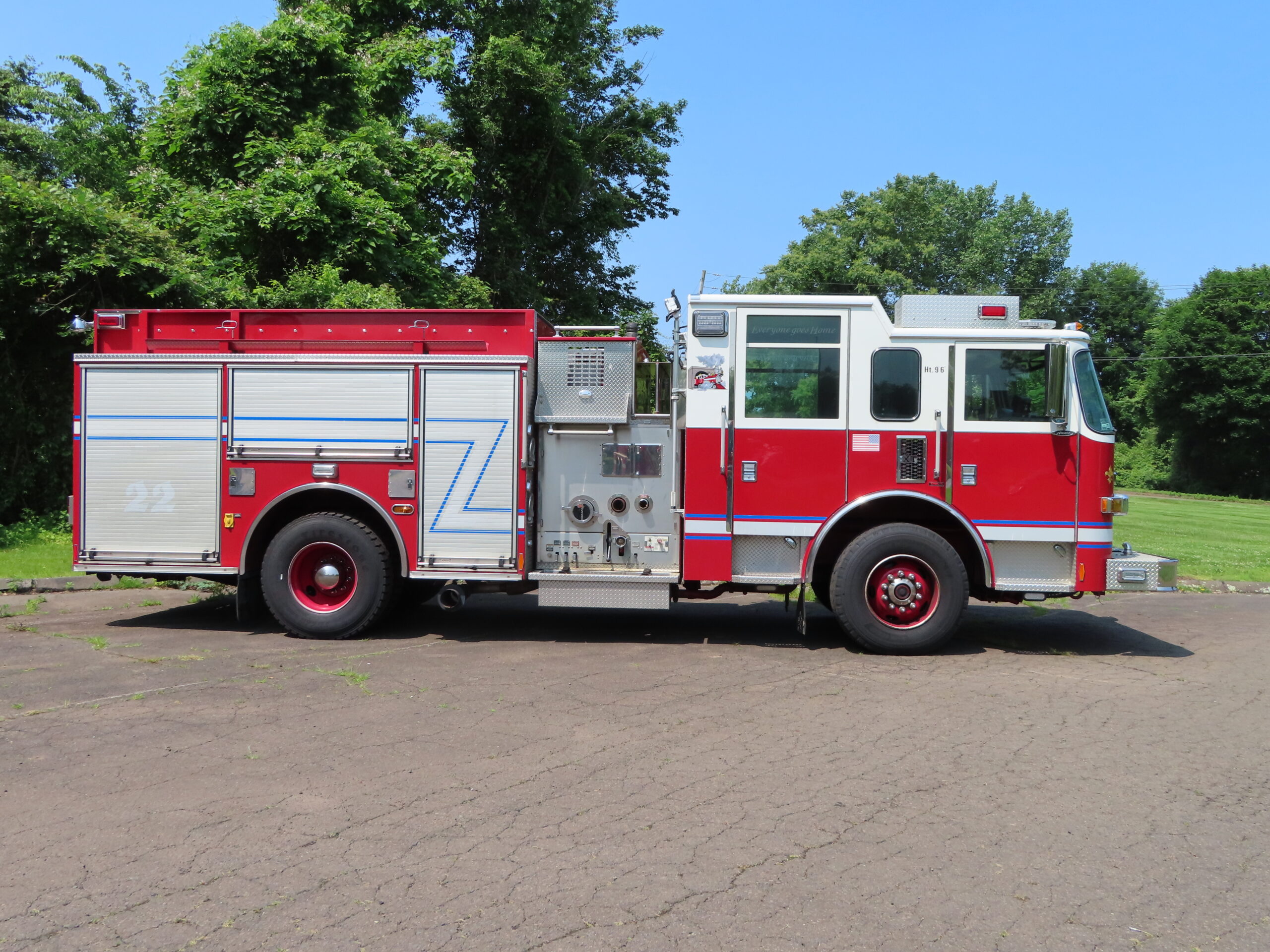

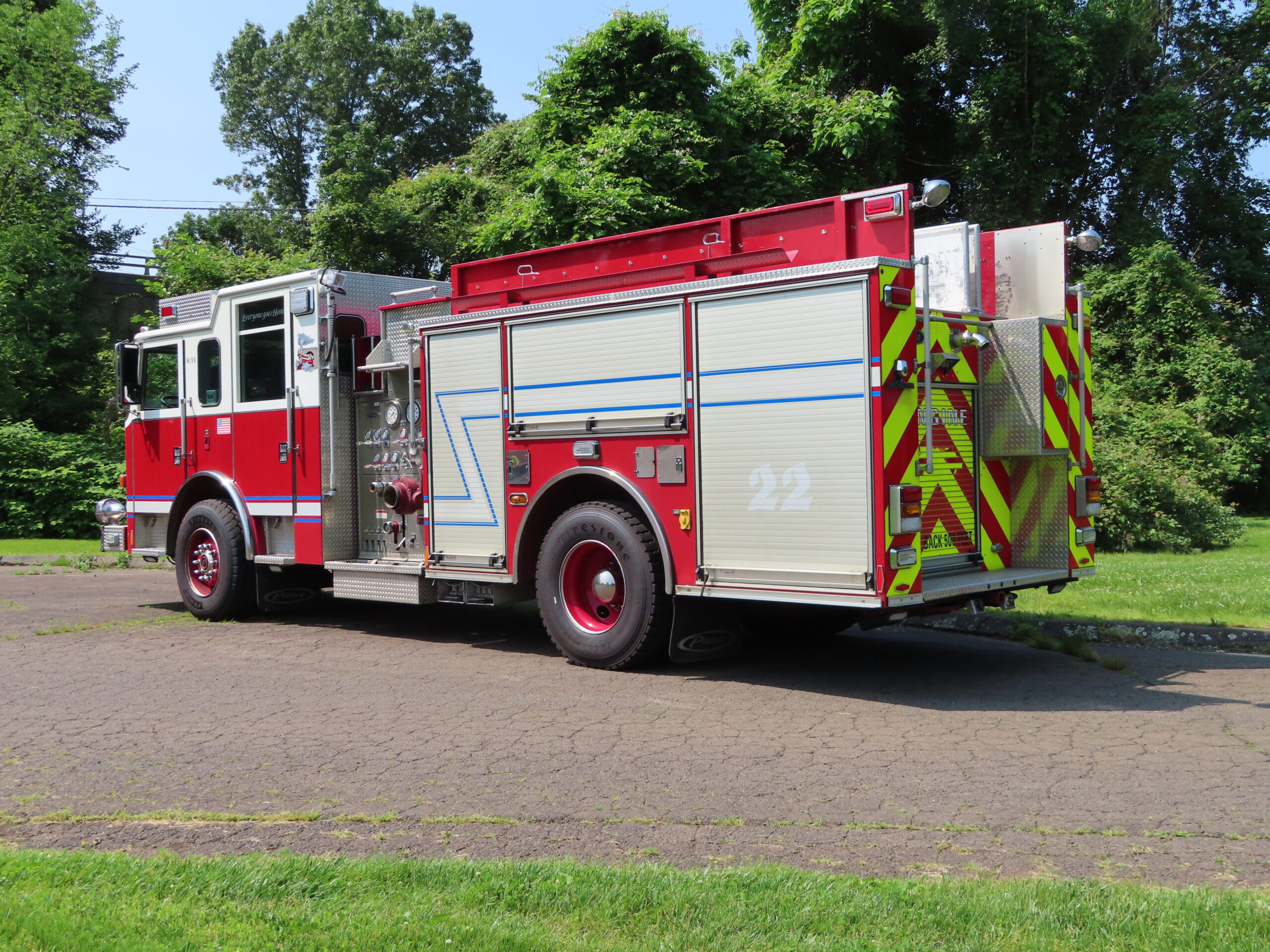

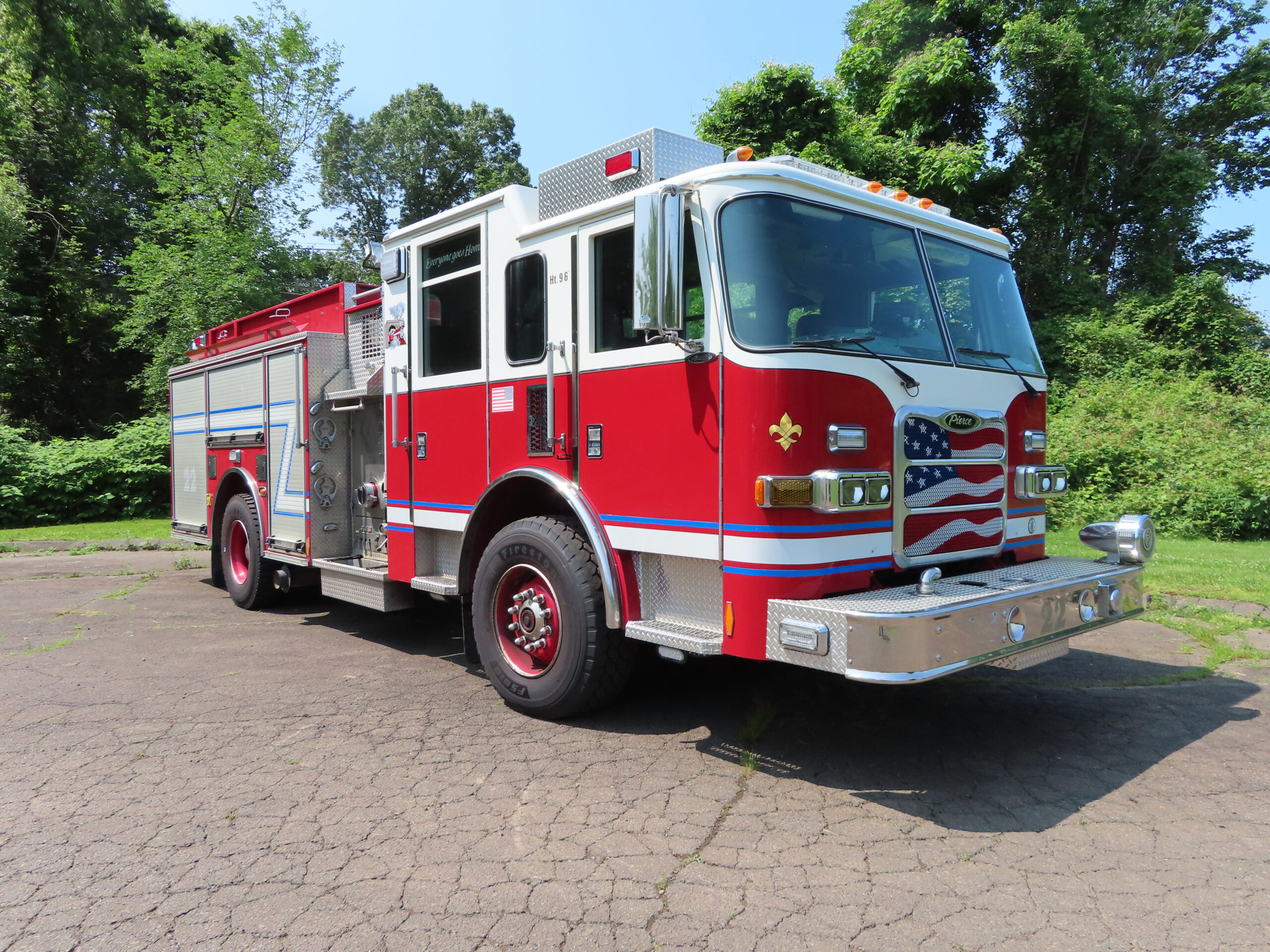

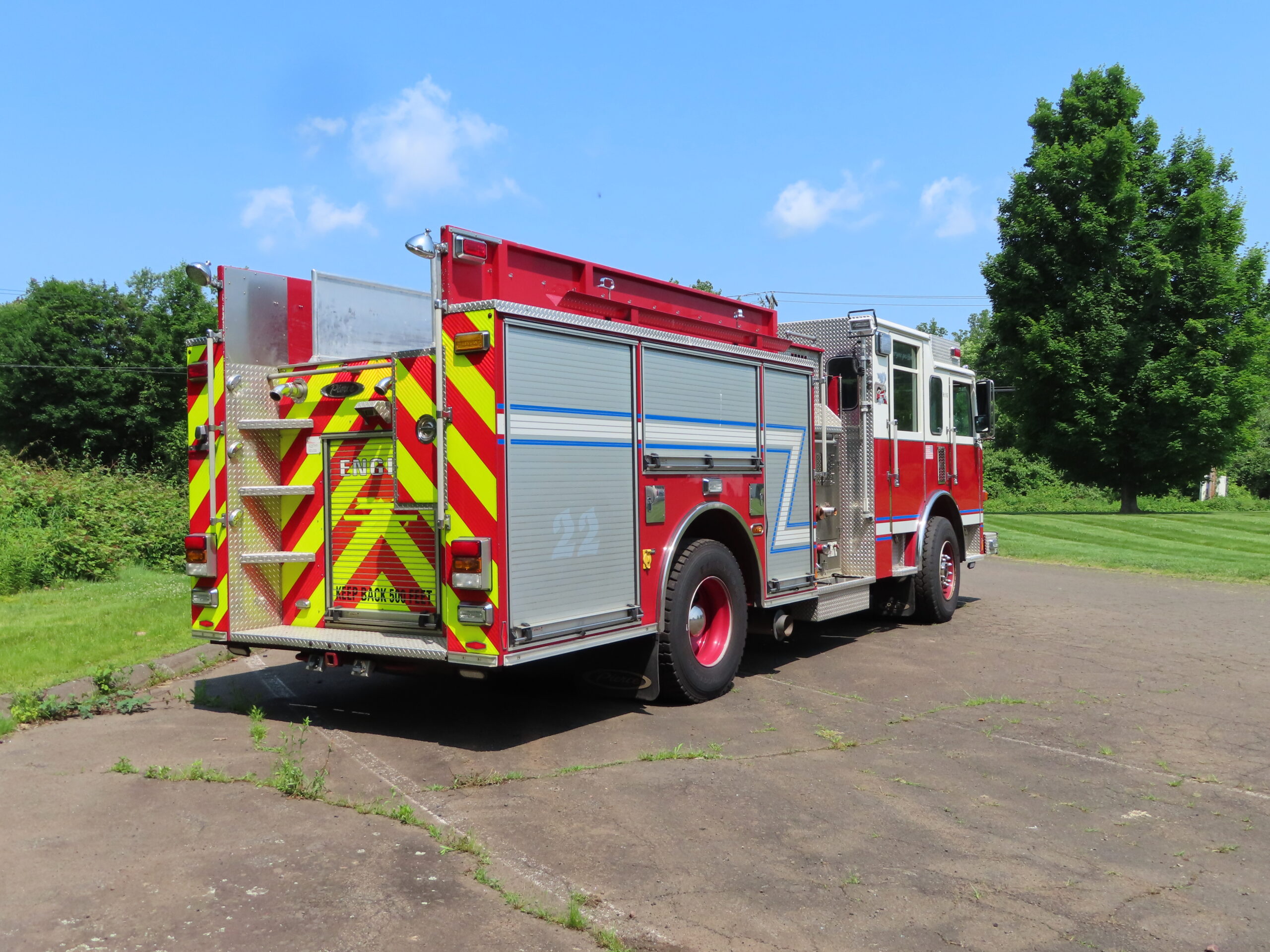

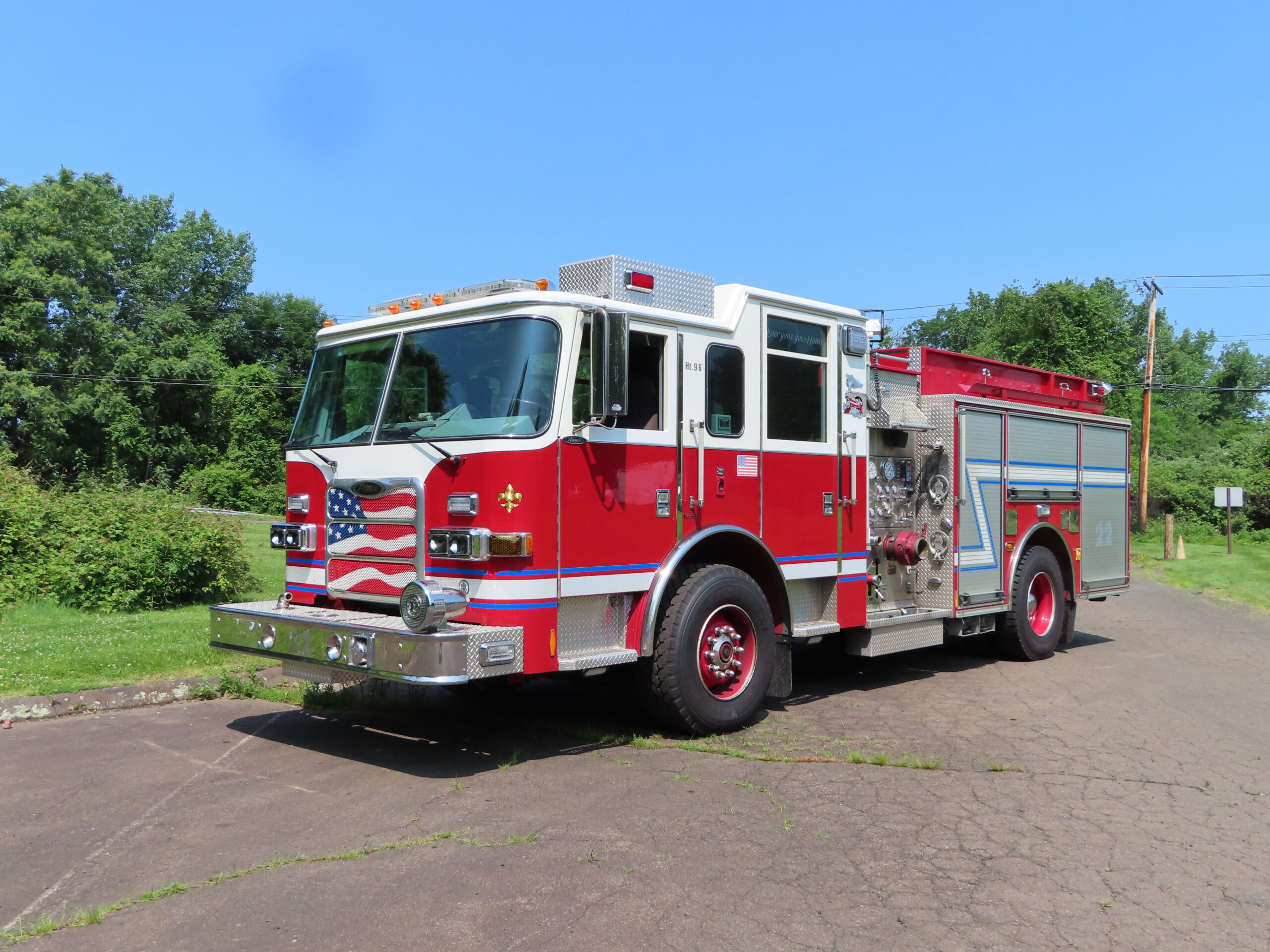

2010 Pierce Arrow Xt Pumper
Aluminum Cab & Body

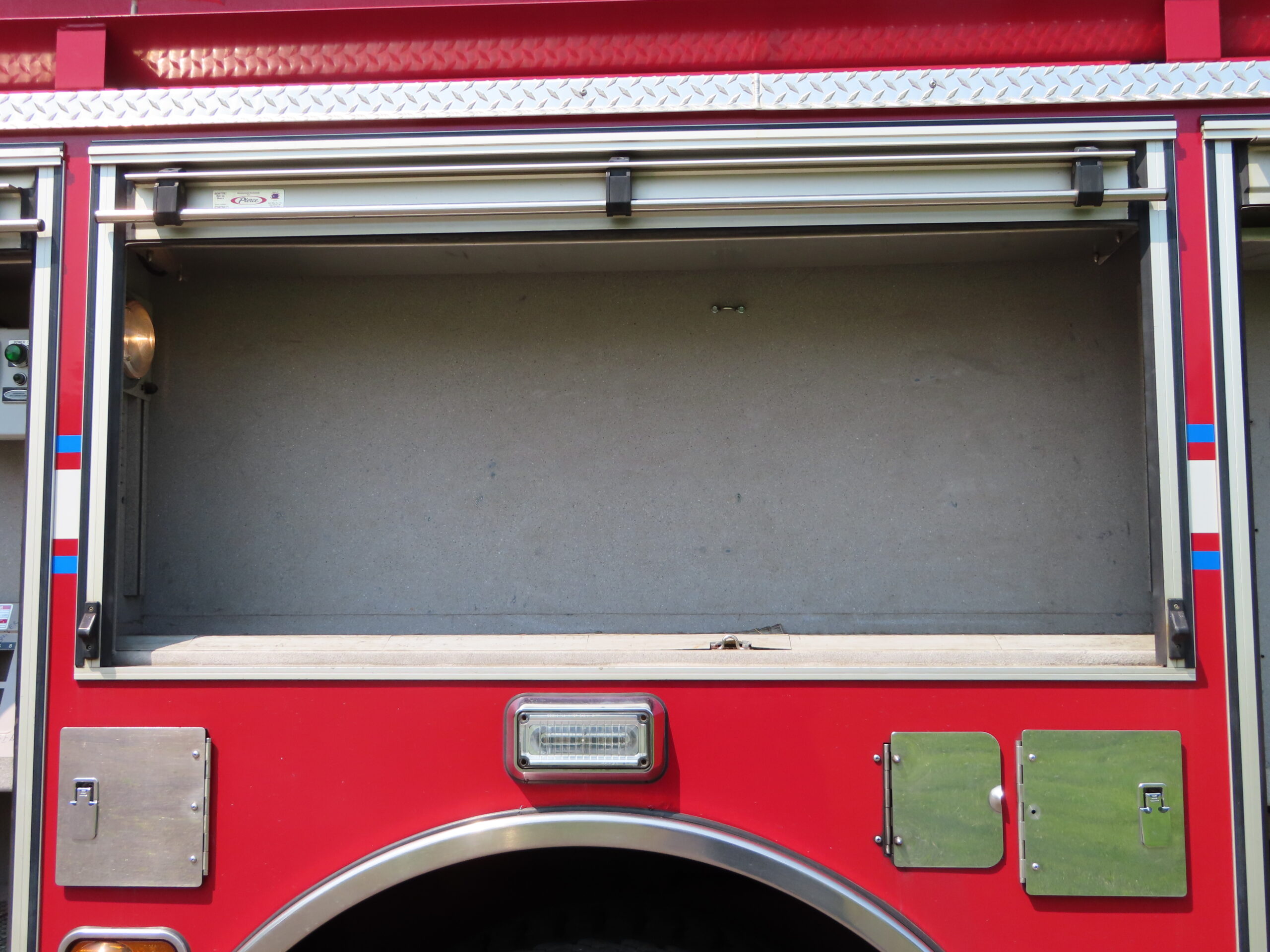

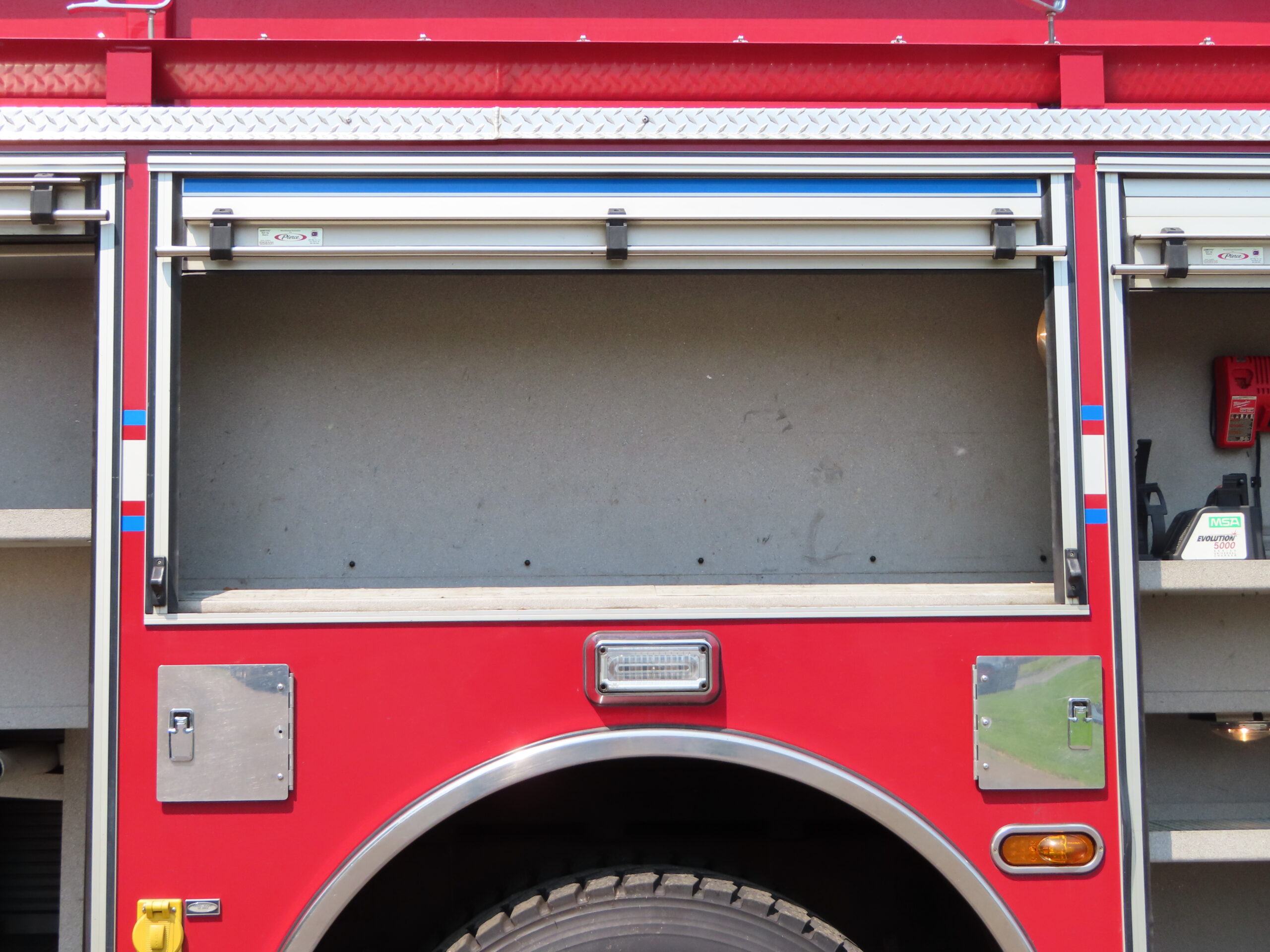

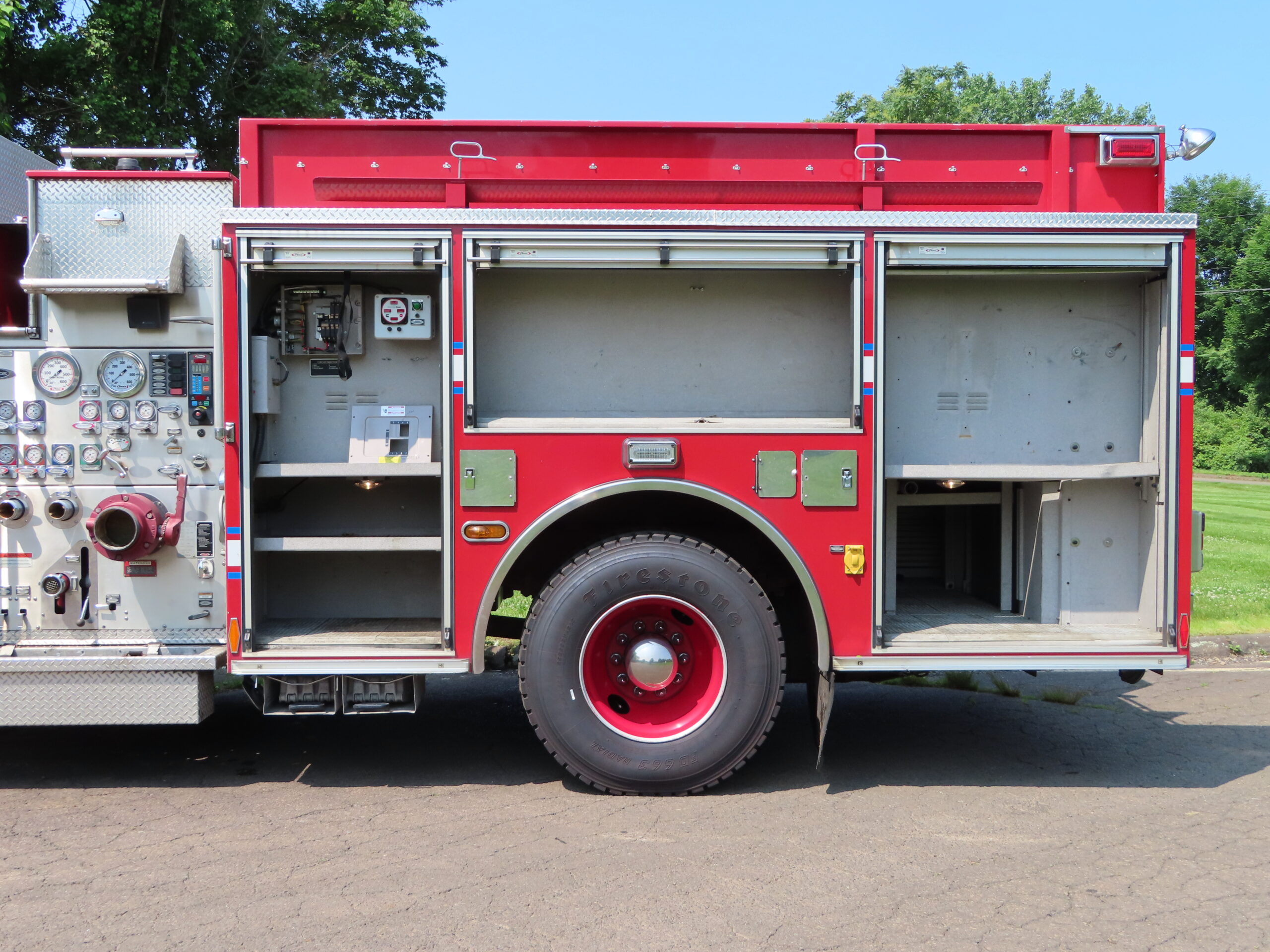

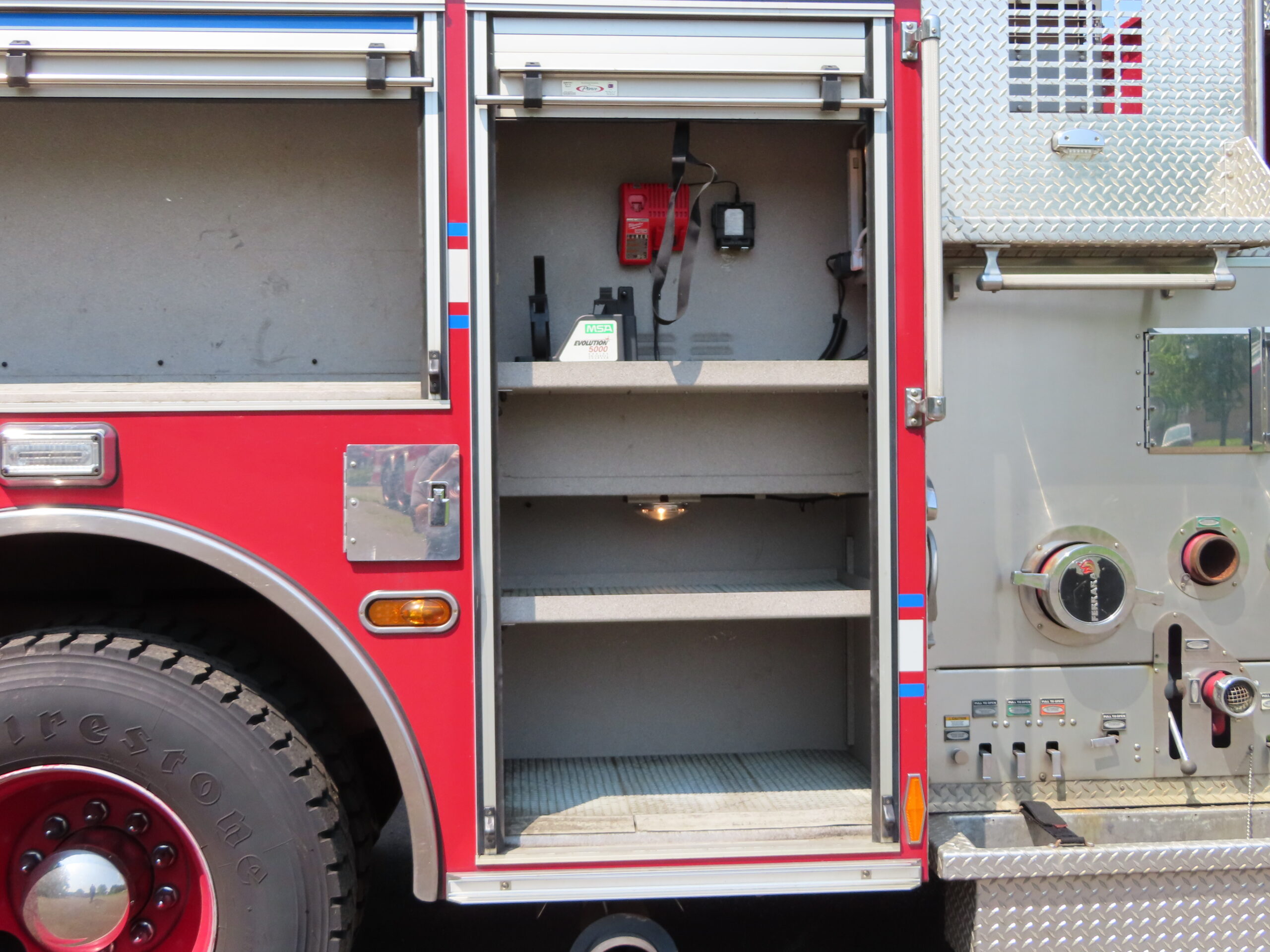

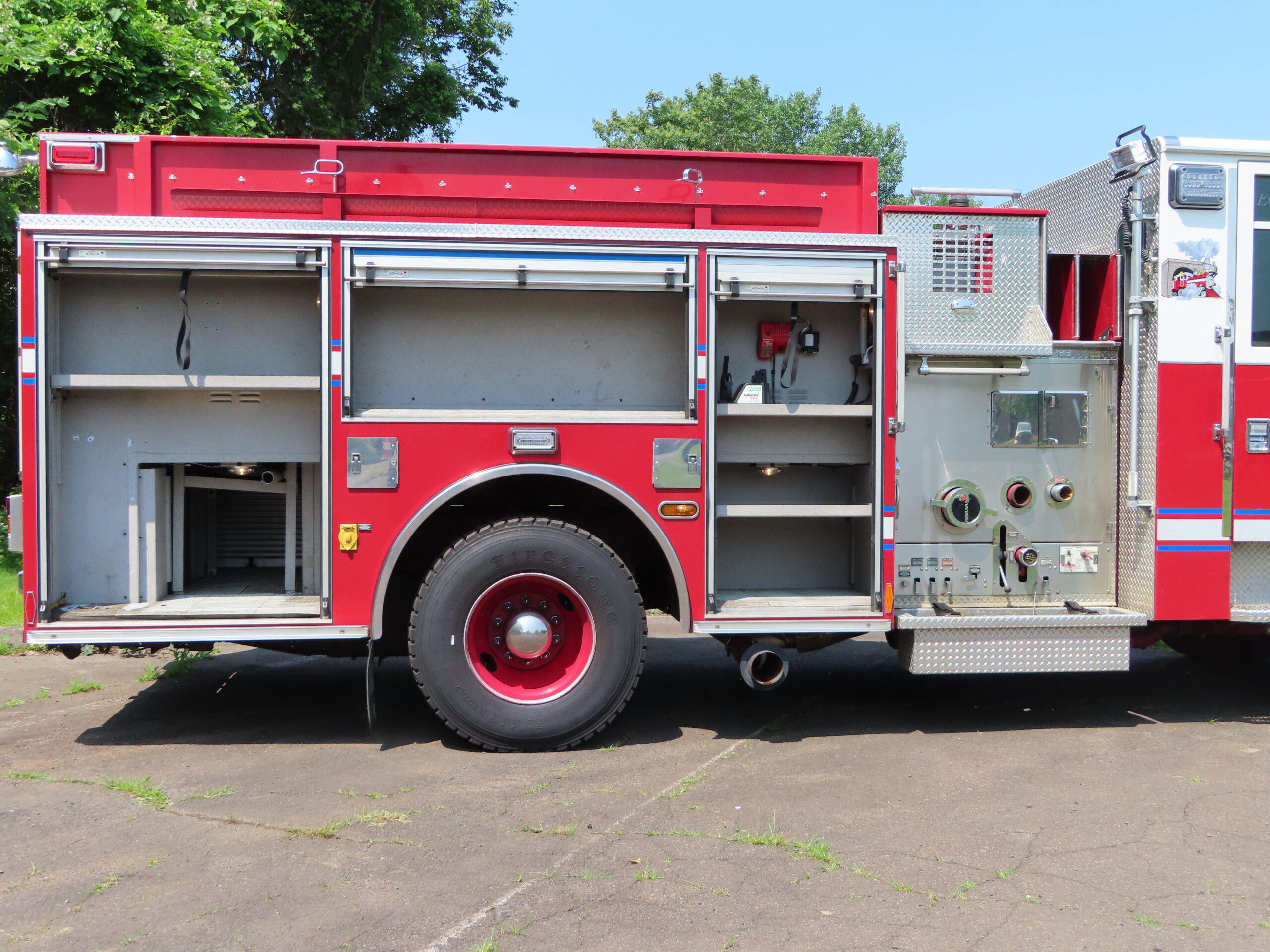

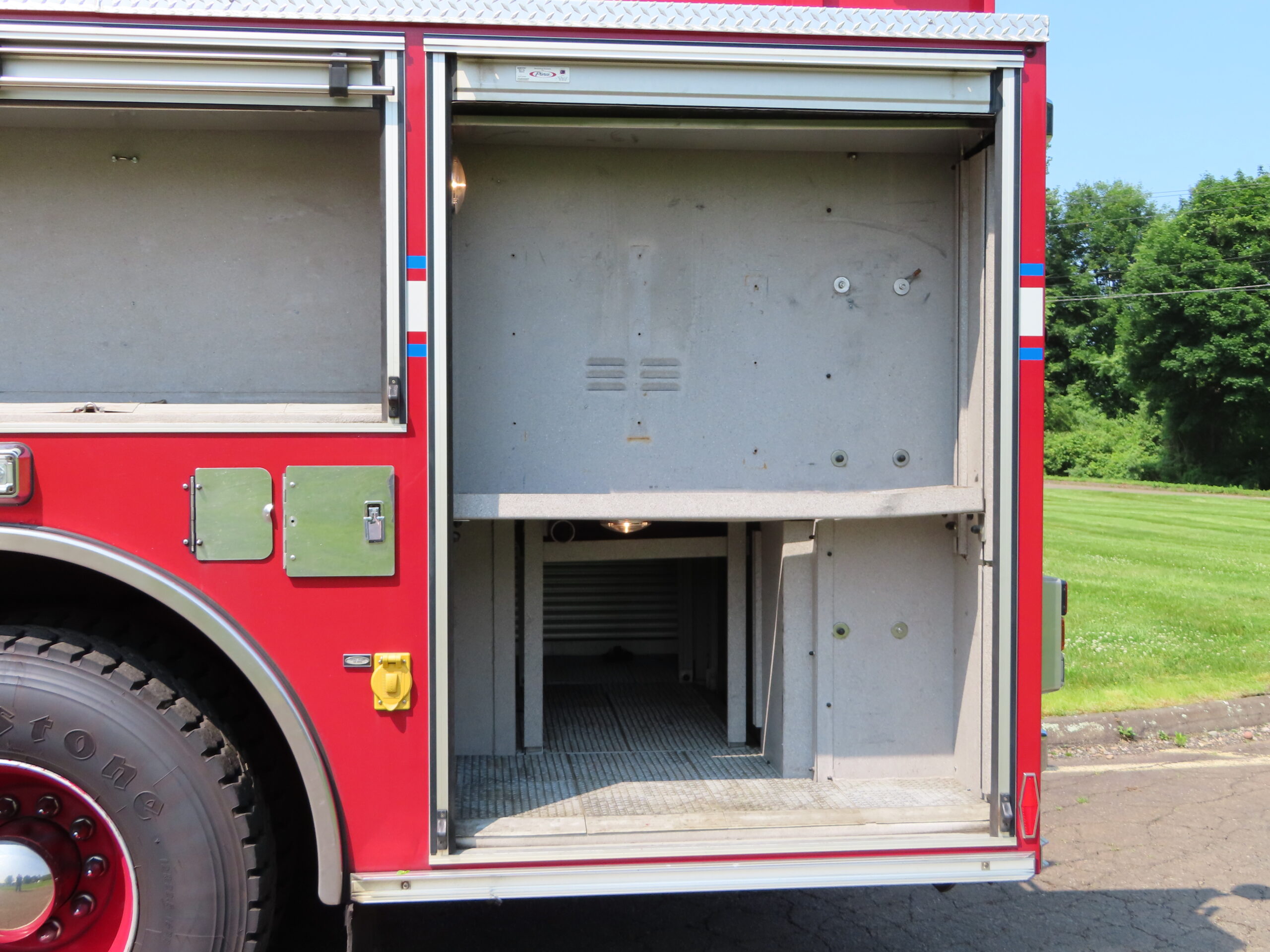

7 Cabinets
2 Axles

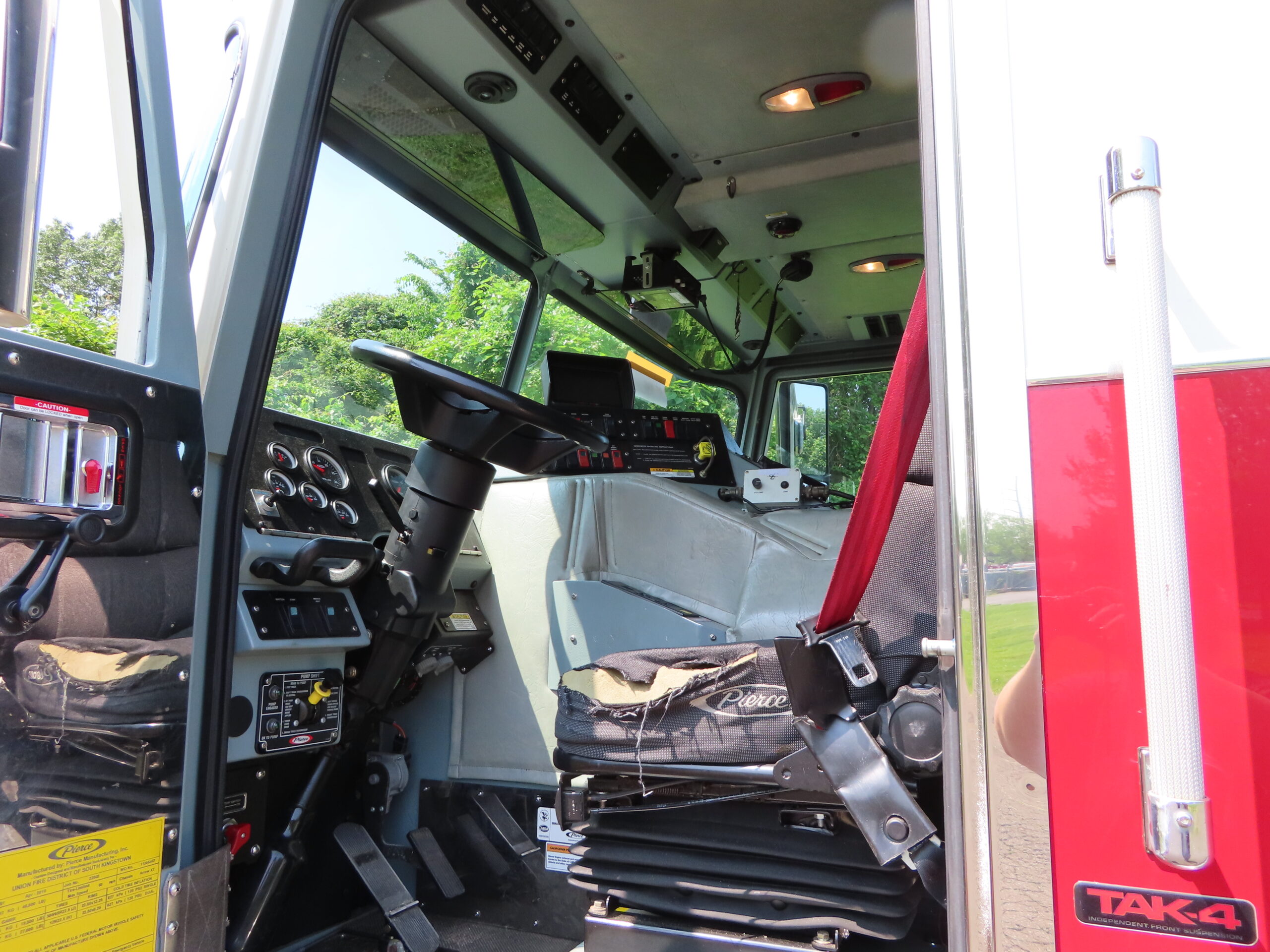

4Dr Cab
Aluminum Cab
White / Red

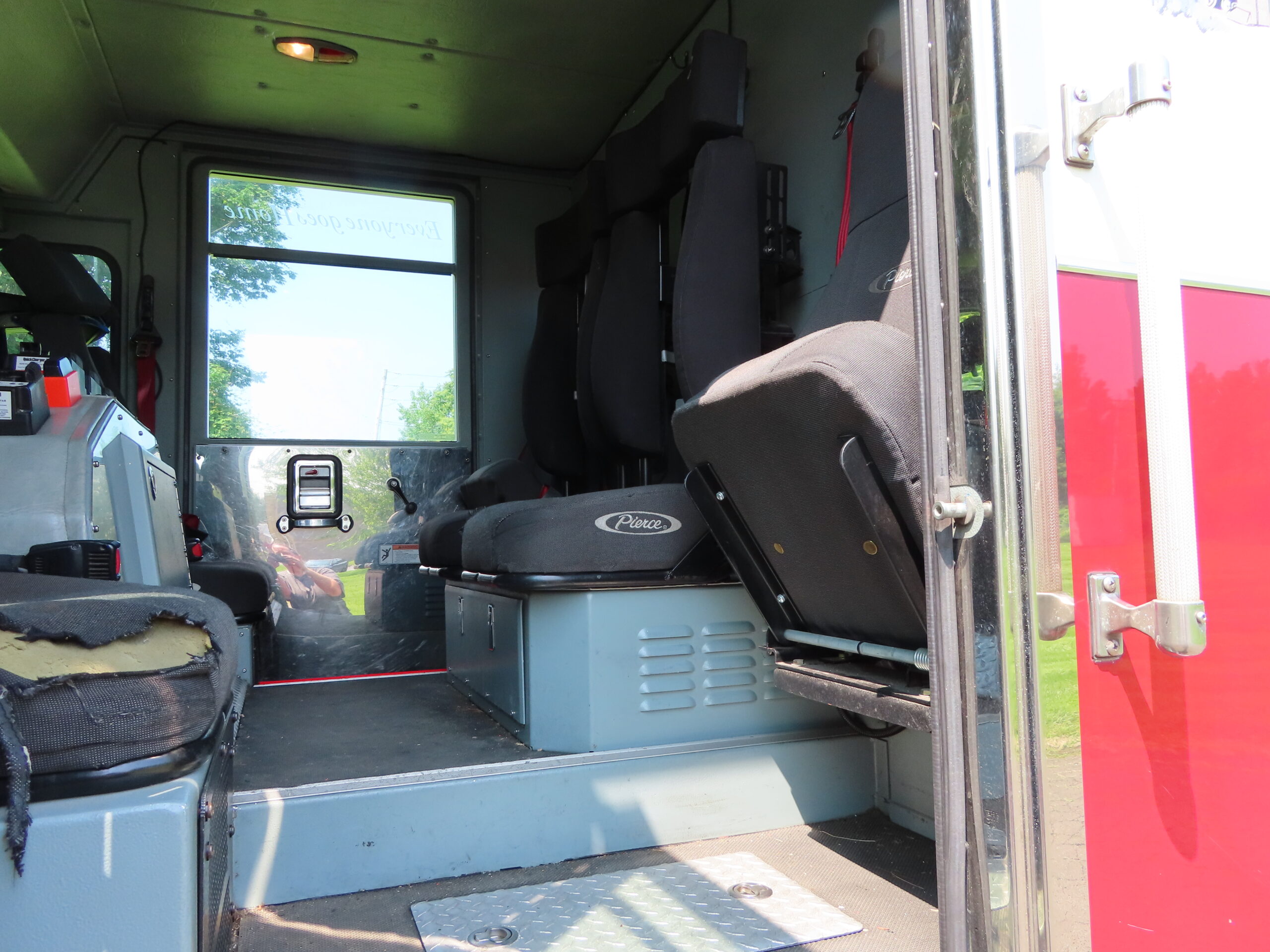

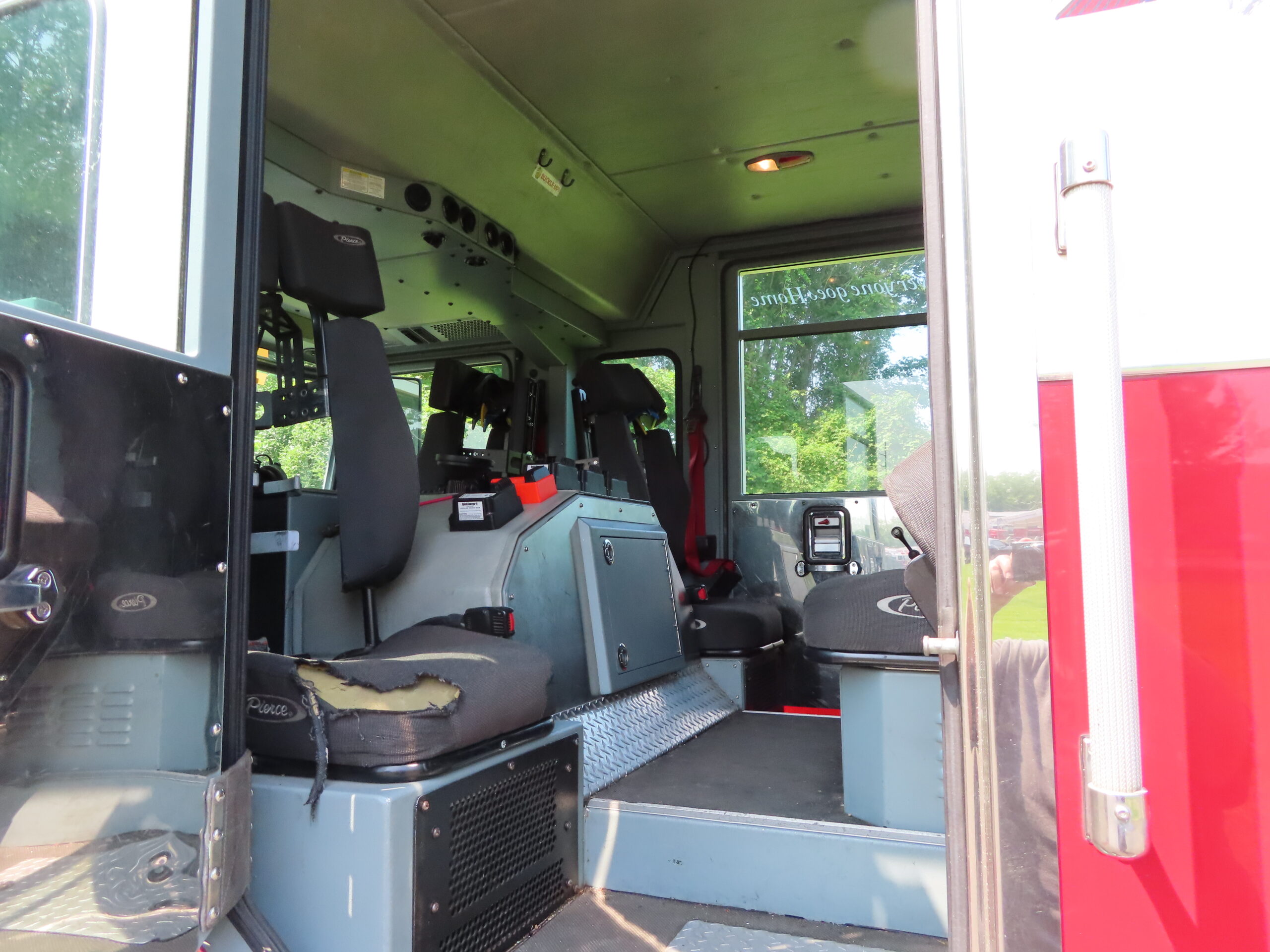

8 Occupants

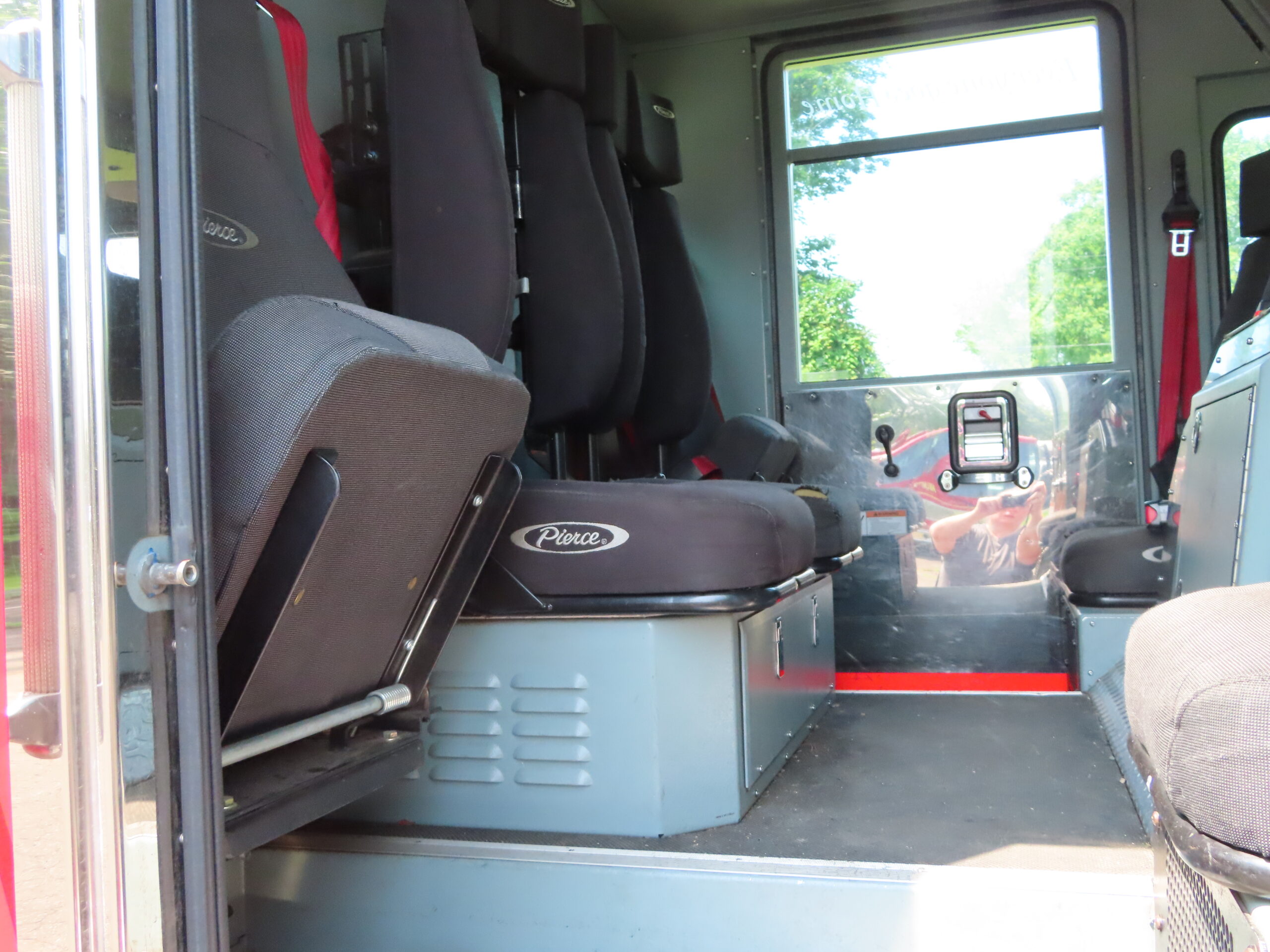

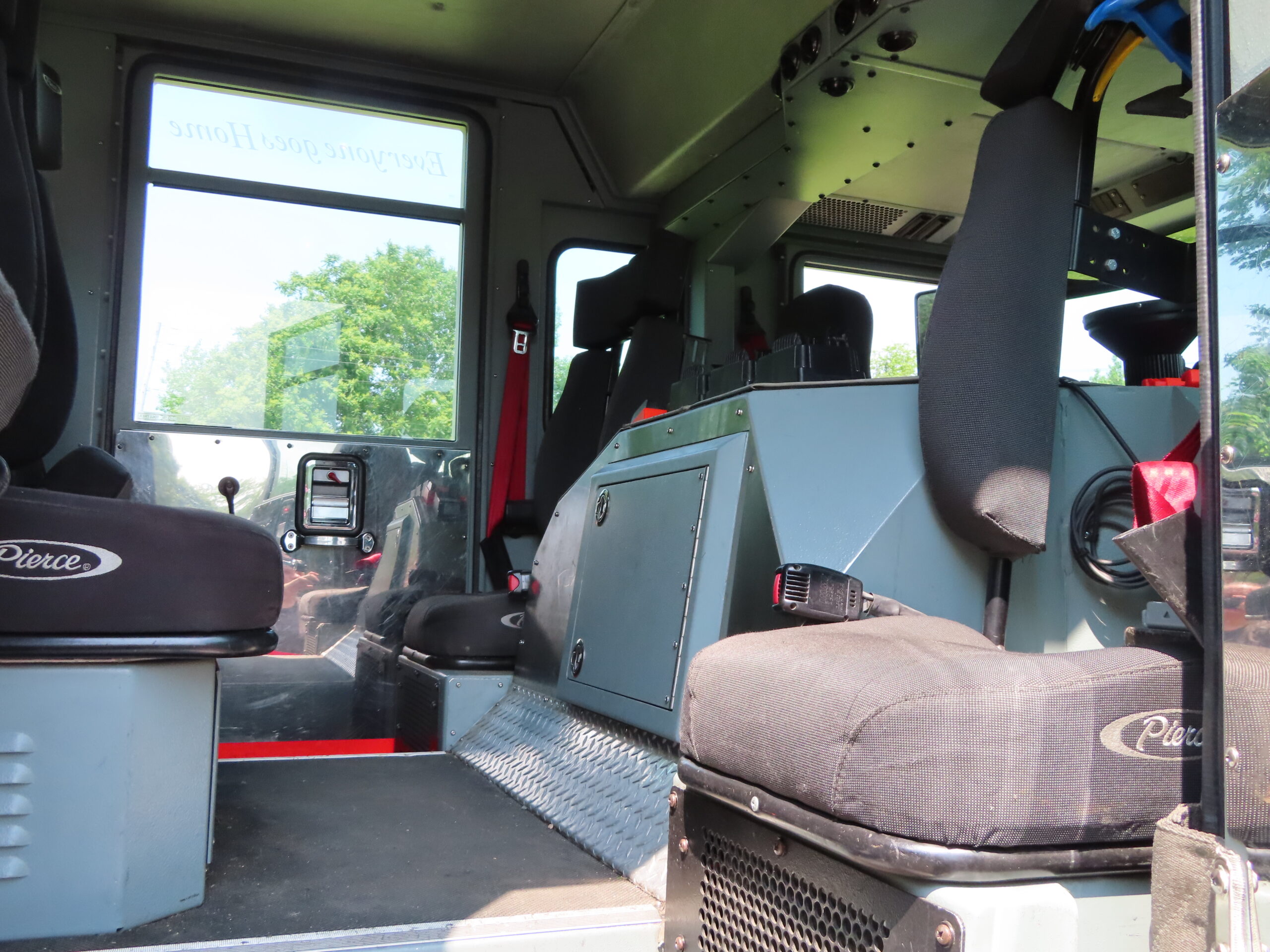

8 Seats
Scba Seats
5 Scba Holders
Air Brakes
Air Conditioner
Front Tire: Good – Size: 385/65R22.5
Rear Tire: Like New – Size: 12R22.5
Cummins – Model: Isl
Diesel Turbo
370 Hp
6 Cylinders
4052 Hours
Allison – Model: 3000Evs
Auto
6 Speeds
Retarder Engine Brake
Scene Lights: 2 Whelen Pioneer Plus 115 Vac Led Pole Lights – 1 Mounted Rear Corners Of Cab.
Lightbar: Code 3 Led X 2100
Warning Lights: Code 3 Led Whelen Led
Siren: Elec. Code 3 Vcon, Fed Q

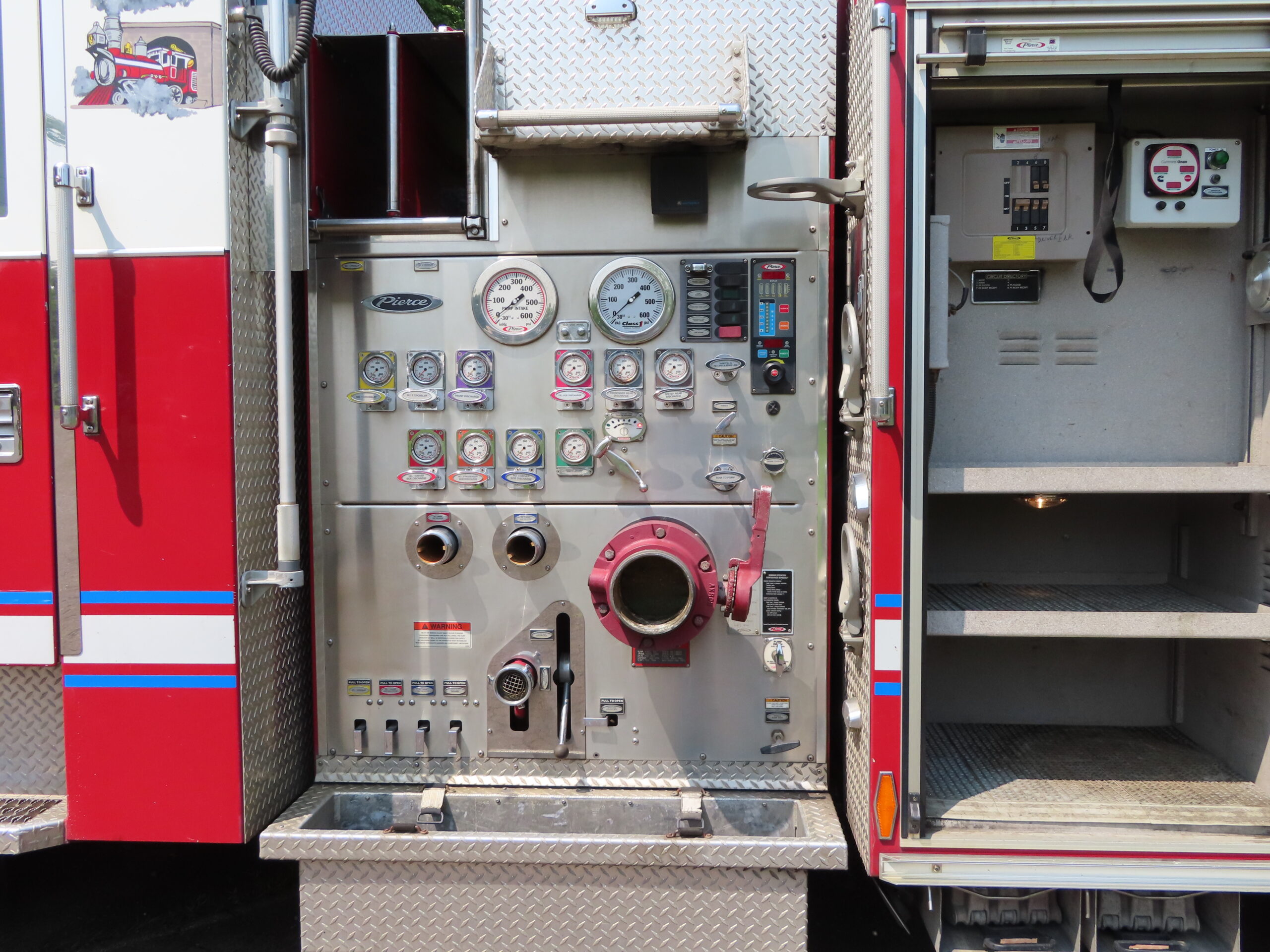

Pump & Tank

Waterous Single Stage – Model: Cs
Gpm: 1250
Pump Certified – 6/25
Water Tank Size: 750 Gallon Poly Tank
Deck Gun: 3” Plumbing No Gun

Discharges:
2-2 ½” L.Side Pump Panel
1-2 ½” 1 Ldh 3” R.Side Pump Panel
2-2 ½” R Hose Bed
Pre-Connects: 2-1 ¾” Mattydales
1-1 ¾” Front Bumper

Intake Suctions:
2-6”
1 L.Side
1 R.Side Pump Panel 2-2 ½”
1 L.Side
1 R.Side Pump Panel

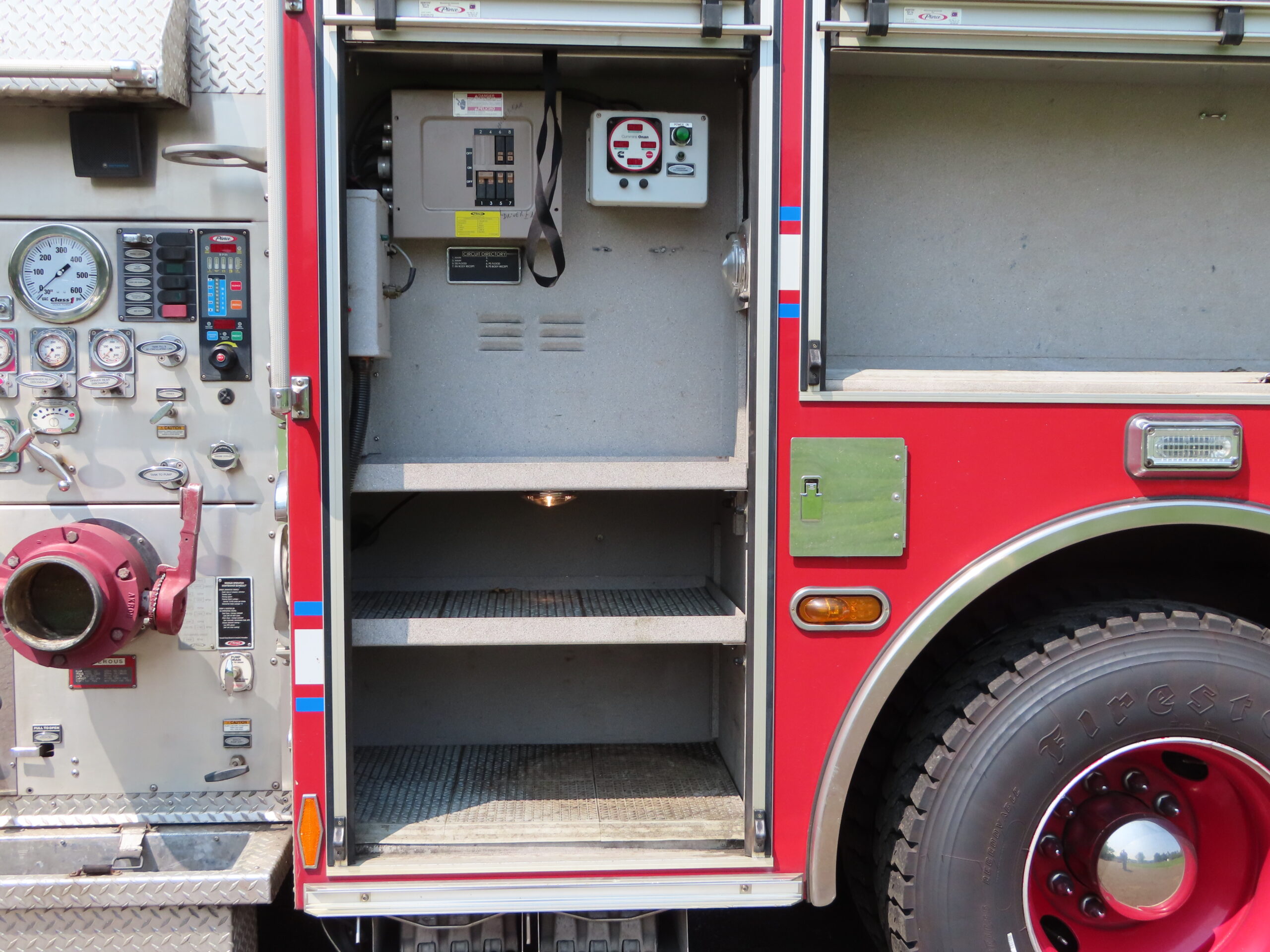

Generator

6Kw Hyd Cummins Onan

Dimensions

Mileage: 55,807
Height: 9’ 5.5” Width: 8’ 3”
Length: 30’ 3.5”
Gvw: 46,500
Wheelbase: 186”
