2009 Chevy Tahoe Command Unit 4×4 (O1157)

General

2009 Chevy Tahoe
5.3L V8 Engine with 6 speed transmission
4×4 (Auto, High, Low)
Nitto Exo Grappler LT265/70R17 Tires and spare
Dual Battery
Heavy Duty Towing Package
2” rear hitch receiver, 7 way RV blade plug with integrated trailer brake controller
8,200 lbs max trailer, 14,000 GCWR (with proper equipment)
AM/ FM/ CD/ AUX stereo
Tri-zone HVAC (Driver, Passenger, Rear), with additional second row seat controls
Electric sliding pedals
Reverse collision avoidance sensors
Fog lights

Upfits:

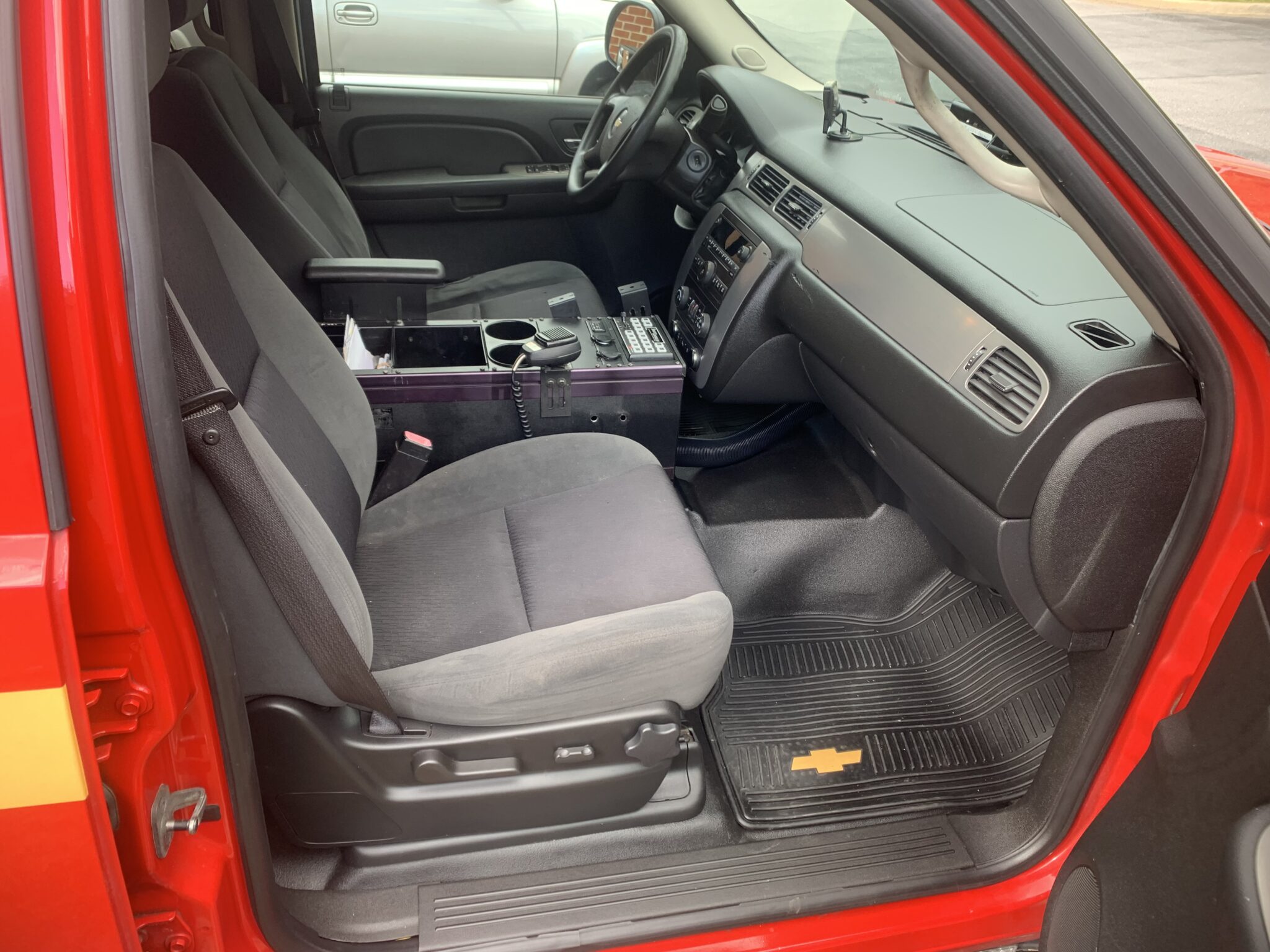

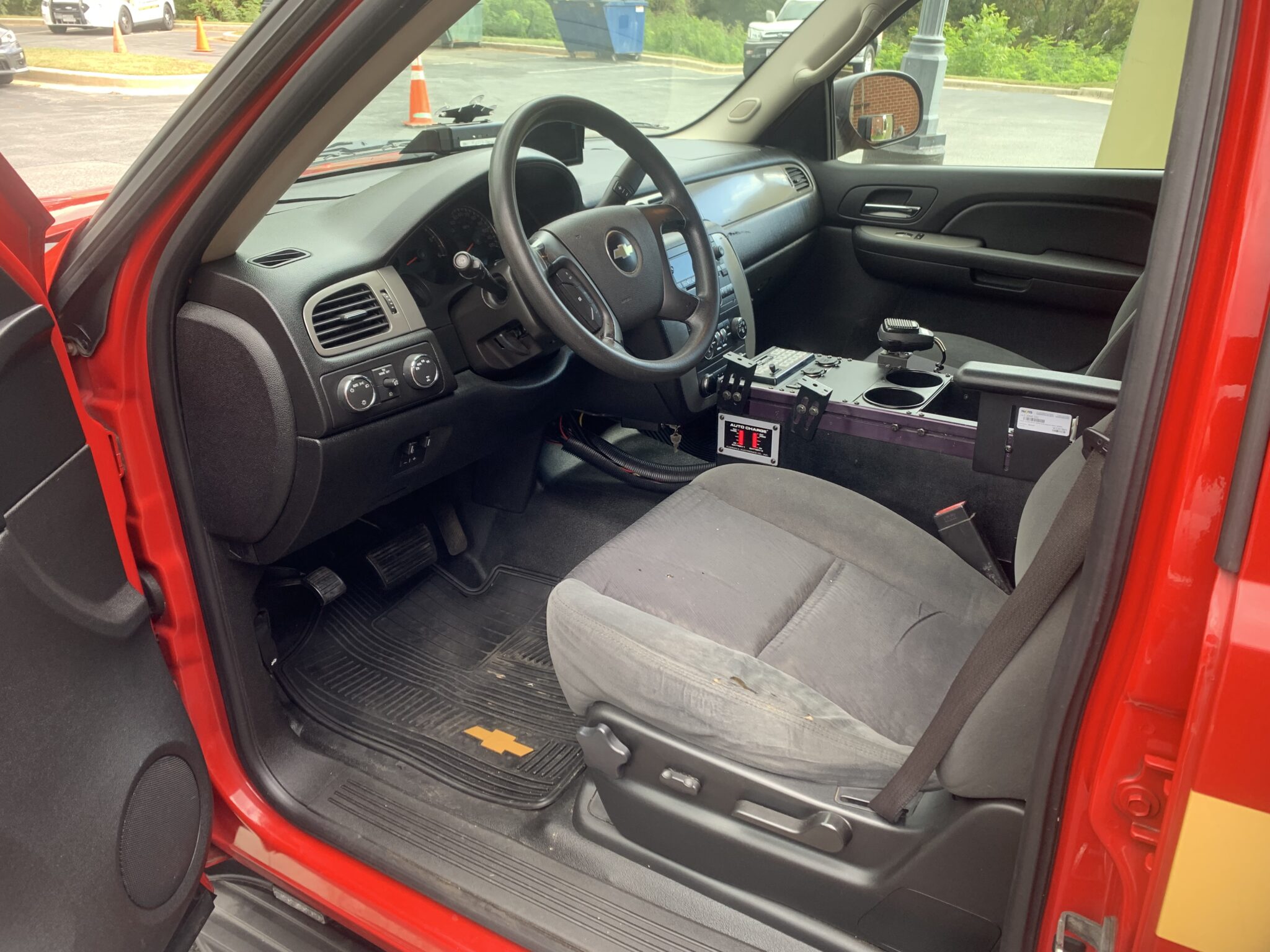

Havis 9” wide x 24” long console, MDC compatible (mount not included)
Dual 2.4 amp USB and Dual 12 VDC outlets
Wired for two mobile radios (two roof antennas)
Wired for Kussmaul series dual battery charger with dual battery charge indicator (Kussmaul not
included)
120 VAC inlet for Kussmaul and 120 VAC accessory charging
Interior overhead Red White LED light between driver and officer

Warning Lights and Sirens:
Federal Signal warning light package with Smart Controller (programmable) with PA
Federal Signal Valor Light bar has multiple lighting options including emergency, cruise, and
flood light features.
Roof mounted Green 360 degree command light.
Console Wired for second siren
High beam flasher and running light strobe
Dash mounted warning light
(4) Grille lights
(3) Running board lights per side
Rear warning bar & arrow stick
Rear tail light strobe lights

Other:
The vehicle gets preventative maintenance and repairs on a regular schedule, approximately 2x a

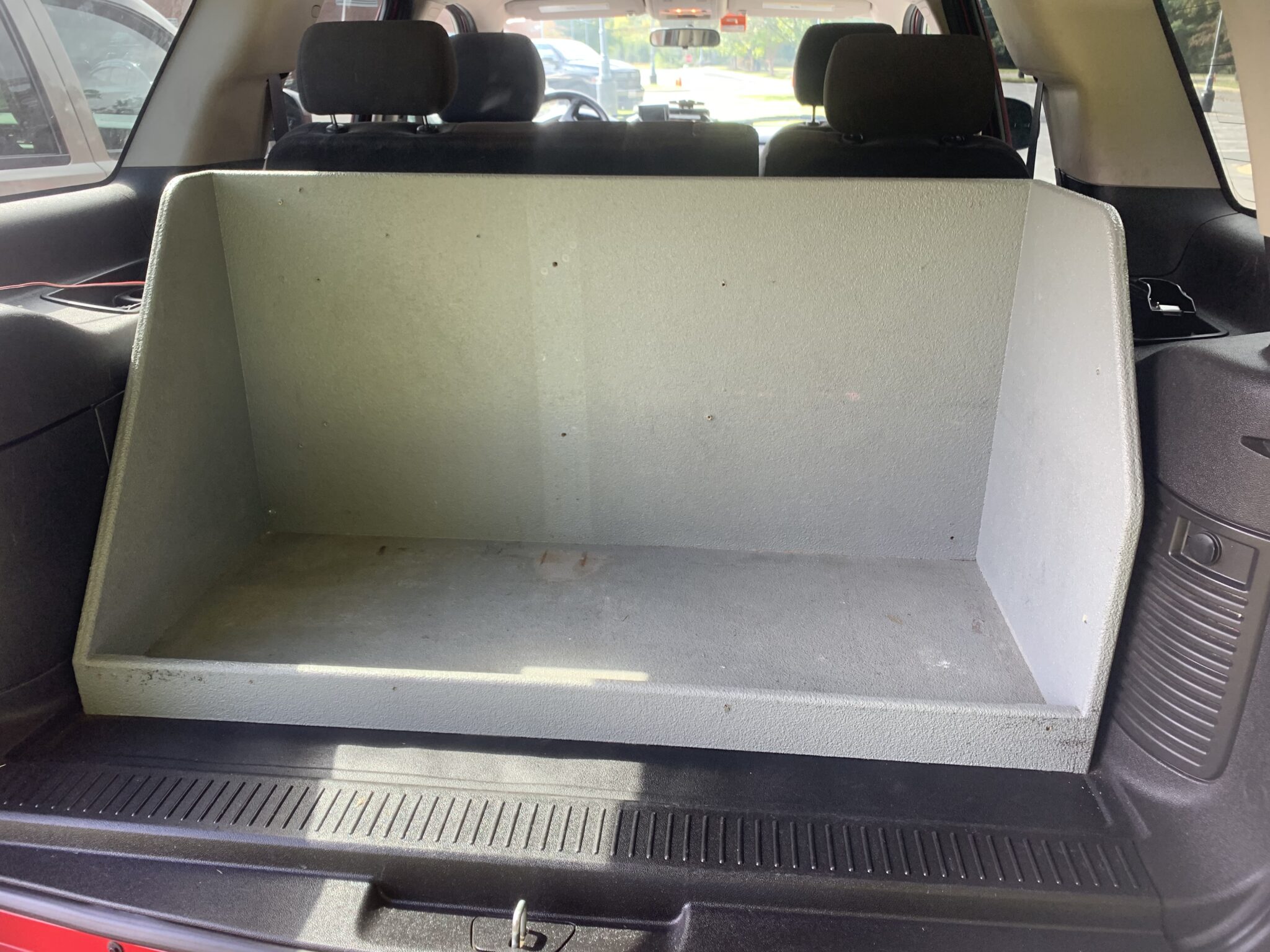

year or as needed. Comes with command shelf, no brackets (can be removed).
Known defects:

Small tear in driver seat upholstery.
Dash has a crack near the driver side
Vehicle is sold as is with no warranties.

Dimensions

136,399 miles (Mileage may increase, vehicle still used)
GVWR 7,300 lbs.
Front GAWR 3,600 lbs
Rear GAWR 4,100 lbs
3.42 Rear Axle Ratio
