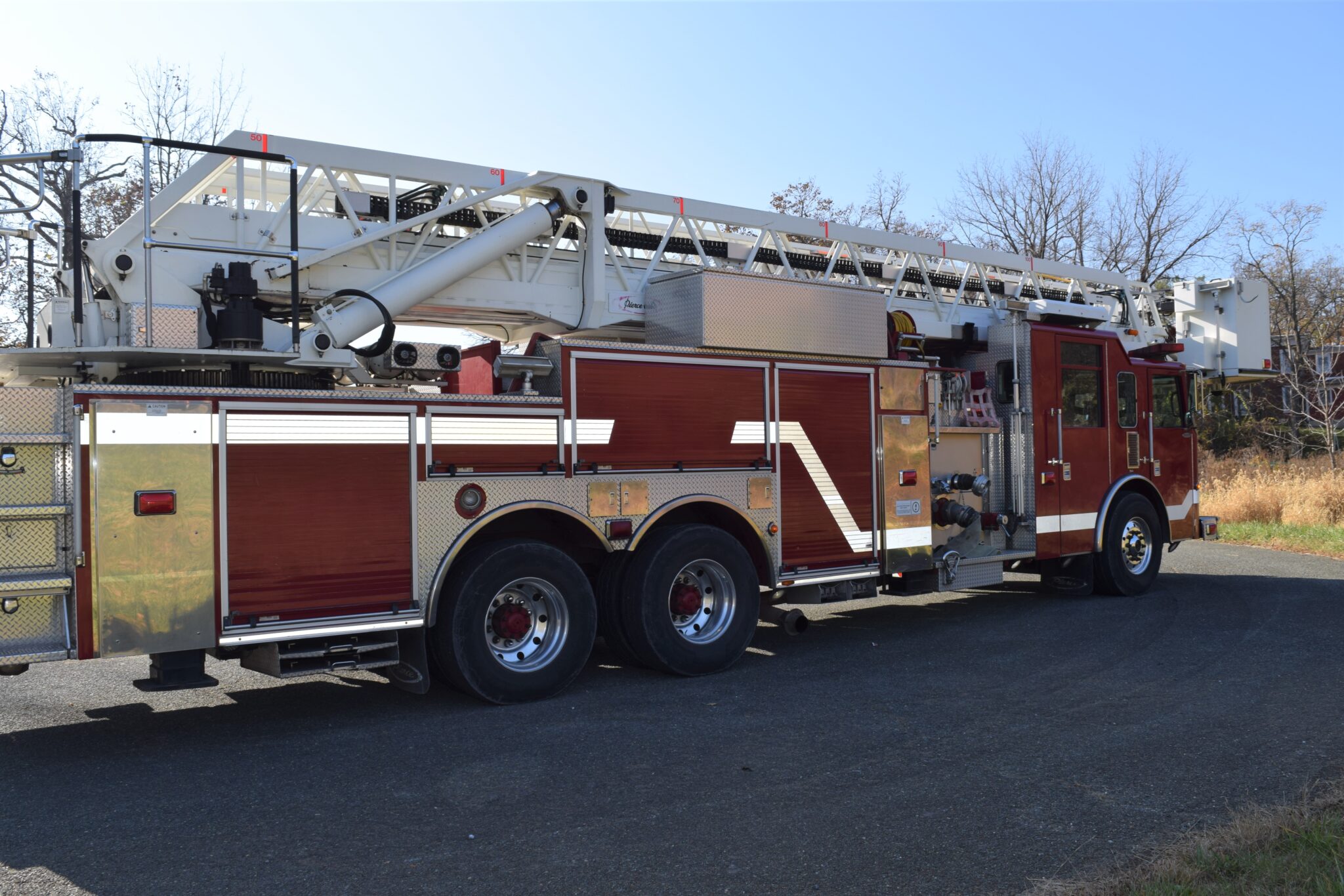

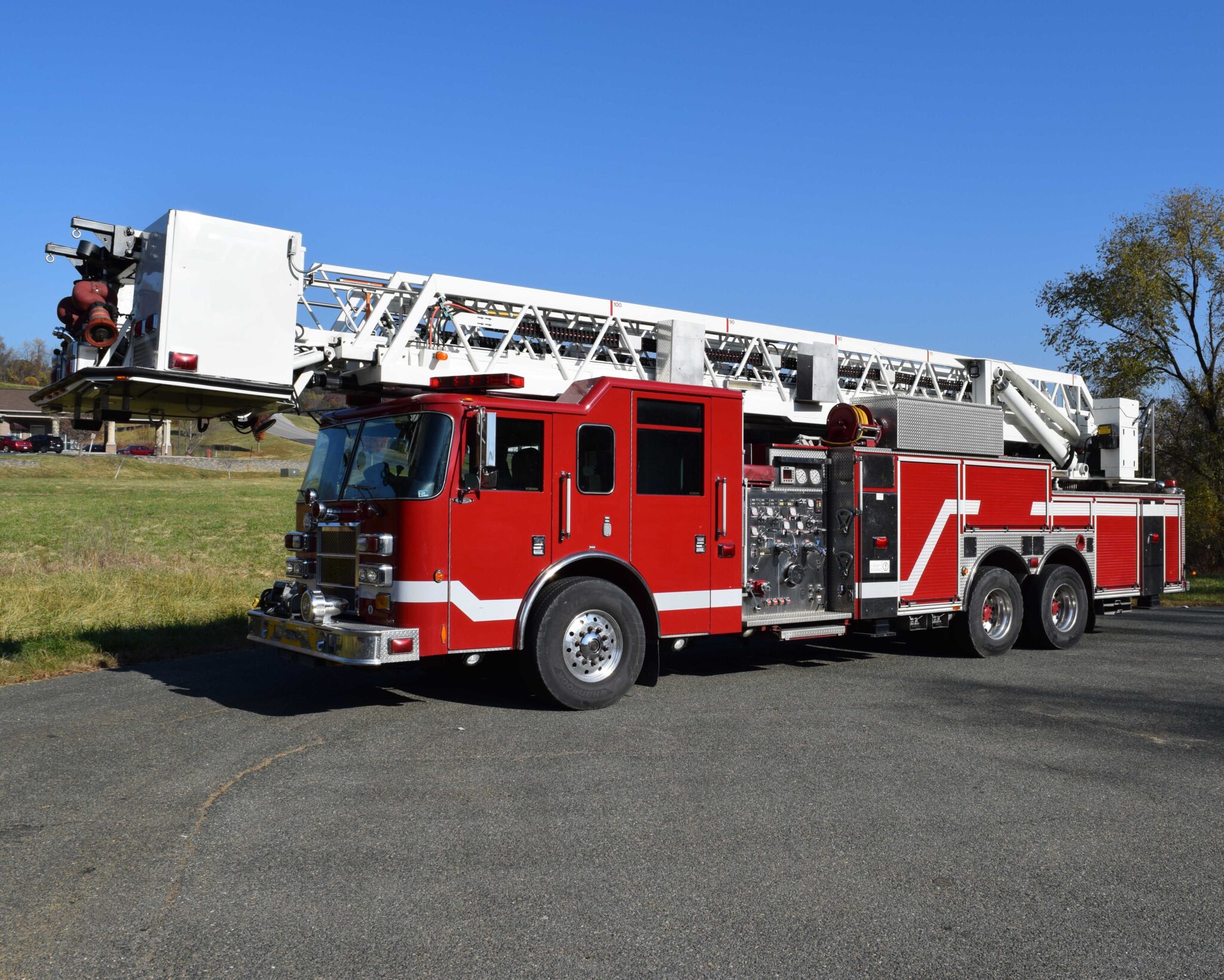

2002 Pierce Dash 100′ Tower Quint 1500/300 (Q1218)

General

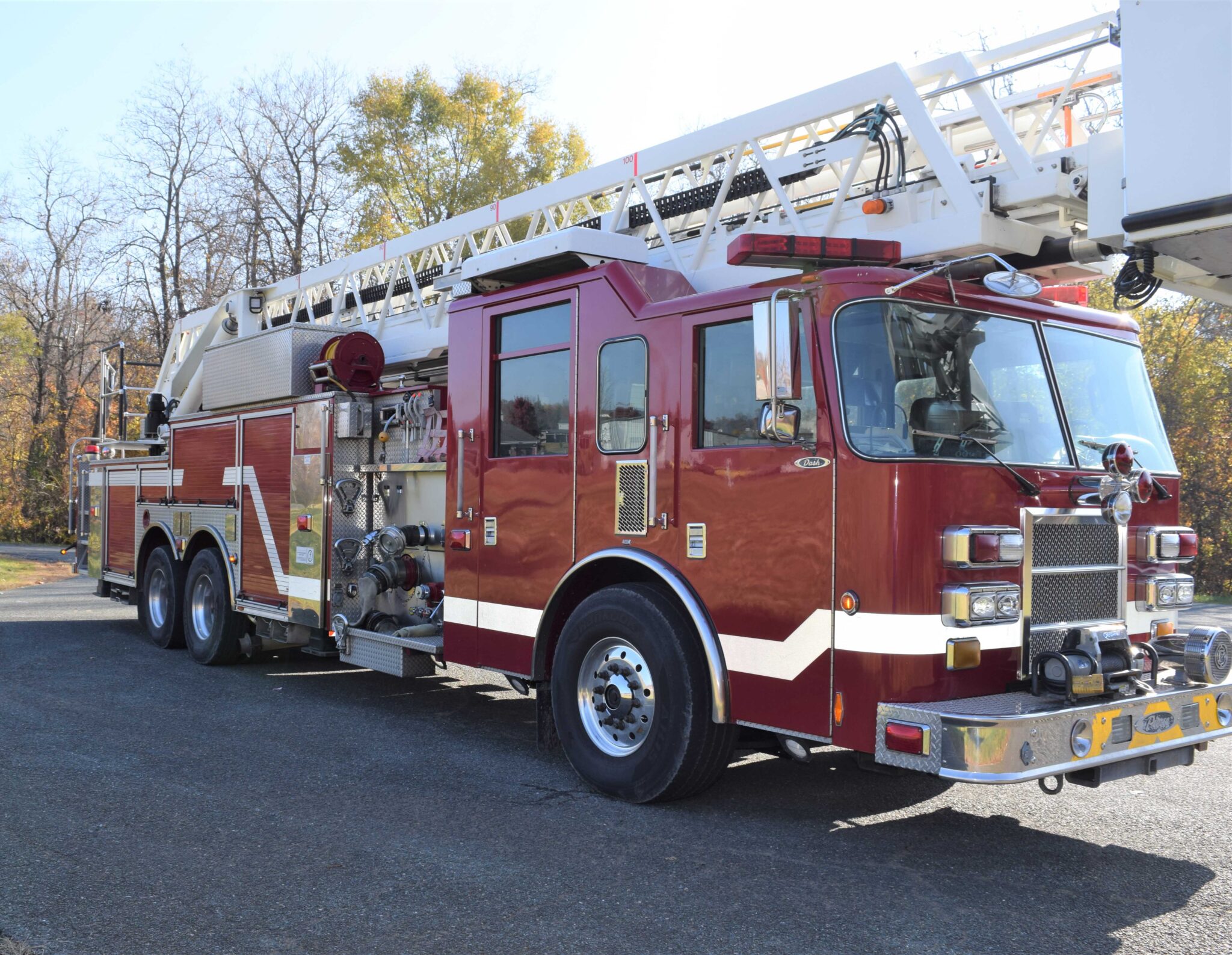

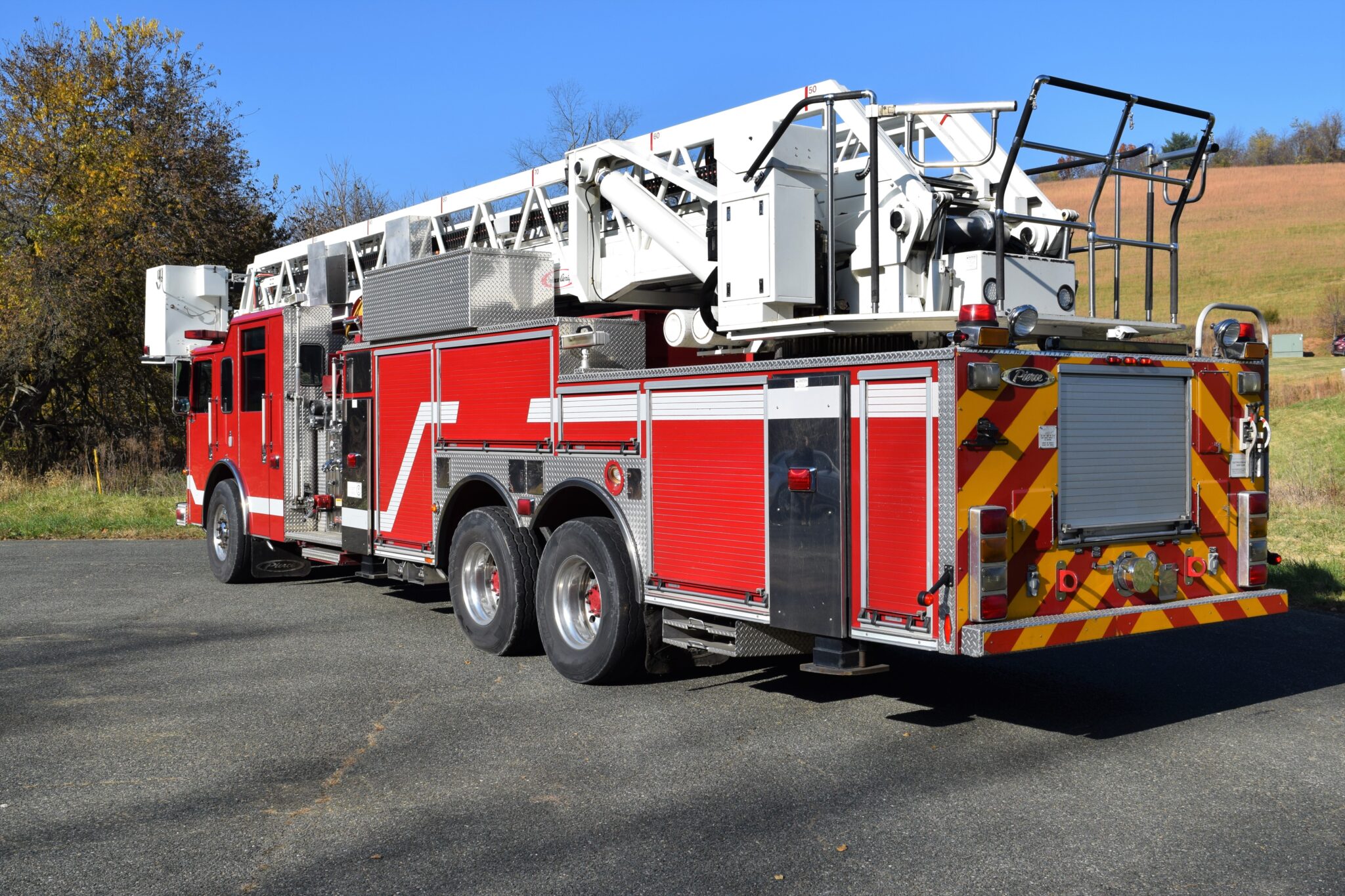

2002 Pierce Dash 100’Tower
Current aerial and pump test
C-12 motor
Trans. HD4060P
Harrison 10k Generator

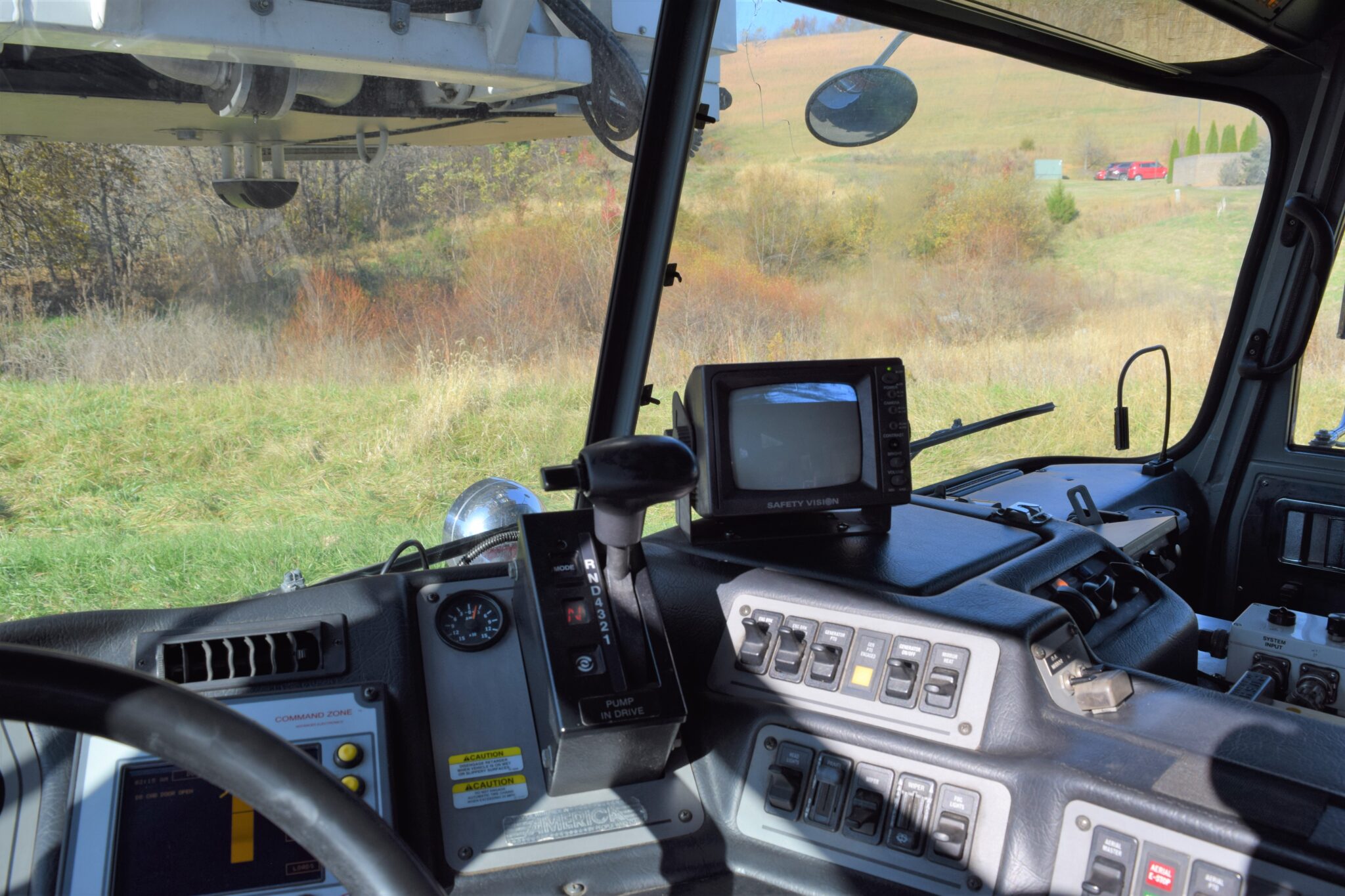

5 Speed T Handle Automatic

Whelen light package

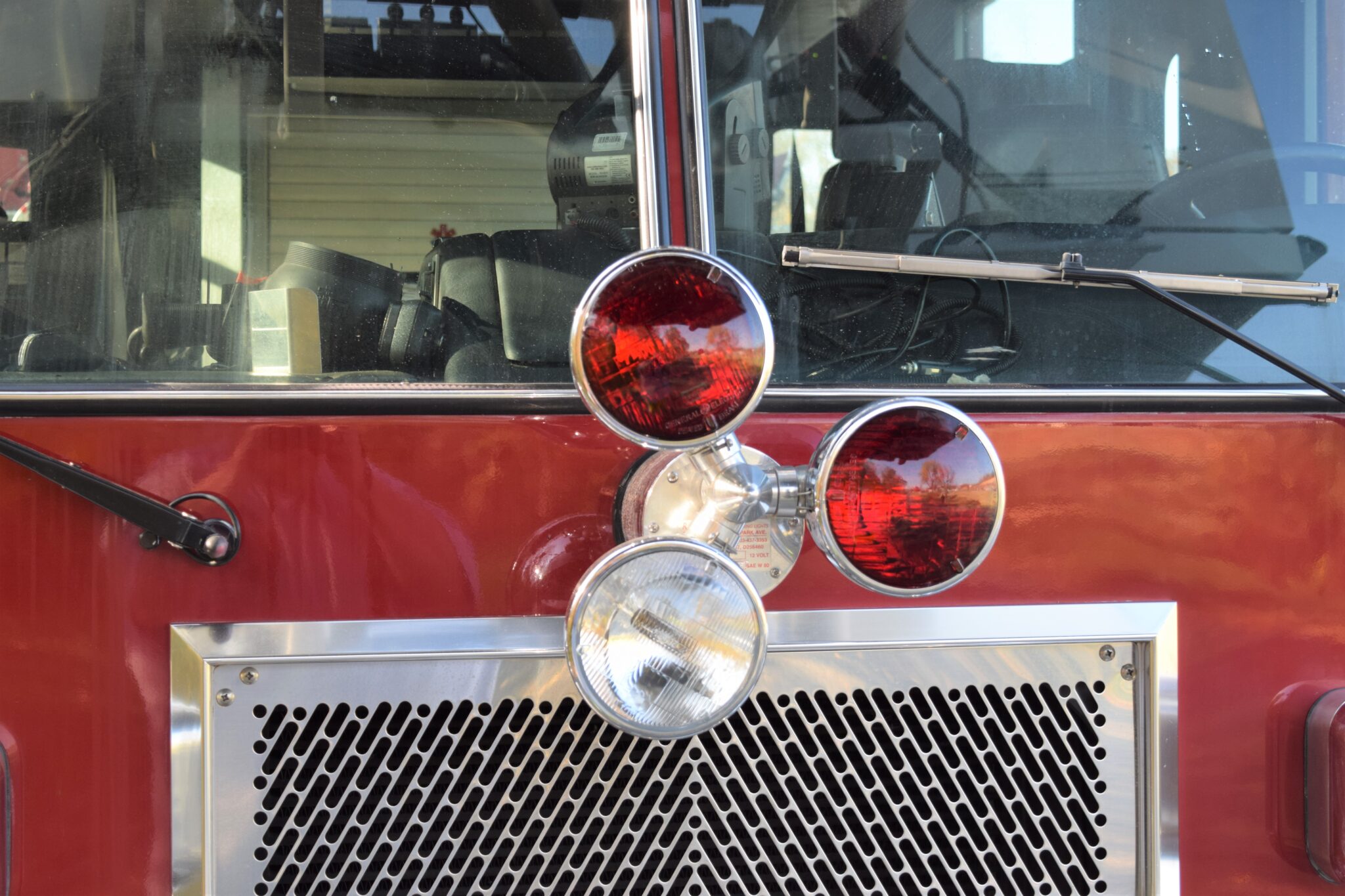

Roto Ray (2-red 1-White)

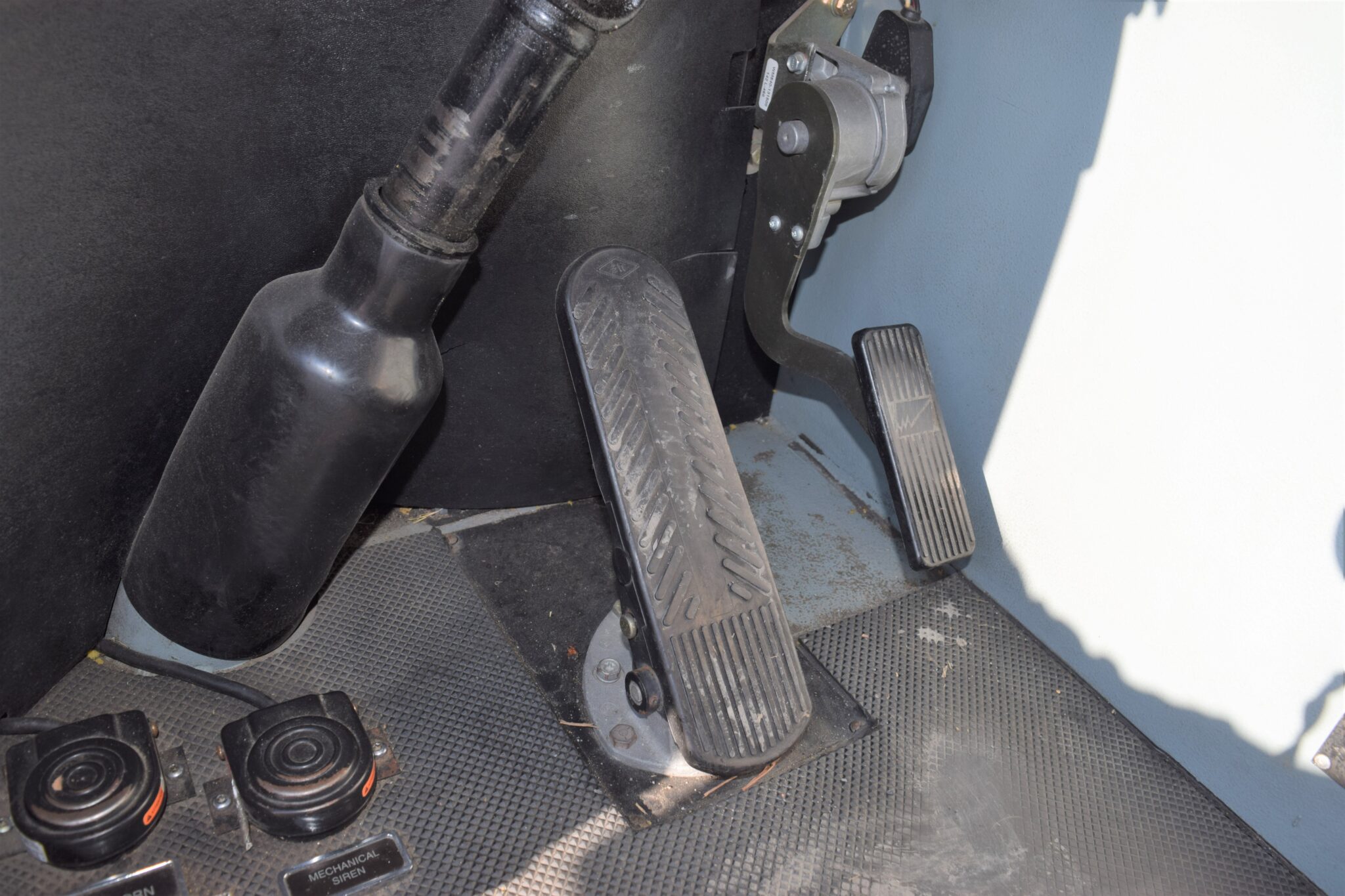

Q2B mechanical siren mounted on bumper drivers side

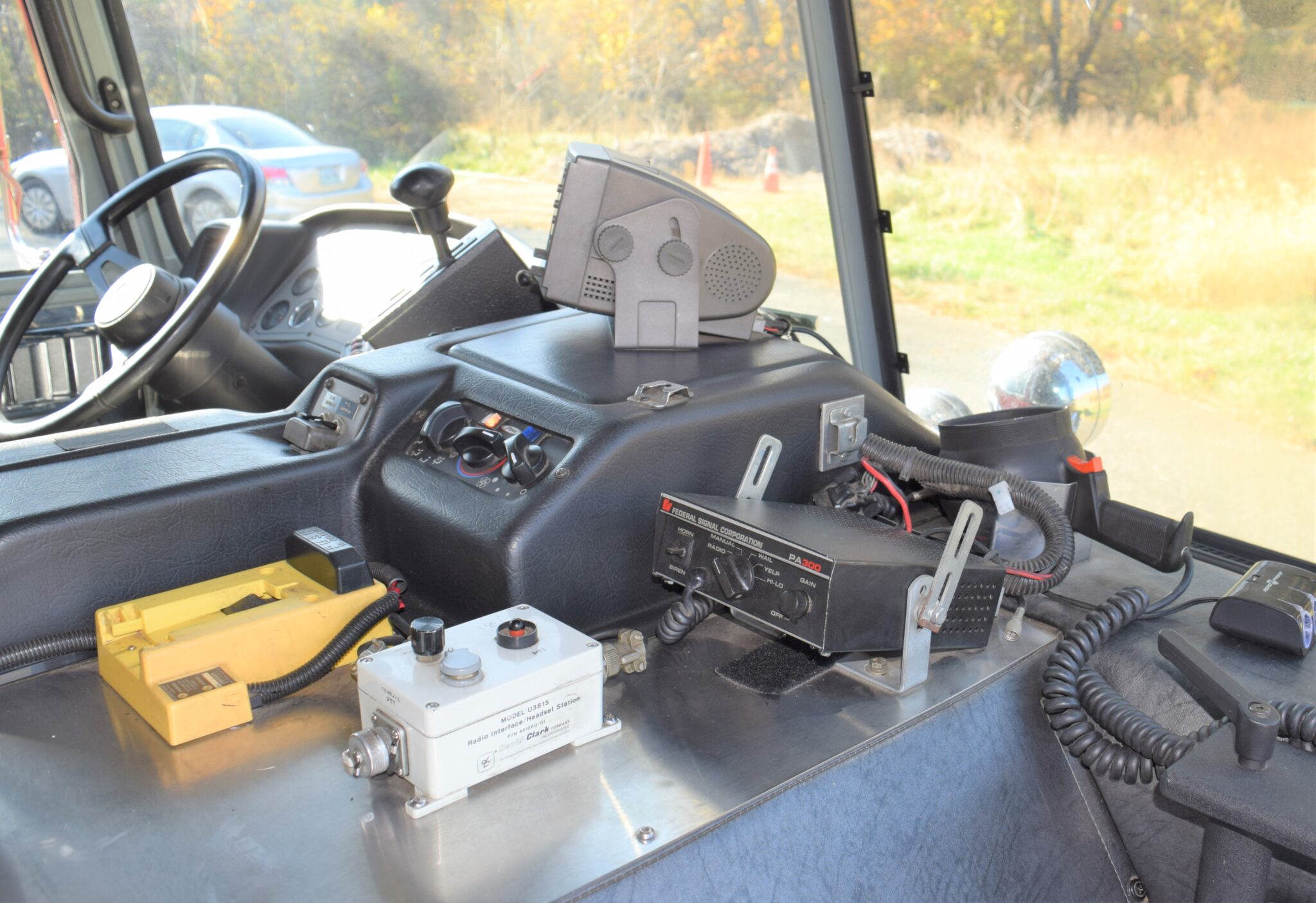

Electronic Siren ( Federal )
Traffic advisor rear upper body

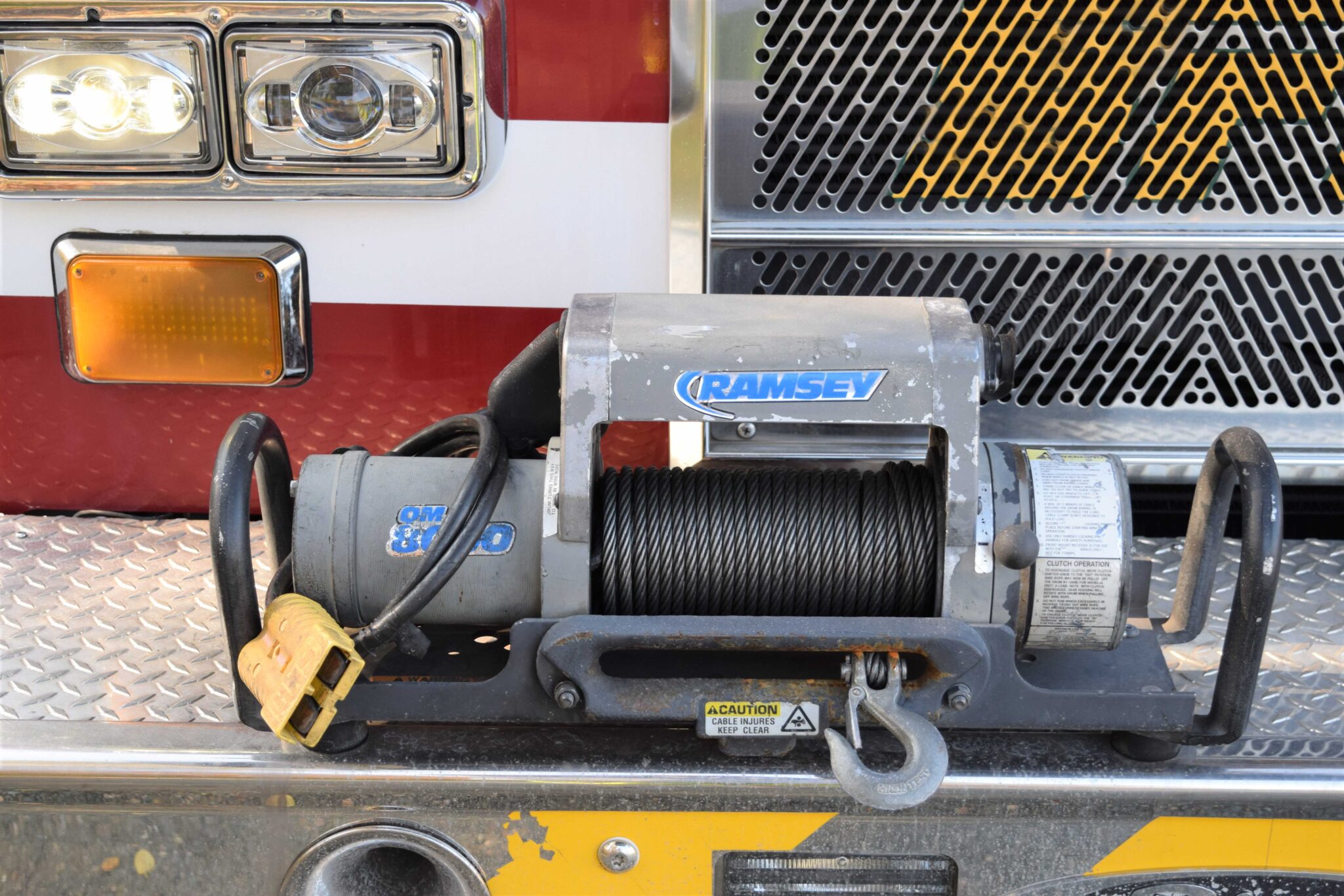

Ramsey QM 8000 winch mounted on bumper / portable
Front receiver
Fog lights in bumper
Air horns mounted in bumper

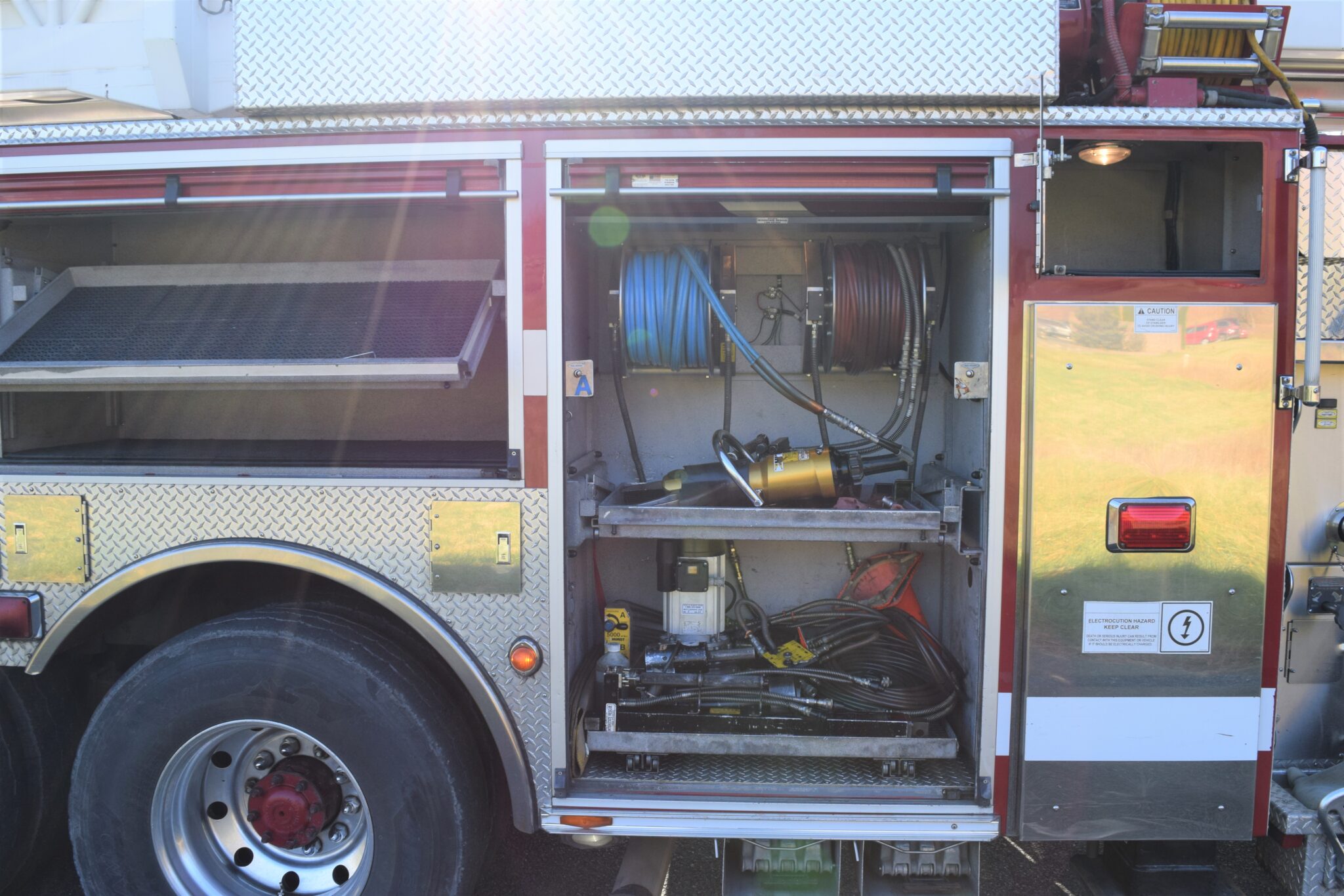

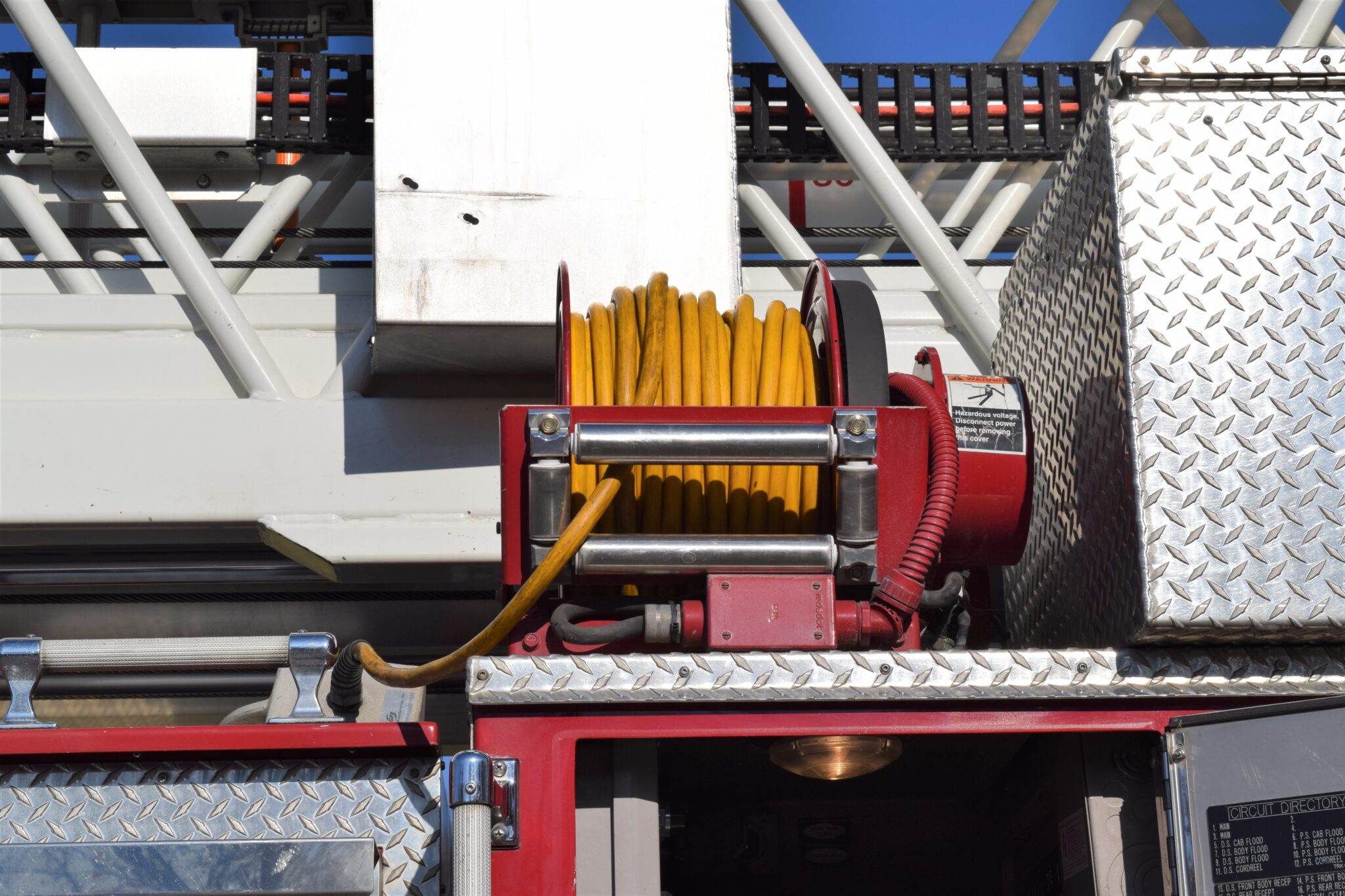

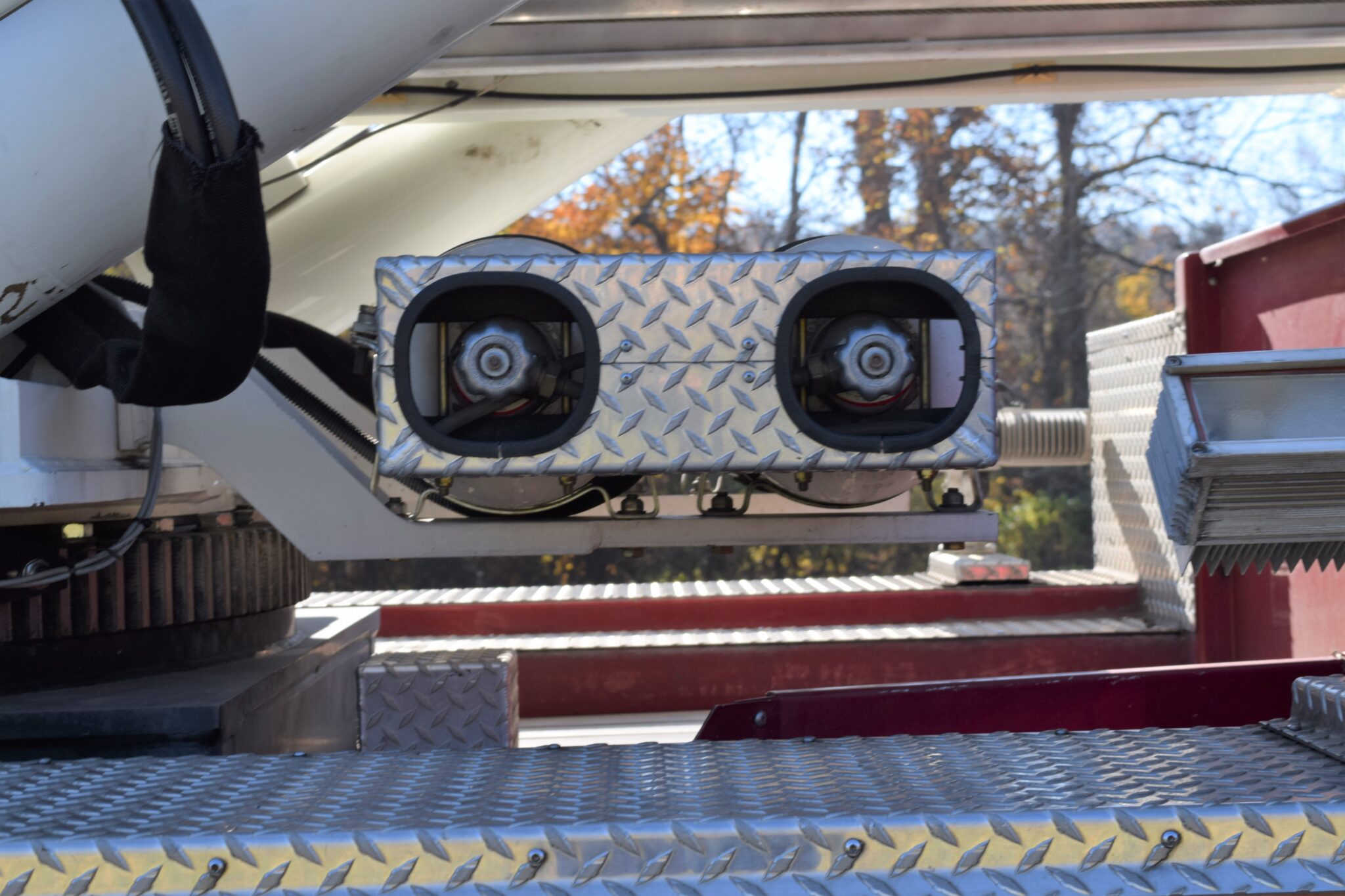

PS1 2-Hydraulic reels mounted back wall
2- Electric Cord Reels mounted on body. 150’ 10-4 cable

Equipment

Ladder tunnel 1- 28’, 1-35’, 1-16’ roof, 1-14’ extension, 1-10’ attic folding.
2- Fiberglass 6’ roof hooks
1- Fiberglass 10’ pike pole
2- Fiberglass 12’ pike pole
Stack tips 1 3/4”,-2”
2 1/2” Gated wye in basket
2- breathing air ports in basket
1- telescoping halogen scene light in basket.
2- LED scene lights in on front of basket.
16’ Duo-Safety roof ladder mounted on aerial fly section.
1- 6’ Fiberglass pike pole D-handle mounted on fly section
1- 8’ Fiberglass pike pole gas shutoff mounted on fly section

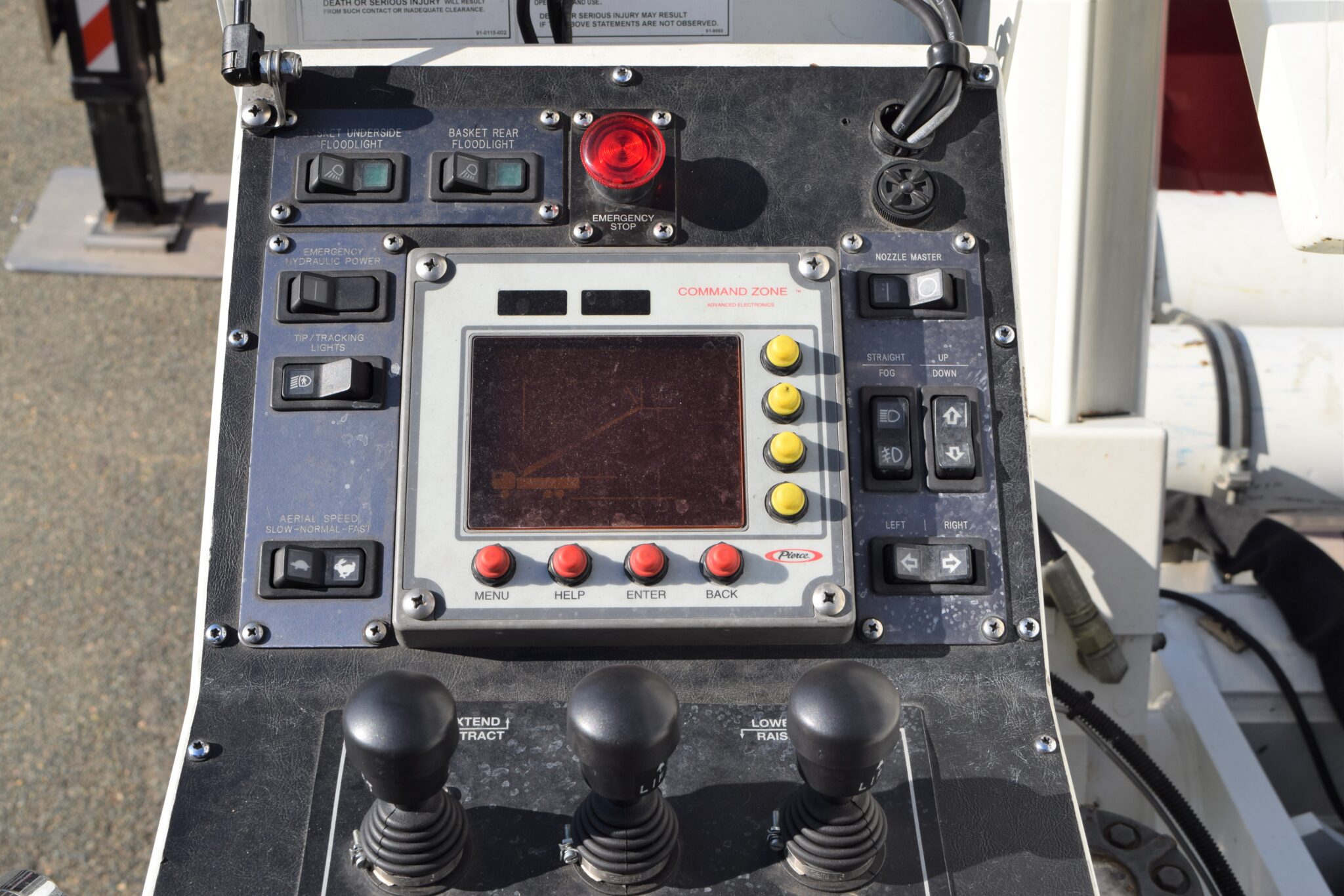

Aerial

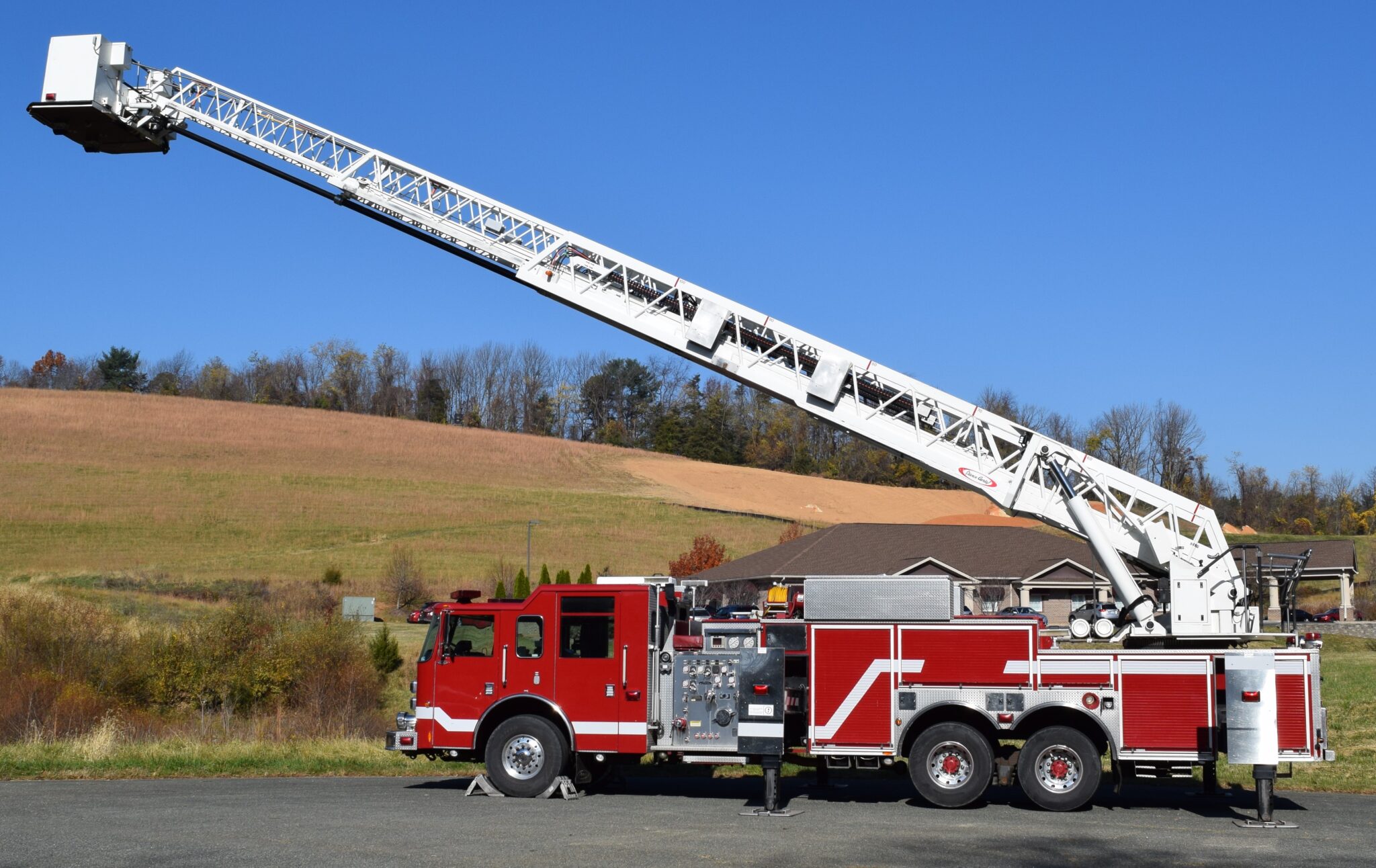

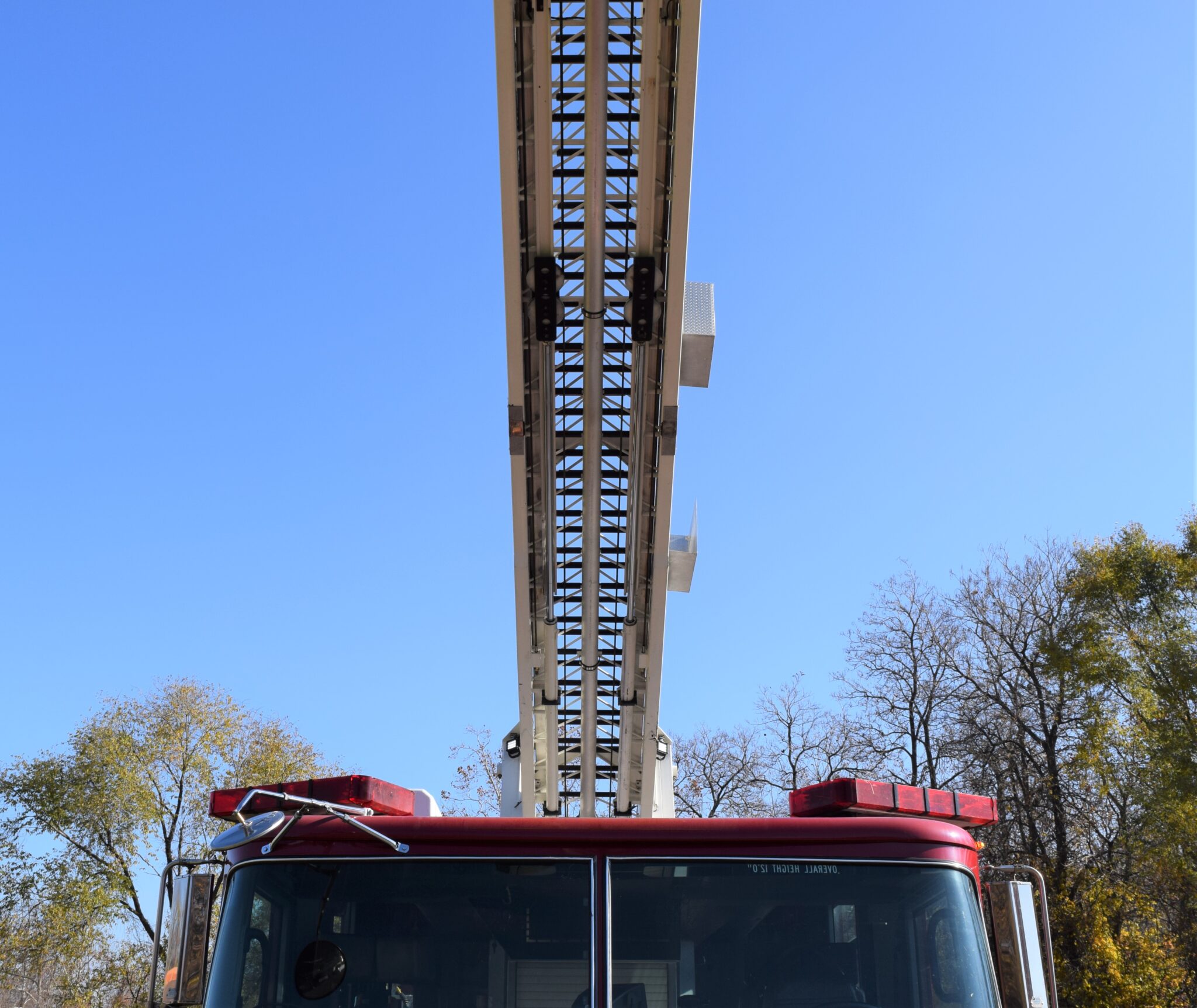

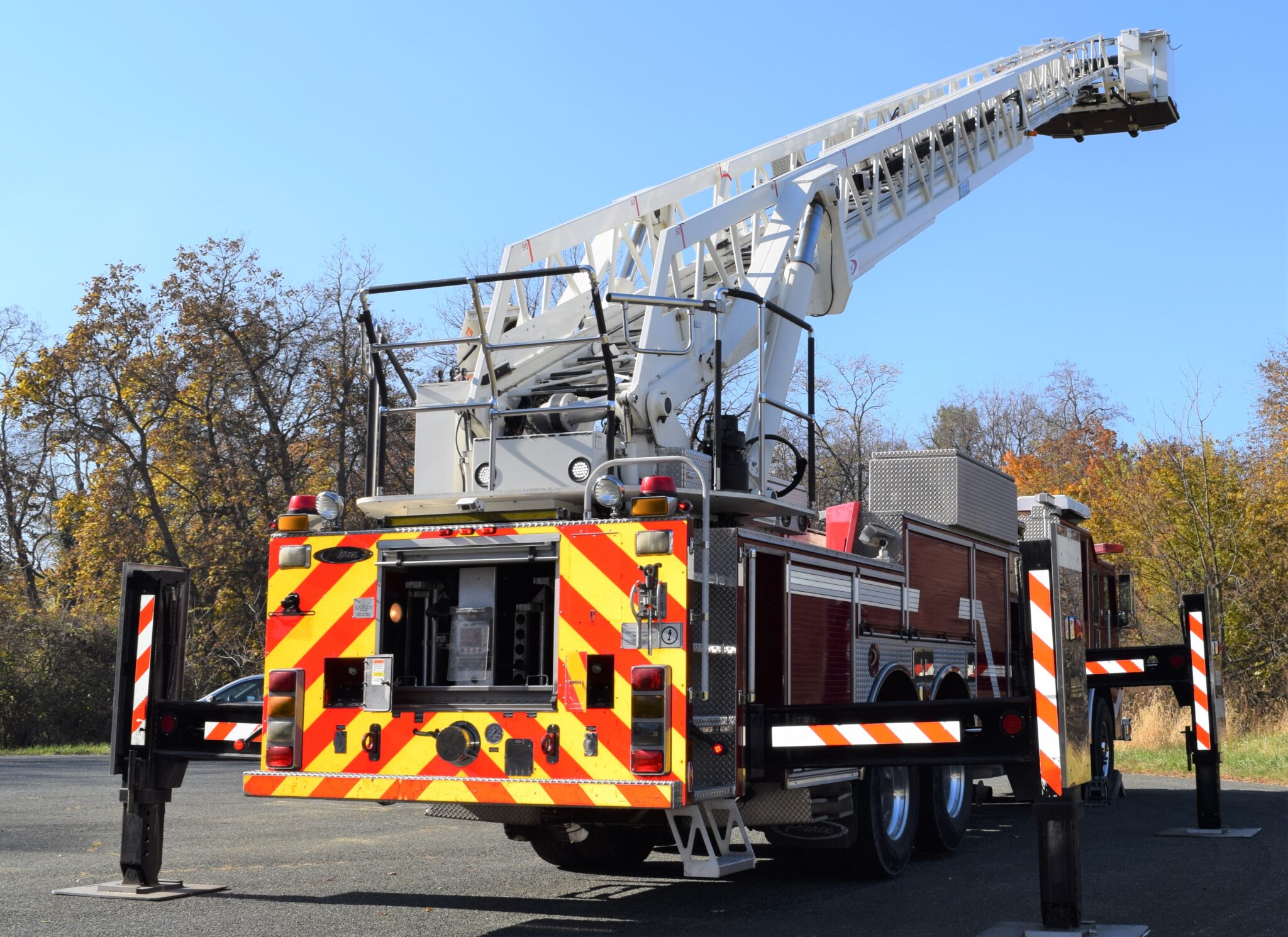

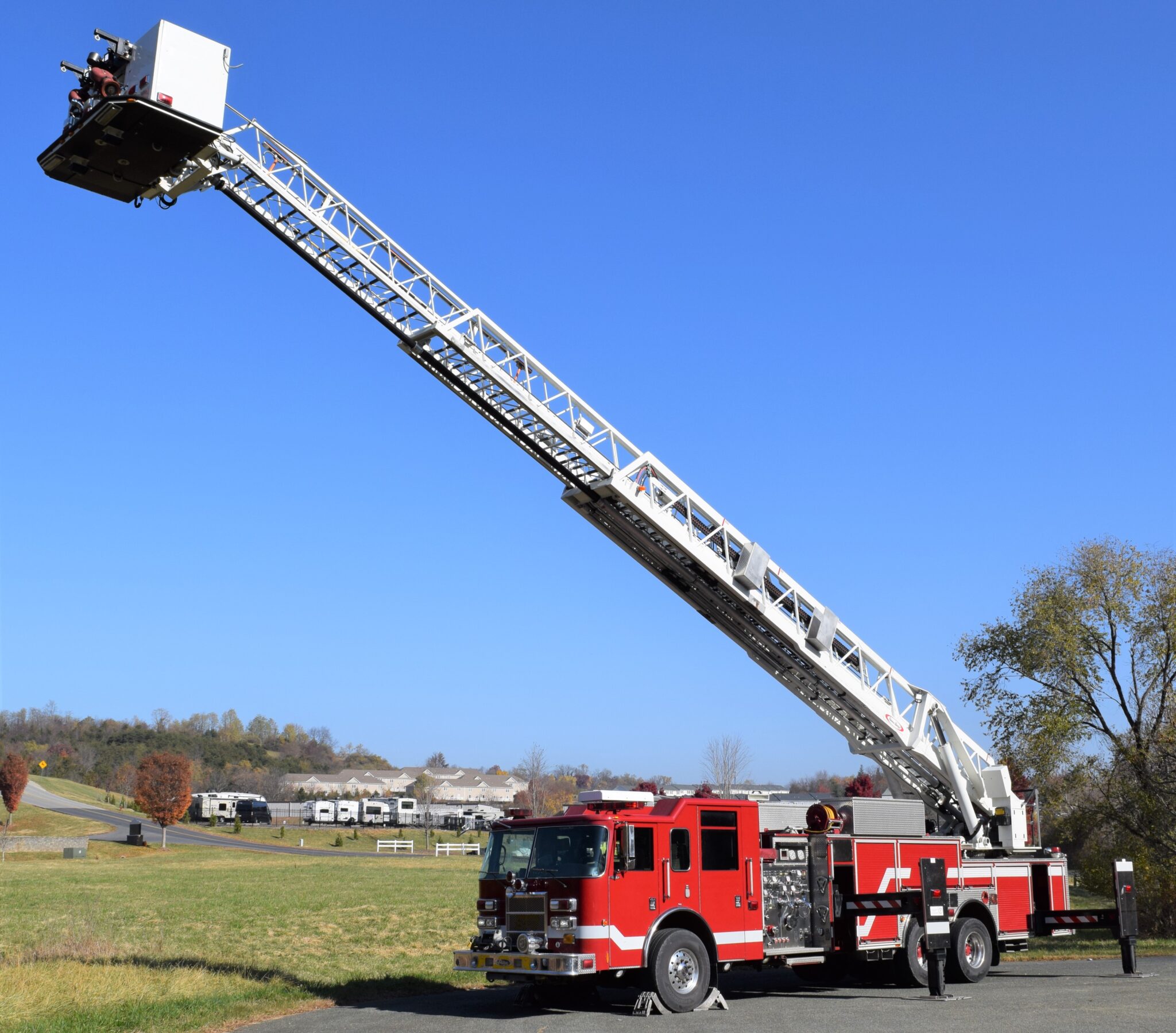

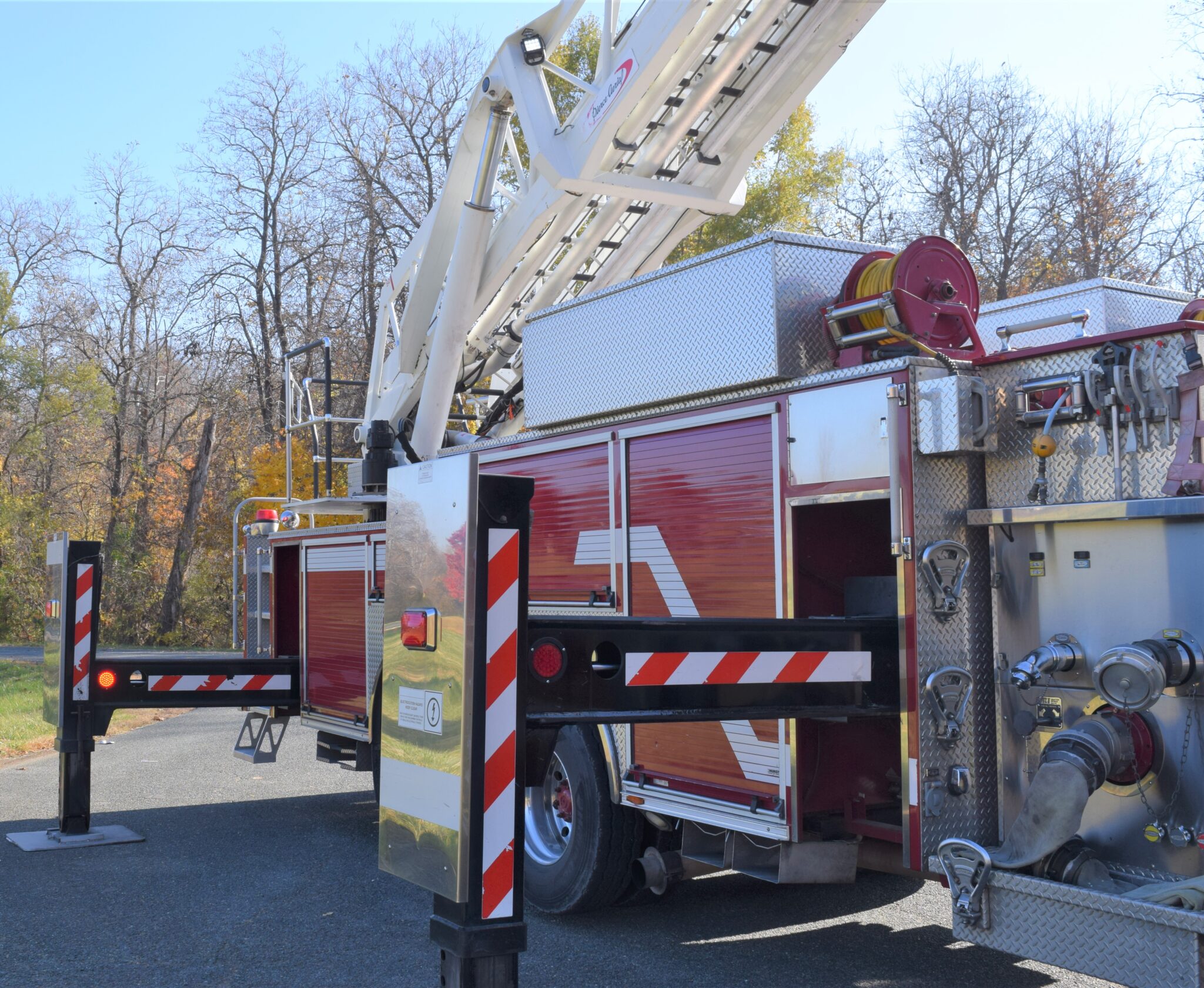

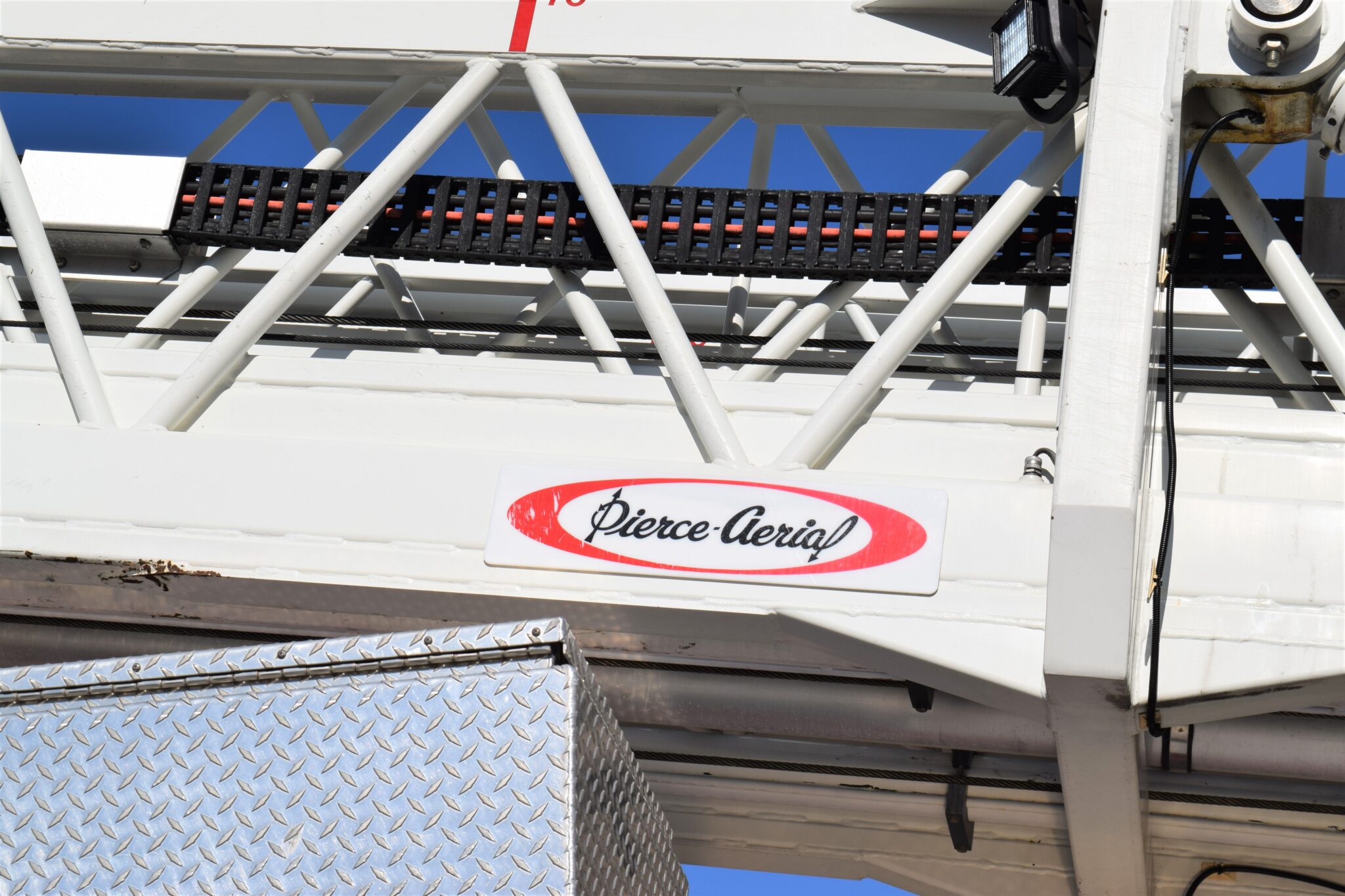

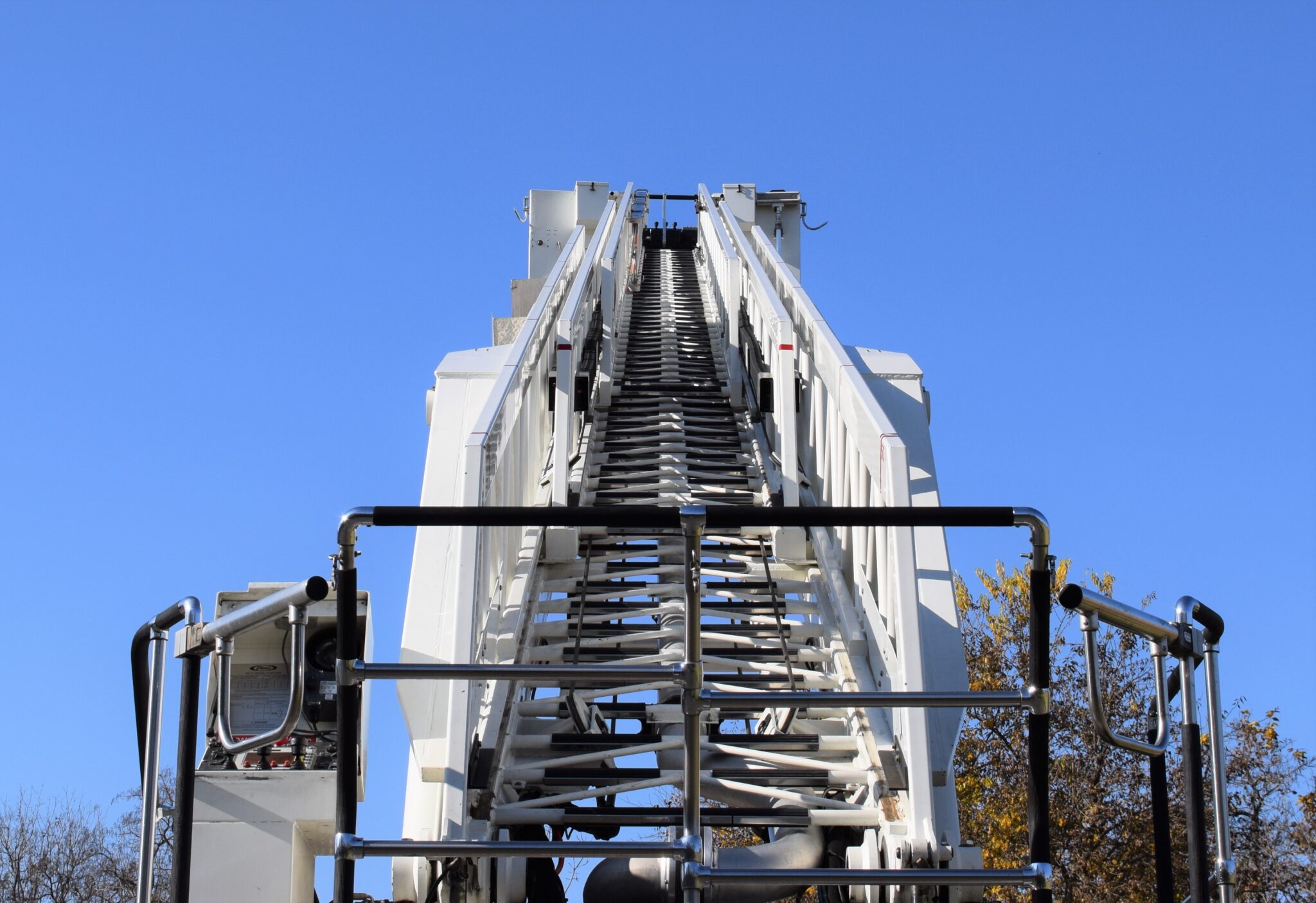

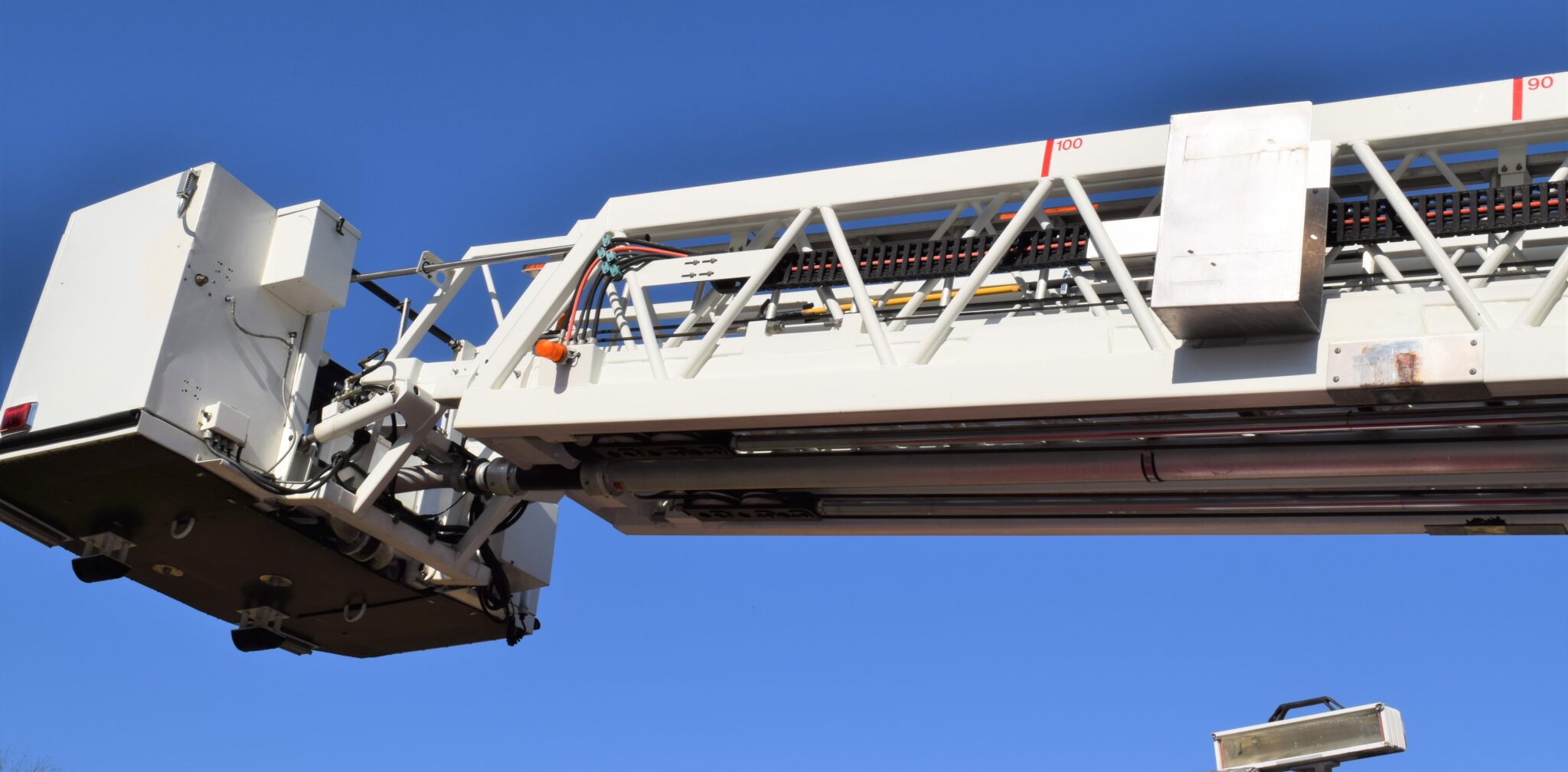

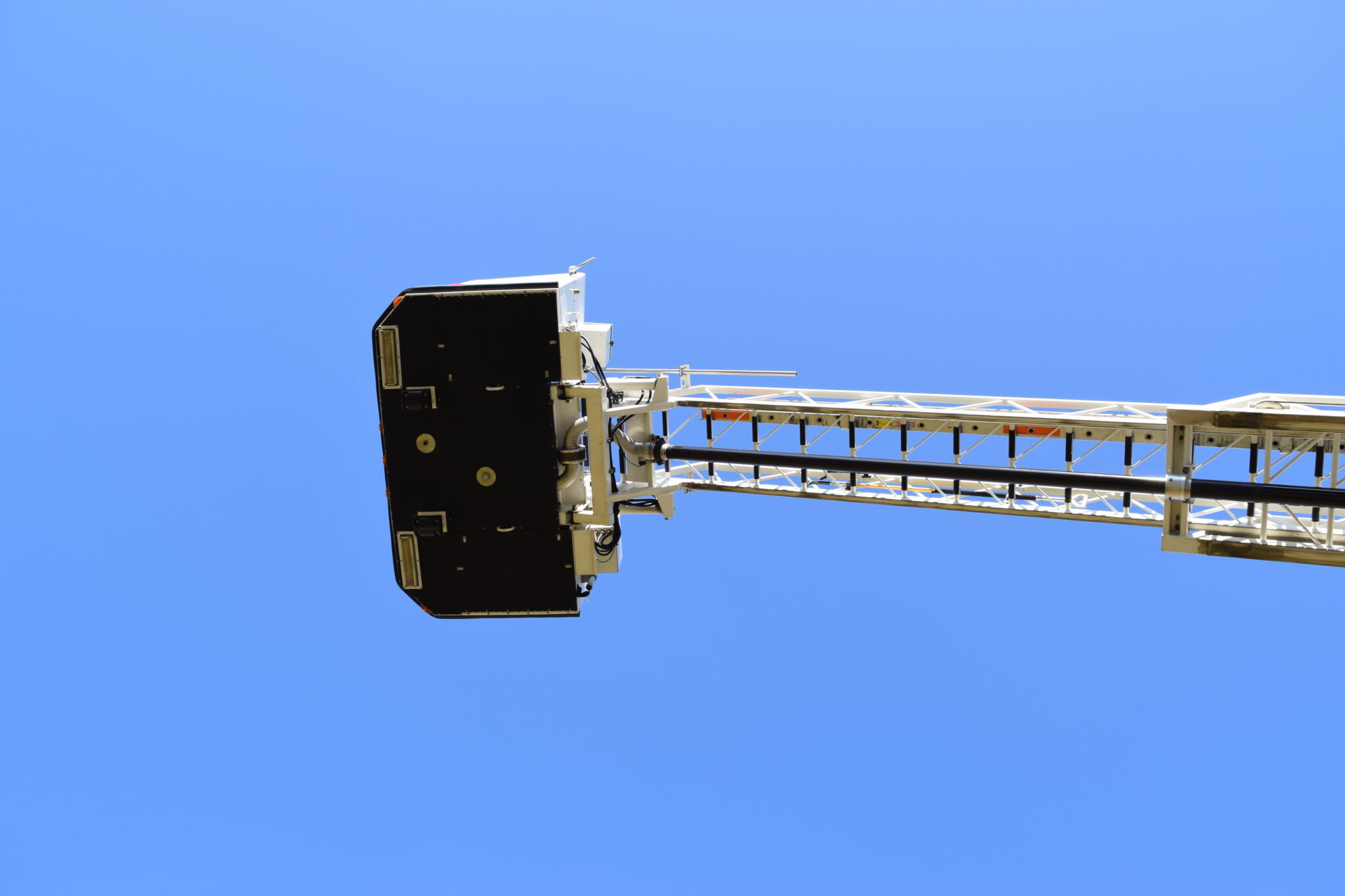

100′ Tower

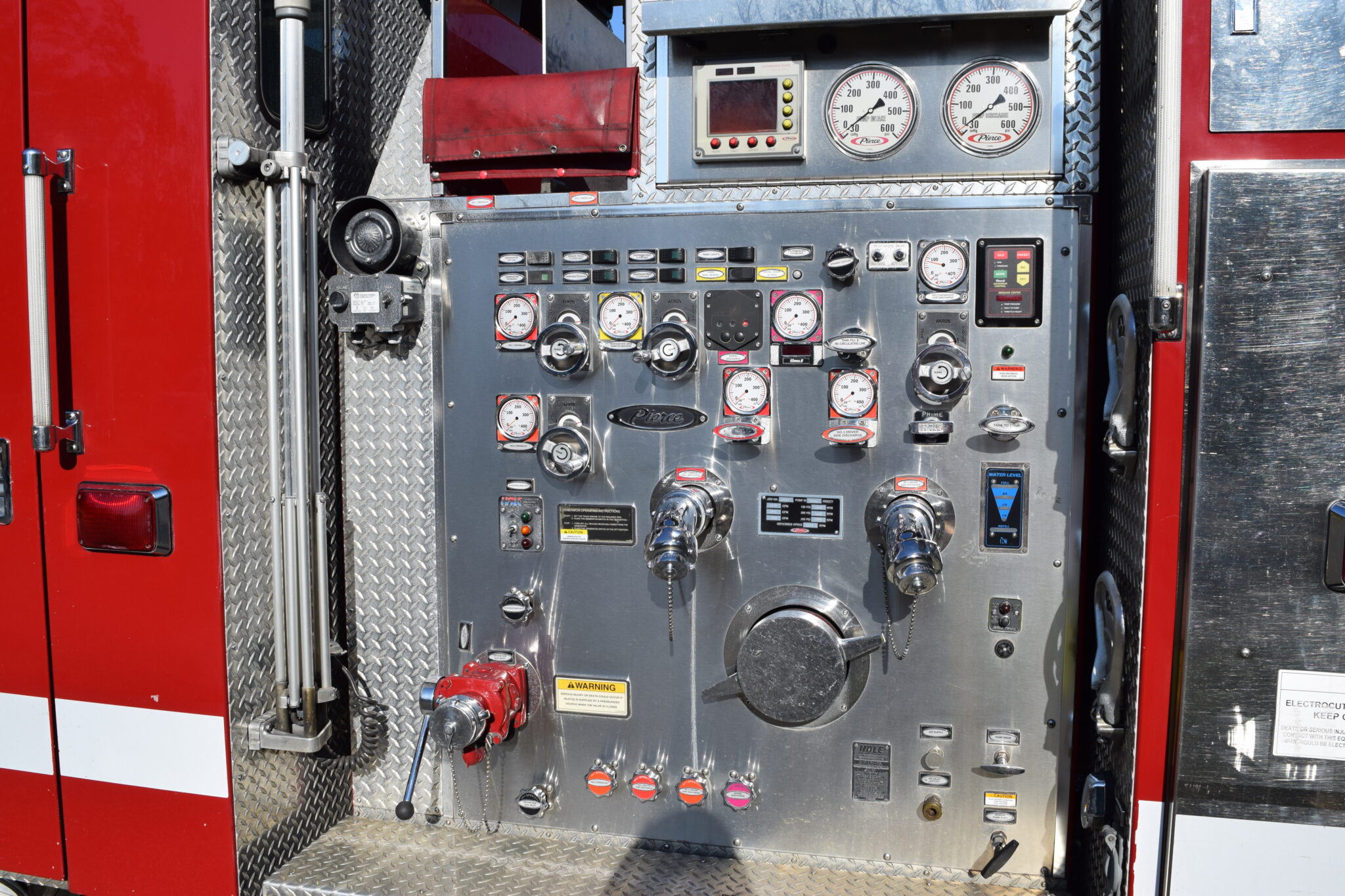

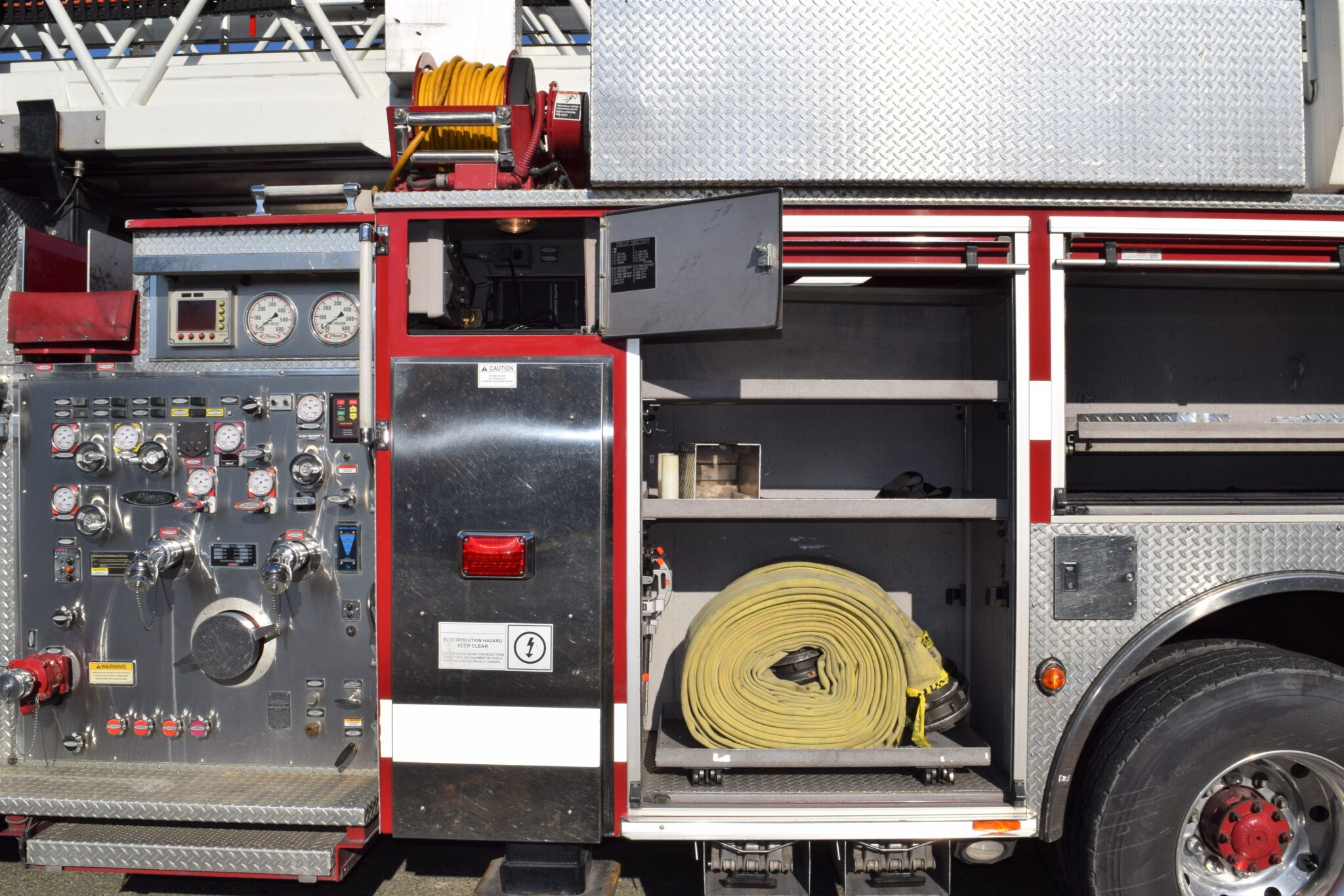

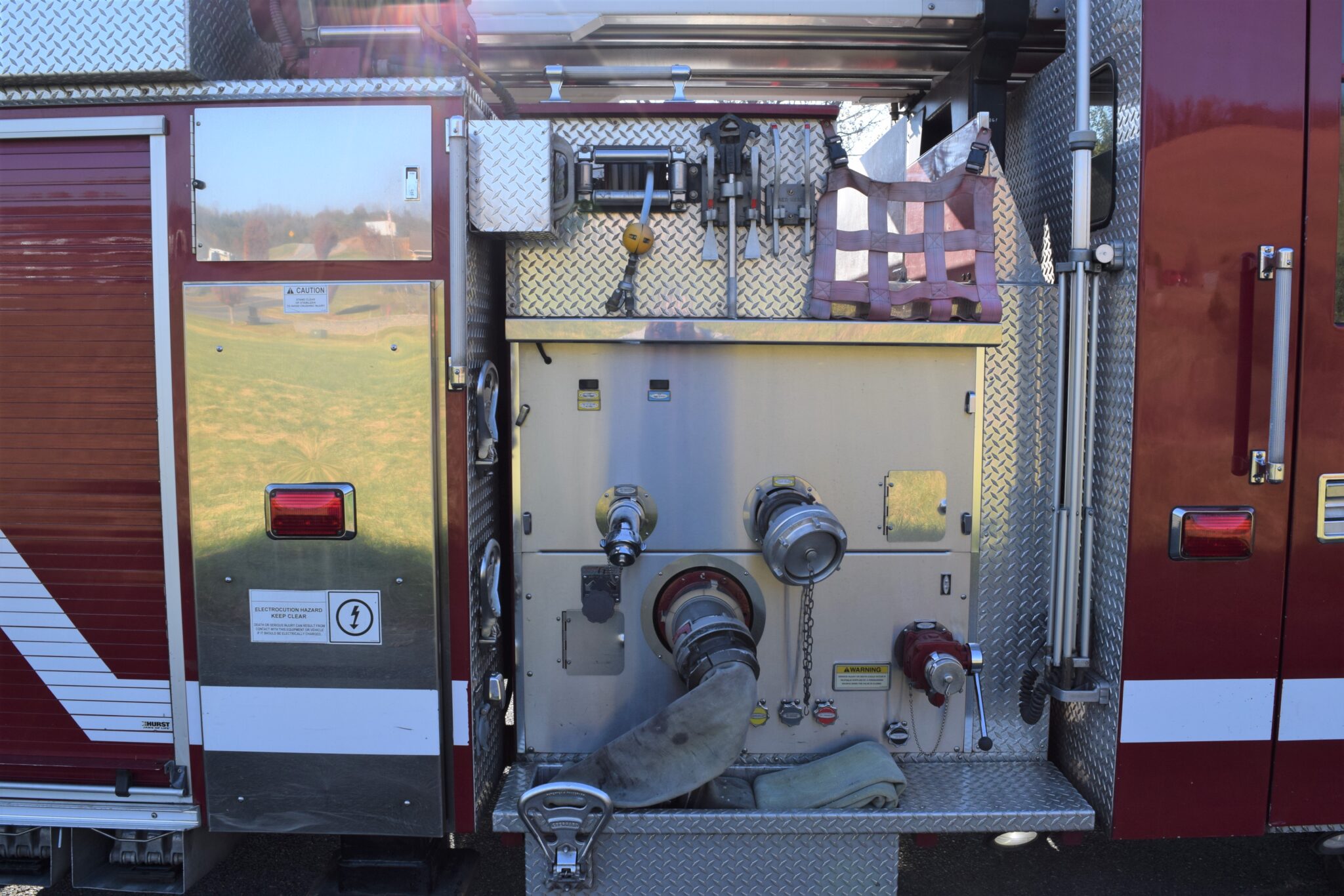

Pump & Tank

Hale QMAX150-23 pump 1500gpm
300 Gallon Water tank
Dual Akron monitors Style 3570,3578
Akron automatic 5078 nozzle
1-PS LDH discharge
1-2 1/2” gated intake on both DS/PS

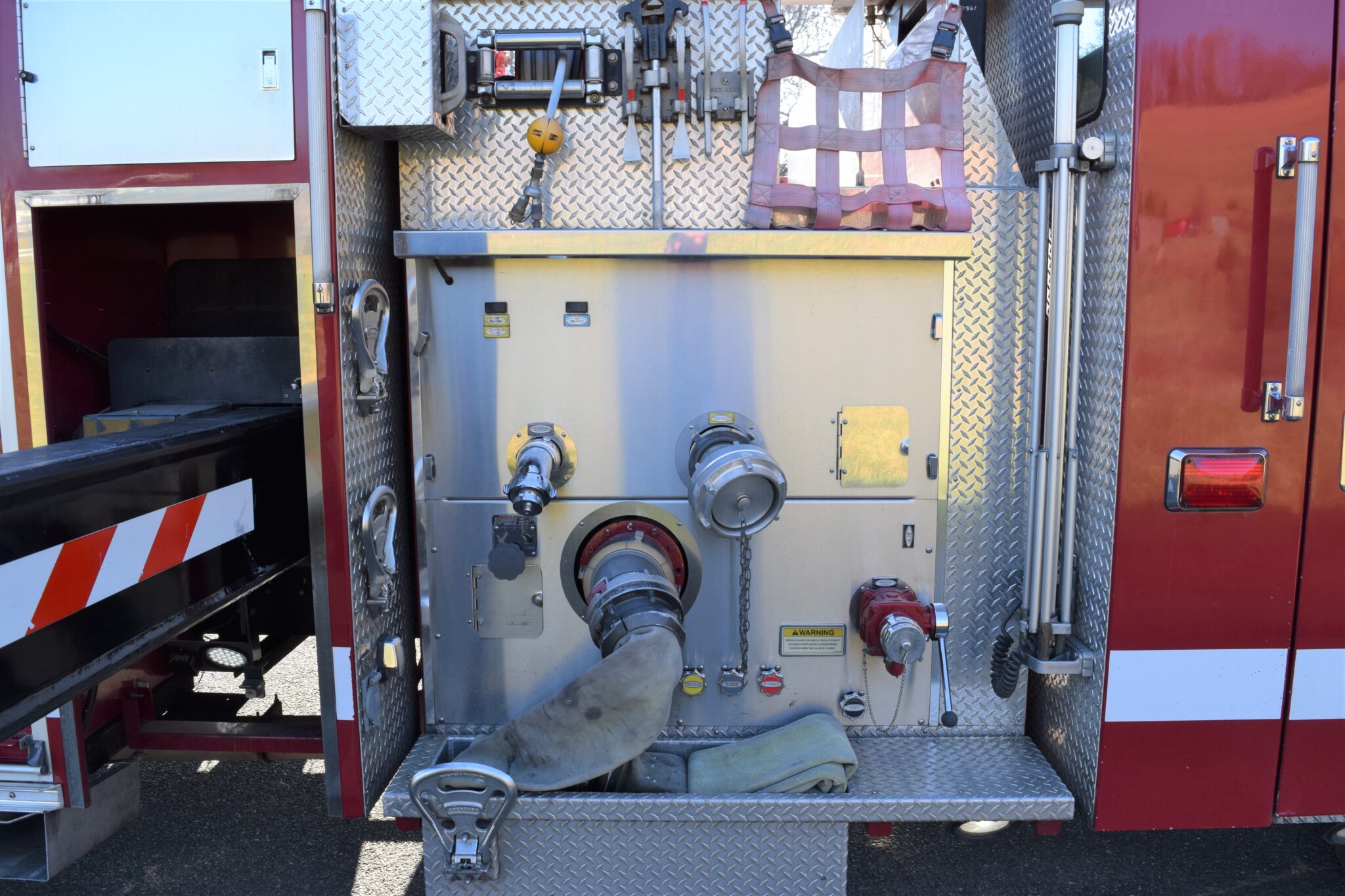

3- master intakes ( 1-DS, 1-PS, 1- Rear of body center )
2- 1 1/2” cross-lays
2- DS 2 1/2” discharges
1- PS 2 1/2” discharge

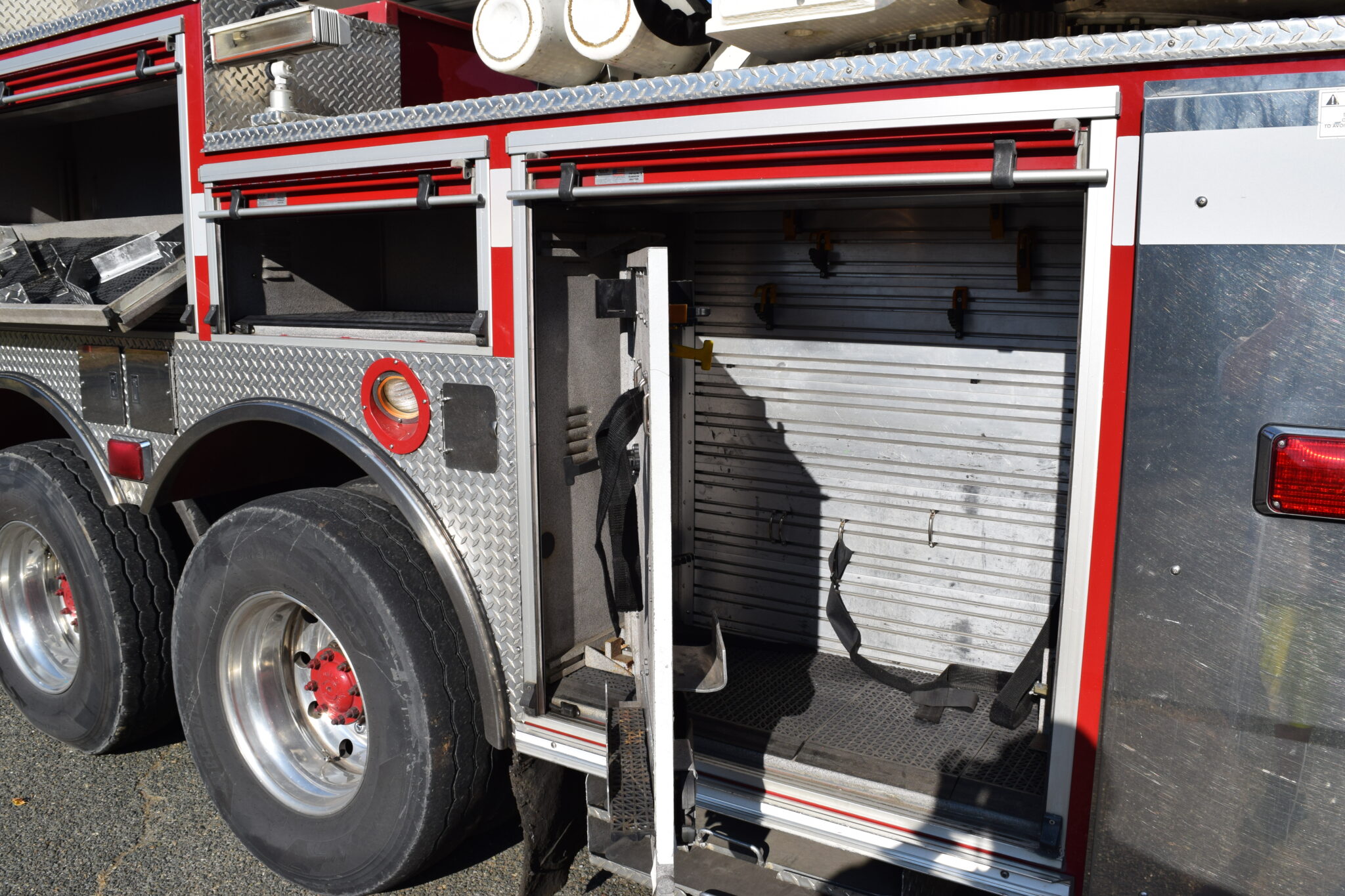

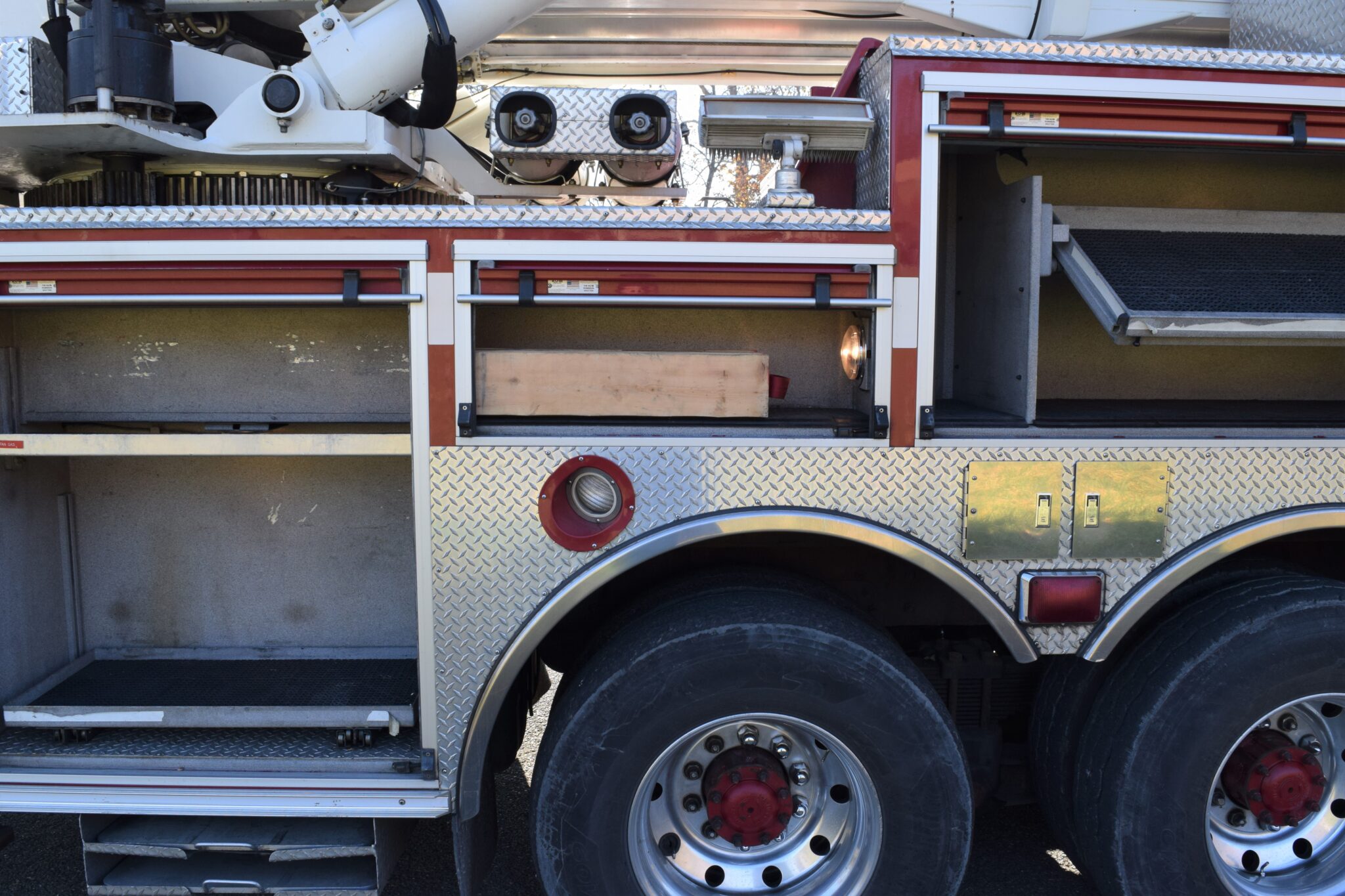

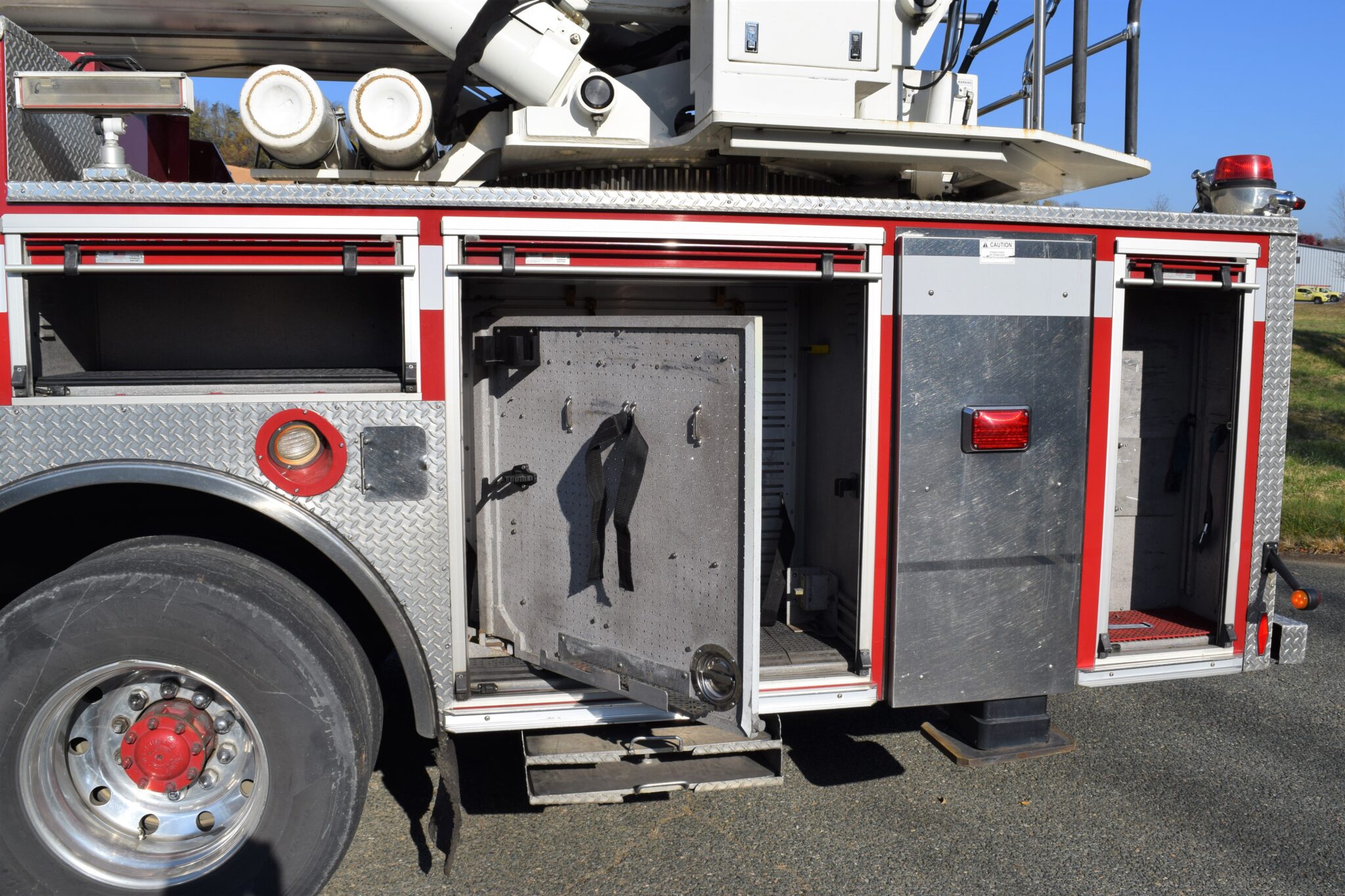

Storage & Compartments

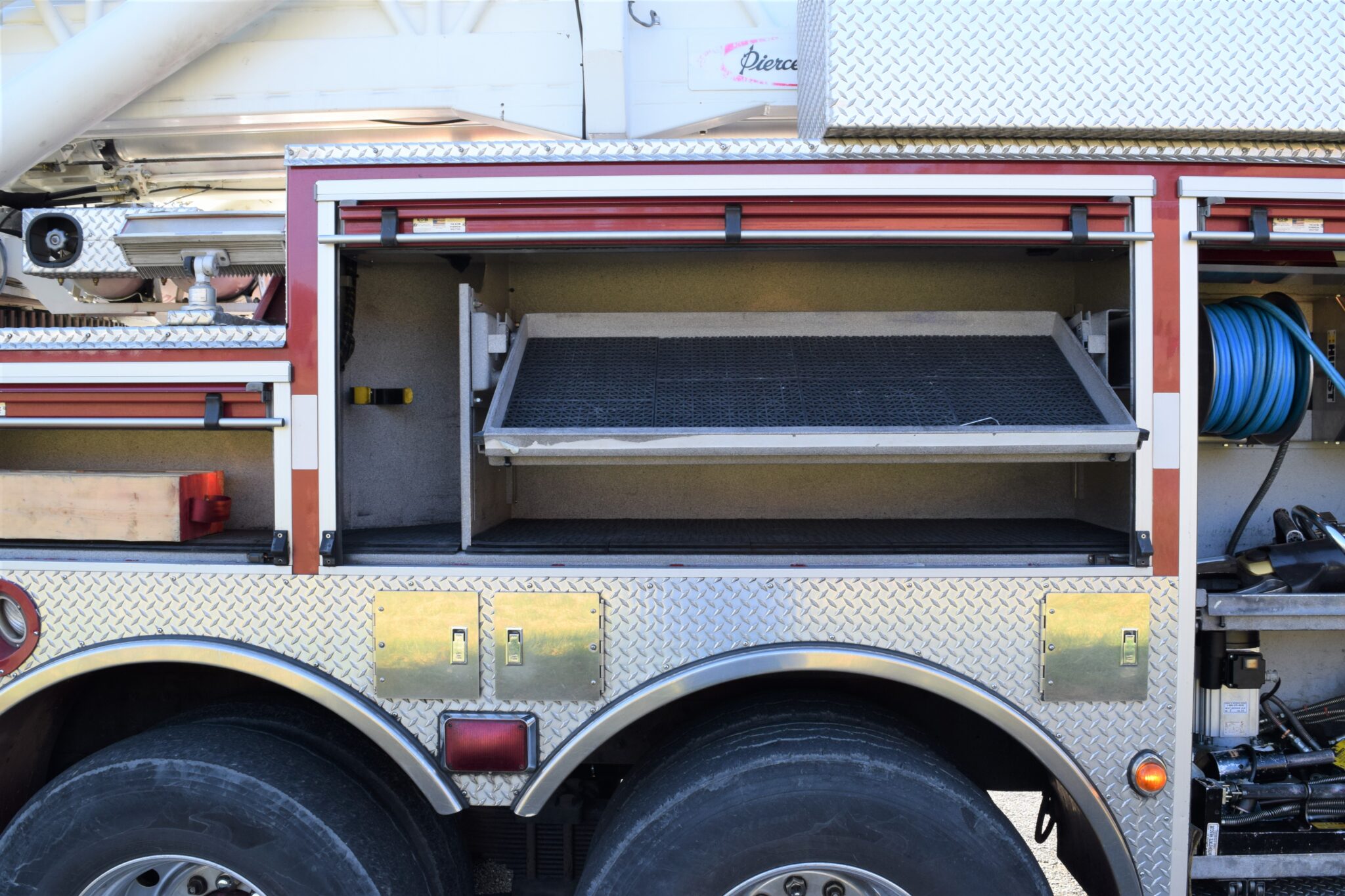

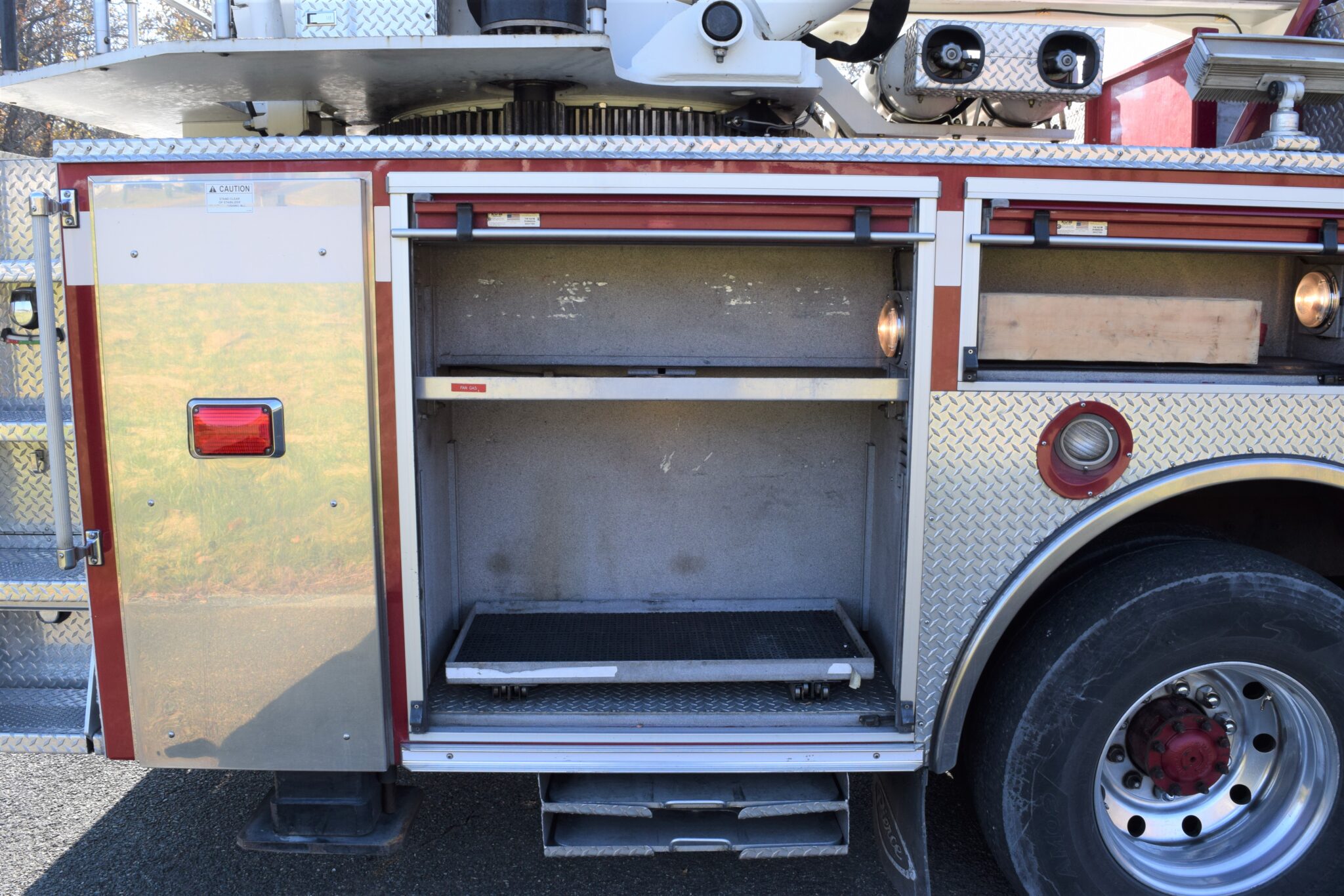

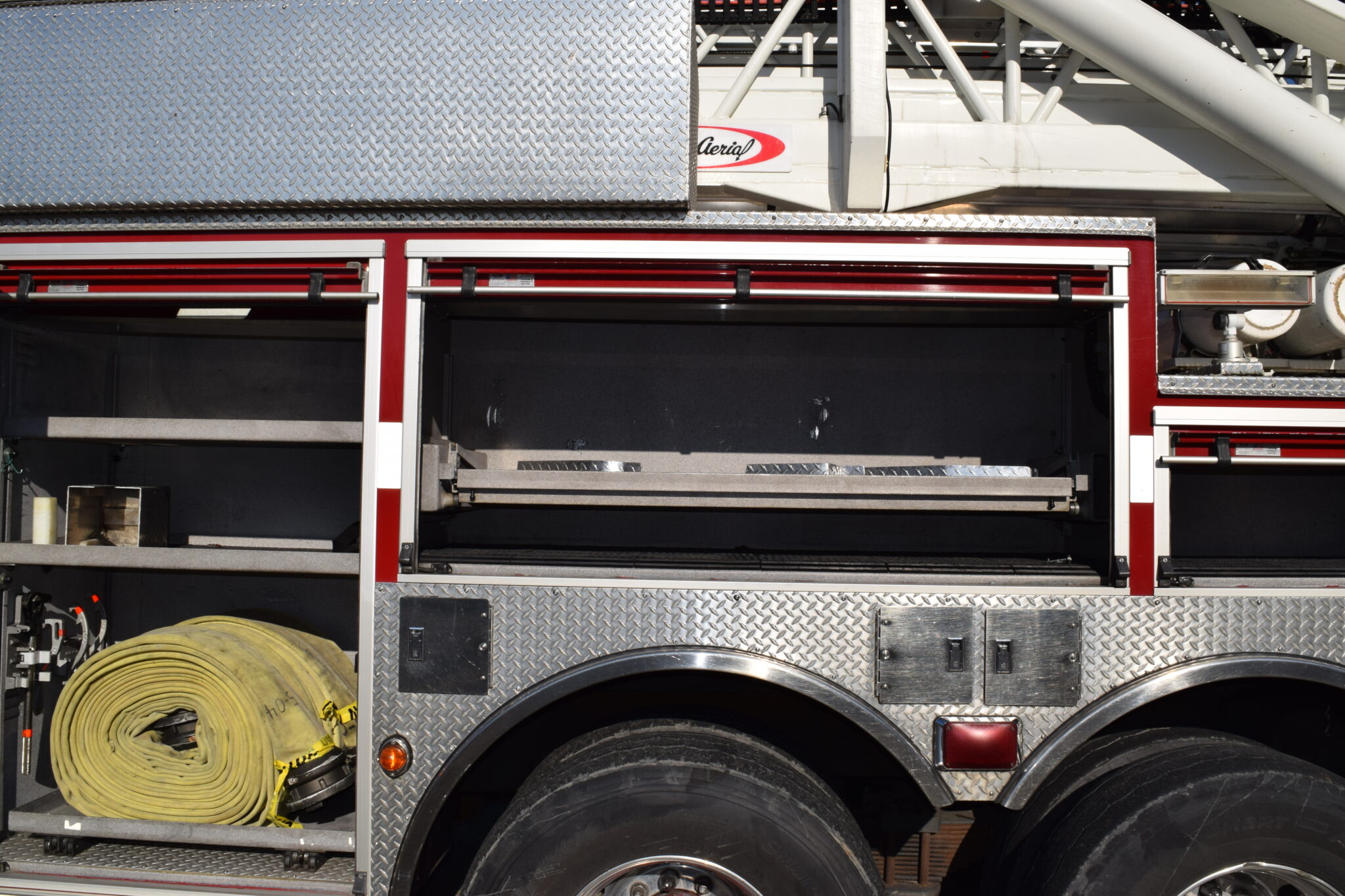

1- DS1 floor mounted slide out tray

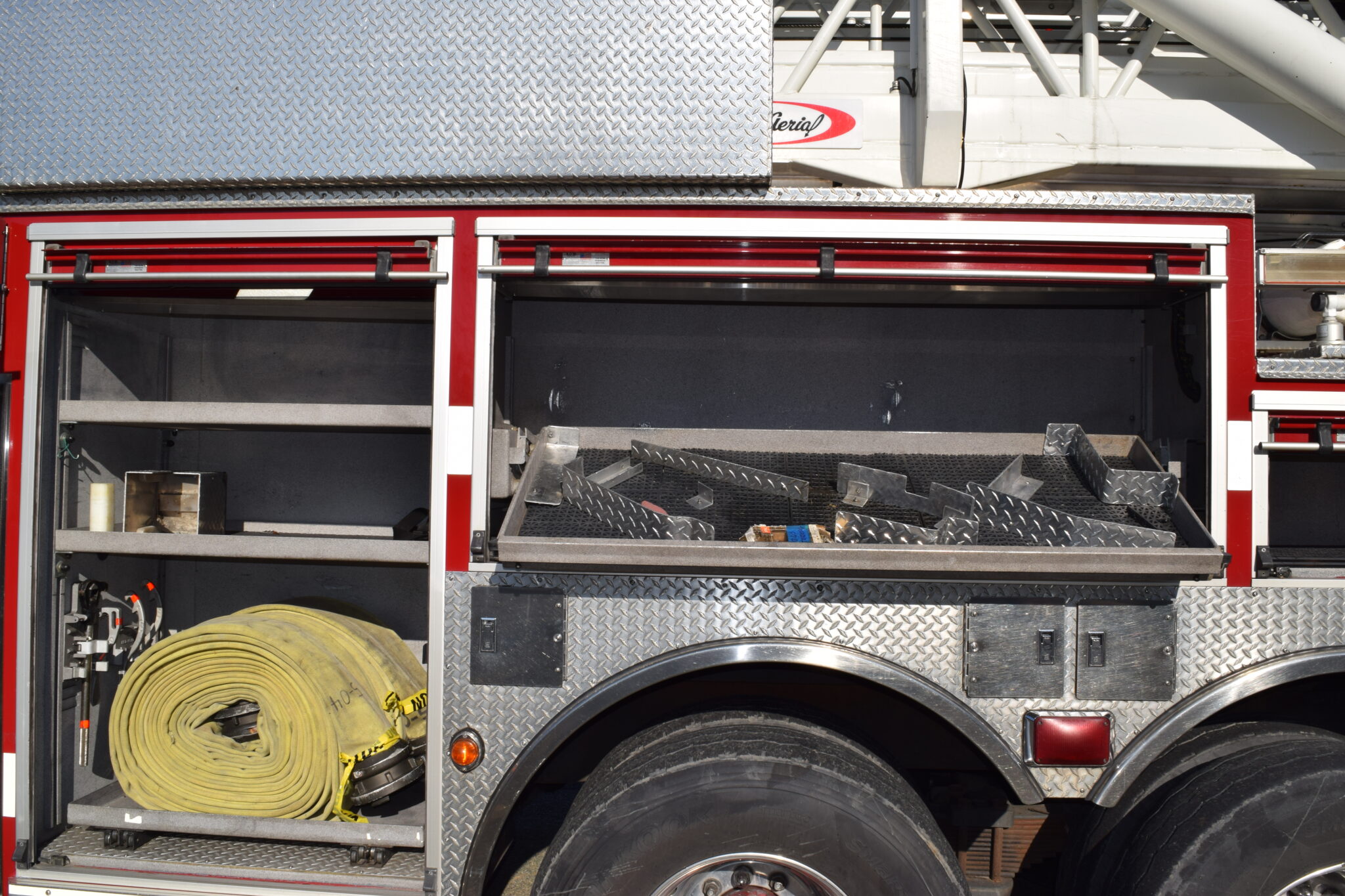

1- DS adjustable slide out tilt down tray in DS2 compartment
1-DS4 Swing out tool board

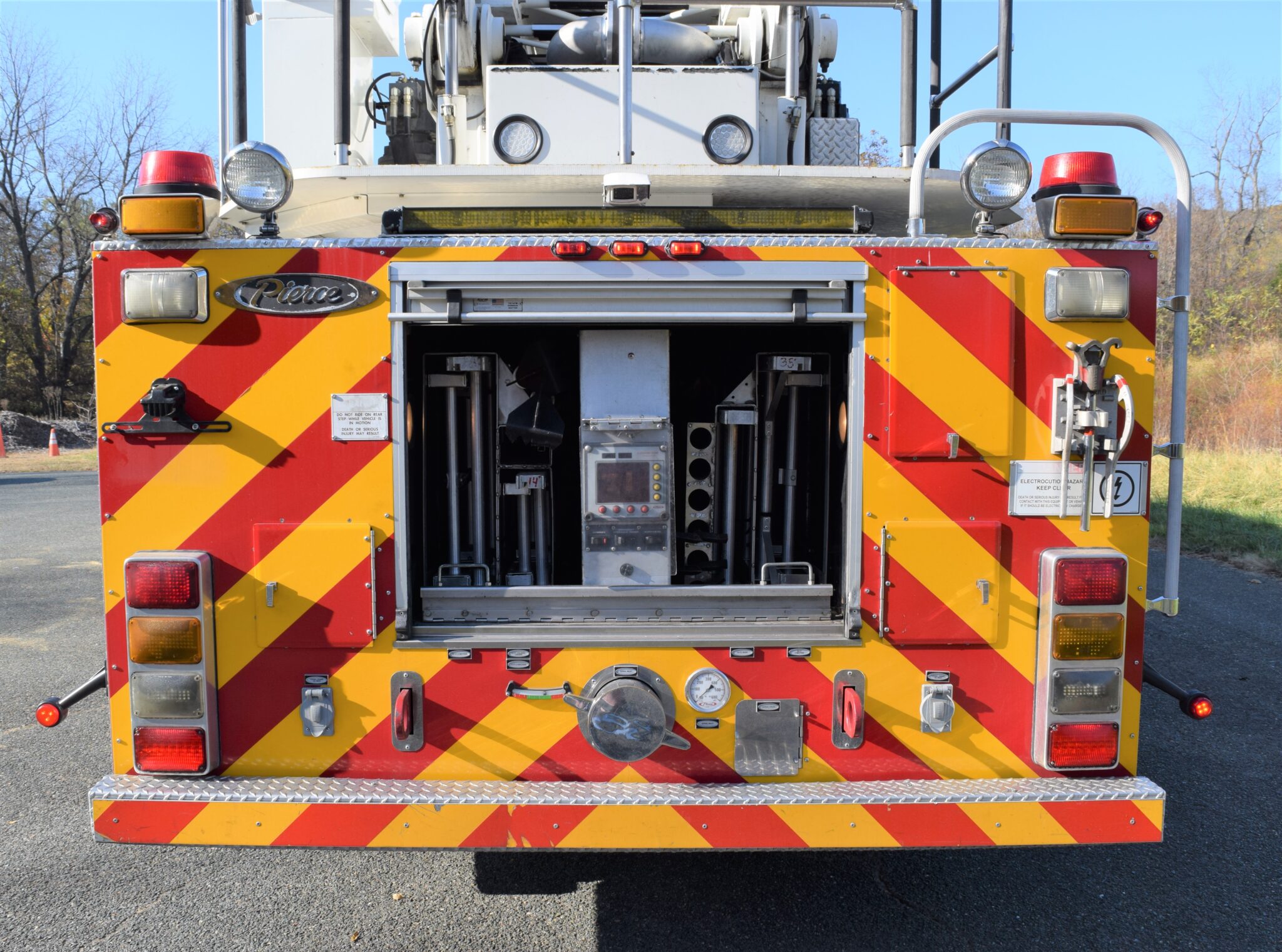

Hose compartment rear will hold 600’ 5” supply line
PS1 Slide out floor mounted tray
PS1 adjustable slide out drop down tray

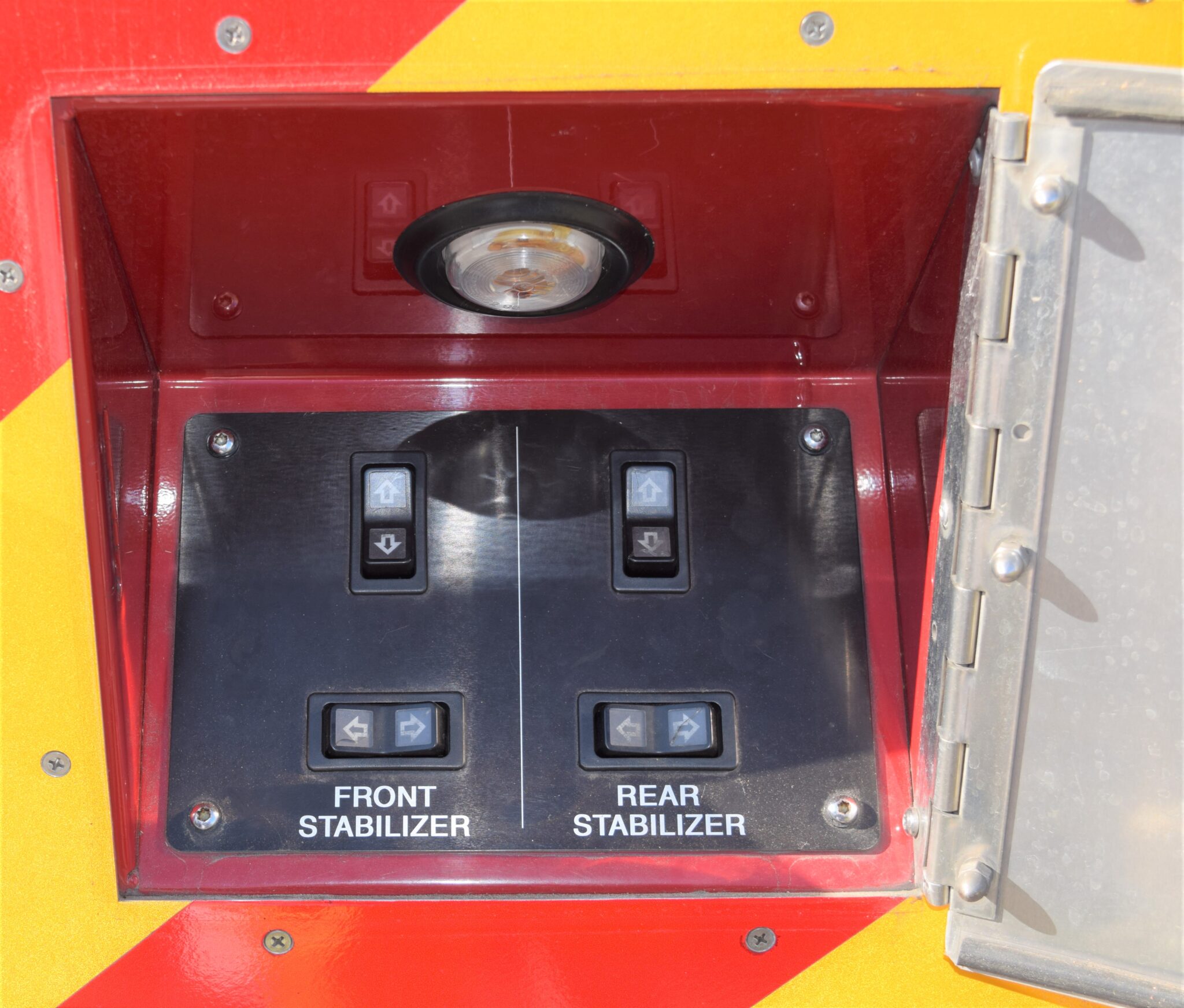

2- door compartments over front jacks 1 each side

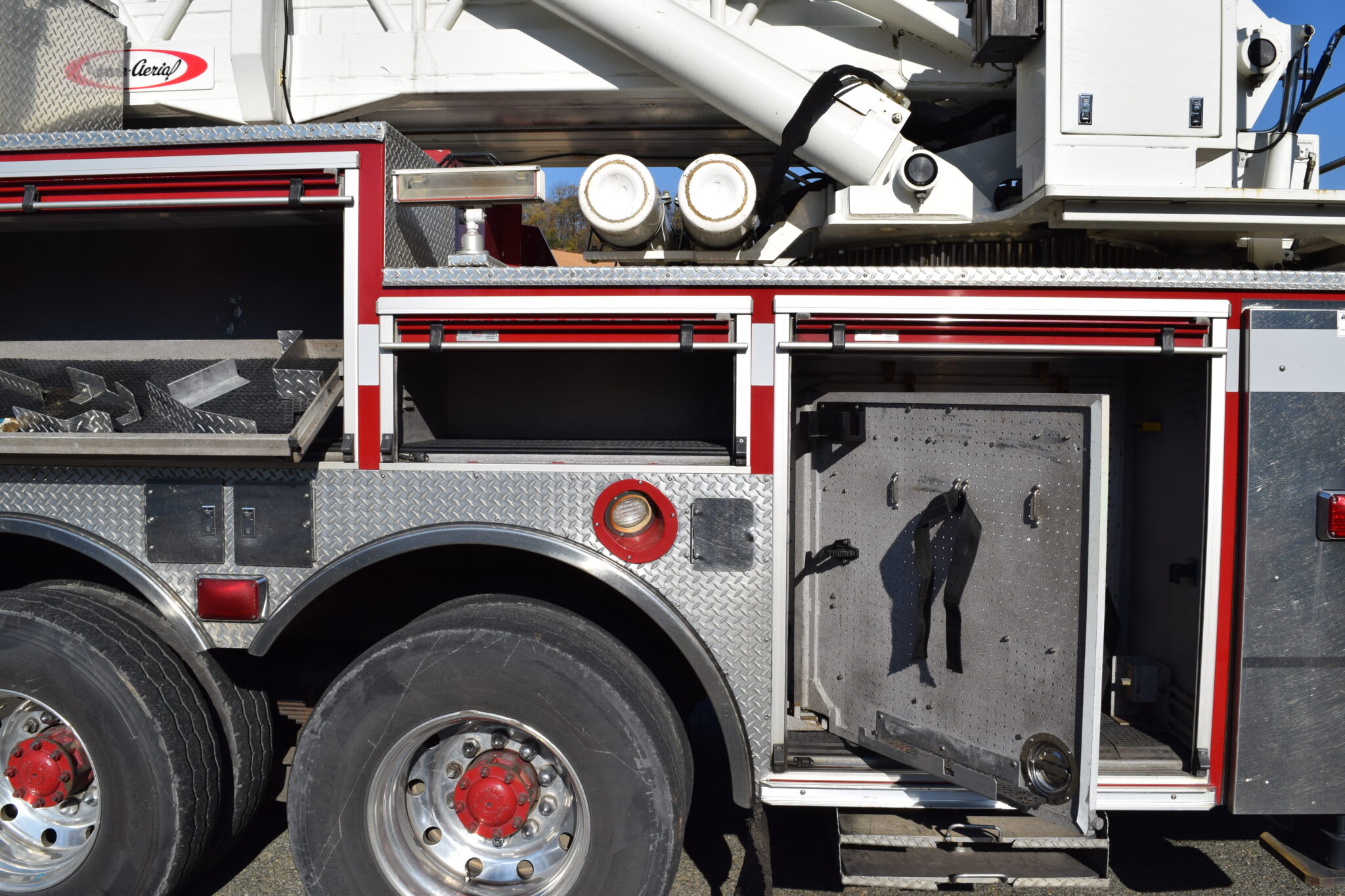

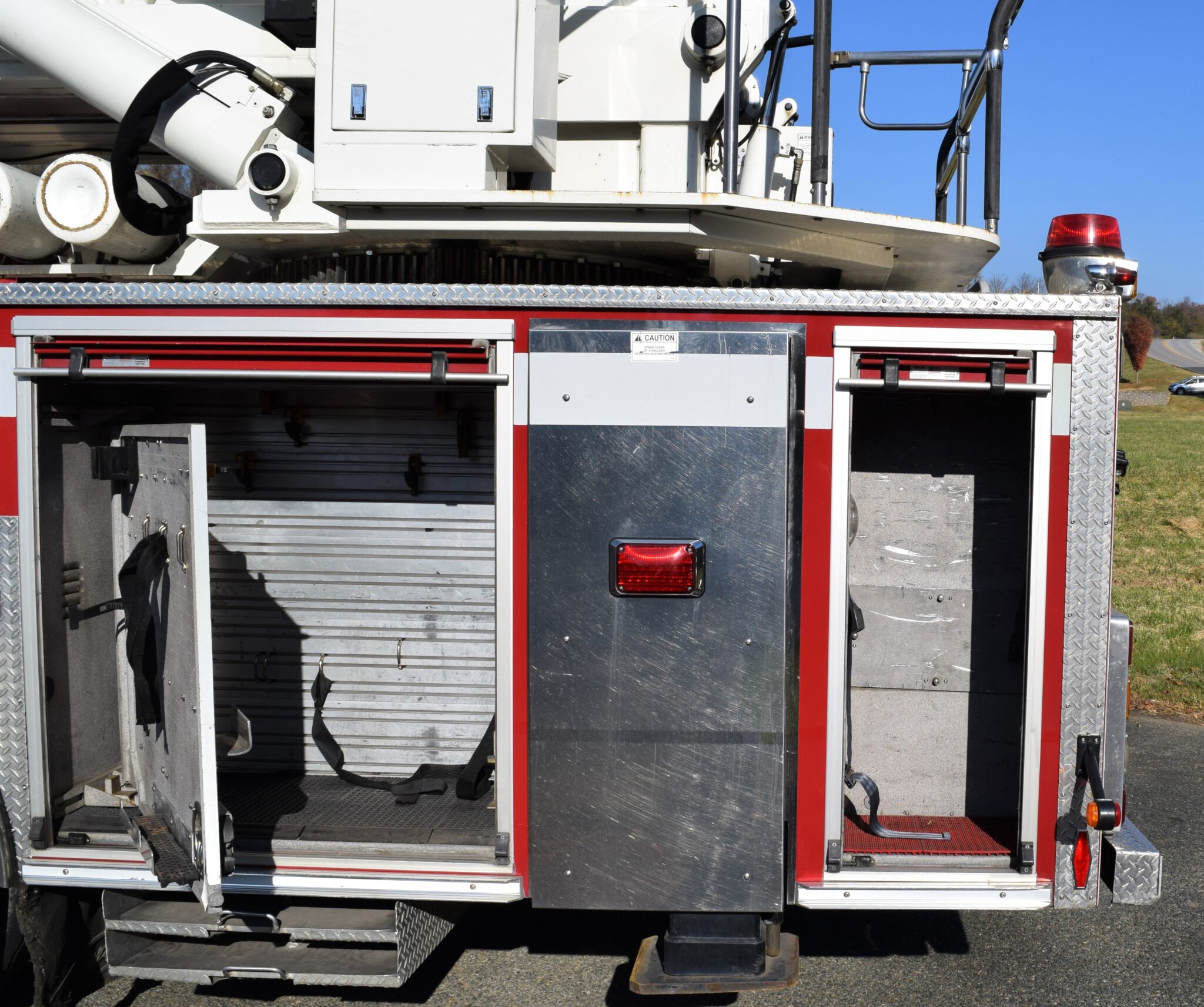

9- rollup compartments (5-drivers, 4-passenger)

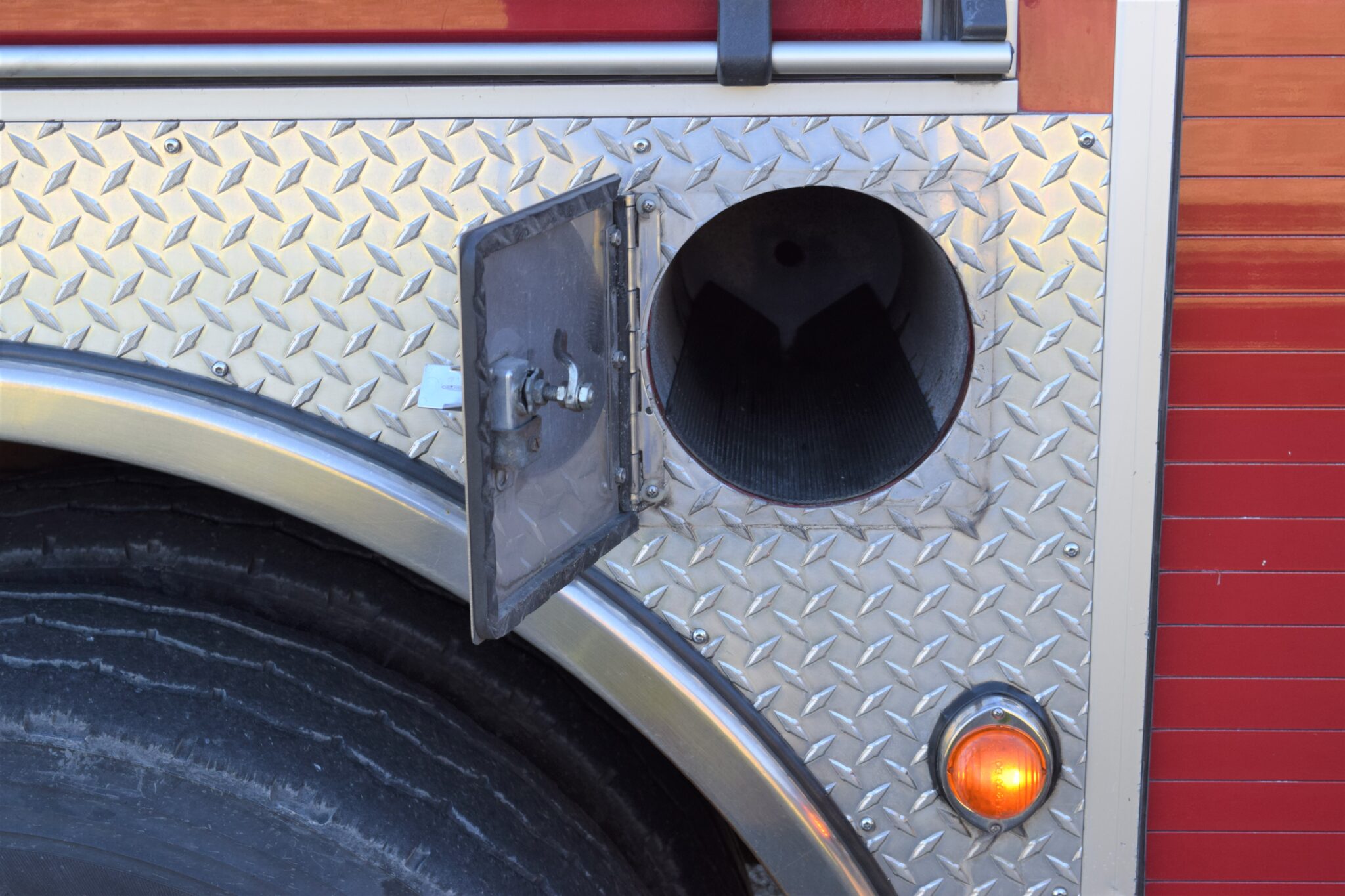

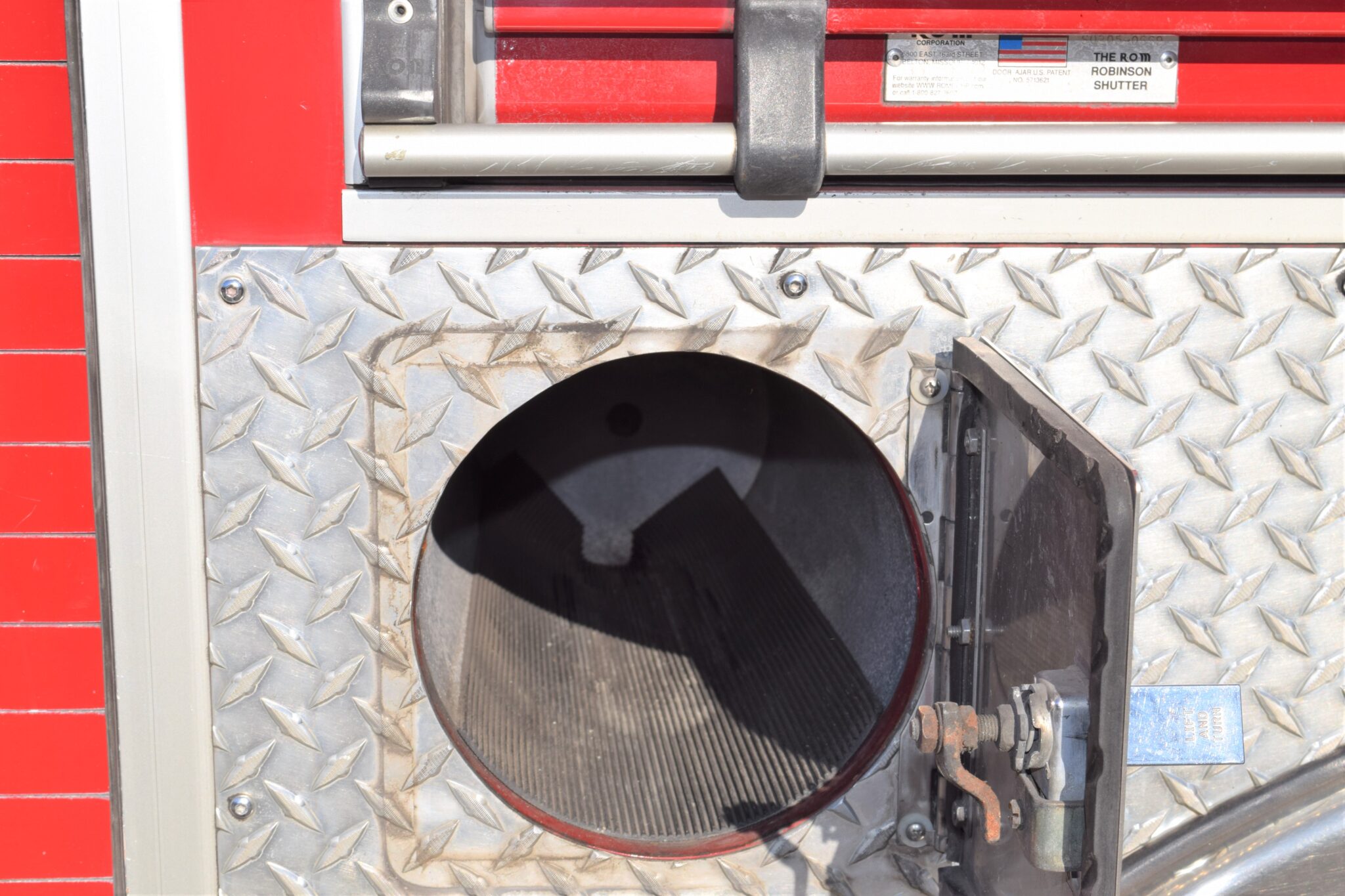

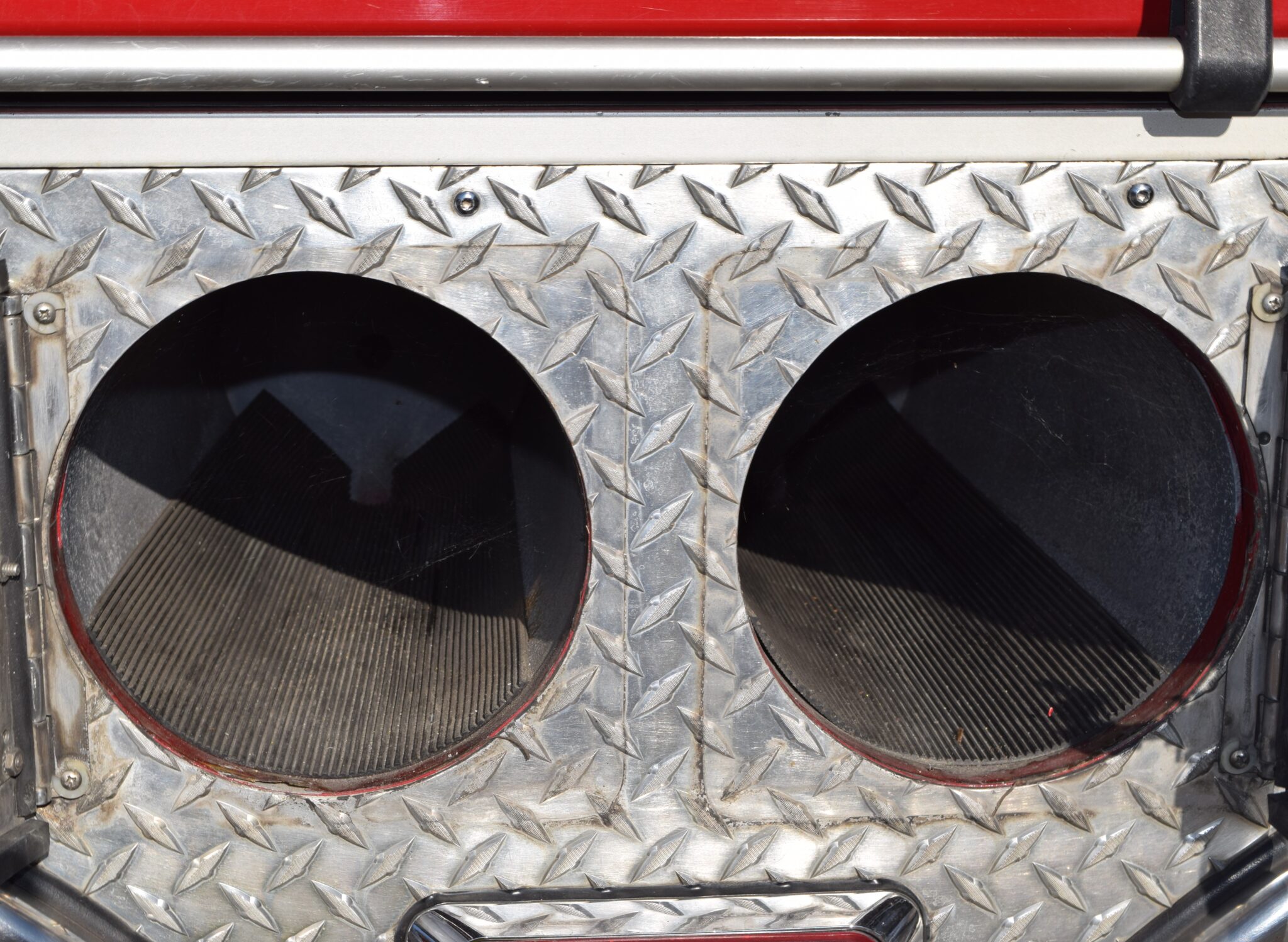

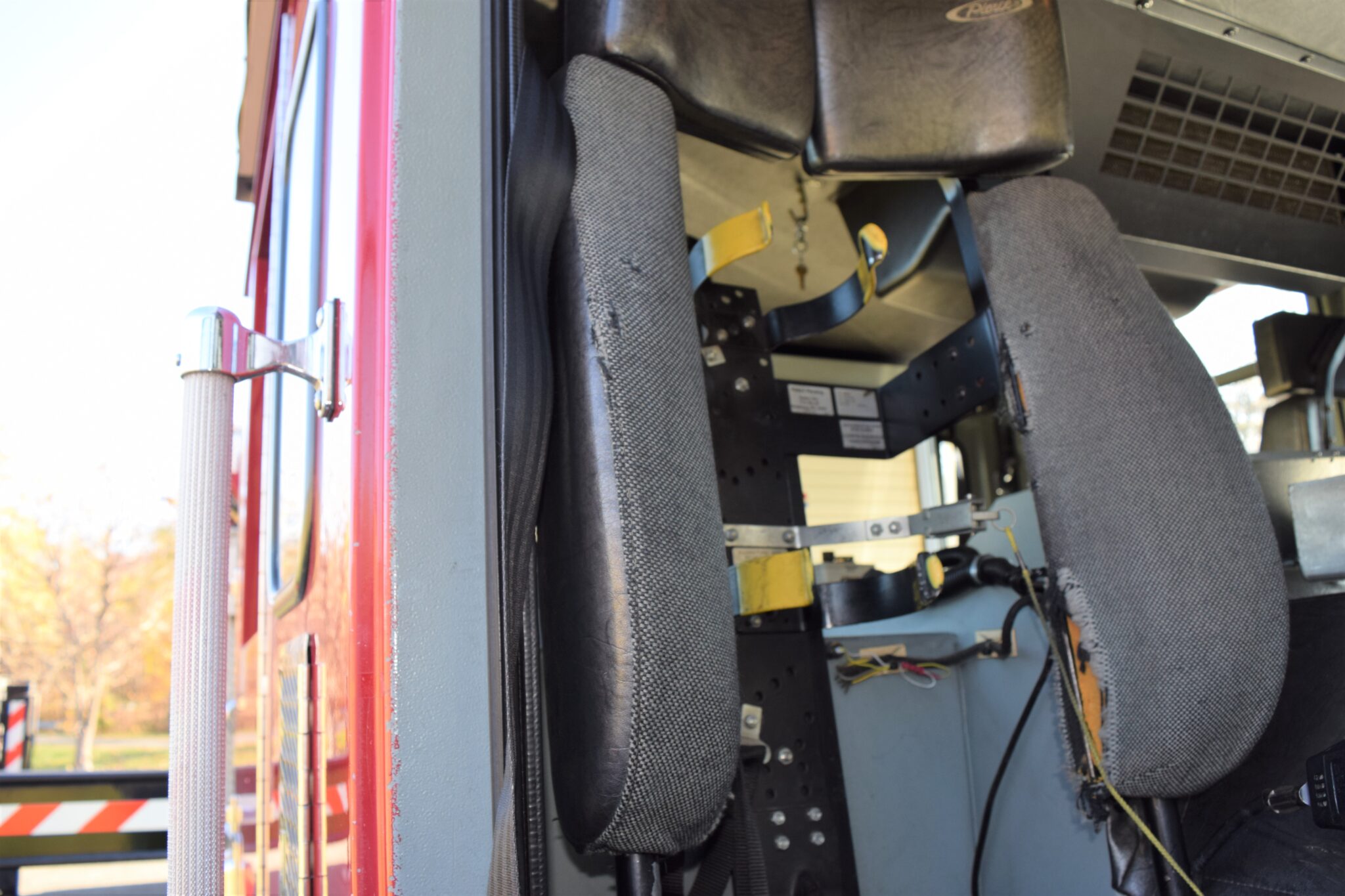

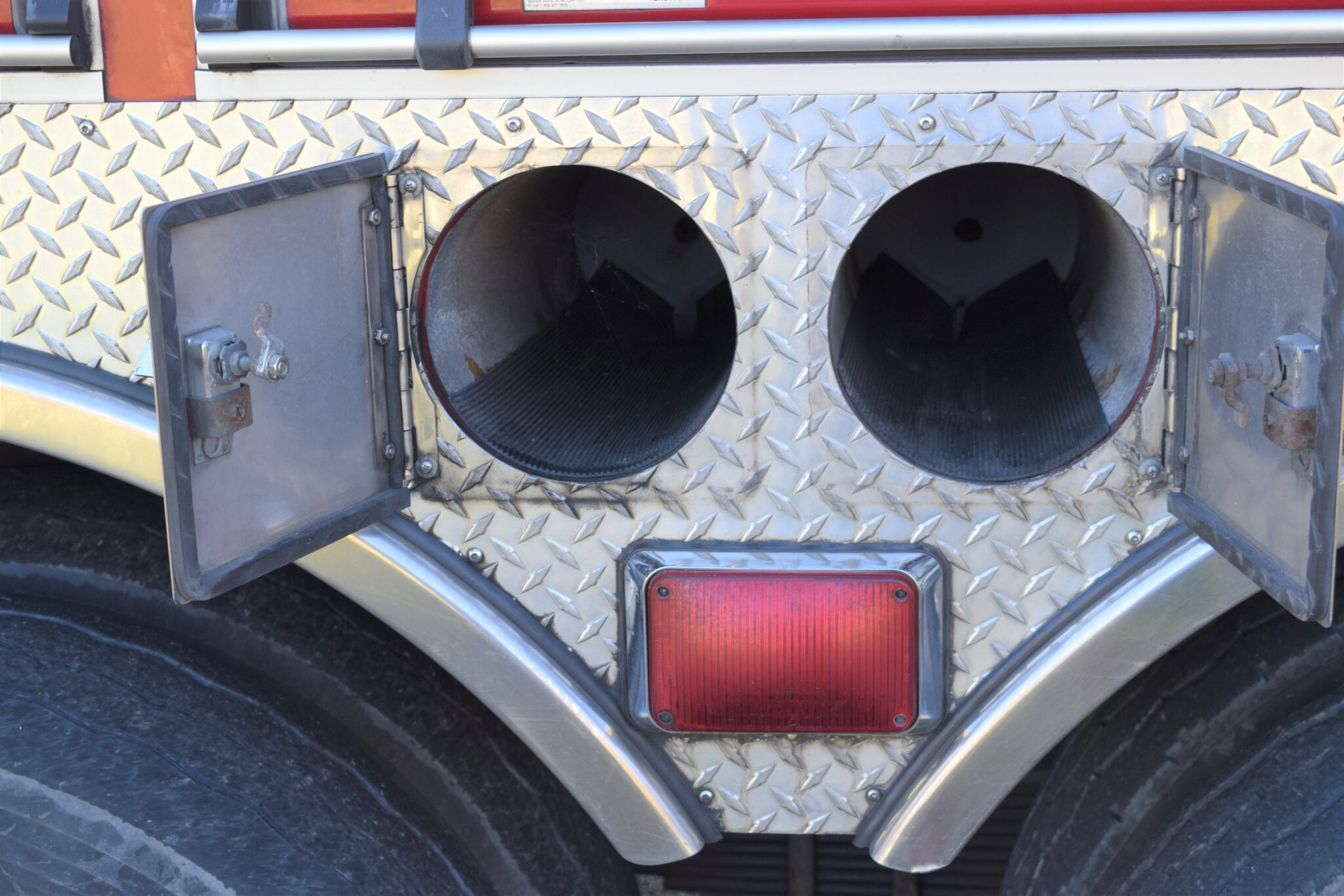

6 -Single bottle SCBA bottle storage compartments

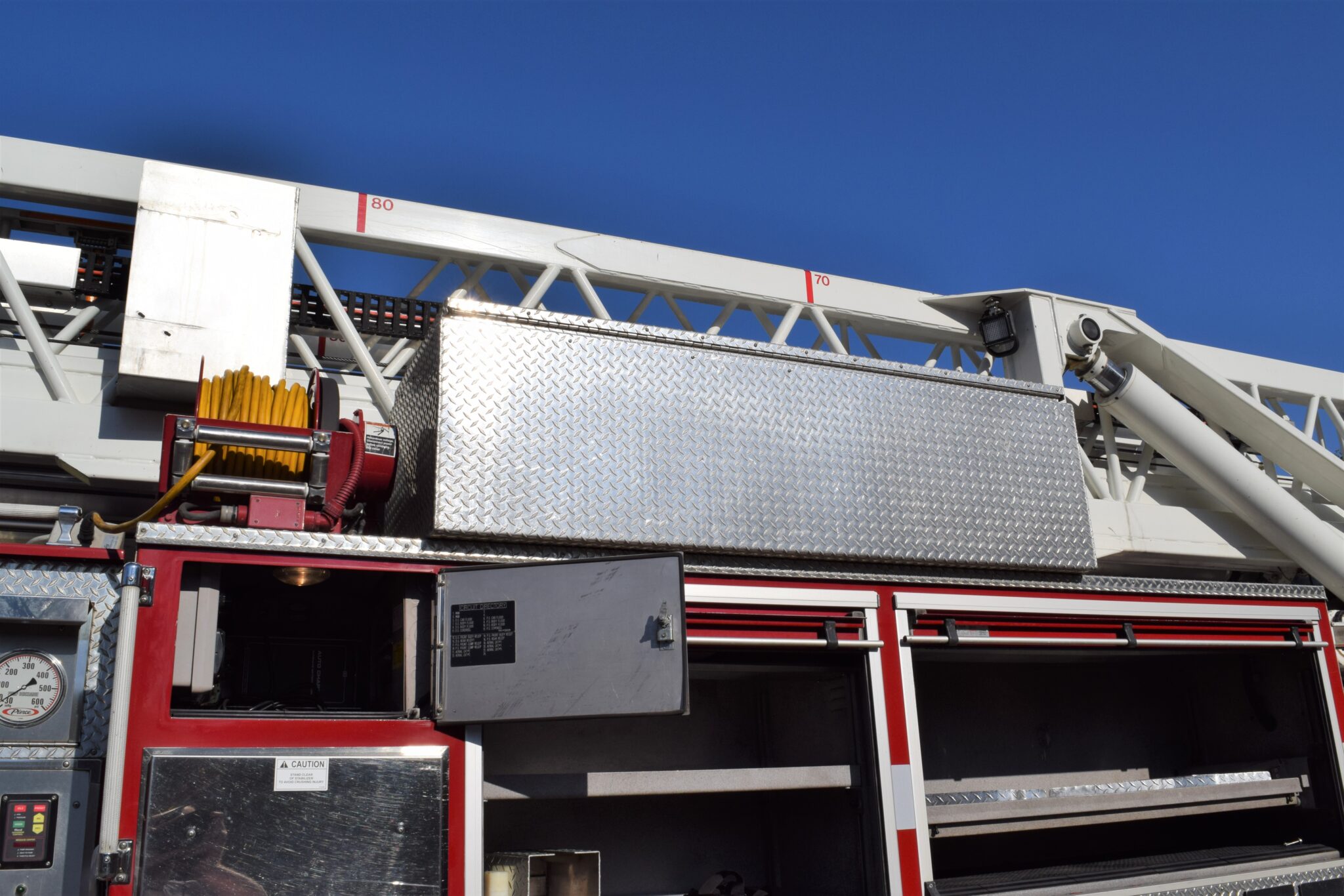

2- Diamond plate Aluminum storage compartments on top of body one each side of aerial.

Dimensions

Mileage 119,982
Overall Height 12’
Empty Wt. 69,820
Gross Wt. 76,800
Aerial Hours 1751.3
