2027 Kenworth T480 Double High-Side Pumper 1250/1250 (E5944)

2027 Kenworth T480 Double High-Side Pumper
CHASSIS

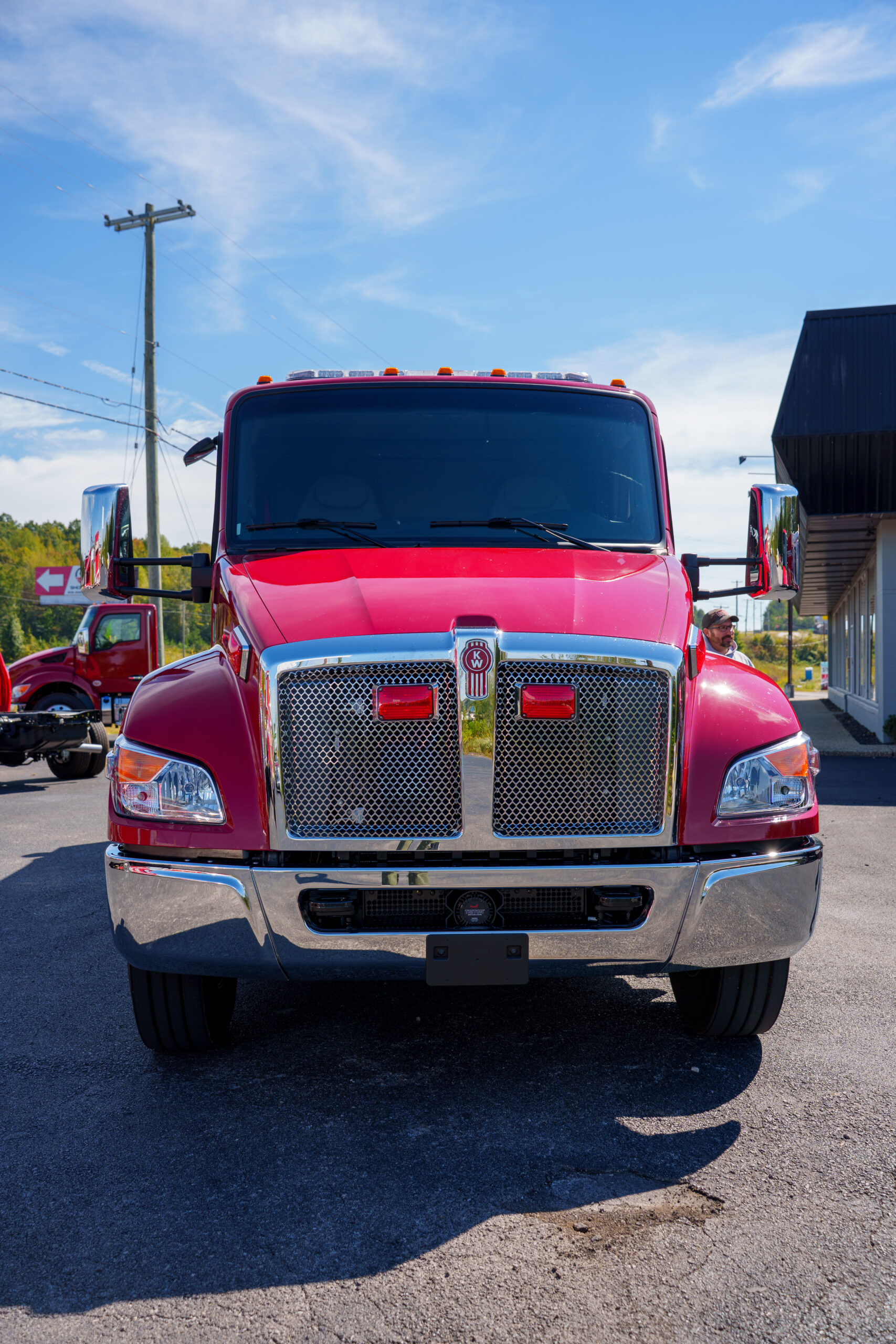

• KENWORTH T480 Chassis
• Paccar PX9 Diesel Engine
• Allison Automatic Transmission
• Air Horns
• Polished Center Hub Covers

BODY
• All Aluminum Sub-frame and Body

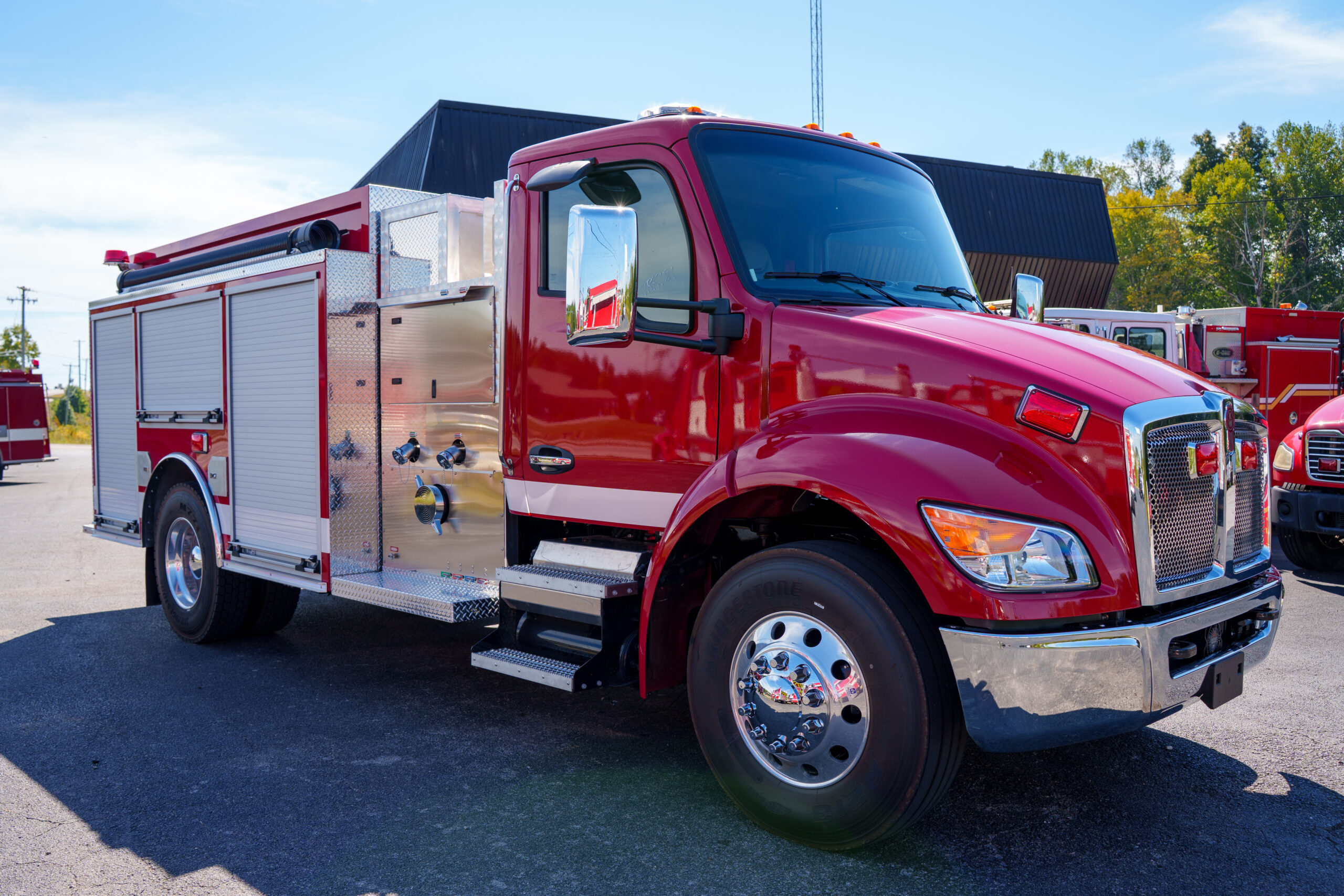

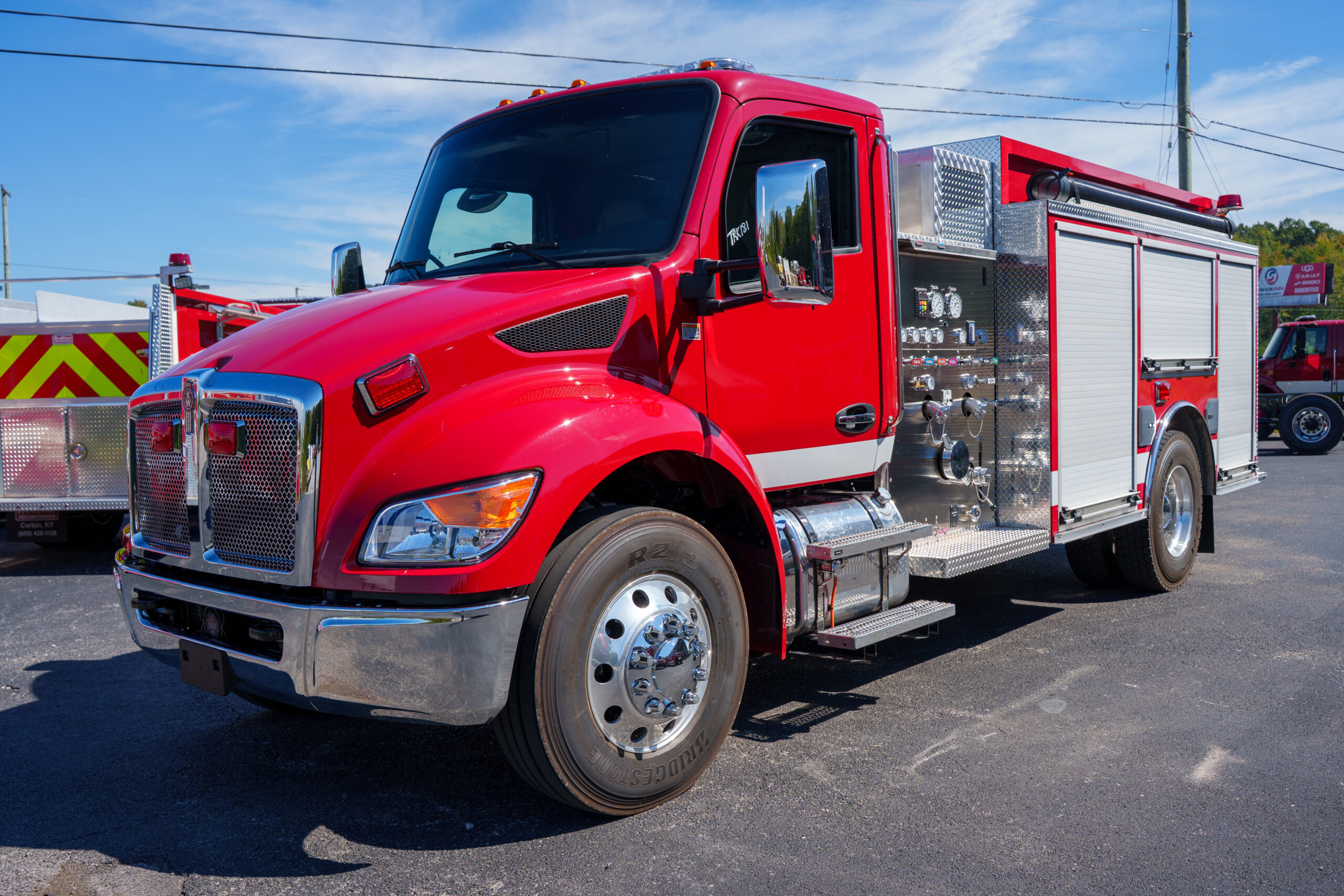

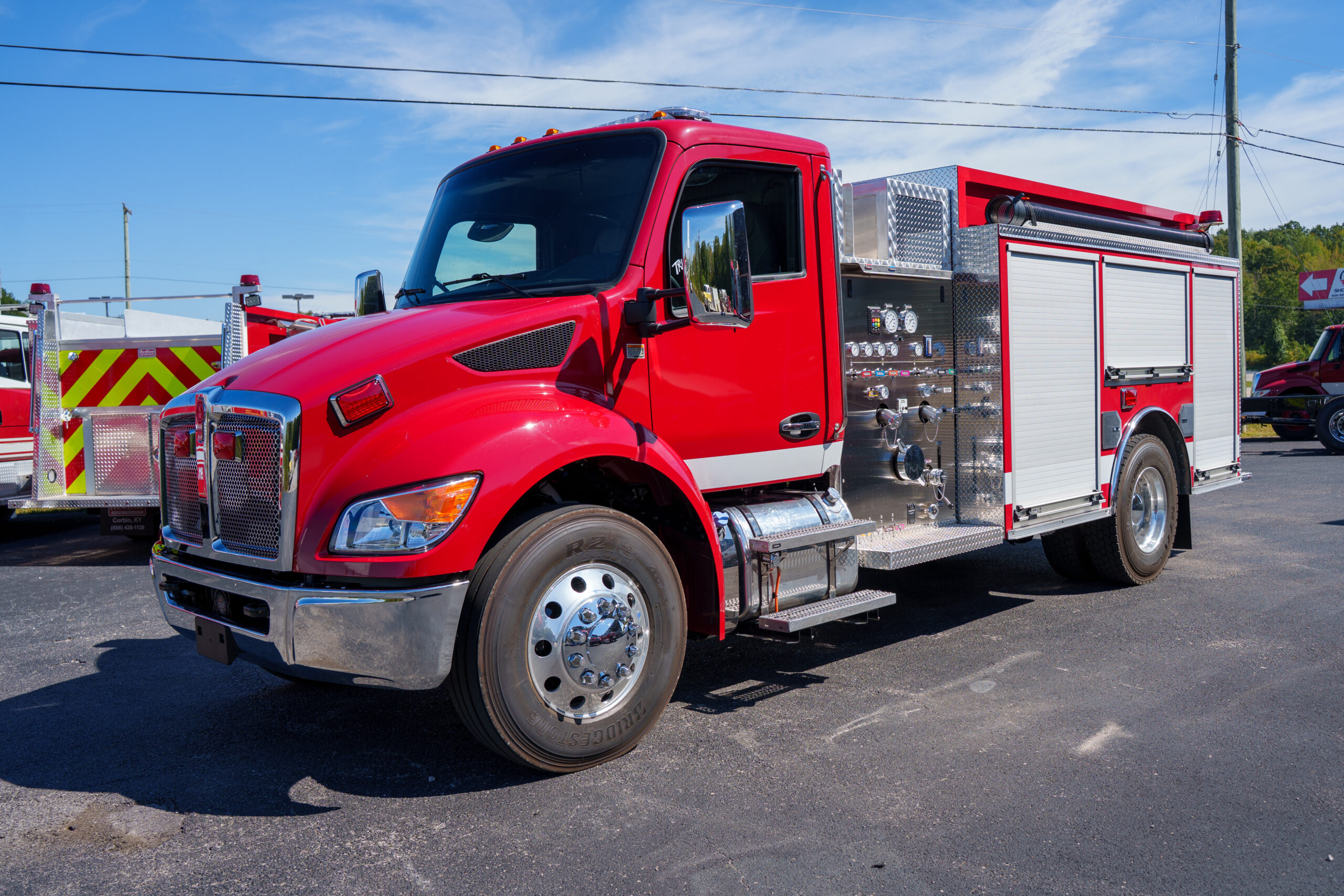

• Double High-Side Body

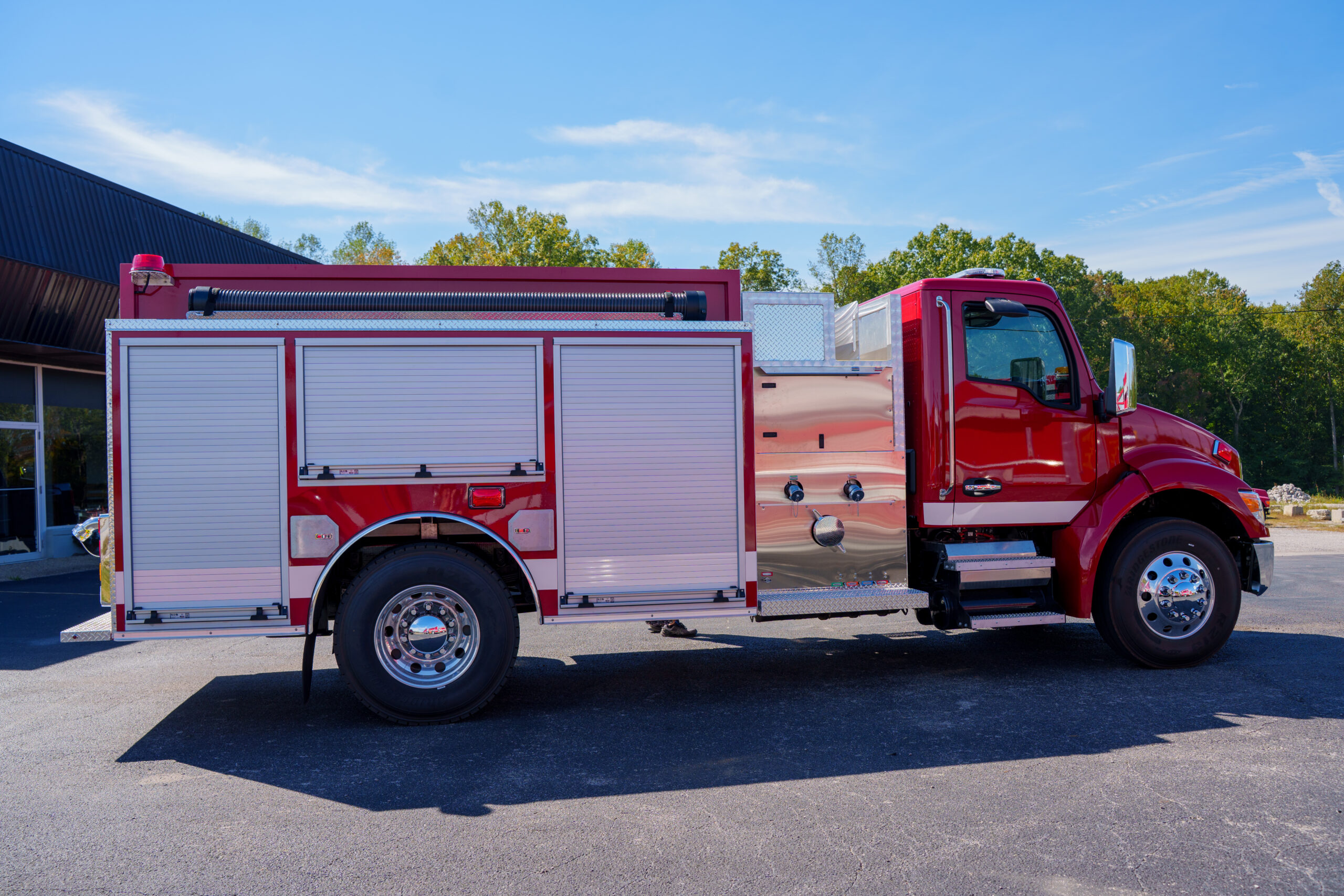

• (7) ROM Roll-Up Doors
o With Satin Finish and Integrated LED Compartment Lighting
• Zolatone Compartment Finish
• Turtle Tile Matting
• Grab Rails & Folding Steps on rear for hosebed access
• (Single) Hard Suction Trays on top side of D/S & P/S Boxes
• BA Bottle Storage – (2) D/S – (2) P/S
• Ladder Storage at the rear to accommodate
o (1) 24’ 2-Sect Ladder
o (1) 14’ Roof Ladder
o (1) Attic Ladder
o Pike Poles
• Rub-Rails
• Tow Hooks
• Mud Flaps
TANK
• 1250 Gallon Poly Tank

HOSEBED
• 72” Wide Aluminum Hosebed w/dividers
PLUMBING

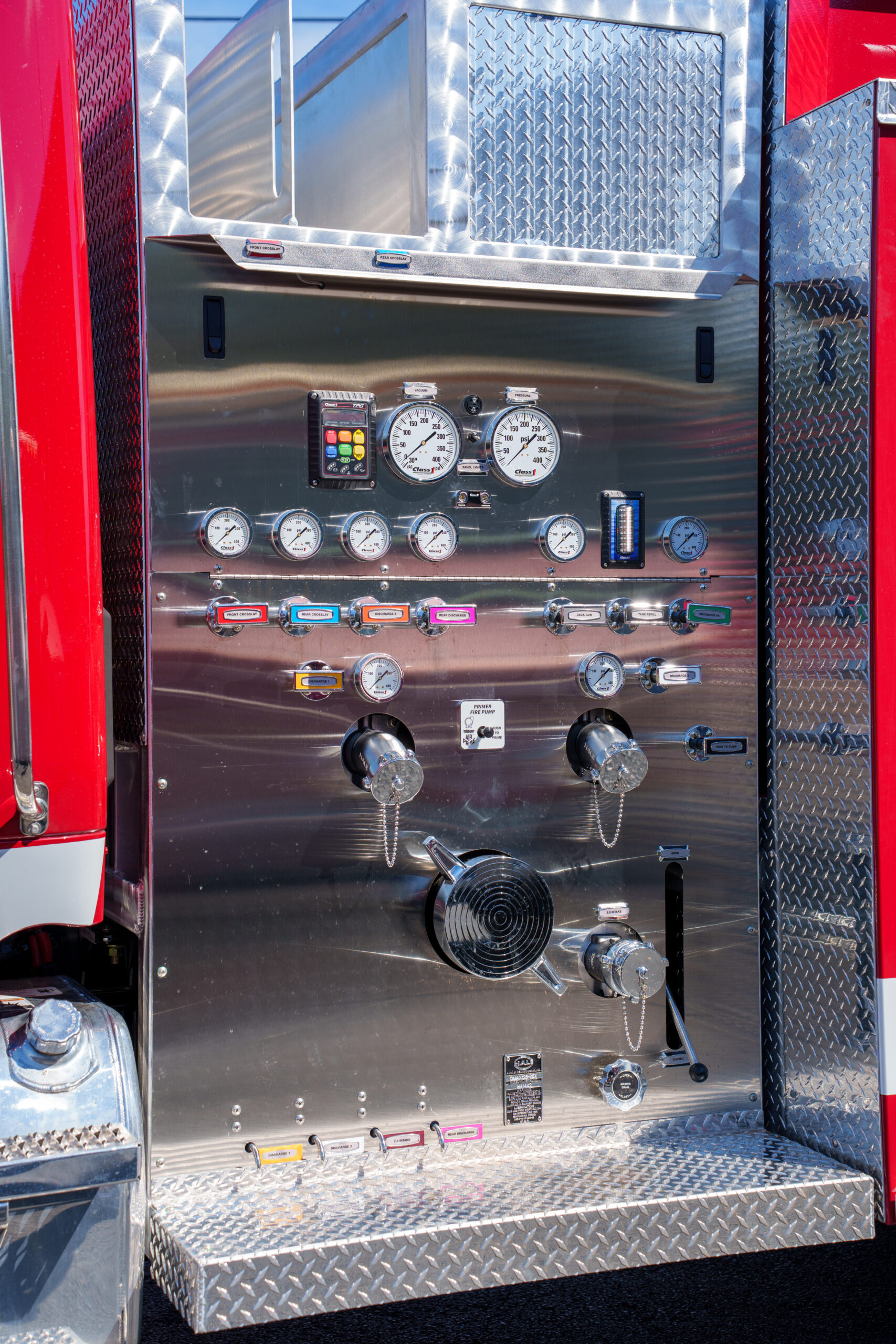

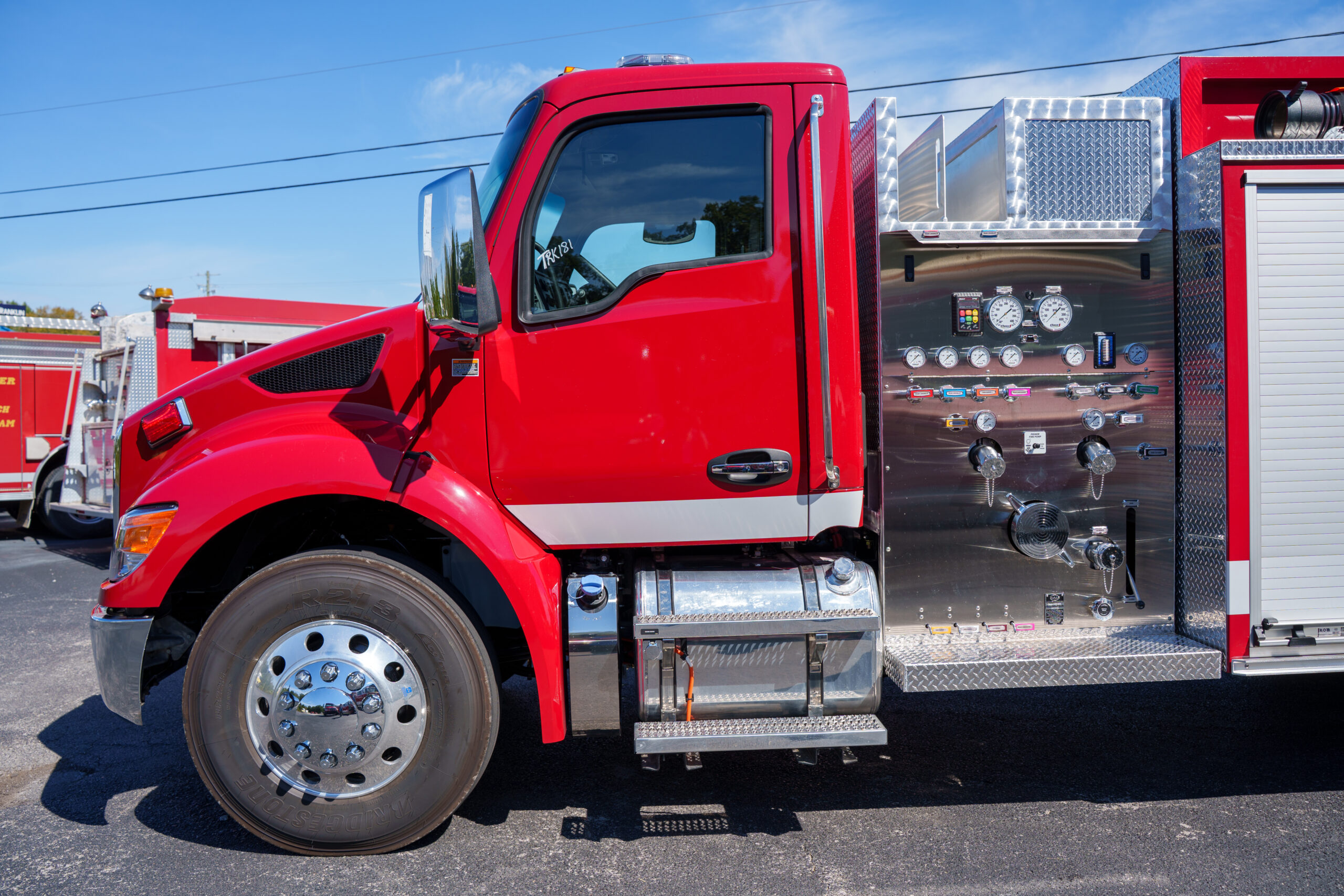

• HALE QMAX 1250 Pump
o Front/Rear Crosslays
o (2) 6” Steamers
o (4) 2.5” Discharges
o (1) 2.5” D/S Intake
o Deck Gun Plumbing
o TPG
o Trident Air Primer
• (1) 2.5” Rear Direct Fill
• Stainless Steel Plumbing

WARNING LIGHTS/CONSOLE
• 56” Whelen LED Justice Lightbar
• Whelen 295 Siren Controller w/PA
• Whelen LED Warning Lights
• Whelen LED Rear Rotators
• Feniex 100W Speaker
• Tecniq Underbody & Marker Lights

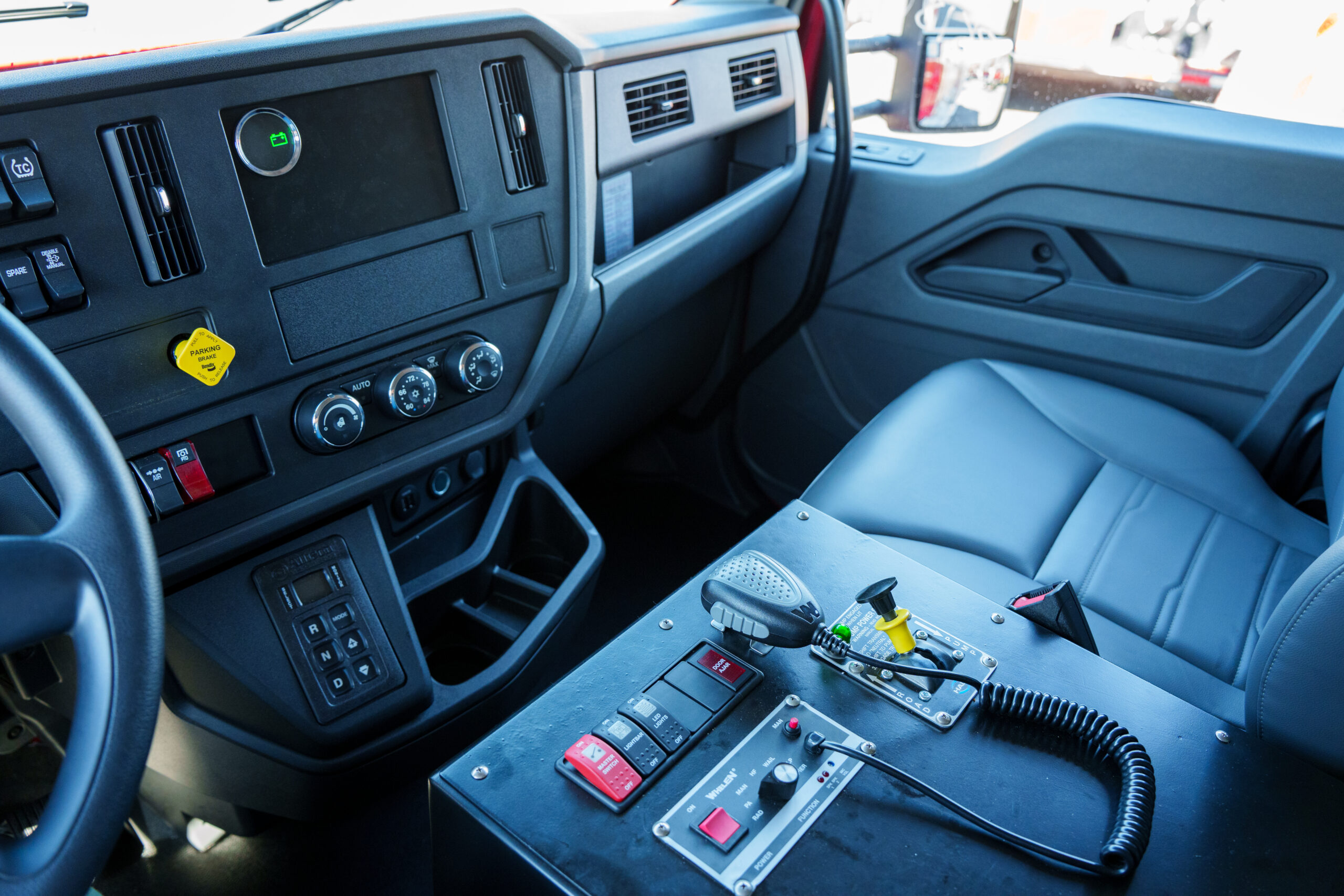

• Custom Built Console w/Black Powder Coat Finish
o Features ON/OFF Switches with Labeled Actuators for:
o MASTER
o LIGHTBAR
o LED LIGHTS
o DOOR AJAR (Indicator Light)
VINYL

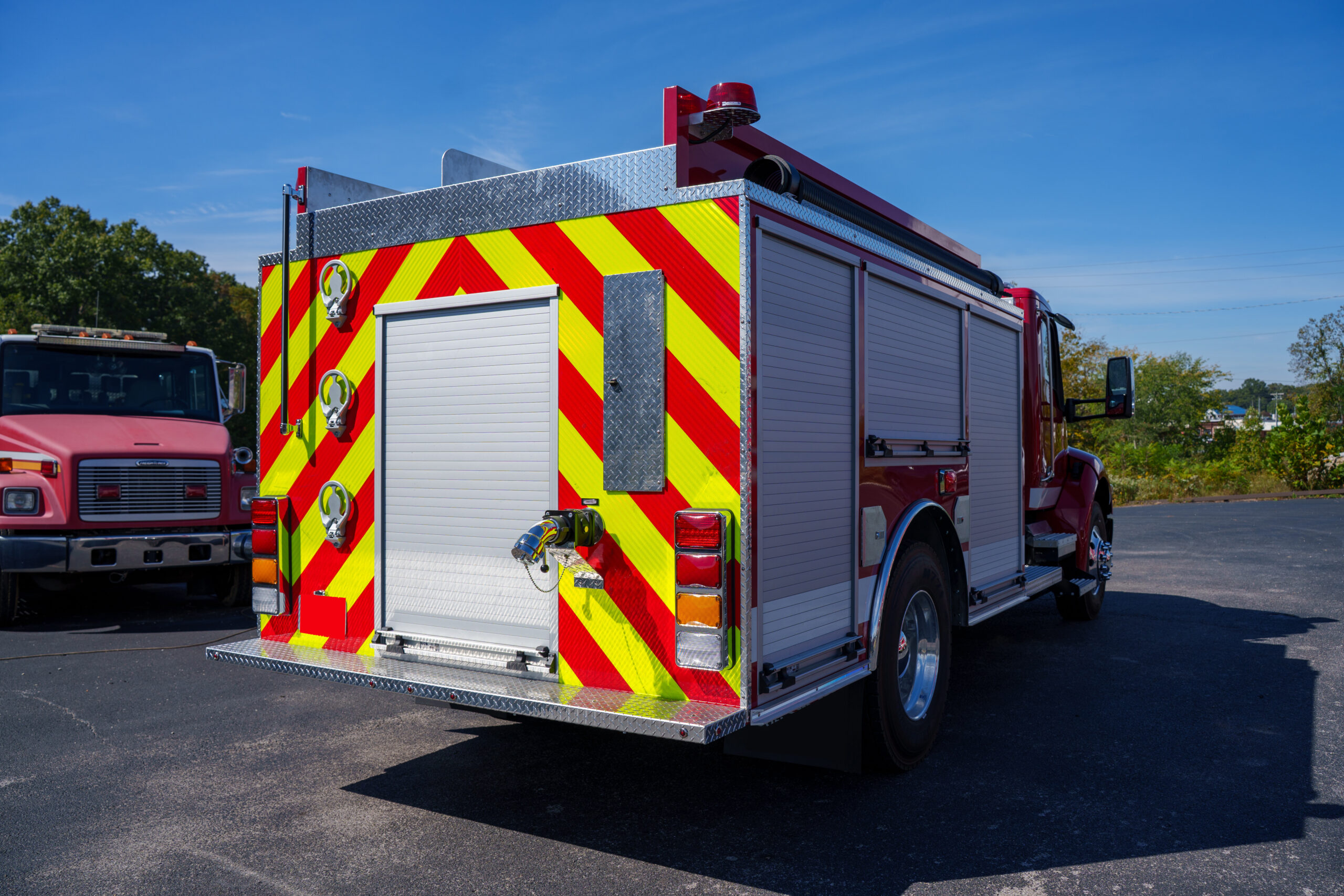

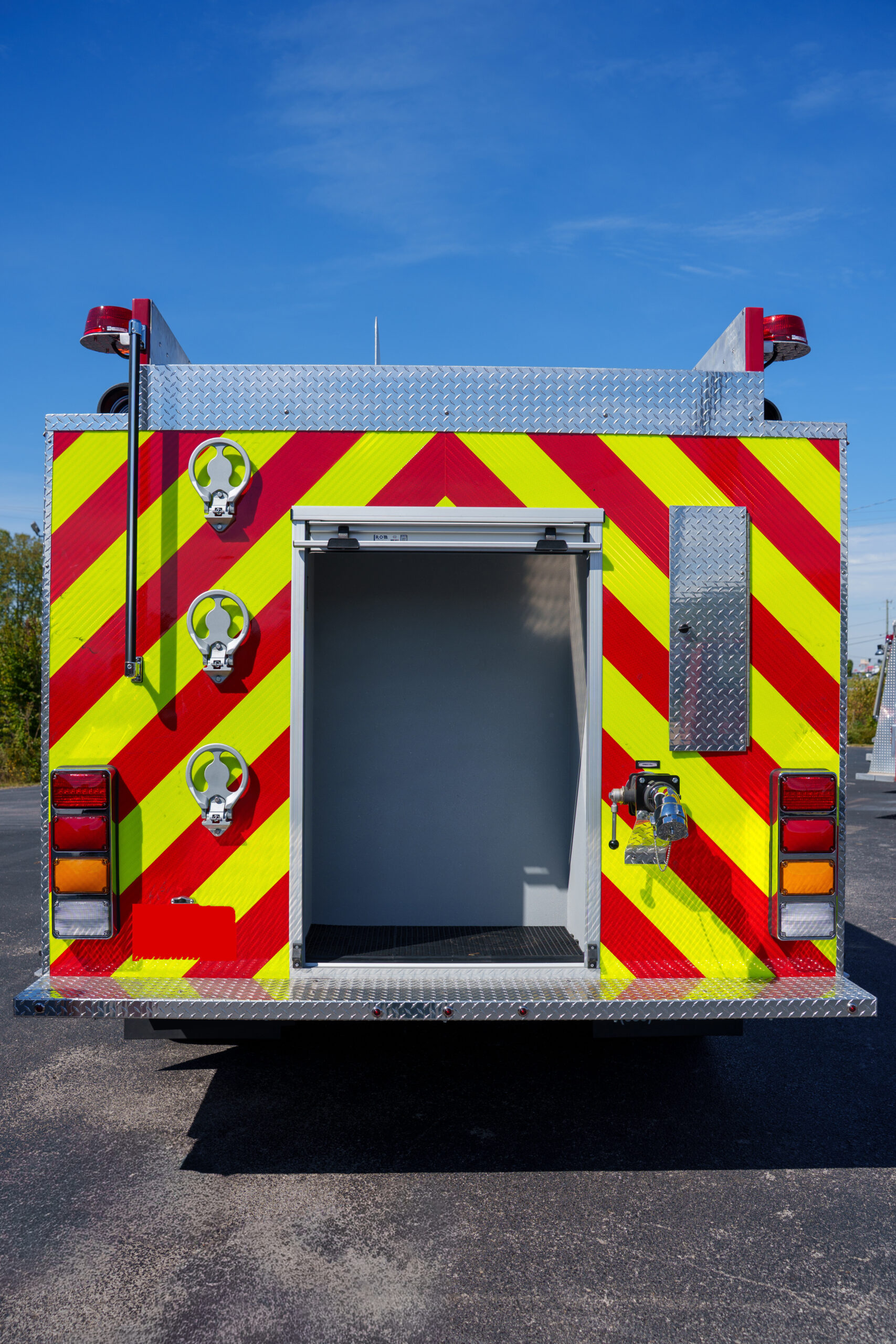

• (Red & Lime-Yellow) Rear Chevrons
