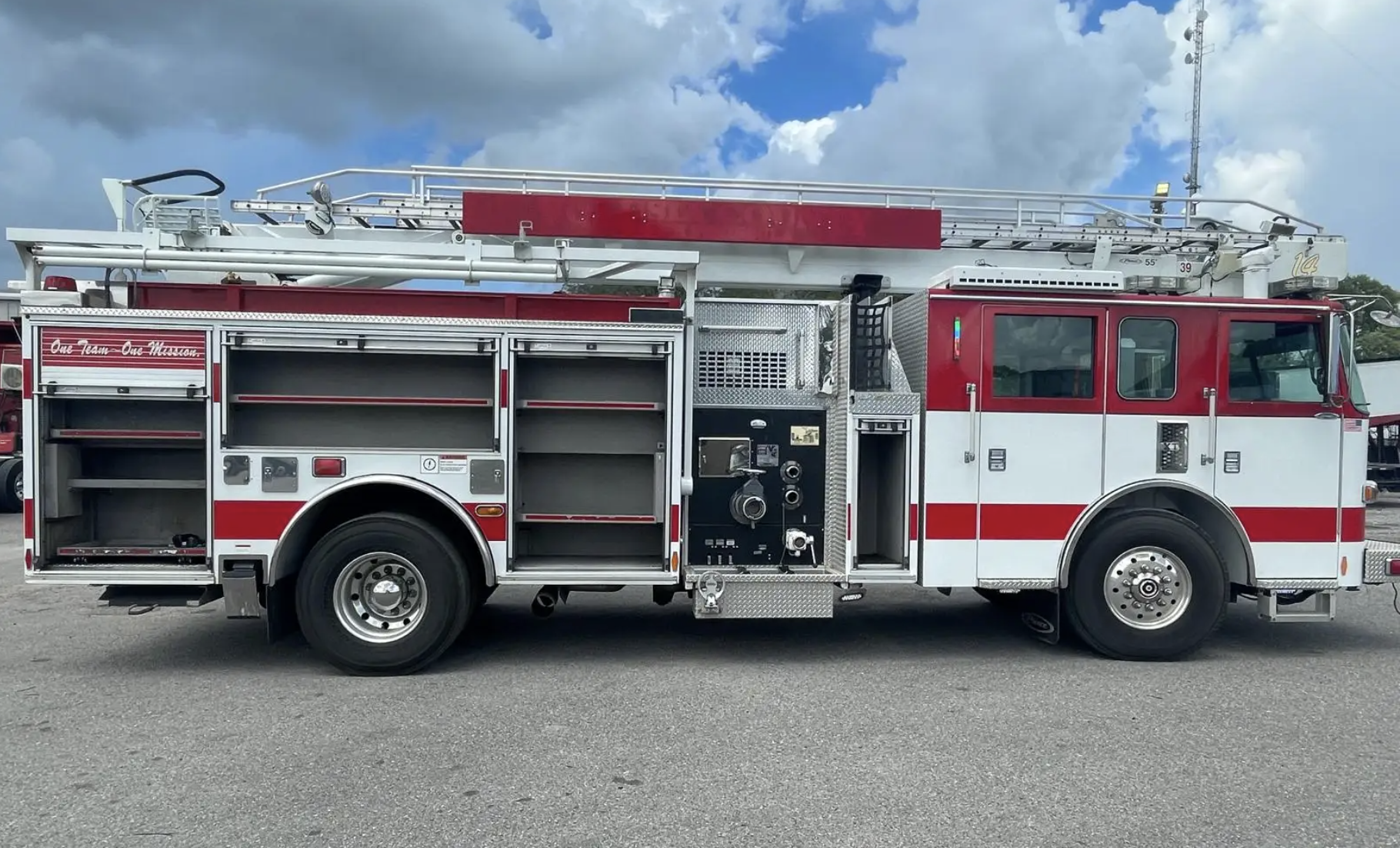

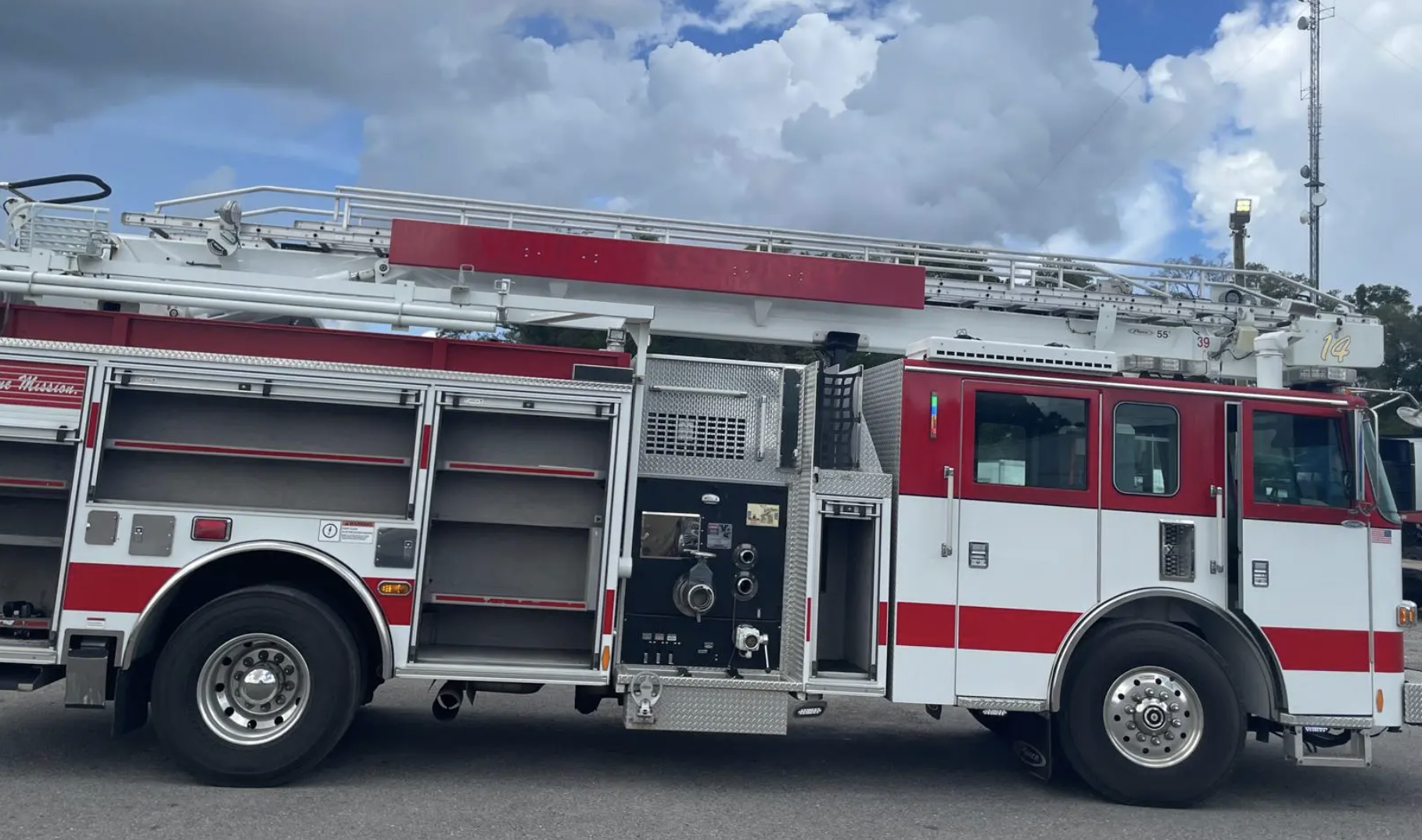

2011 PIERCE 55’ SKY-BOOM AERIAL PUMPER 1250/500 (E5910)

GENERAL INFORMATION

• Year: 2011
• Manufacturer: Pierce Manufacturing
• Apparatus Type: Aerial Pumper
• Aerial Model: Pierce Sky-Boom
• Configuration: Four-door crew cab with a single rear axle
• Exterior Color: Red and white
• Rear Safety Markings: Red and yellow reflective chevrons
  VISIBLE EQUIPMENT AND FEATURES
• Four-door crew cab

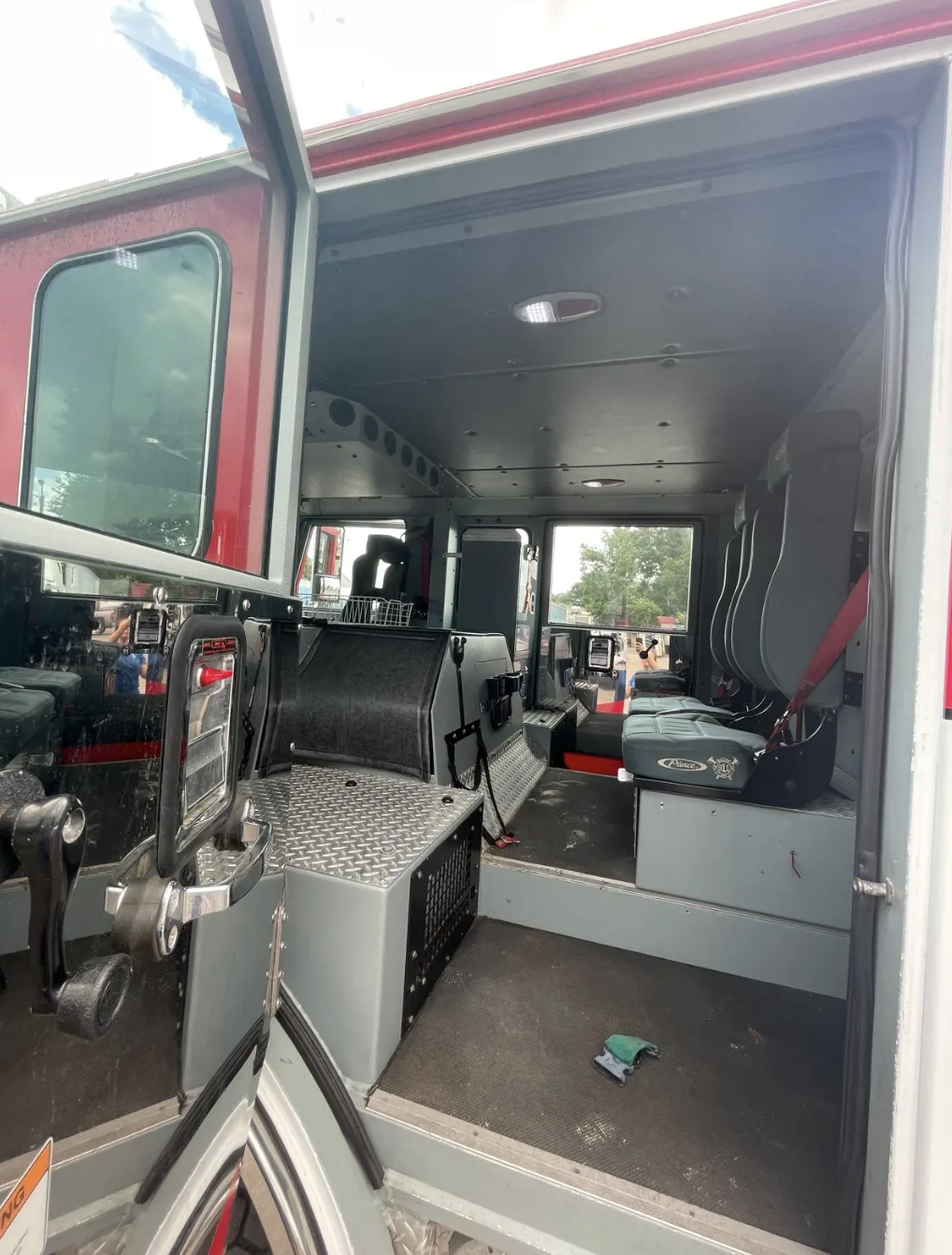

• Crew seating with seat belts

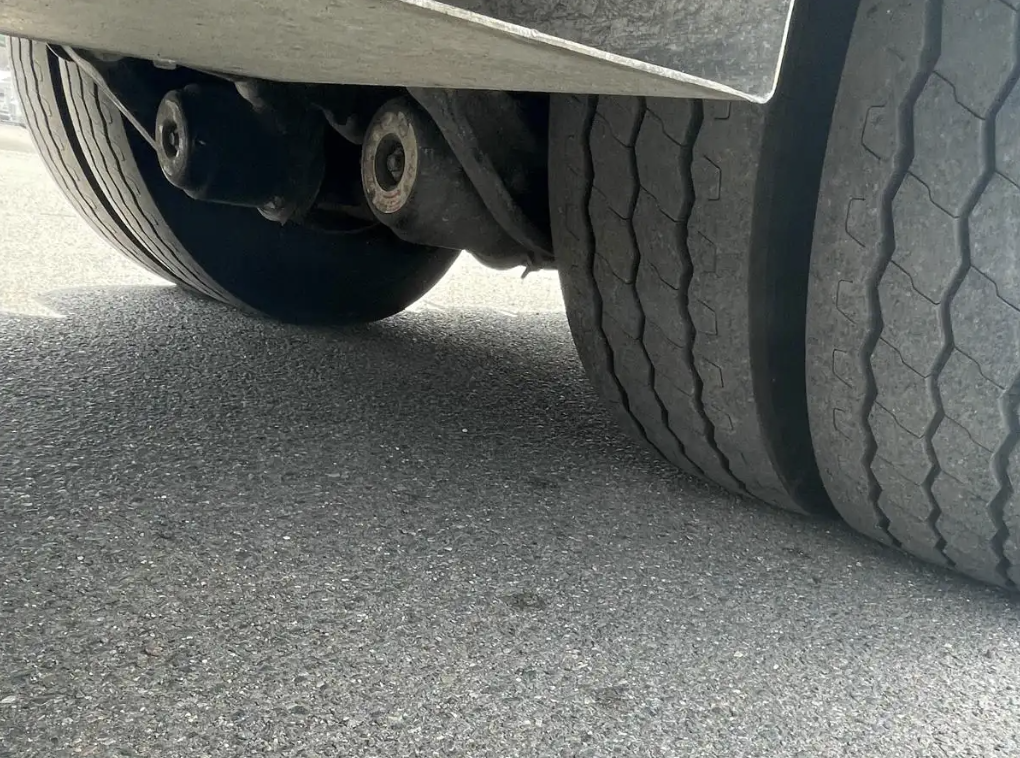

• Single rear axle with dual rear tires
• Side equipment compartments with roll-up doors

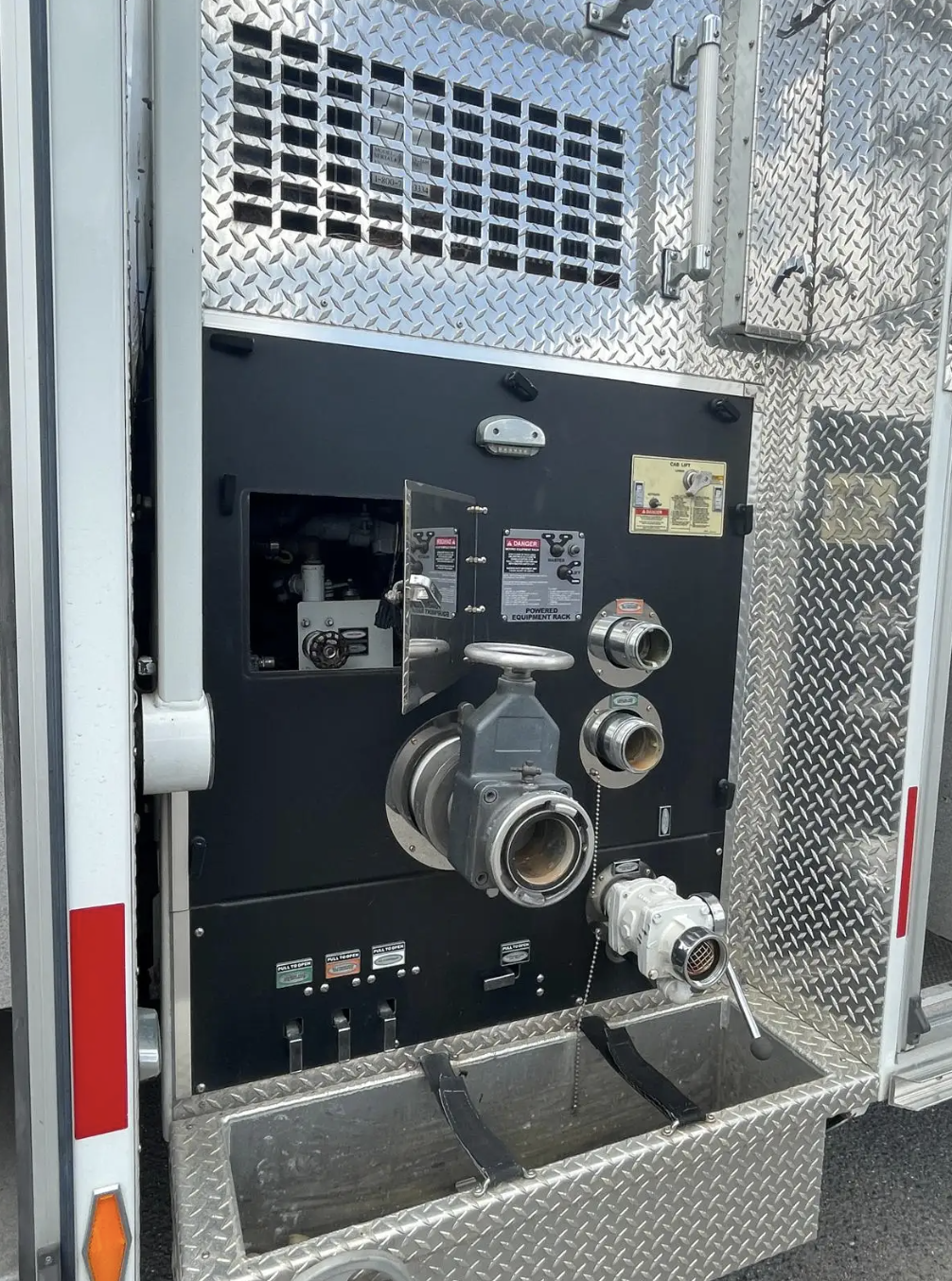

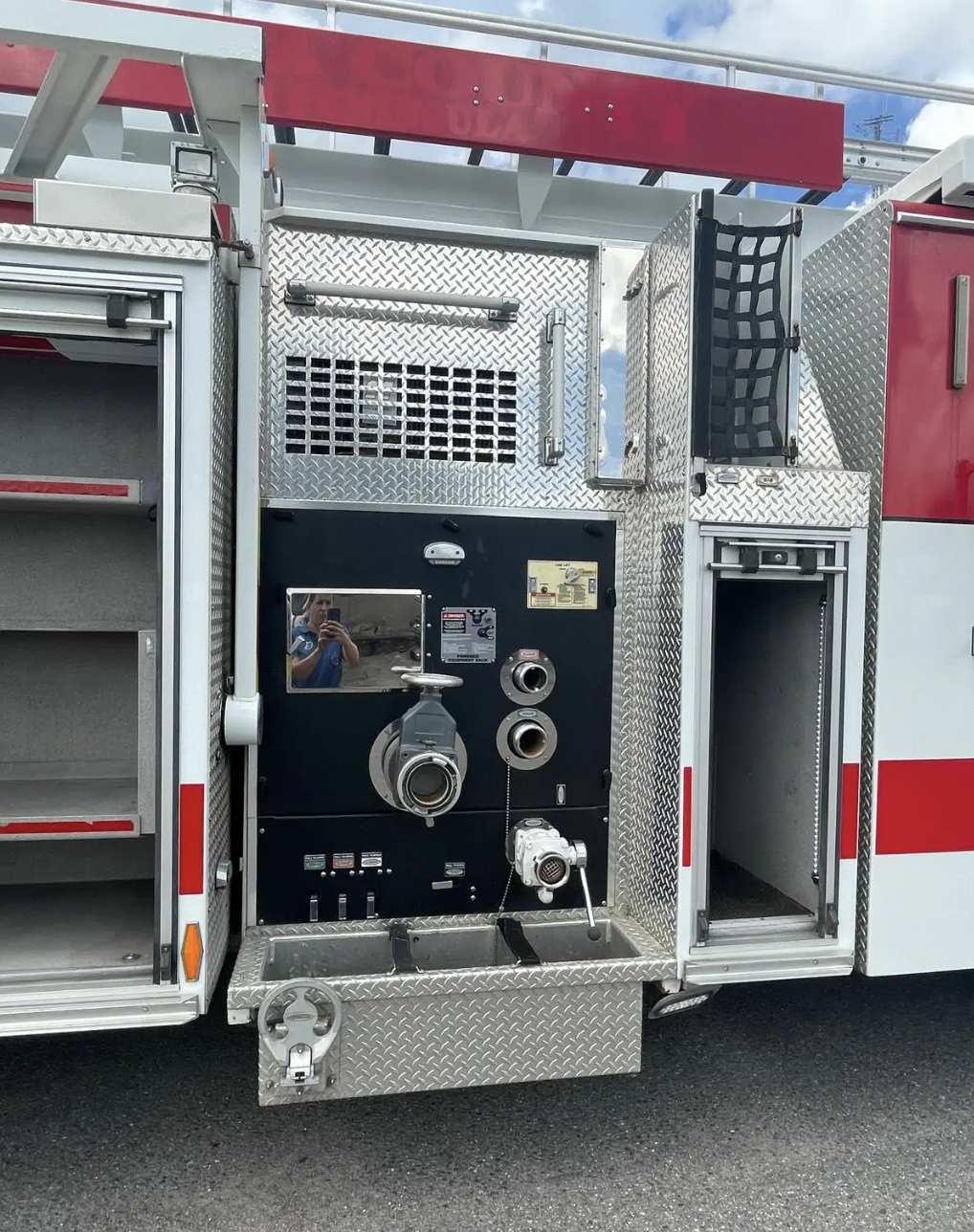

• Side-mounted pump panel
• Multiple intake and discharge connections
• Aerial master stream monitor

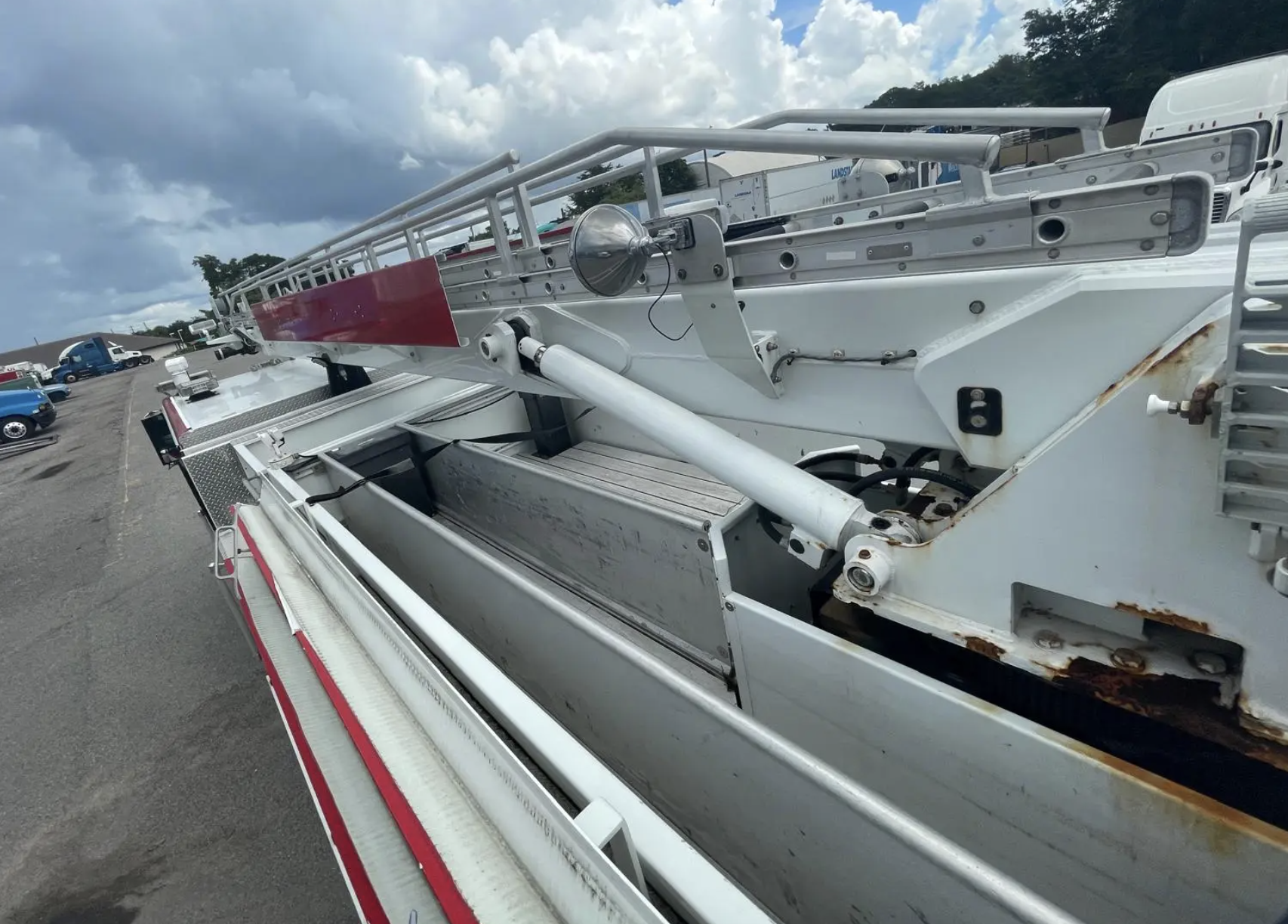

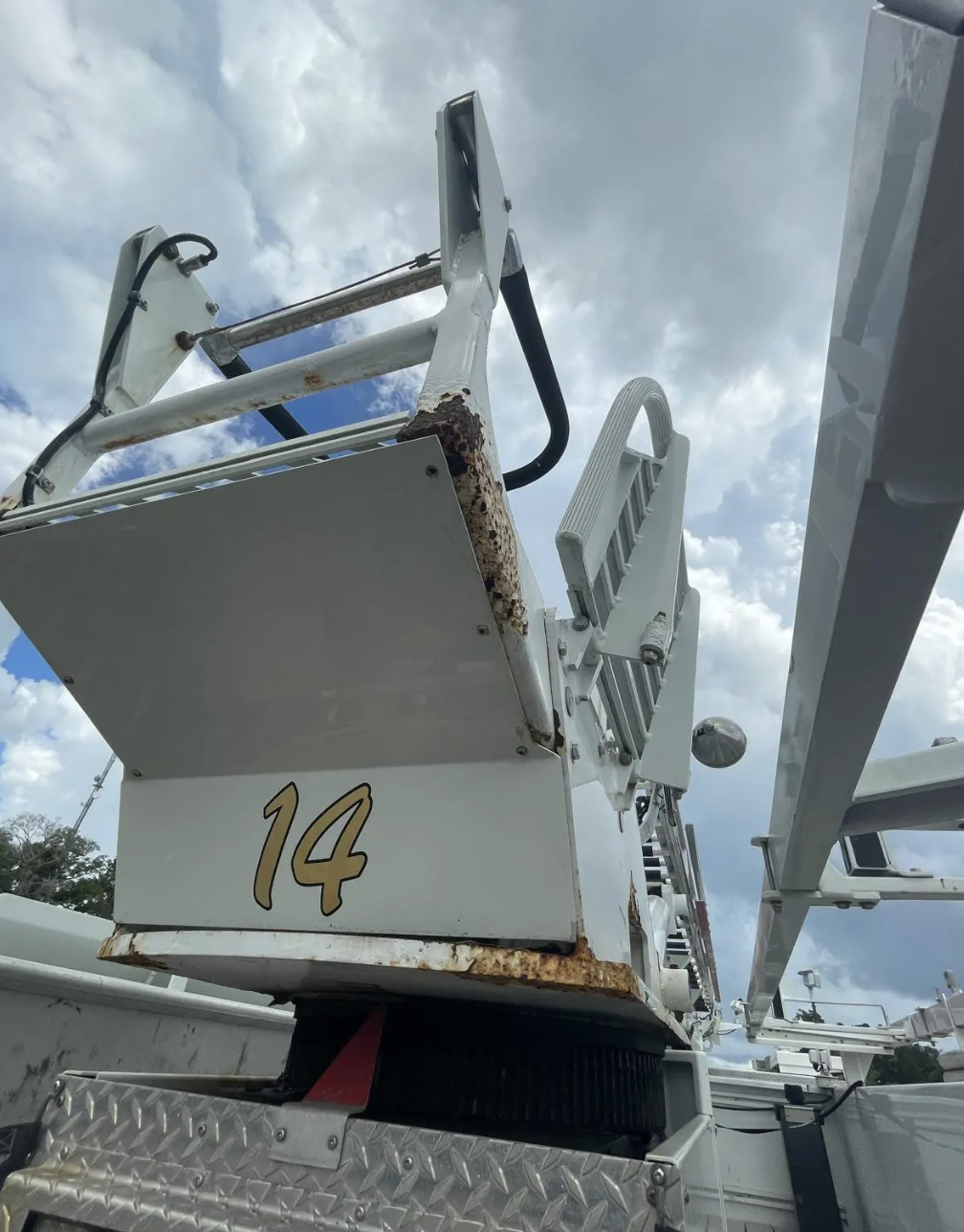

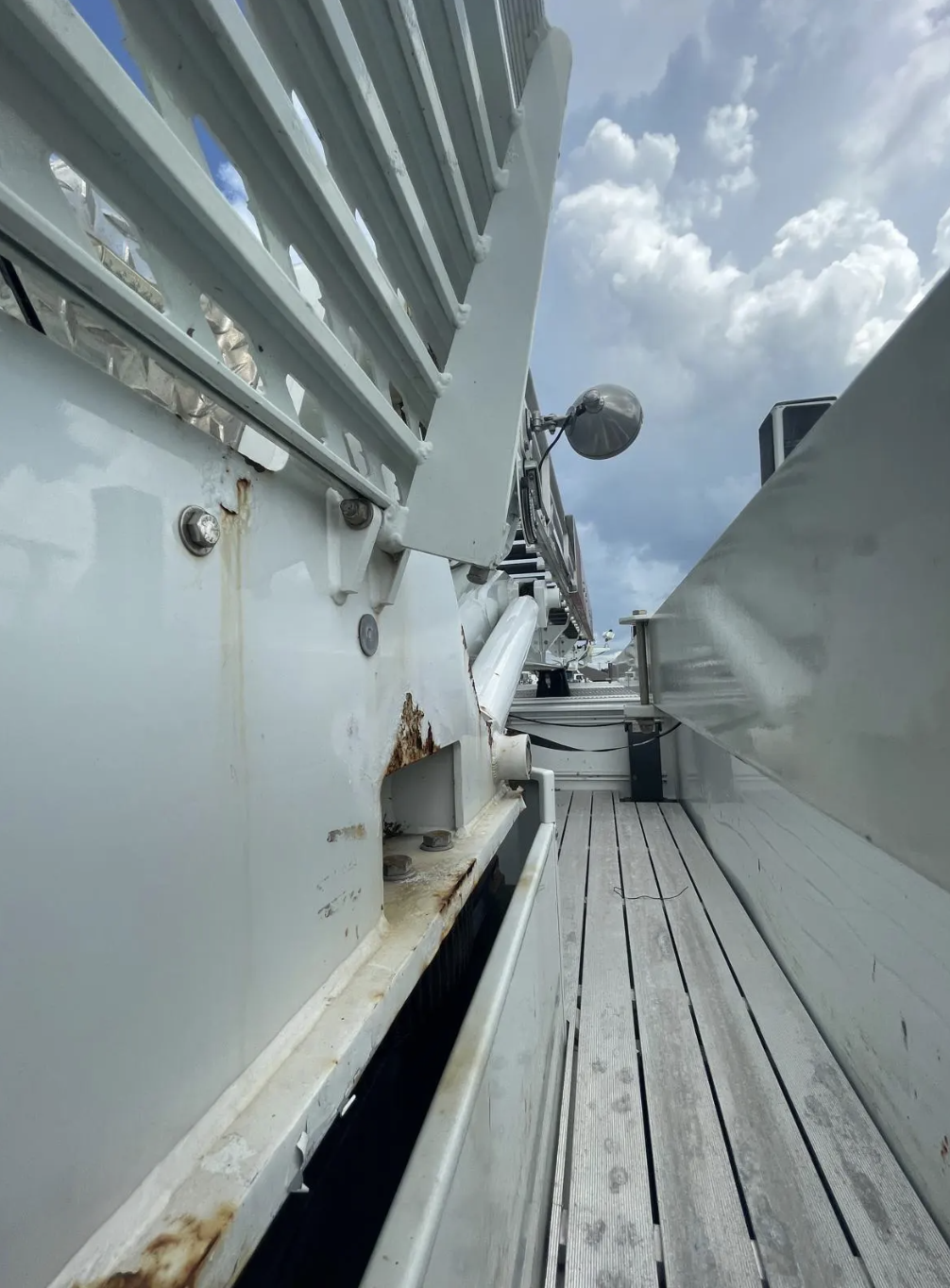

• Integrated aerial ladder

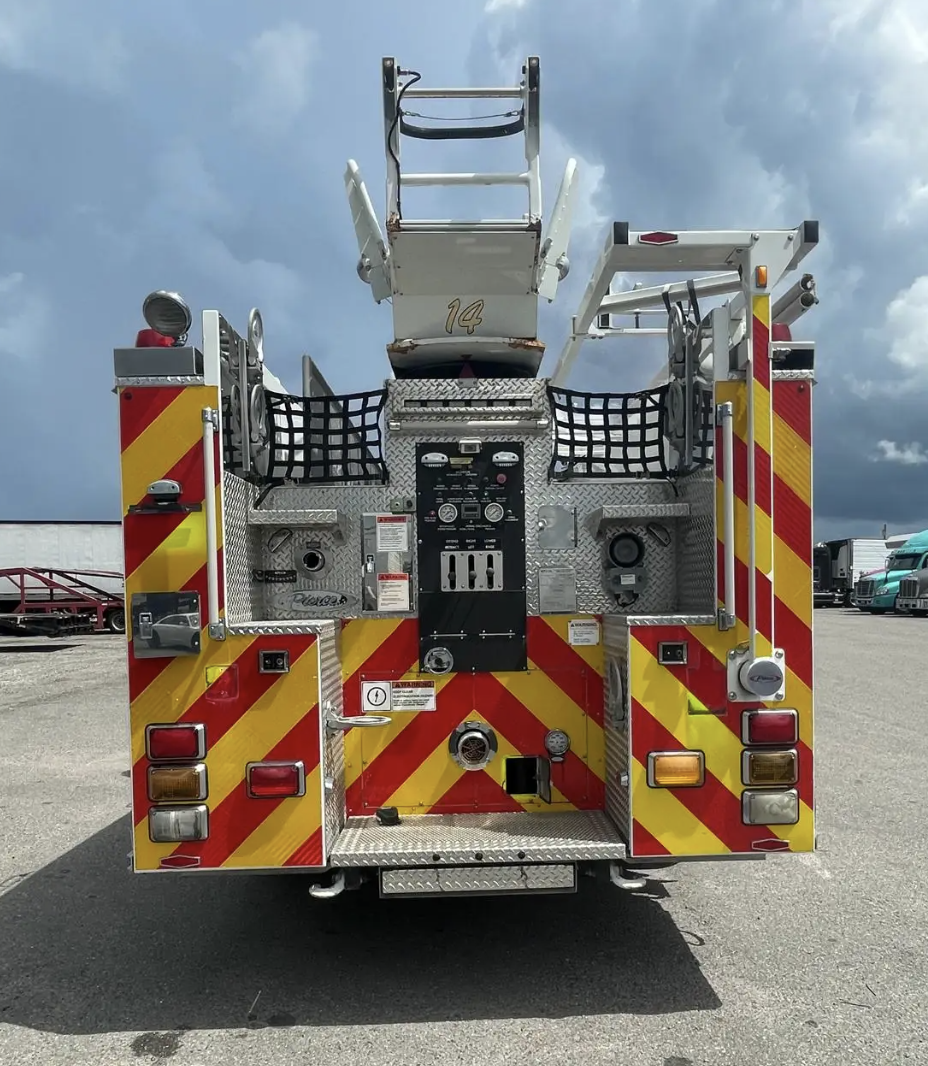

• Rear aerial control station
• Stabilizer/outrigger system
• Hose and equipment storage
• Aluminum diamond-plate surfaces
• Emergency and scene lighting
• Rear access steps and handrails
• Red and yellow reflective rear chevrons

WATER AND PUMP SYSTEM

• Rated Pump Capacity: 1,250 GPM
• Water Tank: 500 gallons
• Pump Drive: Driveline-driven
• Governed Engine Speed: 2,400 RPM

PUMP PERFORMANCE PLATE

• 1,253 GPM at 150 PSI and 1,492 RPM
• 880 GPM at 200 PSI and 1,637 RPM
• 631 GPM at 250 PSI and 1,827 RPM

PIERCE SKY-BOOM

• Aerial Height: 55 feet
• Rated Horizontal Reach: Approximately 45 feet 4 inches
• Operating Range: −5° to 85°
• Rotation: 360° continuous rotation
• Aerial Waterway Flow Capacity: Up to 1,000 GPM
• Load ratings shown are based on wind conditions of up to 20 MPH

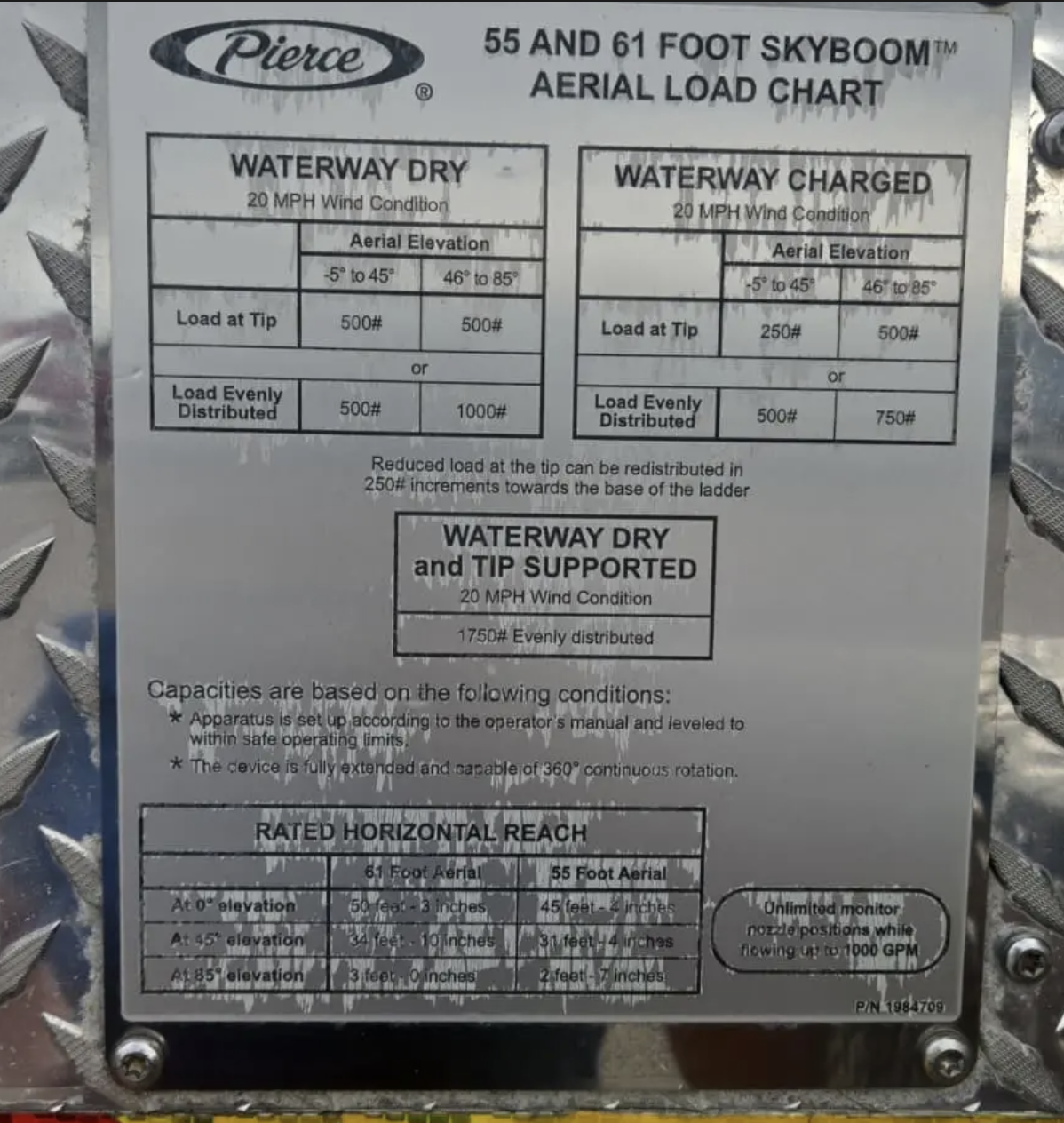

AERIAL LOAD CAPACITIES — WATERWAY DRY

• At −5° to 45° elevation:
  • 500 lb tip load
  • 500 lb evenly distributed load
• At 46° to 85° elevation:
  • 500 lb tip load
  • 1,000 lb evenly distributed load

AERIAL LOAD CAPACITIES — WATERWAY CHARGED

• At −5° to 45° elevation:
  • 250 lb tip load
  • 500 lb evenly distributed load
• At 46° to 85° elevation:
  • 500 lb tip load
  • 750 lb evenly distributed load

With the waterway dry and the aerial tip supported, the rated capacity is 1,750 lb evenly distributed.

RATED HORIZONTAL REACH — 55’ AERIAL

• At 0° elevation: Approximately 45 feet 4 inches
• At 45° elevation: Approximately 30 feet 4 inches
• At 85° elevation: Approximately 2 feet 7 inches
