Inventory #: W0644

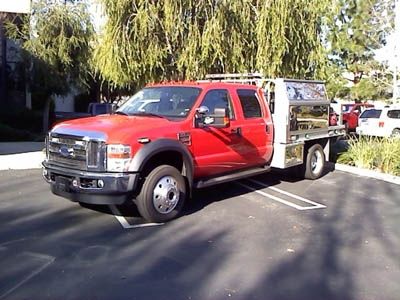

2008 Ford F550 Lariat 4X4 Wildland 70/400 (W0644)
6.4L Diesel Power Stroke Motor
Lariat SuperDuty Package
ADDITIONAL ITEMS: Unit contains 4 7′-8′ sections of 2’¿½ hose and 1 foot valve strainer. POLISHED ALUMINUM Tool Boxes. 30x18x18 Aluminum Underbody Box w/ Stainless Steel Door 72x24x18 Aluminum Above Body Box w/ Stainless Steel Lift Up Door
72x18x12 Tapered Alum. Above Body Box w/ Stainless Steel Lift Up Door
400 GALLON CUSTOM BATCH MIX SLIP-ON SPECIFICATIONS:
PUMP ‘ National Fire Fighter model #14270-13Hp. Honda Engine w/single stage centrifugal 1.5 inch suction x 1.5 inch discharge pump with performance capabilities of up to 70GPM and up to 260PSI.
STANDARD FEATURES: Manual and electric start, Low oil shut down, Maint. Free drive assembly, Oil drain line(EZ-drain), 1.7 gal. fuel tank, USFS approved spark arrestor. Stainless Steel plumbing & ball valves. 1 EX- TRA: 1.5’¿½ discharge w/NFP threads 1 EXTRA: 1.5’¿½ draft connection w/NFP threads
TANK ‘ 400 Gallon ‘Gator-Tank’¿½ with removable top. Furnished with bottom mount tabs. Constructed of 1â„2 inch. UV-stabilized black poly. Glossy finish.
STANDARD FEATURES: Stainless flanges, 4’¿½ sight gauge for water, Constructed of 1â„2 inch UV-stabilized black poly, Baffled to NFPA specs., Lifetime warranty, 225gal. batch mix tank, 150 gal. LC tank, 25 gal H20 tank.
CONTROL-PANEL ‘ Deluxe specifications: Aluminum panel with full back panel, Flush mount liquid filled pres- sure gauge 0-600psi, Low pressure cut-off, 4 panel mount ball valves(recirculation lines), Night operation light x2, Reel 50 Amp Circuit Breaker, Electric primer controls, Manual primer controls, Liquid level gauges(water, LC, Batch mix), Choke and throttle, On/Off start.
SKID ‘ Skid ‘T’¿½ style skid 8’wide at plumbing platform, 6′ wide where tank is mounted to skid, with overall length of 9’. All aluminum construction 1.5’¿½x3’¿½ box tubing with a full diamond plate plumbing deck.
these trucks were specifically designed (pumps, gaskets, hoses, etc.) to handle Phos-Chek(r) long term fire retardant,
