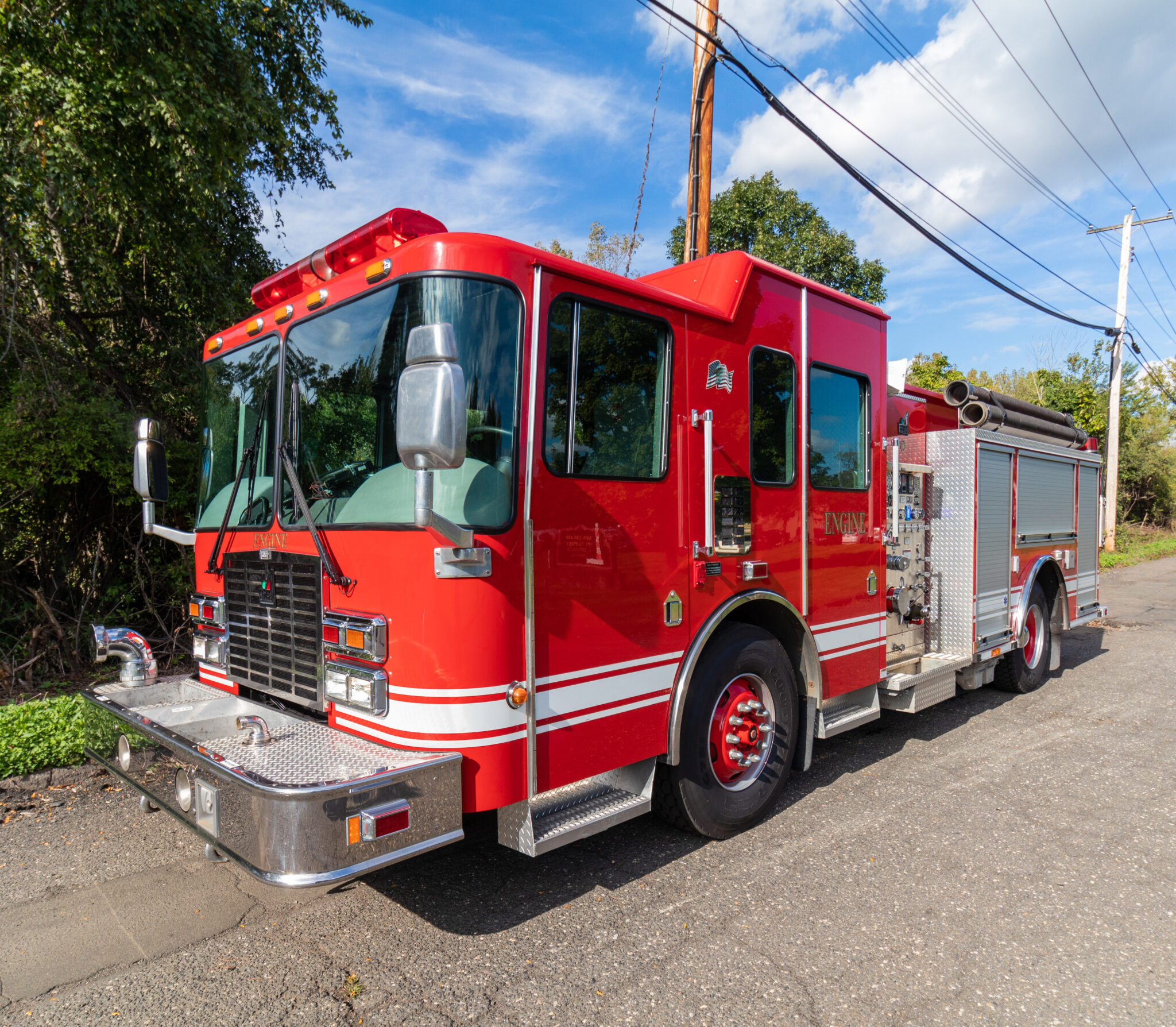

2006 HME Smeal Pumper 1500/500 (E4200)

2006 HME/SMEAL Pumper

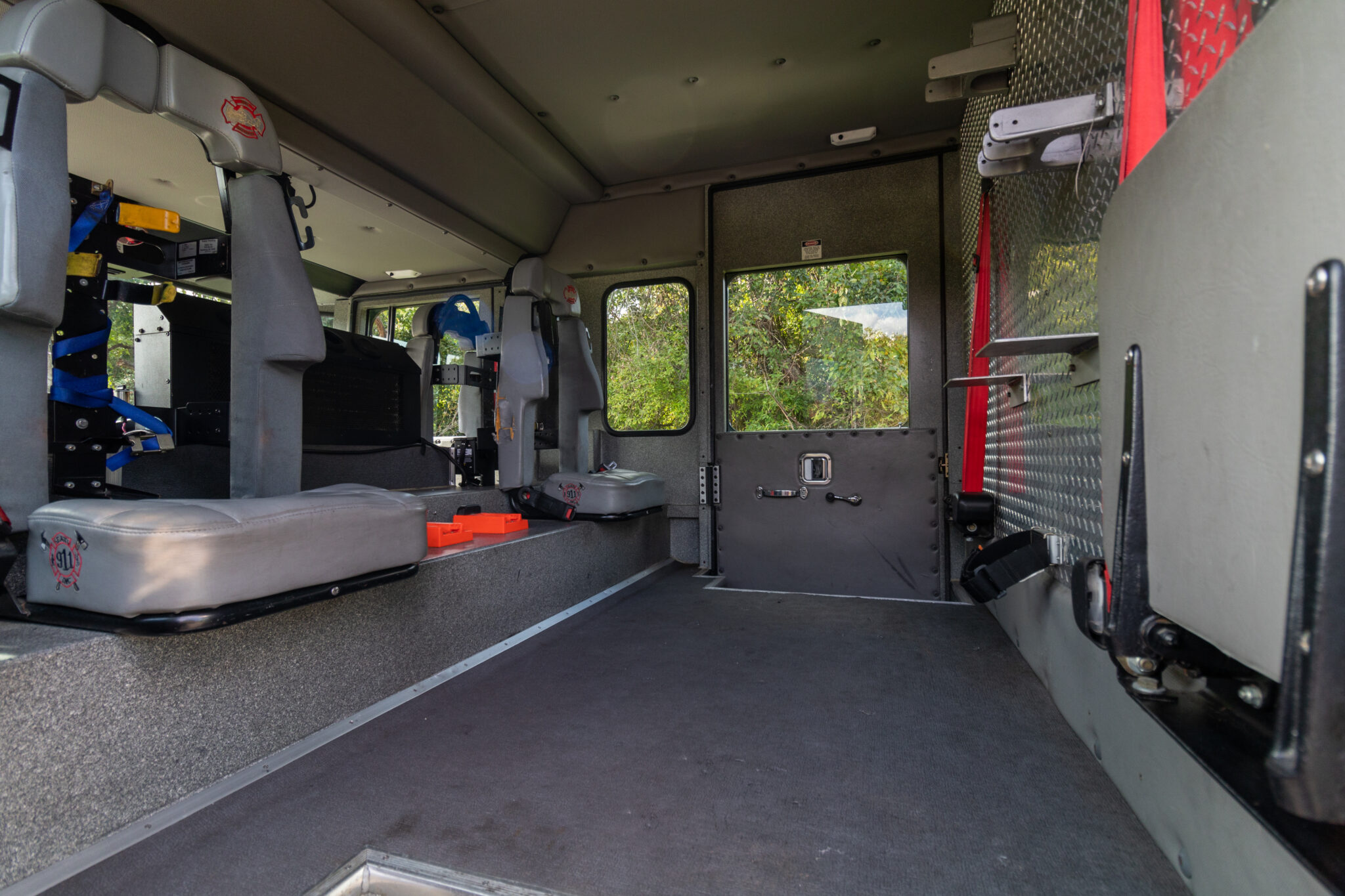

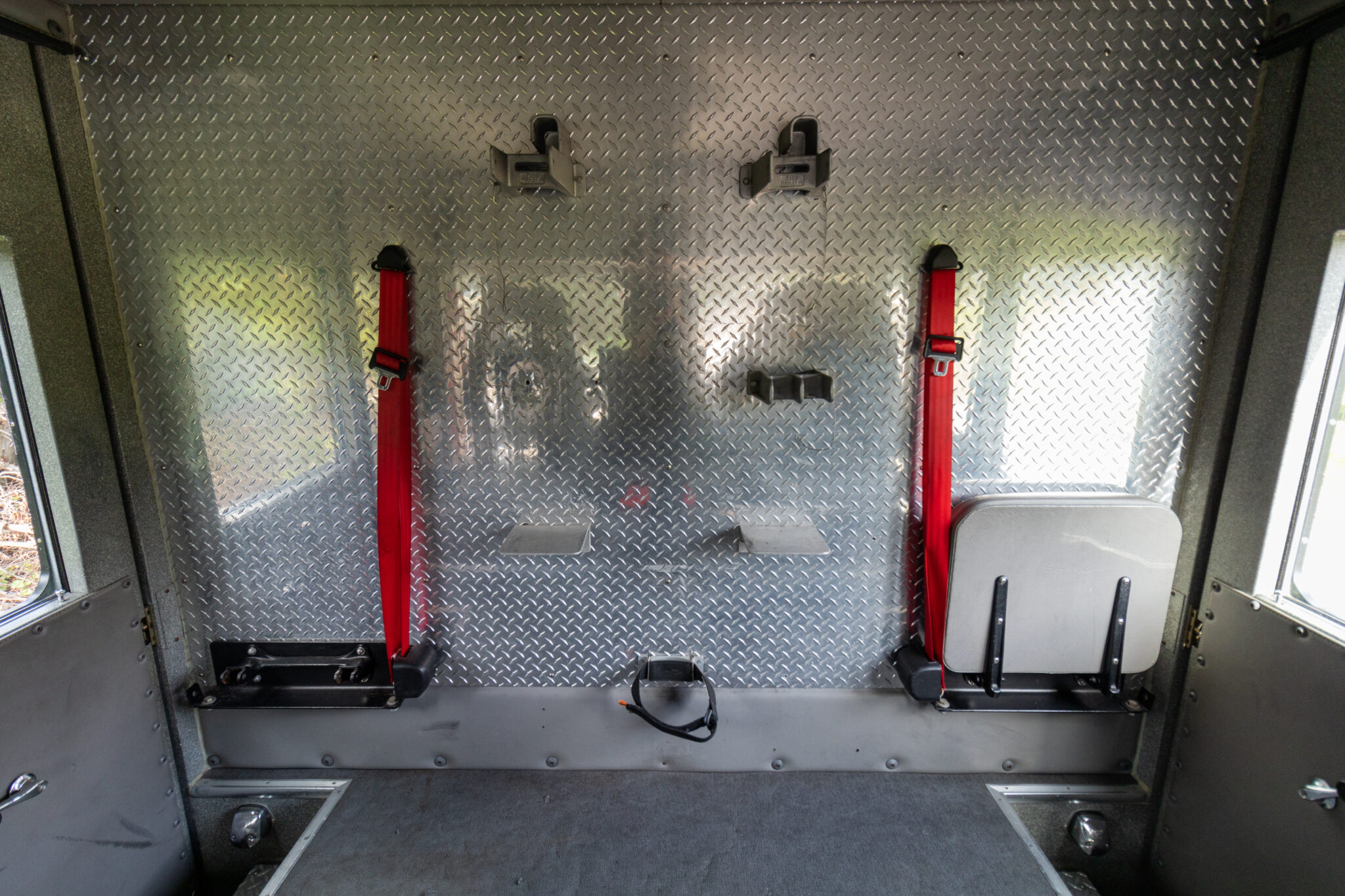

 Seats – 6, 3 W/ SCBA Holders

Air Brakes

Two (2), Air Horns

Cummins ISC Diesel with Turbo, 6 Cyl, 330HP

Engine Hours: 2455

Allison Detroit 3000EVP Automatic 5 Speed with Jake Brake

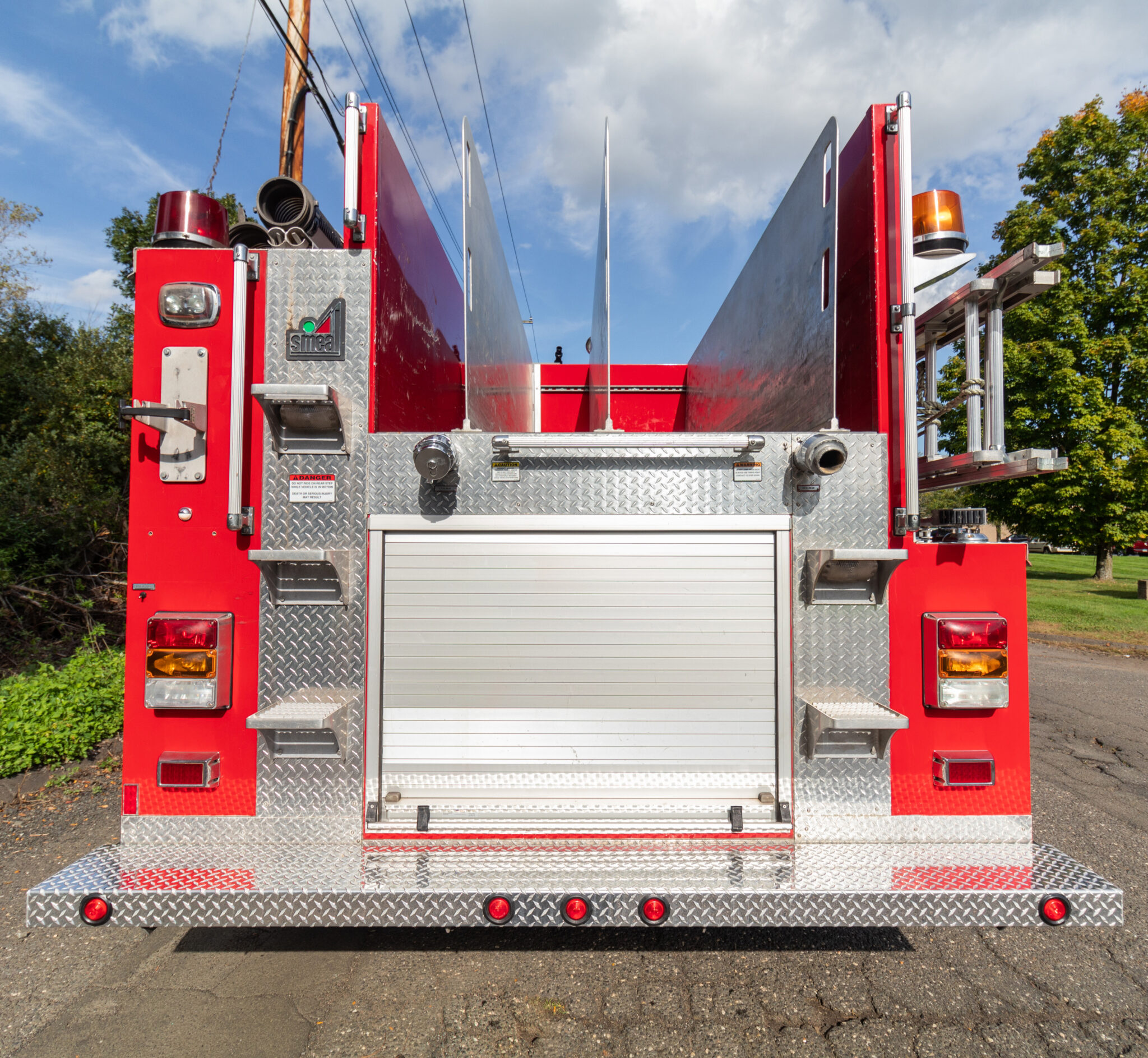

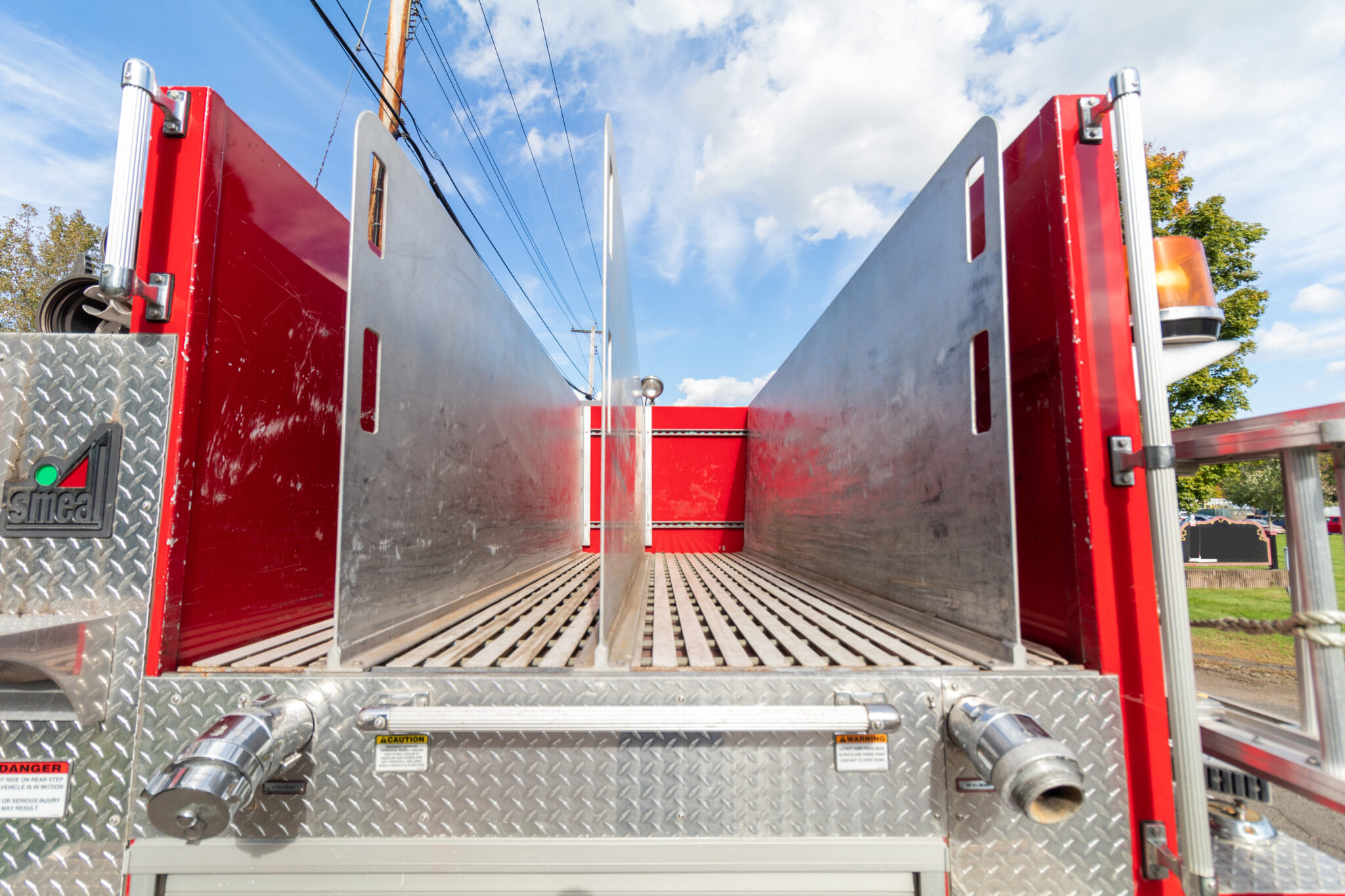

Low hose bed

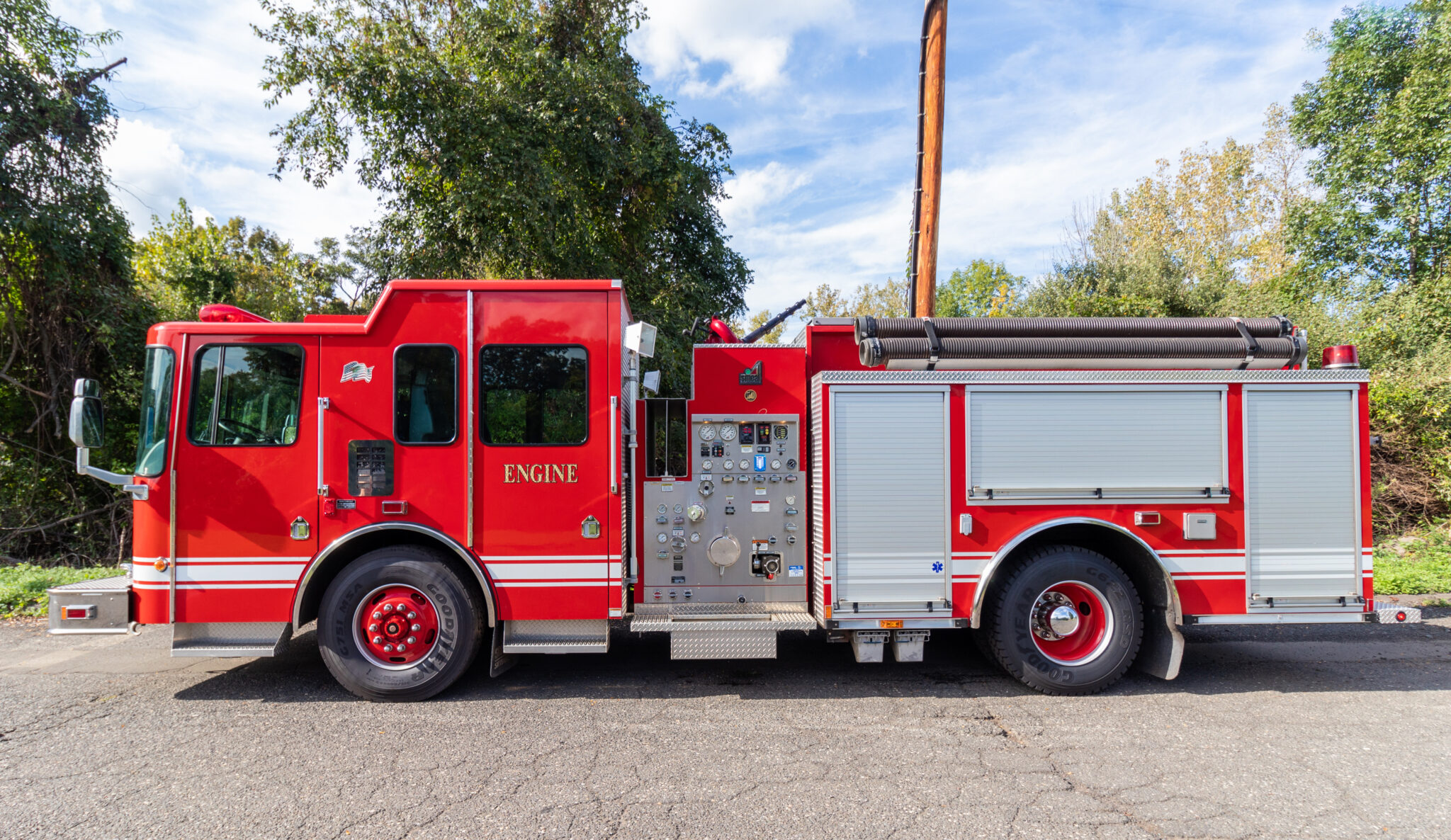

Stainless Steel Pump Panel

Aero Dynamic Federal Signal Light Bar

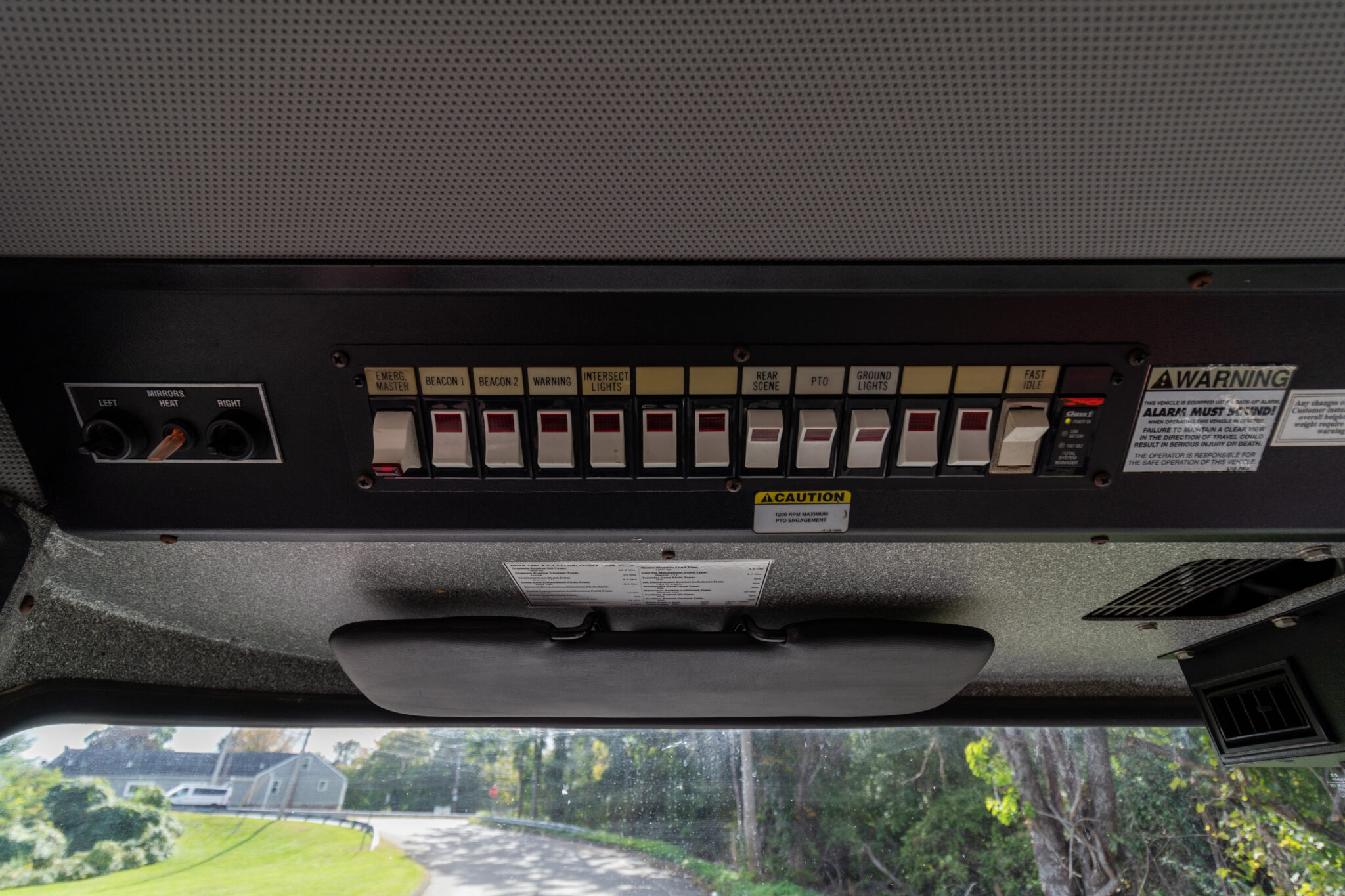

Federal Signal & Weldon Warning Lights

Federal signal PA300 Electric Siren

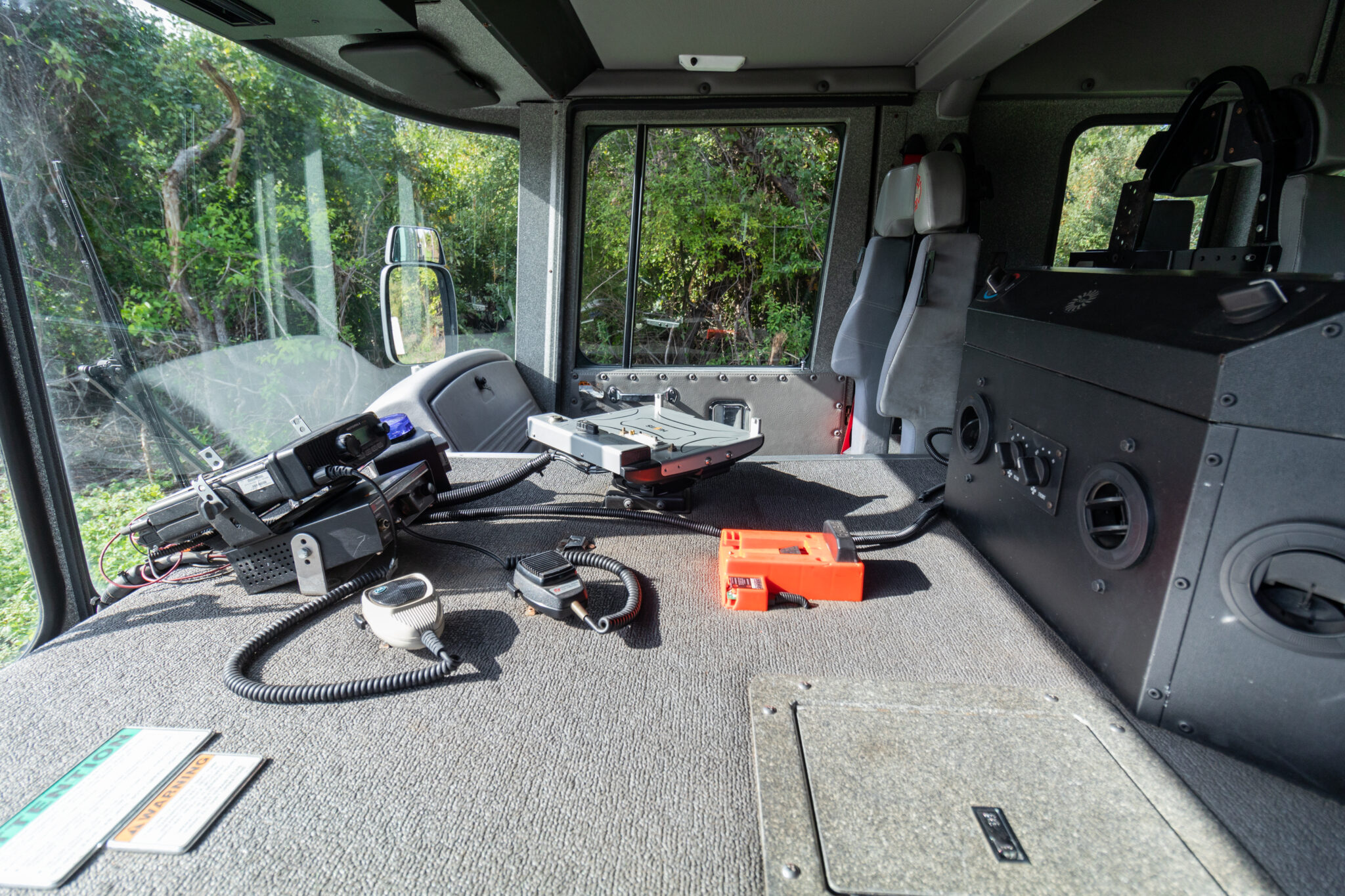

Motorola XTL1500 Radio

Spare SCBA wheel well storage compartments

One (1) Fixed Quartz Telescopic Scene light – Officers side

One (1) Fixed Quartz Telescopic Scene light –Drivers side

Havis Computer Dock

One (1) 24’ Extension Ladder

One (1) 14’ Roof Ladder

One (1) 10’ Attic Ladder

Two (2)  10’ x 6” Hard Suctions

Pump and Tank

Hale QMAX150-23L 1500GPM Single Stage Mid-ship Pump

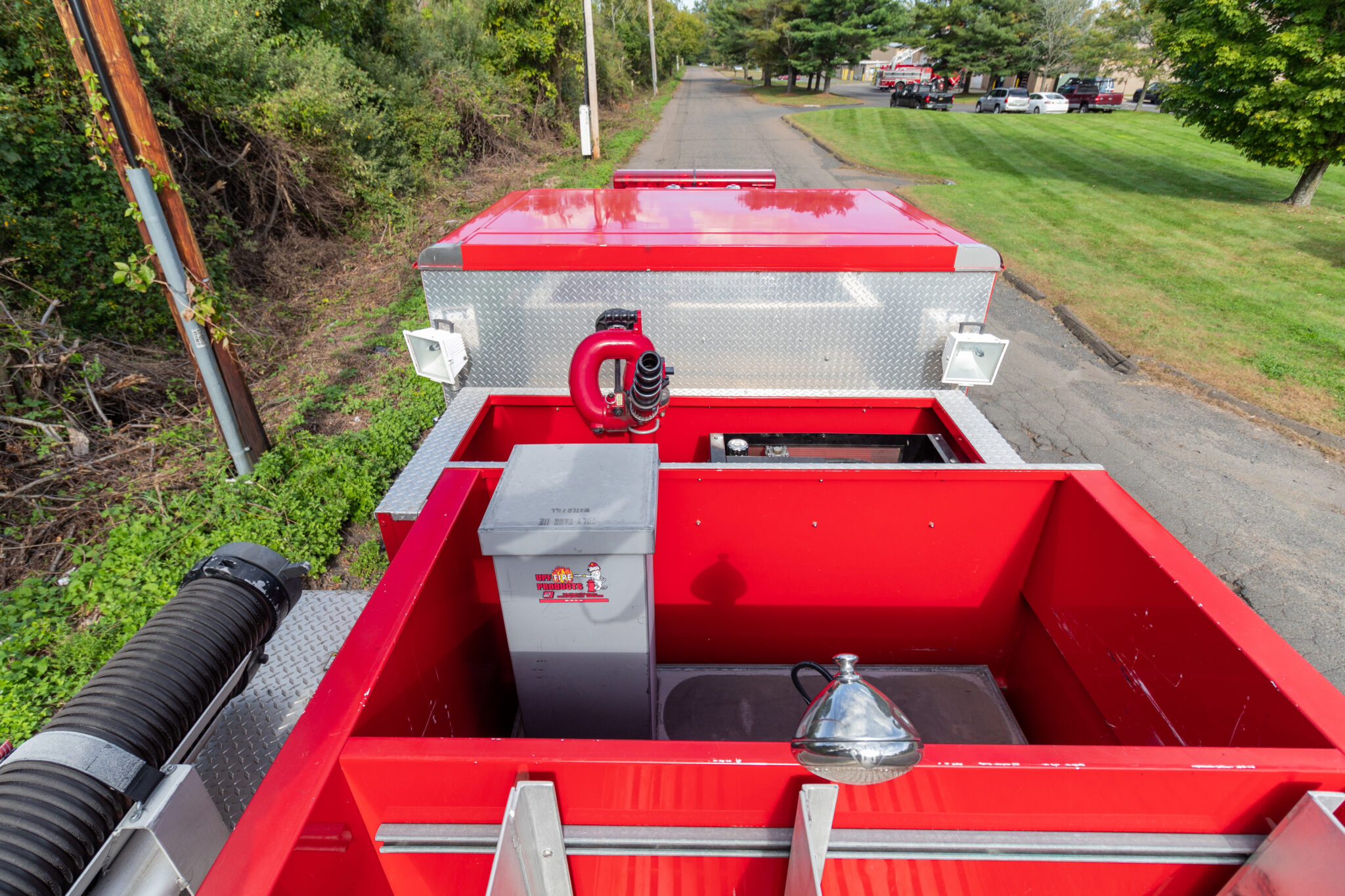

500 gallon Water Tank

TFT Crossfire W/ Portable base

One (1),  2-1/2” Discharge – Driver side

Two (2),  2-1/2” Discharge – Officers side

One (1),  3” Discharge – Officers side

Two (2),  2-1/2” Discharges – Rear

Two (2),  1.75” x 200’ Crosslays – Low Profile

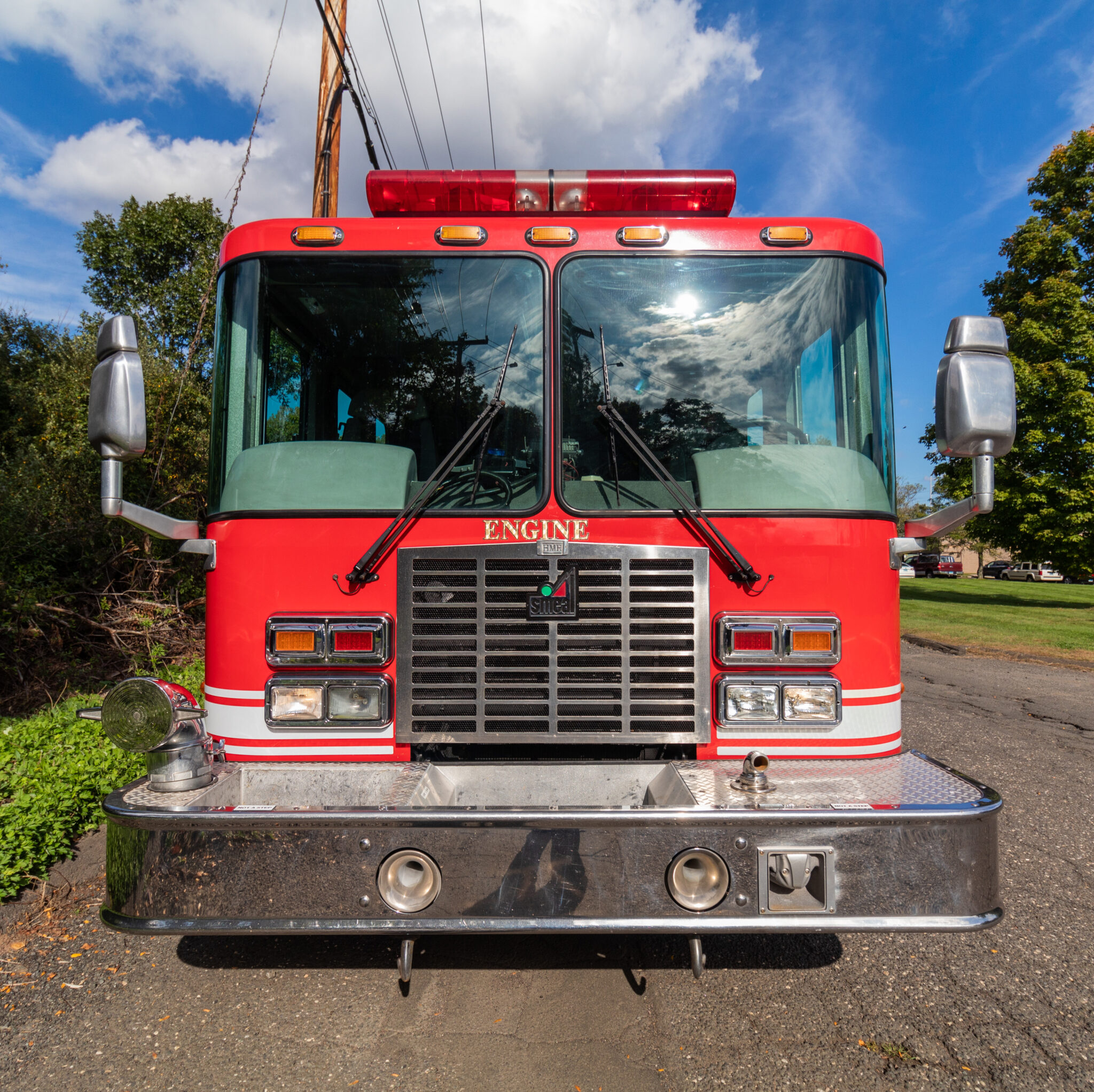

One (1),  1.75”  Pre-connect – Front Bumper

One (1),  6” Front Suction with swivel

One (1),  6” Intake Suction – Drivers side

One (1),  6” Intake Suction – Officers side

One (1) 2-1/2” Auxiliary – Drivers side

One (1) 2-1/2” Auxiliary – Officers side

Generator

6KW Hydraulic Harrison Generator

Dimensions

Mileage: 19,496

9’9”H x 8’2”W x 31’2”L

GVRW: 40,540

Wheelbase: 181”
