2002 HME Central States 1250/1000 (E5880)

General

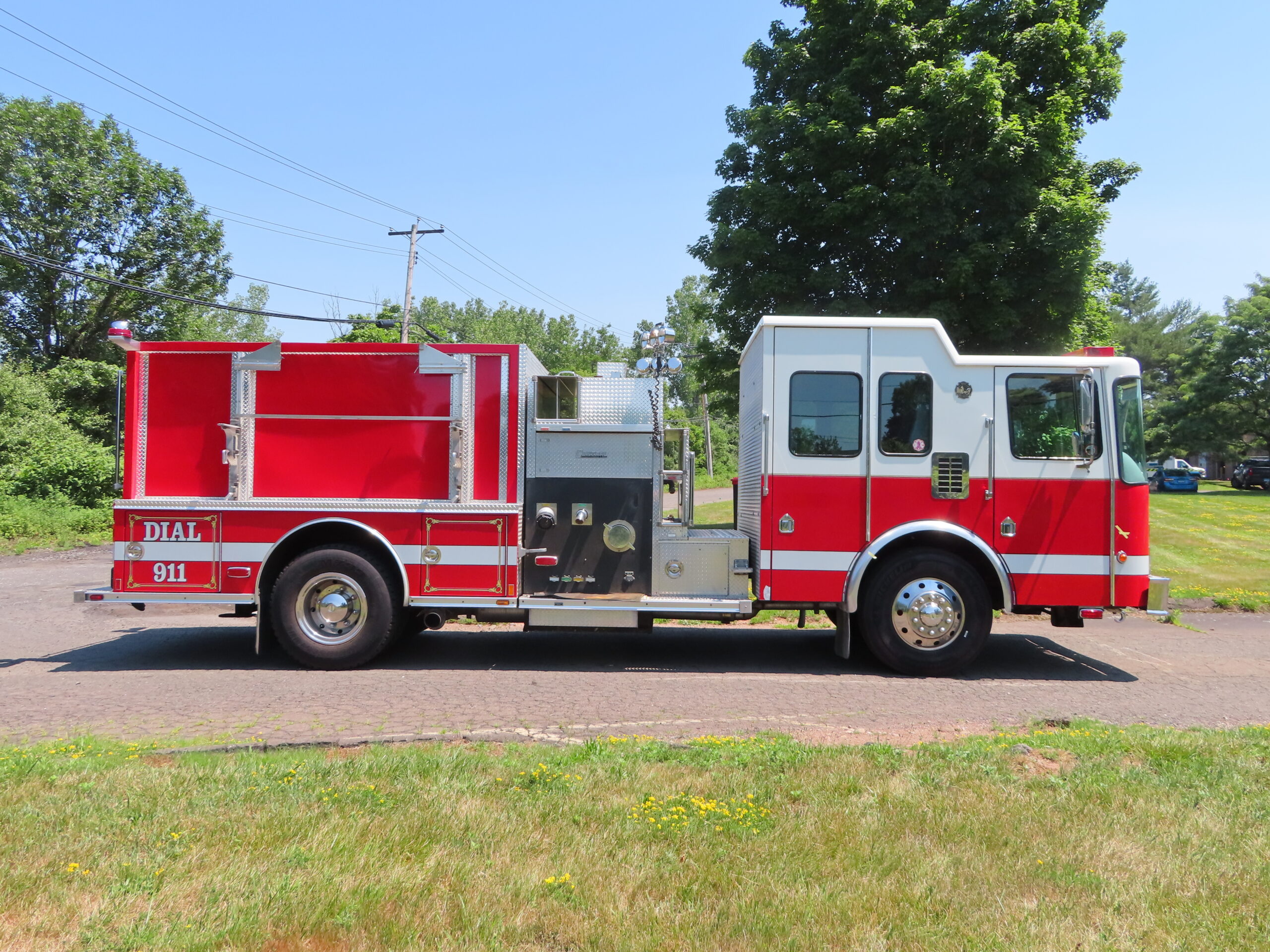

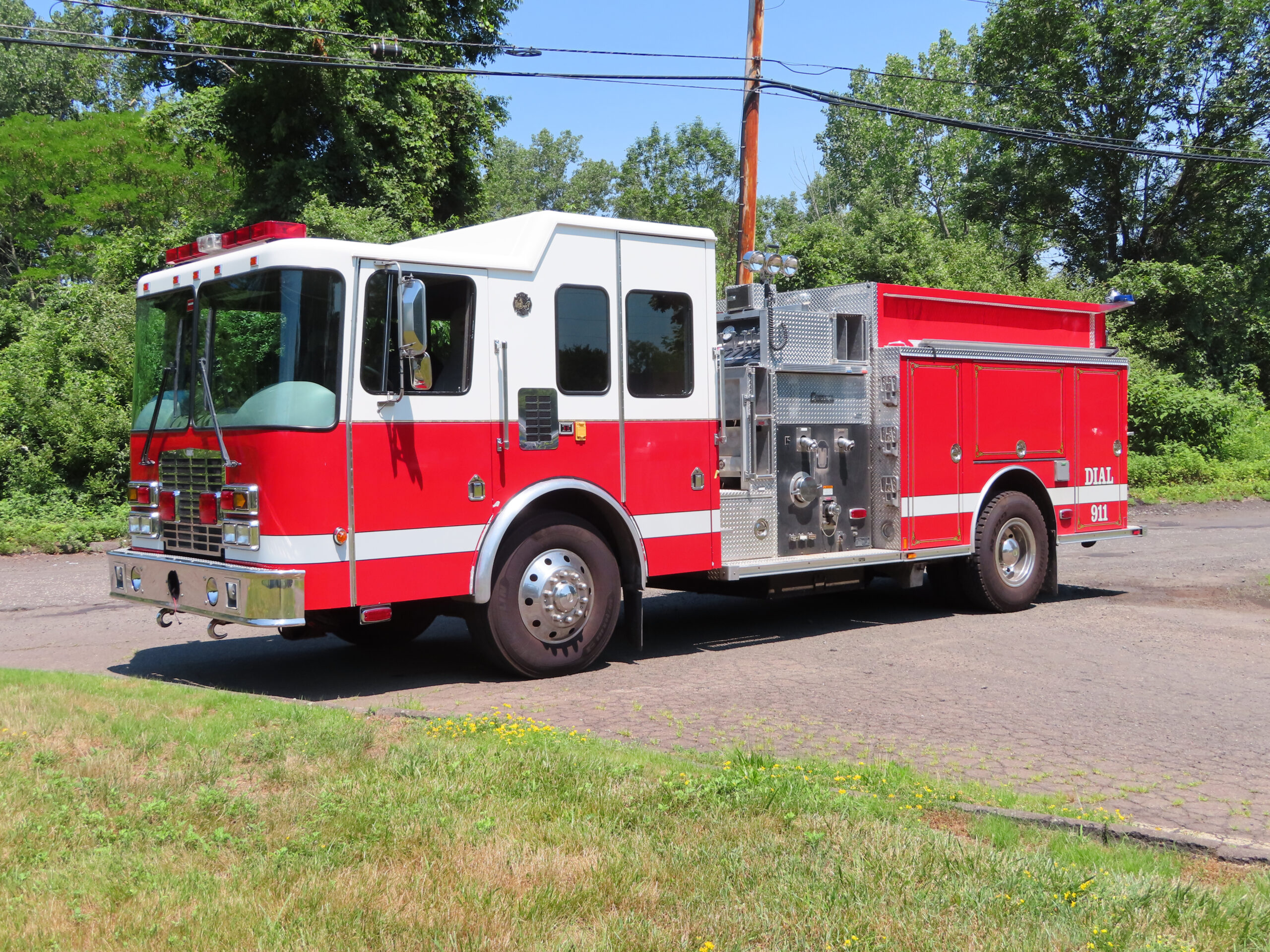

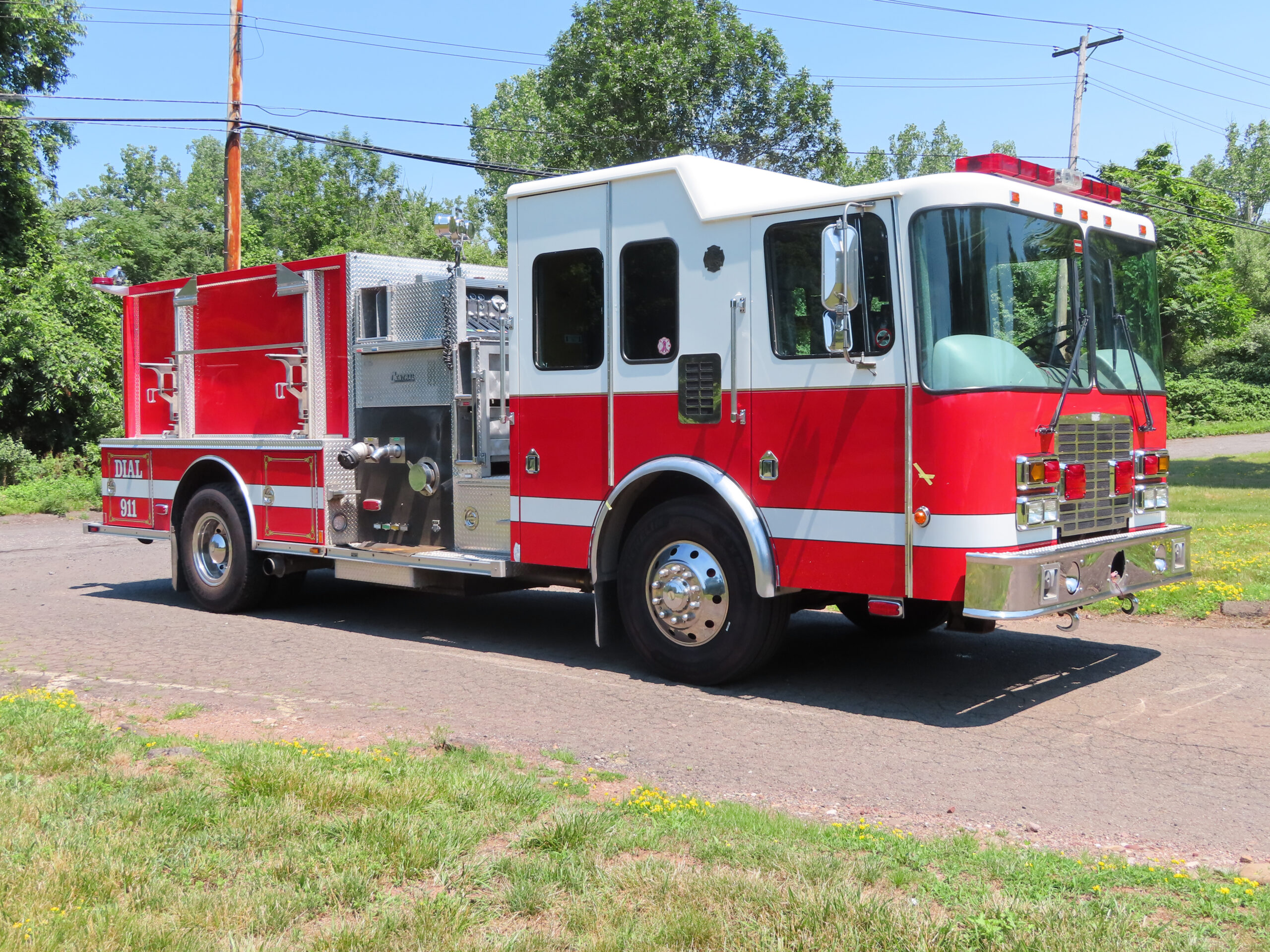

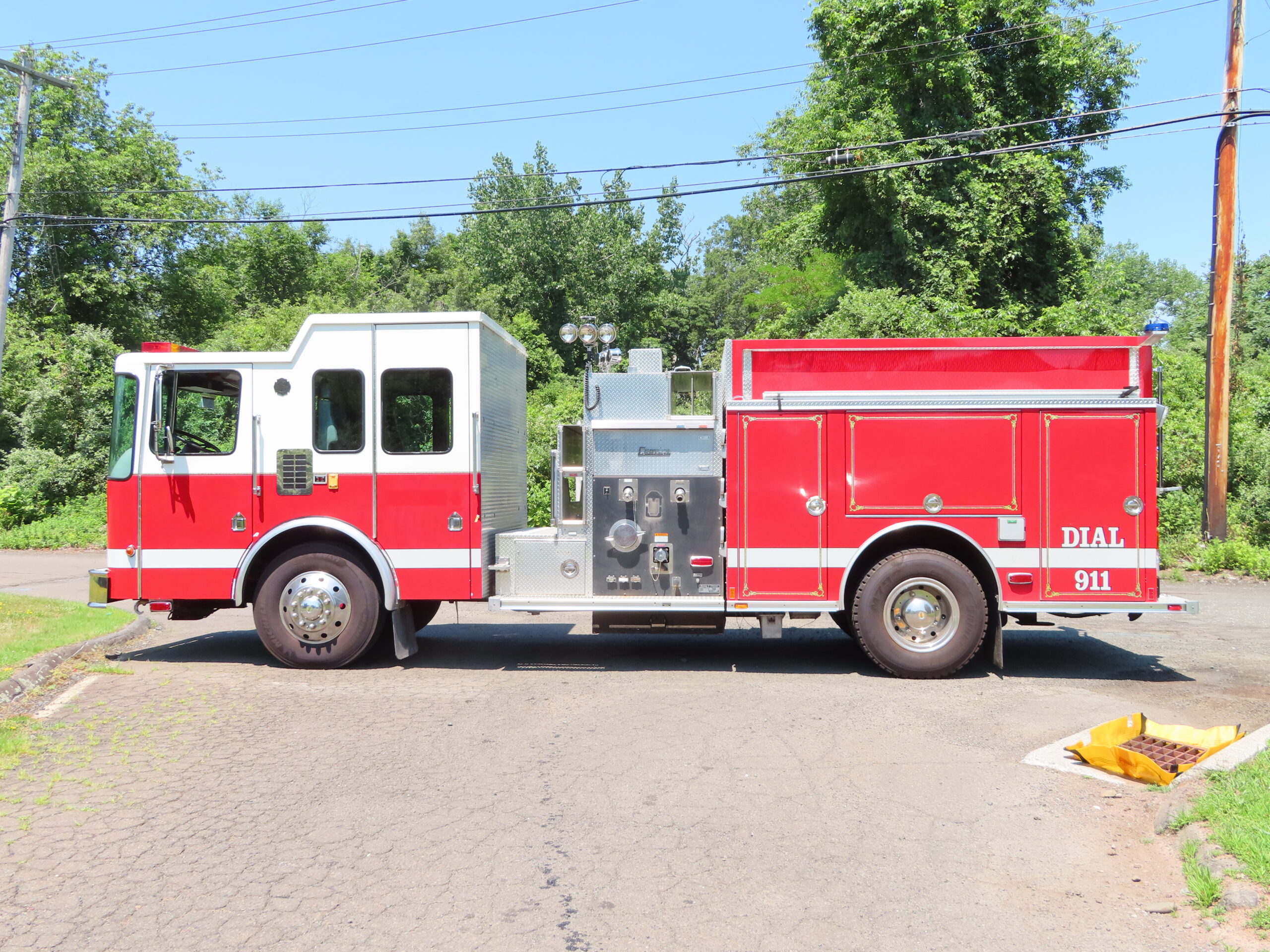

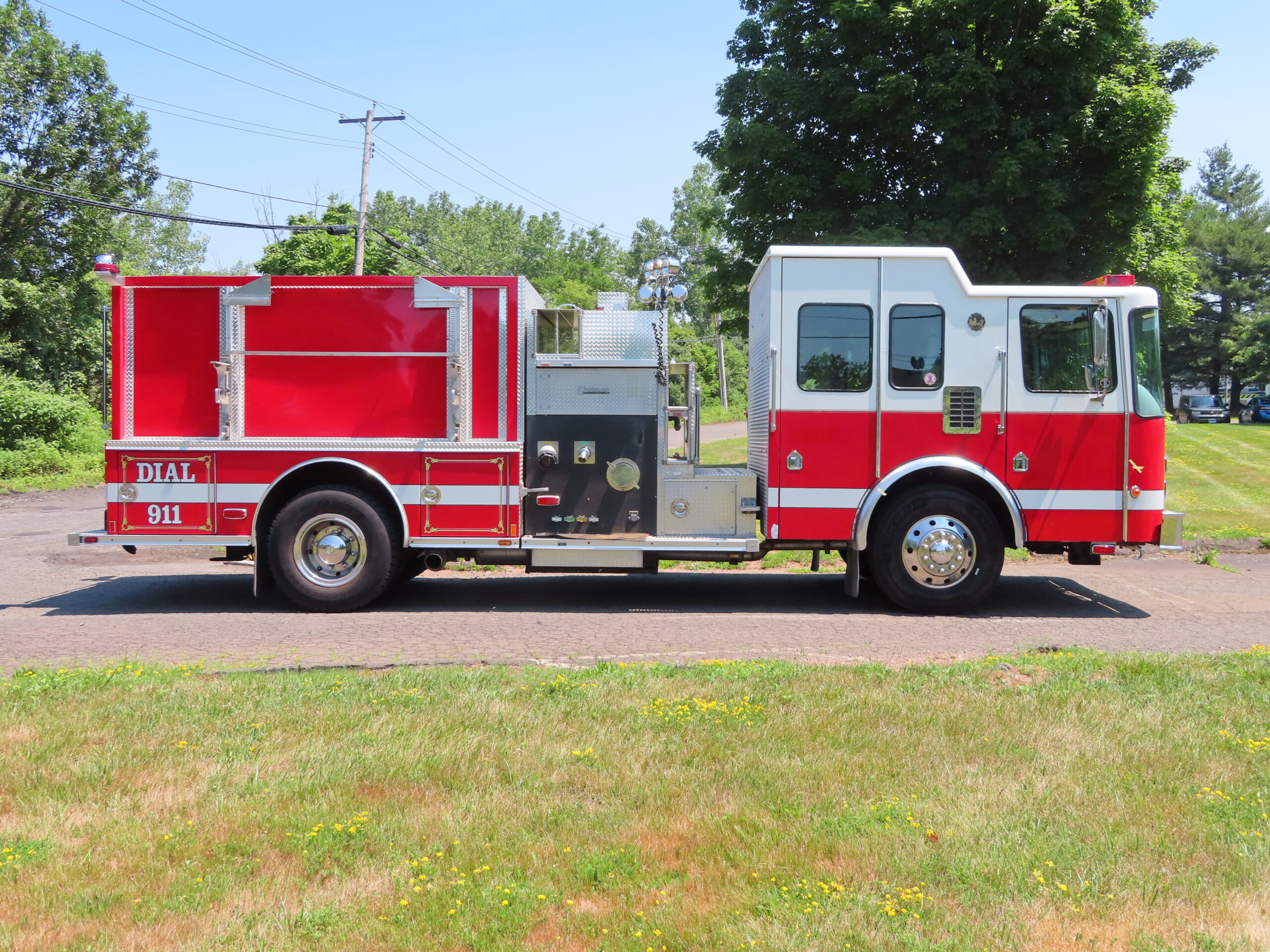

2002 HME CENTRAL STATES PUMPER
ALUMINUM CAB & BODY
HME 1871 CHASSIS
CAB PAINT = WHITE/RED

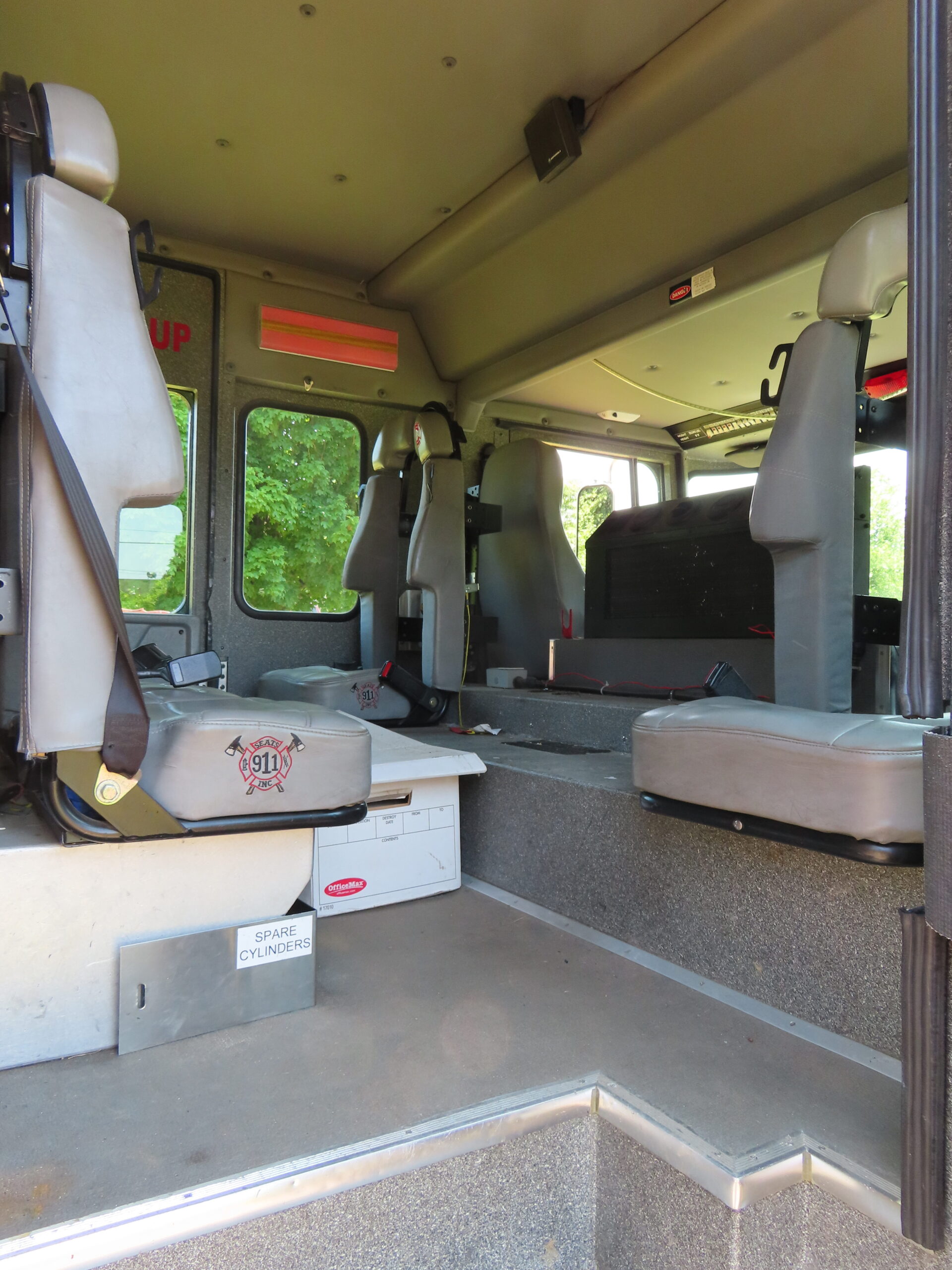

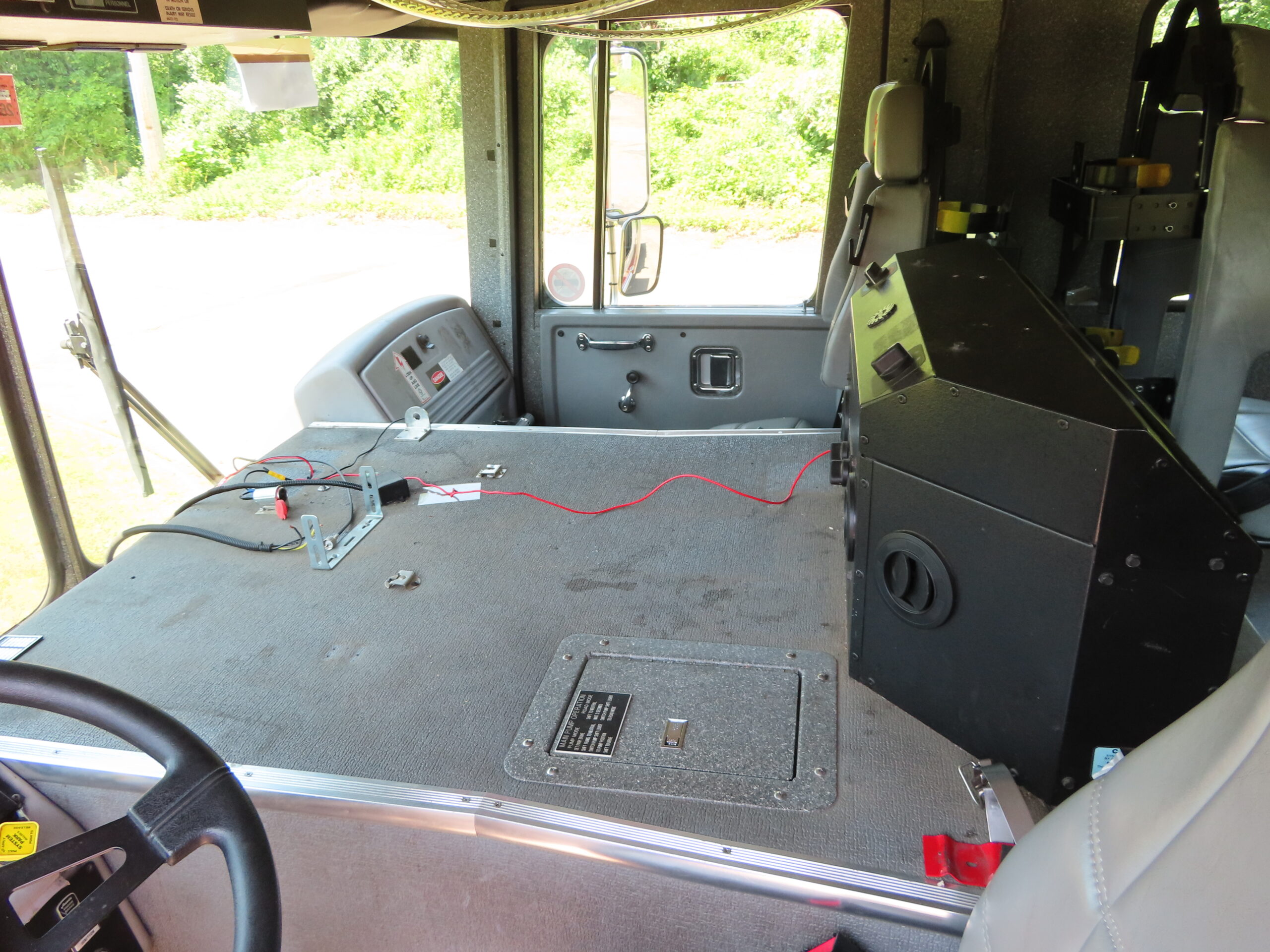

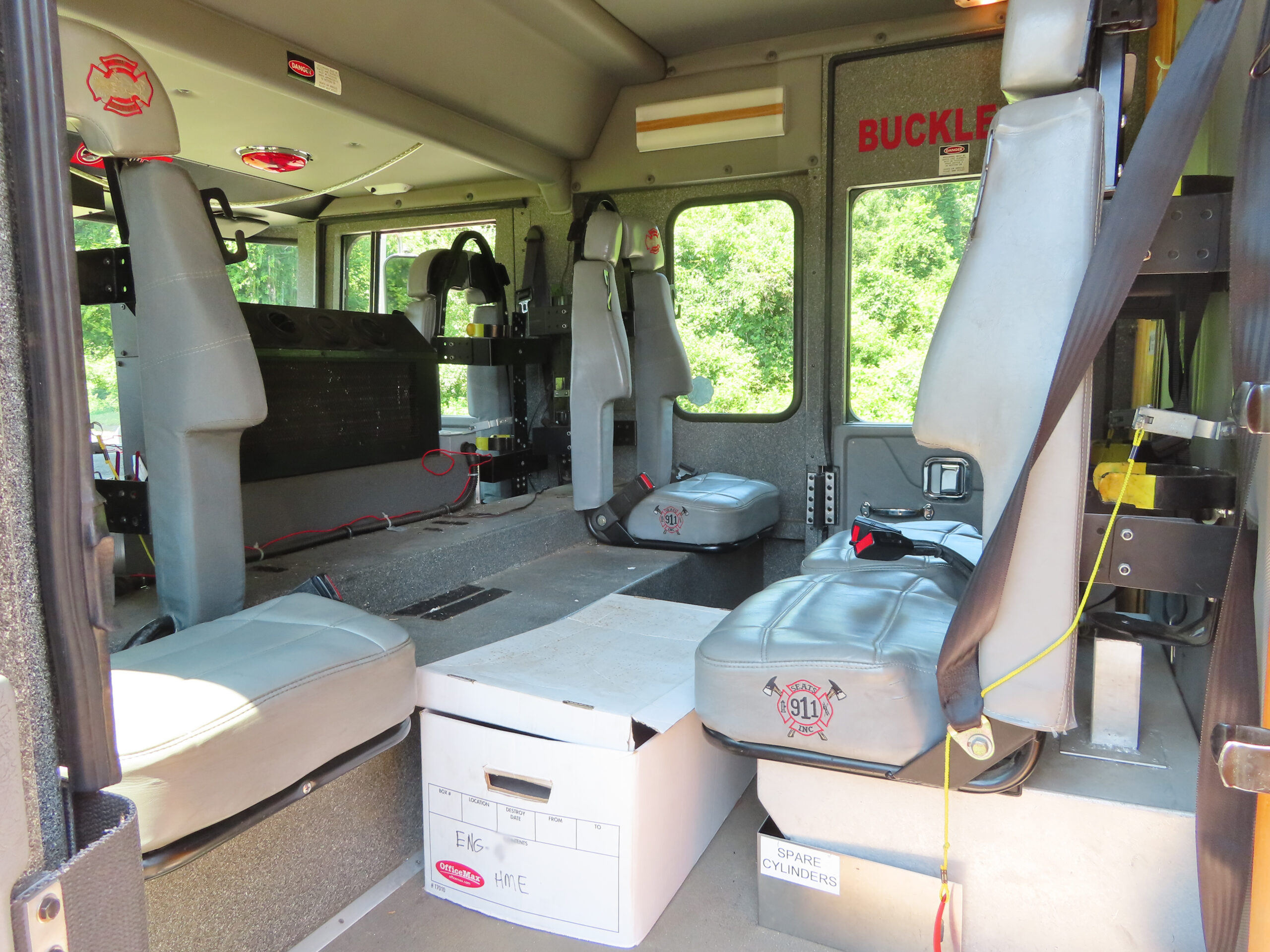

6 SEATS

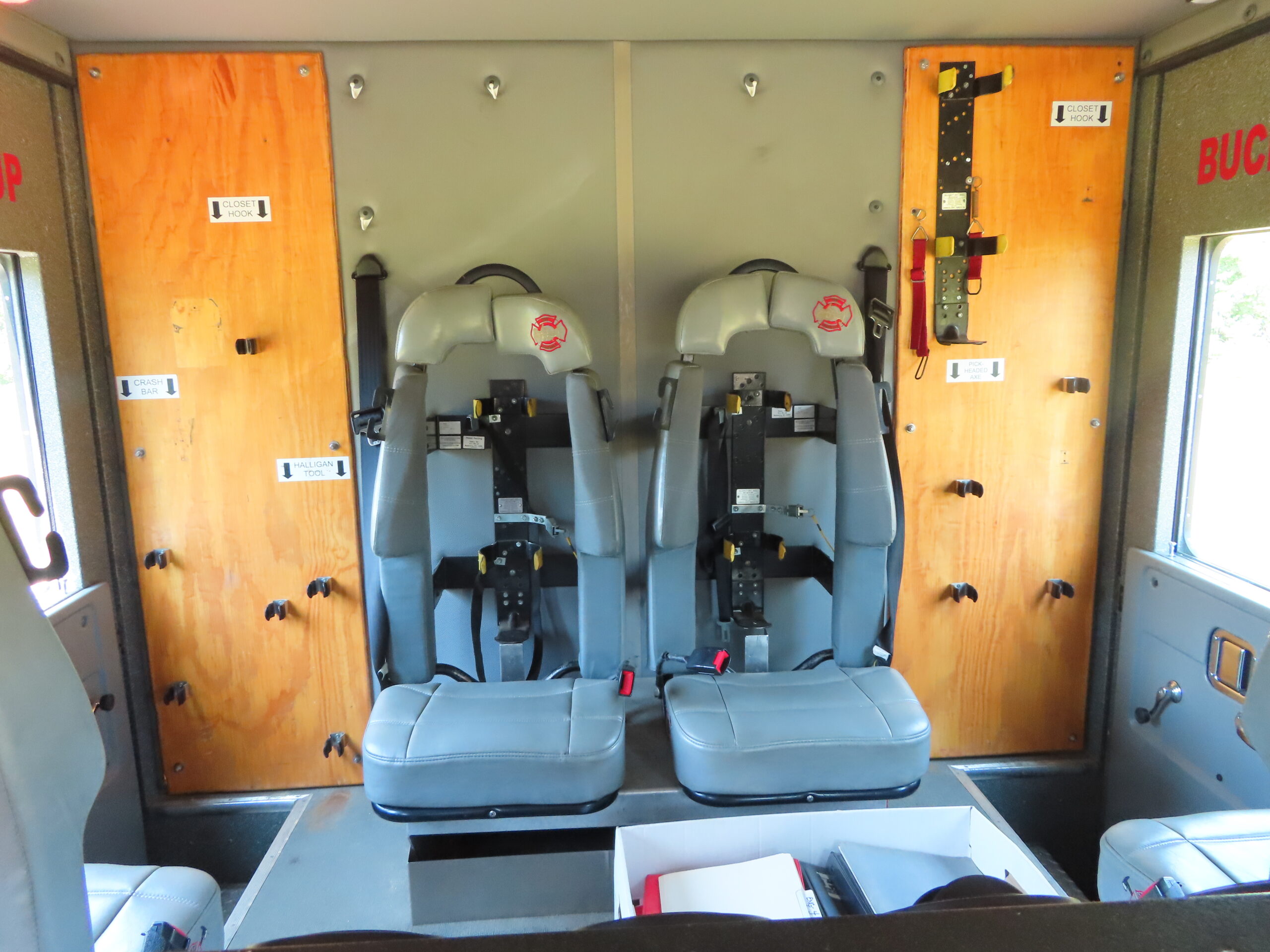

FIVE (5) SCBA SEATS
5 SCBA HOLDERS
AIR BRAKES
AIR CONDITIONER
FRONT TIRE SIZE: 315/80R22.5
REAR TIRE SIZE: 11R22.5
CUMMINS ISC-330
DIESEL TURBO 330 HP 6 CYLINDERS
ALLISON AUTOMATIC TRANSMISSION
3060P
5 SPEEDS
JAKE ENG BRAKE
LIGHTBAR: WHELEN
WARNING LIGHTS: WHELEN
SIREN: Q2B MISSING ELEC. CONTRAOL HEAD MISSING
SCENE LIGHTS: FIXED 2 NIGHT FIGHTER @ P.P.

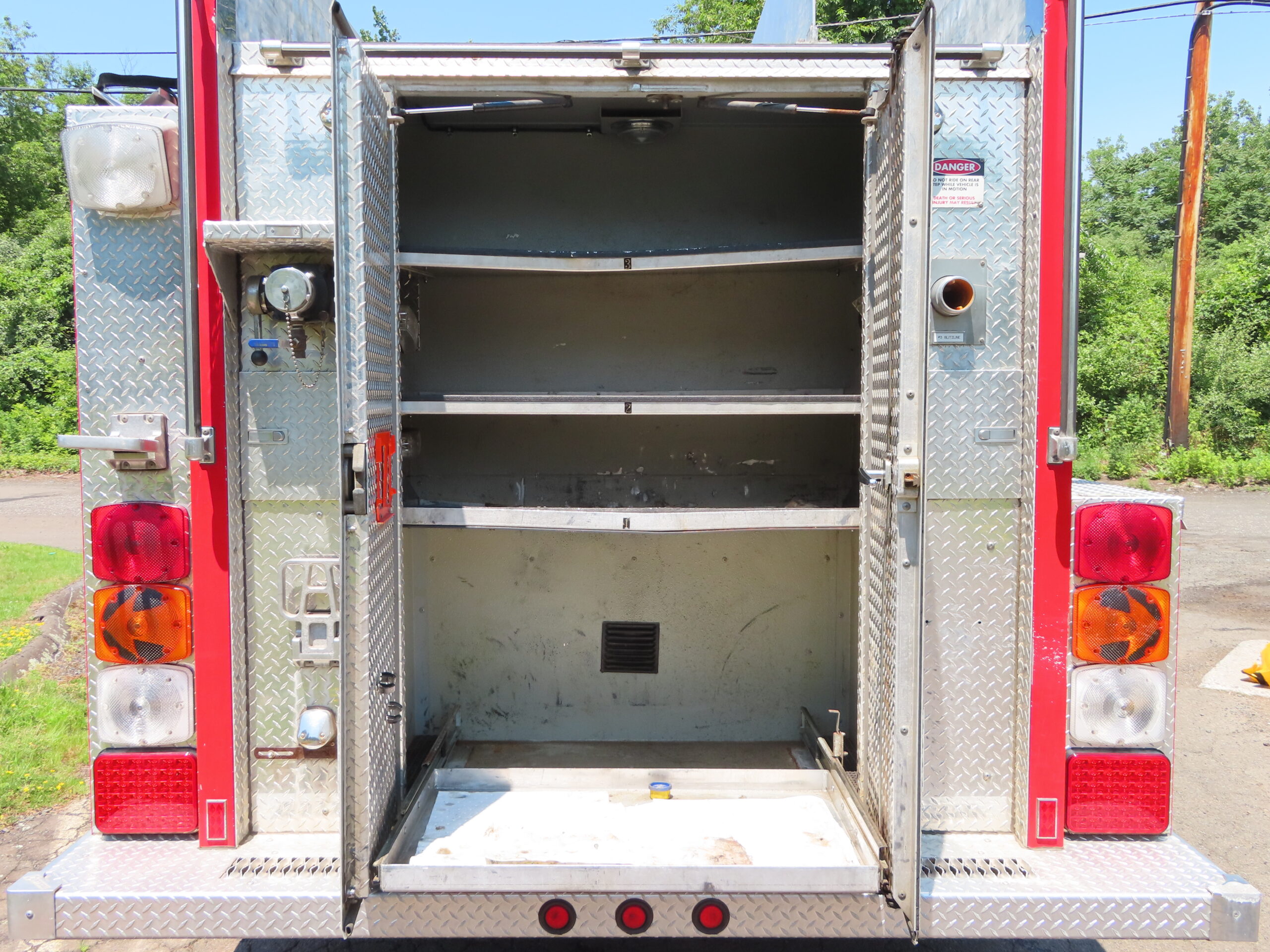

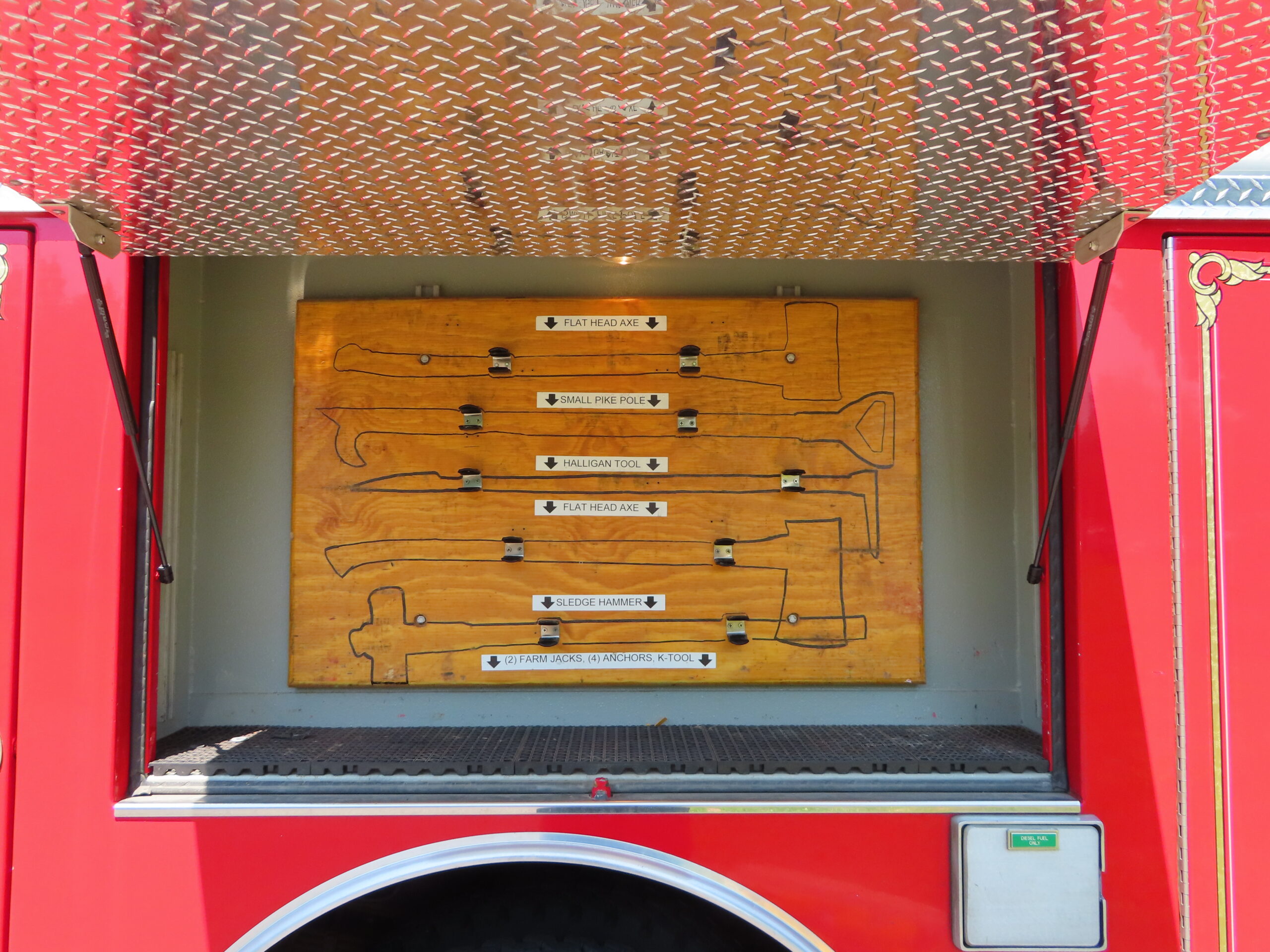

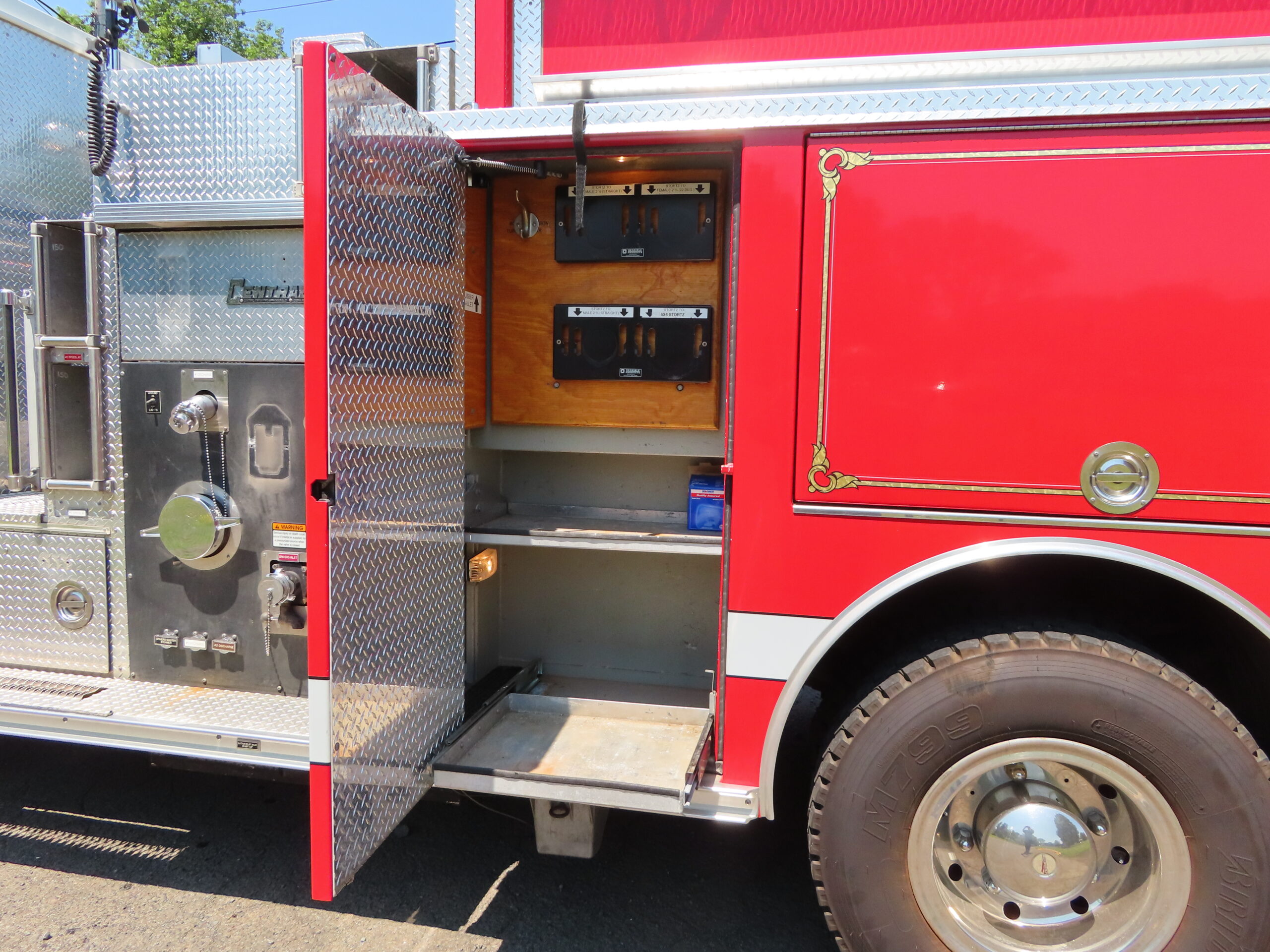

PULL OUT TRAY L1, REAR COMPT.
SUCTION HOSE: TWO (2), HARD 6”x10’
HOSE BED COVER: VYNL

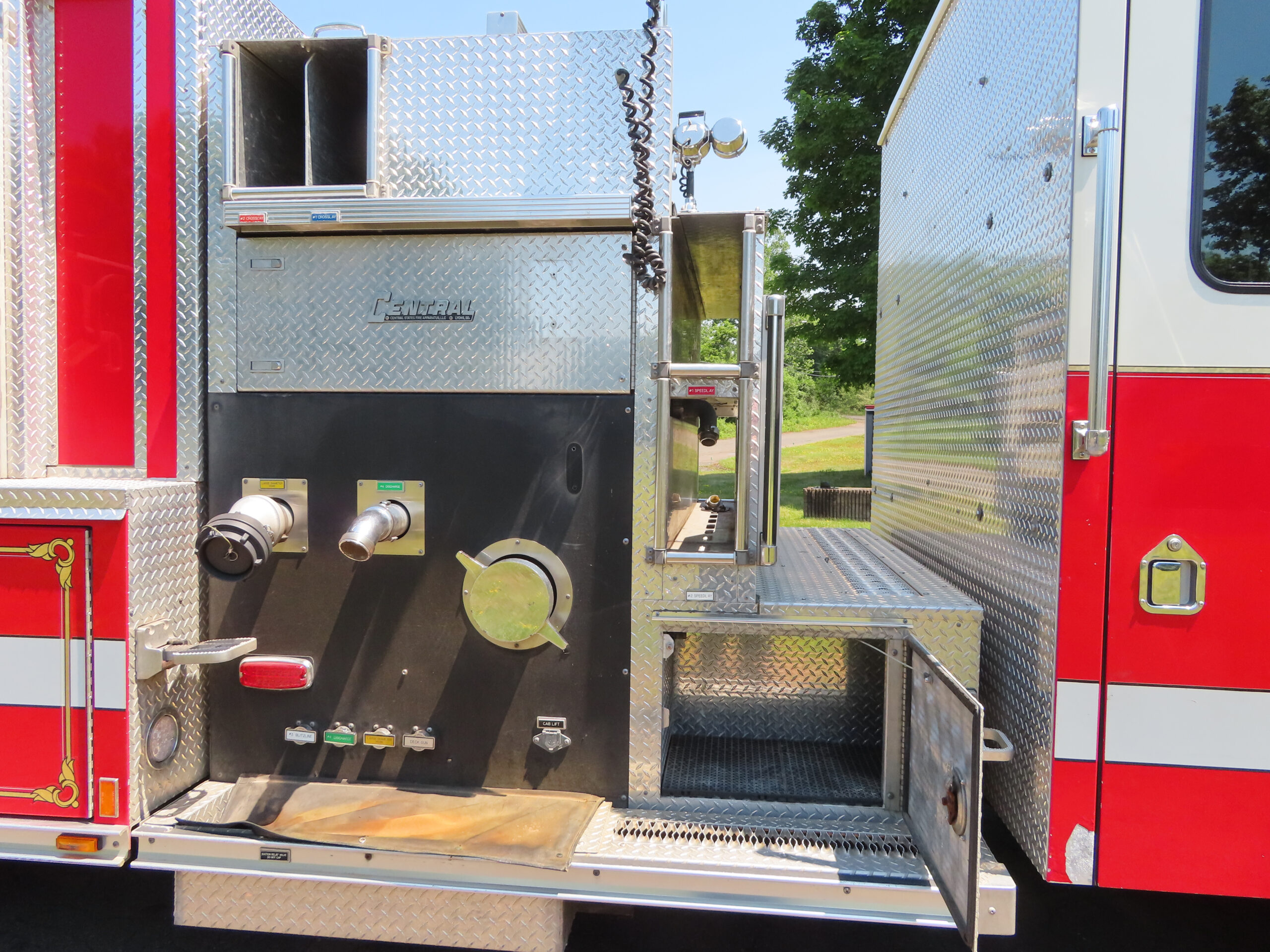

Pump & Tank

WATEROUS CXY PUMP
GPM: 1250
SINGLE STAGE MIDSHIP
WATER TANK SIZE: 1000
POLY WATER TANK
DECK GUN: 3” PIPE NO DECK GUN

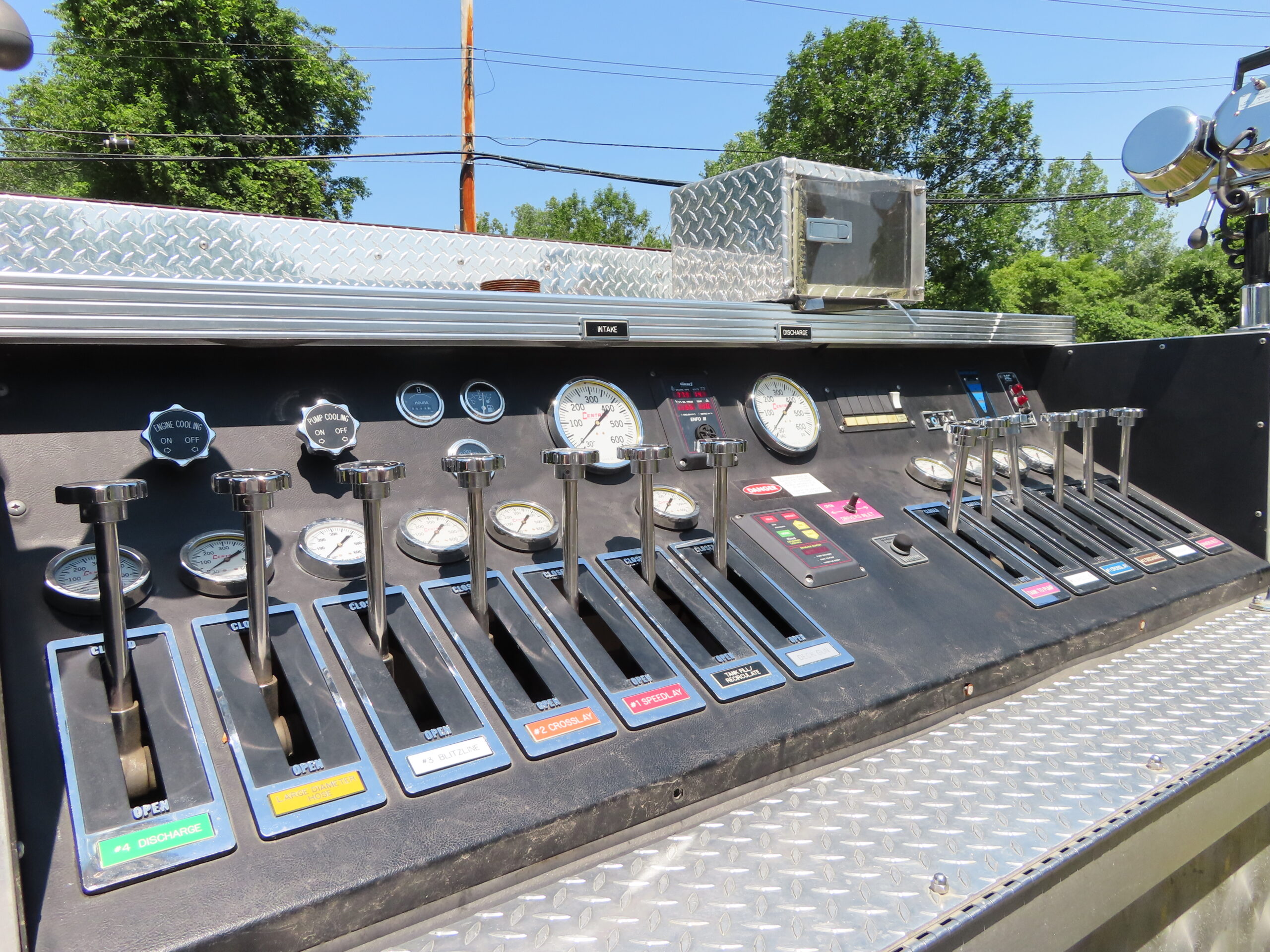

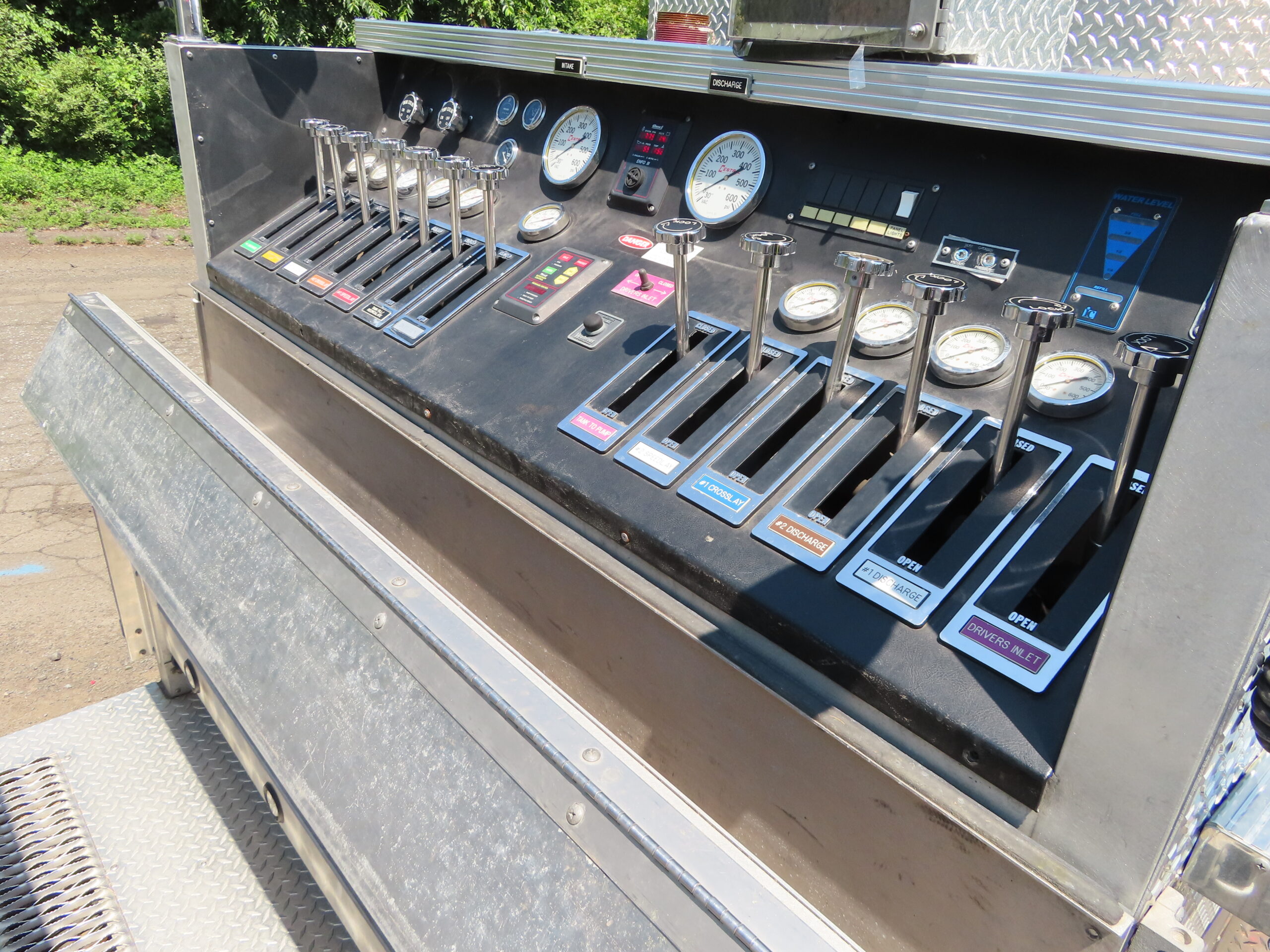

DISCHARGES: TWO (2), 2 ½” DSPP
ONE (1), 2 ½”; ONE (1), 3” OSPP

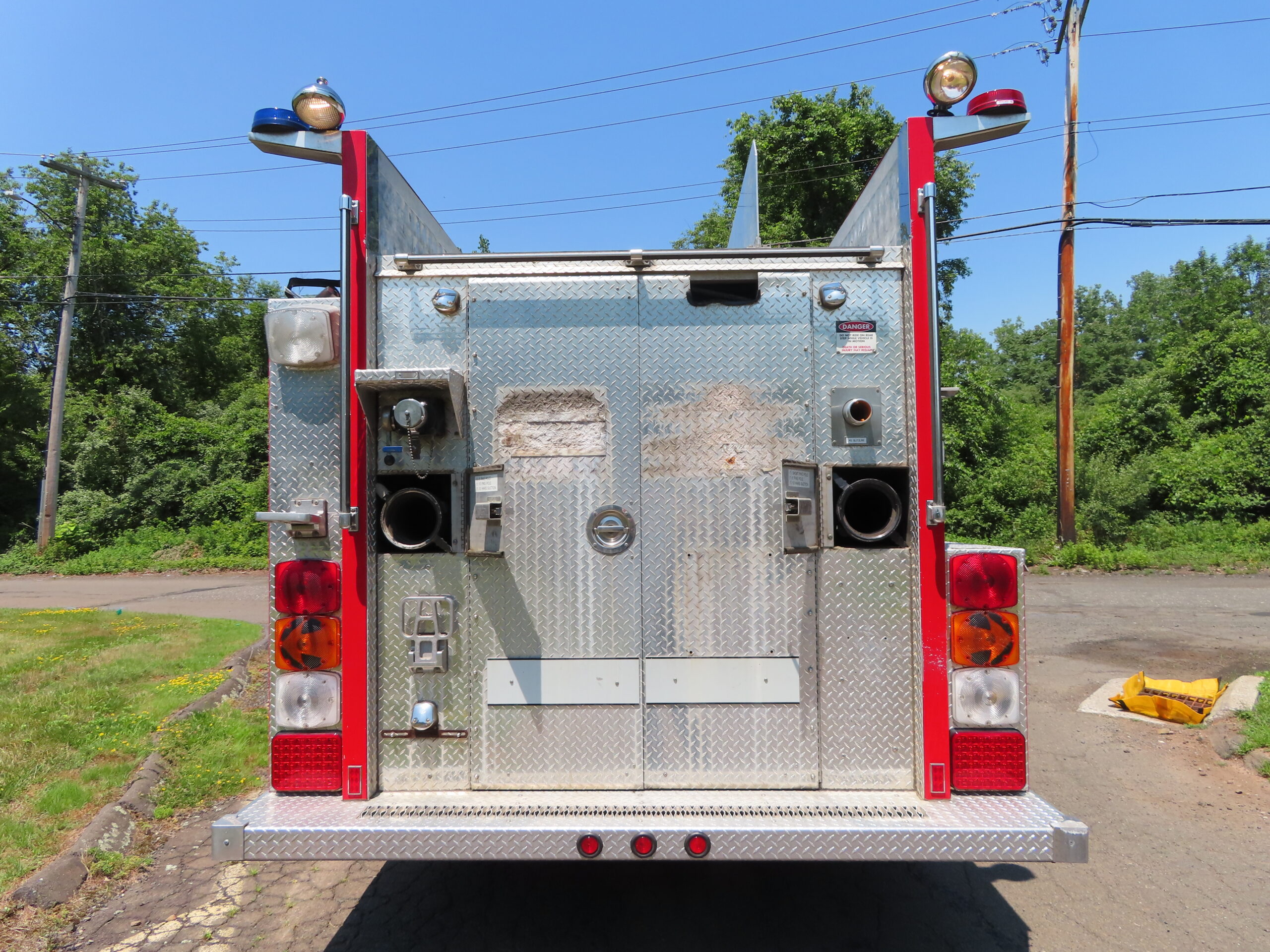

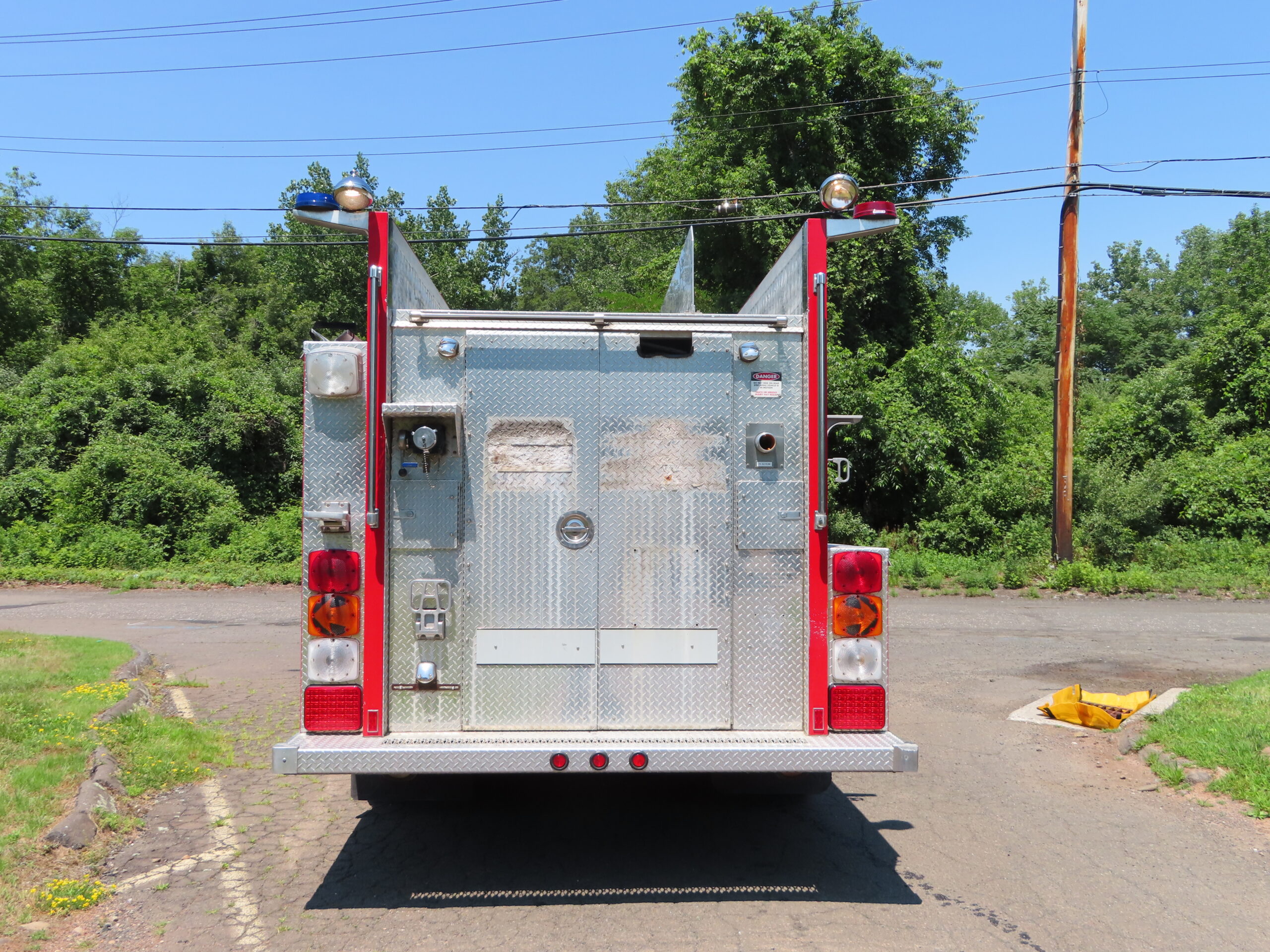

ONE (1), 2 ½” REAR
PRE-CONNECTS: TWO (2), 1 ½” SPEEDLAYS
TWO (2), 1 ½” CROSSLAYS

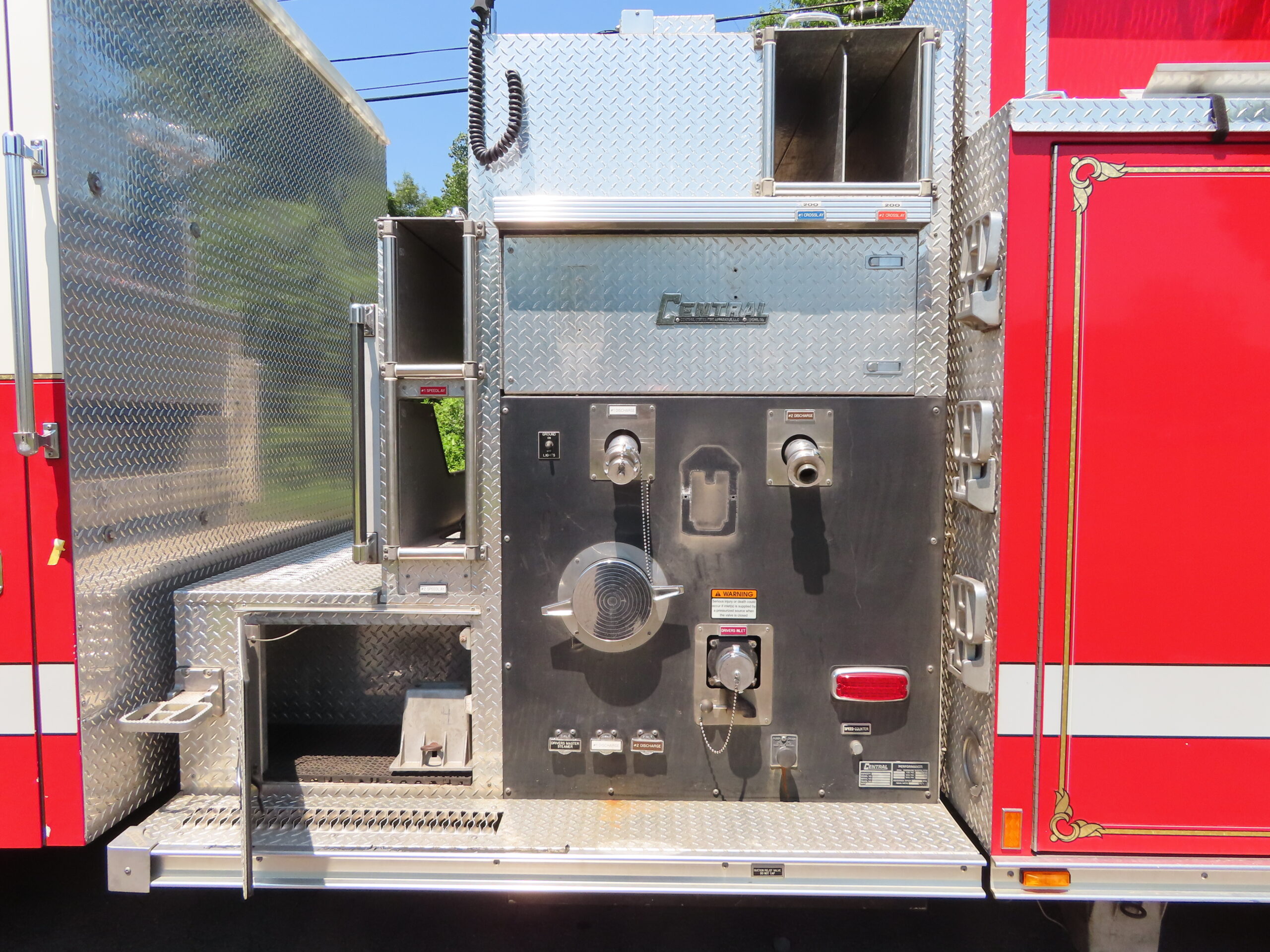

INTAKE SUCTIONS: ONE (1), 6” DSPP
ONE (1), 2 ½” DSPP
ONE (1), 6” OSPP
ONE (1), 2 ½” DIRECT TANK FILL REAR

Dimensions

MILEAGE: 32,322
ENG HRS: 2,374
HEIGHT: 9’ 9”
WIDTH: 8’ 4”
LENGTH: 29’ 9”
GVW: 40,540
WHEELBASE: 192”
