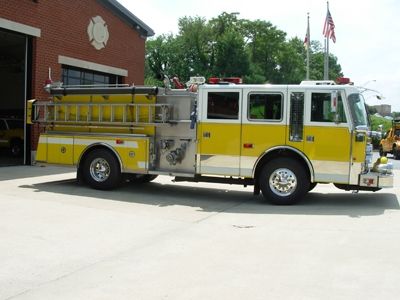

1991 Simon Duplex/Saulsbury 1500/500/40

General

CAB
Split-Tilt All Aluminum Cab
Ten (10) Personnel with Seating for Eight (8)
Four (4) SCBA Seats with Zico Brackets
All Seats Covered with Dura-Wear Material ‘ Gray/Black Tweed
Air-Ride Driver’s Seat
Cab Interior Black
Forward and Crew Cab Heaters
Air Conditioned
Tilt/Telescopic Steering Wheel
AM/FM Radio
Sigtronics Headset Communication System
EMS Compartment in Crew Cab
ENGINE
Detroit Diesel 8V92 (Rebuild June 2009 cost of $17,300)
Transfer Case Repair $8,500
New Tires Cost $1,800
480 Horsepower
1425 Ft. Lb. Torque
Jacobs Engine Brake
250 AMP Niehoff Alternator
Vertical Exhaust
TRANSMISSION
Allison HT741
Electronic with Touch Pad Controls
DRIVELINE
Spicer 1810 Universal Joints
BRAKES
Disc ‘ All Positions
Maxi-Brake ‘ Rear Axle
ICE CHAINS
On-Spot Brand
TIRES
Good Year Brand
All Tires New ‘ Summer 2008
Front ‘ 385/65R22.5 Steering Tread
Rear ‘ 1200R22.5 Mud and Snow
FUEL TANK
50 Gallon

HOSE BED CAPACITY (Left to Right)
200 Feet of 1 ¾’¿½ Pre-Connect
200 Feet of 1 ¾’¿½ Pre-Connect
1000 Feet of 5’¿½ LDH (Snap-Tite)
500 Feet of 3’¿½ Supply
150 Feet of 2 ½’¿½ Pre-Connect
Vinyl Hose Bed Cover (Aluminum Treadplate Cover at Front of Bed)

BODY
Manufactured by Saulsbury
All Stainless Steel
High Side Left Compartments (Total of 4)
Low Side Right Compartments (Total of 2)
Rear Step Compartment ‘ Open into Side Compartments
All Lower and Rear Doors ‘ Vertically Hinged
All Upper Doors ‘ Horizontally Hinged
Interior Compartment Lights
OPEN Compartment Hazard Warning System
Natural Stainless Steel Compartment Interior Finish
Aluminum Tool Mounting Boards in Left High Side Compartments

VISUAL WARNING LIGHTS
Whelen Strobe Lightbars – One (1) Large Forward, Two (2) Smaller on Side
Whelen RED Rotators with lower AMBER LED Flashers Rear Upper Stanchions
Whelen Strobe Lights ‘ Front, Side and Rear of Unit (Total of 12)
Two (2) Mars 888 Warning Lights
One (1) Roto-Ray
Headlight Flasher
Code 3 Rear Traffic Directional Light

AUDIBLE WARNING DEVICES
Federal Q2B Siren
PowerCall Electronic Siren
Dual Grover ‘Stuttertone’ Air Horns
Rear Step to Cab Back-up Buzzer System
Electronic Reverse Back-Up Alarm

ADDITIONAL EQUIPMENT:
1000 Feet of 5’¿½ LDH Snap-Tite Supply Hose
500 Feet of 3’¿½ Supply Hose
675 Feet of 1 ¾’¿½ Handline
150 Feet of 2 ½’¿½ Handline
Four (4) 1 ¾’¿½ Combination Nozzles
One (1) 2 ½’¿½ Combination Nozzle
Two (2) 2 ½’¿½ Double Males
Two (2) 2 ½’¿½ Double Females
Two (2) 2 ½’¿½ x 1 ½’ Reducers
Two (2) 6’¿½ NST X 10 Ft. Kocheck PVC Suction Hose
One (1) 6’¿½ Barrel Strainer
One (1) 2 ½’¿½ x 2 ‘ 1 ½’¿½ Leader Line Wye
One (1) 2 ½’¿½ Smooth Bore Nozzle
One (1) 6’¿½ NST X 2 ½’¿½ Female Reducer
One (1) 2 ½’¿½ Hydrant Valve
One (1) Akron Deck Gun ‘ Pre-Connected
One (1) 6’¿½ X 5’¿½ Storz TFT Piston Intake Relief Valve

Two (2) Adjustable Hydrant Wrenches
Four (4) Combination Spanner Wrenches with Holders (2)

One (1) 6 Lb. Pickhead Axe
One (1) 6 Lb. Flathead Axe
One (1) 10 Lb. Sledge Hammer
One (1) 30’¿½ Halligan bar
One (1) 54’¿½ Pinch Bar
One (1) CrowBar

One (1) Tool Box with Assorted Tools
One (1) EMS Bag

One (1) Edwards Reel with 150 Ft. of 10/3 Electric Cable
One (1) Extenda-Lite Electrical Junction Box
One (1) Portable 500 Watt Floodlight
One (1) Gas Powered PPV Fan

One (1) 2 ½ Gallon Water Extinguisher
One (1) 15 Lb. CO2 Extinguisher
One (1) 20 Lb. ABC Extinguisher

One (1) Drinking Water Jug
Two (2) Salvage Cover

One (1) 24 Ft. 2-Section Extension Ladder
One (1) 14 Ft. Roof Ladder
One (1) 10 Ft. Folding Ladder

Two (2) 6 Ft. Fiberglass Pike Poles
One (1) 10 Ft. Fiberglass Pike Pole
One (1) High-Rise Hose Pack with 100 Ft. of 1 ¾’¿½, 1 ¾’¿½ Nozzle, Leader Line Wye
One (1) Flat Shovel
One (1) Pointed Shovel
One (1) Fire Rake
One (1) Fire Broom

Pump

PUMP
Hale Model QSG150-235
1500 GPM
Two-Stage
Manual Transfer Valve
Hale Discharge Pressure Relief Valve
Air Operated Pump Shift
MC Products Water Level (New ‘ October 2008) and Foam Level Gauges
New 6’¿½ and 3 ½’¿½ Pressure Gauges ‘ October 2008
6’¿½ NST Steamer Inlets
Two (2) 2 ½’¿½ Gated Intakes ‘ Left Side
5’¿½ Front Intake with Air Operated Valve with Hose Well.
5’¿½ Front Intake Swivel
Ross Pressure Relief Valve
3’¿½ Tank-to-Pump Valve and Piping
1 ½’¿½ Tank Fill
Two (2) 2 ½’¿½ Left Side Discharges
Two (2) 2 ½’¿½ Right Side Discharges
Two (2) 1 ¾’¿½ Pre-Connects (1 with Foam Capabilities
Two (2) 1 ¾’¿½ Rear Pre-Connects
One (1) 2 ½’¿½ Rear Pre-Connect
One (1) 1 ¾’¿½ Front Bumper Discharge with Hose Well
One (1) 3’¿½ Deluge Discharge in Open Bin Compartment Above Pump

New Main Pump Shaft and Impeller Assembly ‘ October 2008
New Bearings, Seals and Gears in Transfer Case ‘ October 2008
2009 Pump Certification
BOOSTER REEL
Hannay Electric Rewind
Polished Stainless Steel Reel
200 Feet of 1’¿½ Booster Hose with Nozzle
Electric Rewind Switch with Master Switch on Left Side Panel
FOAM SYSTEM
Akron #2959 Foam Proportioning System
95 GPM Rated
40 Gallon Foam Integral in Main Water Tank
Plumbed to one (1) 1 ¾’¿½ Crosslay
WATER TANK
500 Gallon
Fiberglass

Electrical

GENERATOR
Onan 6 KW
Diesel Engine
Remote Start/Stop on Cab Dash and at Pump Panel
Two (2) 750 Watt Magna-Fire 3000 Floodlights
